Universal Joint on a tallbike?

Is there any reason it couldnt be done?

I'm going to pick up a cheap U-joint and use it instead of lining up the forks because the head tubes are two different angles. I cant imagine why it wouldnt work, but then I'm not exactly the smartest person when it comes to these things.

Although I have already learned abit from building this.
__________________

"the bus came by and I got on, that's when it all began...there was Cowboy Neal at the wheel of a bus to never-ever land."

wethepeople is offline   Reply With Quote
Old 01-18-07, 07:17 PM   #2
Rincewind8
Radfahrer

Rincewind8's Avatar

Join Date: Mar 2004
Bikes:
Posts: 656
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Just keep in mind, that a universal joint doesn't transmit rotation linear. Meaning the angle you turn one end is not the angle you get at the other end, except when it is straight. The larger the angle between the two axels the larger the discrpency. And at a certain angle it locks up.

http://en.wikipedia.org/wiki/Universal_joint
__________________
TH 1.81 (133kg*62)
Rincewind8 is offline   Reply With Quote
Old 01-18-07, 08:29 PM   #3
StokerPoker
Senior Member

Join Date: Jun 2006
Location: Livonia, MI
Bikes: Pacific Duece AL with mods
Posts: 873
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Rincewind8
Just keep in mind, that a universal joint doesn't transmit rotation linear. Meaning the angle you turn one end is not the angle you get at the other end, except when it is straight. The larger the angle between the two axels the larger the discrpency. And at a certain angle it locks up.

http://en.wikipedia.org/wiki/Universal_joint
would a CV (constant velocity) joint prevent these problems? It sounds like an expensive option. but I have a couple axel shafts sitting in a Geo Metro I'm parting out.
StokerPoker is offline   Reply With Quote
Old 01-18-07, 08:41 PM   #4
Rincewind8
Radfahrer

Rincewind8's Avatar

Join Date: Mar 2004
Bikes:
Posts: 656
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by StokerPoker
would a CV (constant velocity) joint prevent these problems? It sounds like an expensive option. but I have a couple axel shafts sitting in a Geo Metro I'm parting out.
It would:
http://en.wikipedia.org/wiki/Constant-velocity_joint

But it's usually also a very heavy option. I would use the universal joint and keep the angle fairly low (<<45).
__________________
TH 1.81 (133kg*62)
Rincewind8 is offline   Reply With Quote
Old 01-19-07, 09:07 AM   #5
frameteam2003
Senior Member

Join Date: Feb 2005
Location: Pleasanton Tx
Bikes: old,older.and very old
Posts: 1,119
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
A fairly cheep and small(think bicycle) universal joint is to use a universal socket.They would need to be welded in place.
frameteam2003 is offline   Reply With Quote
Old 01-19-07, 11:40 AM   #6
xlntRider79
crushing all limitations

Join Date: Sep 2004
Bikes:
Posts: 138
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
You might run into a problem if the unversal joint isn't machined to very precise tolerances. Universal joints are designed for constant rotation in one direction. If there's any "slop" between the pieces, it will be hard to keep the wheel perfectly straight, and steering will feel a bit wobbly.
xlntRider79 is offline   Reply With Quote
Old 01-19-07, 07:42 PM   #7
2manybikes
Dog is my co-pilot

2manybikes's Avatar

Join Date: Jun 2003
Bikes: 2 many
Posts: 15,505
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
Quote:
Originally Posted by wethepeople
Is there any reason it couldnt be done?

I'm going to pick up a cheap U-joint and use it instead of lining up the forks because the head tubes are two different angles. I cant imagine why it wouldnt work, but then I'm not exactly the smartest person when it comes to these things.

Although I have already learned abit from building this.

A friend of mine did exactly what you are thinking about. It works fine, I have ridden the bike.
2manybikes is offline   Reply With Quote
Old 01-19-07, 09:24 PM   #8
wethepeople
Long haired freak.
Thread Starter

wethepeople's Avatar

Join Date: Jun 2005
Location: Still stuck in hell.
Bikes: 2011 SE Old Man Flyer.
Posts: 6,280
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

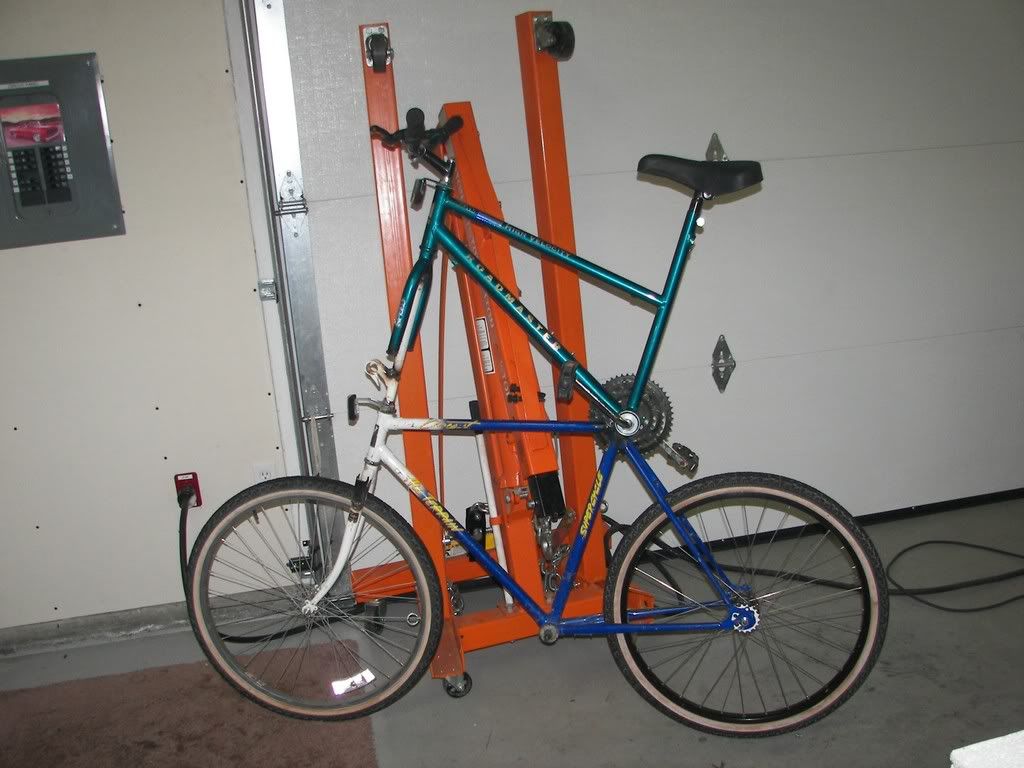

Well, no reason for it anymore. I got it to work, and here is some pics of the progress even though you guys have all seen tallbikes .



And here is something else a friend made a while back, and yes, it does work.
__________________

"the bus came by and I got on, that's when it all began...there was Cowboy Neal at the wheel of a bus to never-ever land."

wethepeople is offline   Reply With Quote
