I really want to do this, but I need some help.
A belt driven BMX. I have done a little bit of research, but not much has come of it. I was thinking about using a timing belt assembly for the drive system and milling it out to fit a casset hub and a bottom braket. I'm sure I could find a way to make all the spacing and such work, but i'm stumped on how to run the belt.

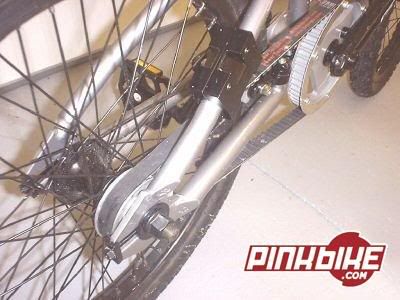

I have to somehow run it through the frame. In that photo it appears the frame has been cut then had a sleeve (clamp?) of some sort placed over the the spot on the frame. are there any good alternatives to this? Any other suggestions on what to use for the drive system other than a chain and sprocket (no shafts either)?
#3
You need a new bike
Join Date: Aug 2002
Posts: 5,433
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Likes: 0
Liked 4 Times
in
3 Posts
If you used a brazed steel frame, you could remove one of the stays then reattach it after slipping it through the belt. Not a good maintenance plan though.
In reality, except as a curiosity, a belt is not as efficient as a chain. I feel confidant that every known power transfer mechanism has been tested for a bike and nothing has been found to be as efficient as the chain and sprocket.
In reality, except as a curiosity, a belt is not as efficient as a chain. I feel confidant that every known power transfer mechanism has been tested for a bike and nothing has been found to be as efficient as the chain and sprocket.
#4
Senior Member
Join Date: May 2004
Posts: 284
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
Ion propulsion. The Japanese are flying their exploratory space craft home from an asteroid with this technology so how hard can it be? Why not a chain? This has been the transmission for bikes since the stone age and I am guessing the best transmission as well.
#5
Senior Member
Join Date: Nov 2004
Location: Between the mountains and the lake.
Posts: 16,681
Bikes: 8 bikes - one for each day of the week!
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 3 Times
in
3 Posts
To answer your question, you'll need to make a small roller/tension device on top of the right chain stay. Then you can run the belt over the stay. You'll need to remove the rear wheel to service the belt, but it's doable.
#6
You know you want to.
Join Date: Jun 2005
Location: Norman, Oklahoma
Posts: 1,894
Bikes: Pinarello Prince, 1980's 531 steel fixie commuter, FrankenMTB
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
Originally Posted by Expatriate
To answer your question, you'll need to make a small roller/tension device on top of the right chain stay. Then you can run the belt over the stay. You'll need to remove the rear wheel to service the belt, but it's doable.
and as for the naysayers...I'm not sure you guys understand the point of a project like this. I'm pretty sure he's not going for maximum efficiency. Belt-driven is really cool.
