    Chain rust/wear/cleaning

    okay first let me say that this is my chain. i bought this 85? miyata 310 off a guy who said it had been in his garage for the past couple years, but it was ~$1200 new (can't remember exact amount). anyways here are some pics of the chain, freshly cleaned chainrings, and dirty freewheel:

    wait, before you post that my chain is toast, in general how can one remove rust from an old chain?

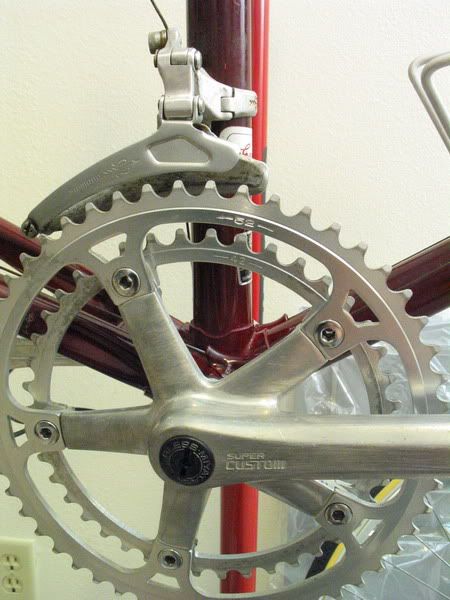

    cleaned chainrings

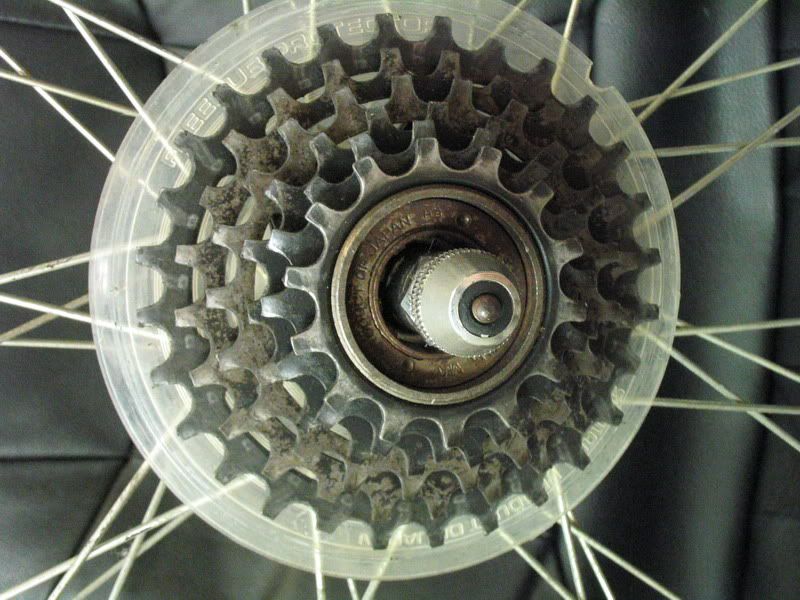

    uncleaned freewheel

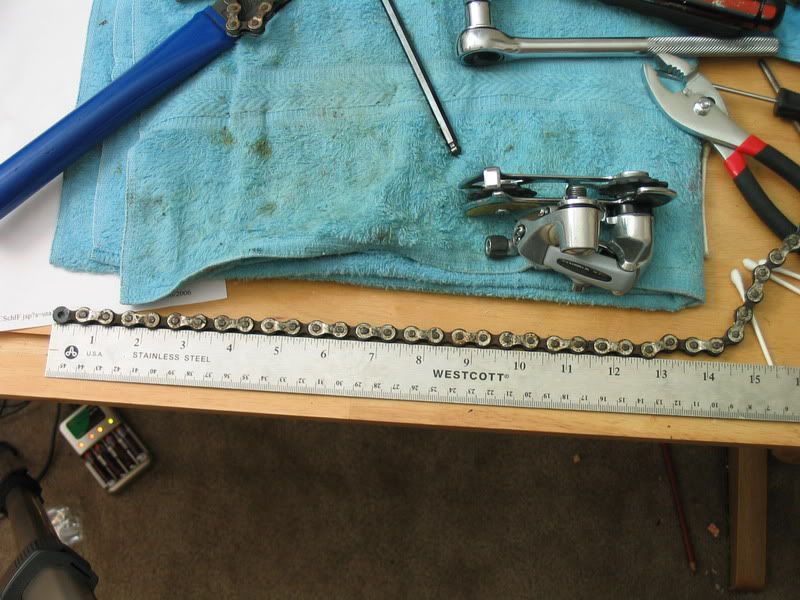

    chain length
    '82 Miyata 310, '87 Scott Boulder, '87 Schwinn Le Tour, '91 Cannondale SM500, '96 Schwinn Clear Creek, '99 Schwinn MesaGS, '05 Rockhopper

    ich bin

  2. #2
    Always find my way home
    Join Date
    Dec 2005
    Location
    Kankakee, IL
    My Bikes
    Madone, 8500
    Posts
    190
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Ive salvaged worse chains than this with solvent, a stiff wire brush and alot of elbow grease fueled by Guiness(for stength!). Cant do much for stretched chain tho.
    "Send lawyers, guns, and money"

  3. #3
    Senior Member
    Join Date
    Oct 2005
    Posts
    5,427
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    A new chain for that bike is what? 5-8 bucks. Just get a new chain, that will extend the life of your entire drive train in the long run.
    Il faut de l'audace, encore de l'audace, toujours de l'audace

    1980 3Rensho-- 1975 Raleigh Sprite 3spd
    1990s Raleigh M20 MTB--2007 Windsor Hour (track)
    1988 Ducati 750 F1

  4. #4
    Senior Member
    Join Date
    Aug 2005
    Location
    Pittsburgh, PA
    My Bikes
    '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
    Posts
    25,466
    Mentioned
    6 Post(s)
    Tagged
    0 Thread(s)
    It's really hard to tell from the photo but it seems the freewheel cogs are in very good condition so a new chain should mate with them wthout problems.

    As recommended, get a new chain. The work involved in cleaning up the old one isn't worth it and chains, particularly pre 9-speed, are cheap.

  5. #5
    Dog is my co-pilot 2manybikes's Avatar
    Join Date
    Jun 2003
    My Bikes
    2 many
    Posts
    13,692
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)
    Yes chains are cheap. Also riding and shifting knocks a lot of the rust off.
    [SIGPIC][/SIGPIC]

  6. #6
    = cyclist's tan rat_factory's Avatar
    Join Date
    Jun 2005
    Location
    the big D in the big T
    My Bikes
    '82 Miyata 310, '87 Scott Boulder, '87 Schwinn Le Tour, '91 Cannondale SM500, '96 Schwinn Clear Creek, '99 Schwinn MesaGS, '05 Rockhopper
    Posts
    297
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    man what was i thinking. i should just buy a new 6 speed hg chain. i scrubbed the damn thing for half and hour and realized i was ******** to try and use a chain streched 1/2 an inch. the real thing i was worried about was the new chain wearing the old cogs and chainrings unevenly. thanks
    Last edited by rat_factory; 04-20-06 at 09:32 AM.
    '82 Miyata 310, '87 Scott Boulder, '87 Schwinn Le Tour, '91 Cannondale SM500, '96 Schwinn Clear Creek, '99 Schwinn MesaGS, '05 Rockhopper

    ich bin

  7. #7
    d_D
    d_D is offline
    645f44 d_D's Avatar
    Join Date
    Sep 2003
    Location
    Oxford, Uk
    Posts
    482
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    If it's been sat in a garage the chain should be fine. The chain lube should have kept the chain internals free from rust. Surface rust on the outer surfaces is mostly cosmetic. Any rust at contact points will quickly get removed.

    It's really hard to see if the chain is streched or not in the photo. You need to measure from rivet centre to rivet centre not from the end of the plate. The chainrings and freewheel have very little wear. Usually there is visible wear to the teeth if used with a stretched chain.

    I'd measure the chain correctly and if it is stretched replace it. If it isn't stretched just do your nomal lube procedure and ride.

  8. #8
    Sceptical European
    Join Date
    Sep 2005
    Location
    Norway
    Posts
    51
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    The way that ruler is placed, it's easiest to measure from the 1/2" mark (the start of one plate) to the 12 1/2" mark (where you should find the start of another plate). You'll then see that the chain is only 1/16" or so longer than a new one.

  9. #9
    Bike Junkie roccobike's Avatar
    Join Date
    Jun 2005
    Location
    South of Raleigh, North of New Hill, West of Harris Lake, NC
    My Bikes
    Giant OCR-C, Specialized Tarmac, Specialized Stumpjumper FSR, Stumpjumper Comp, 05 Rockhopper, 88 & 92Nishiki Ariel, 01 Bianchi Campione, 87 Centurion Ironman, 92 Paramount, 97 Lemond
    Posts
    8,891
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Whenever I measure a chain, I measure it while it is mounted. I've recovered chains that had some mild, not deep, rust by first cleaning in Clorox bleach, then rinse and place immediatley in Simple Green then back to bleach then finally simple green followed by a thorough rinse. Wipe the chain, then place lube on the chain surfaces to prevent rusting when the remaining water evaporates. BUT, if the chain still shows rust, then the rust is too deep. Even if the visible rust is removed by riding with the chain in place, I would be concerned that the metal surfaces are scored and may damage the cassette. Looking at the chain in question, I would probably just replace it.
    Roccobike BF Official Thread Terminator
