Hussefelt Insert

I'm having trouble with the insert in the non-drive side of my cranks. When I try to take the pedal off the insert comes out with it. Got any tricks to get the pedal off and leave the insert in?
__________________
Like a circus monkey on a stolen Harley......
mtnbiker66 is offline   Reply With Quote
Old 06-25-06, 06:50 PM   #2
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 28,776
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Locktite.
HillRider is offline   Reply With Quote
Old 06-25-06, 07:46 PM   #3
Moose
mousse de chocolat

Moose's Avatar

Join Date: Jul 2001
Location: Northeast Ohio, USA
Bikes: Masi Speciale Fixed, Fuji America Fixed, "Modernized" Gitane
Posts: 1,141
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I had that exact problem, just backed out the pedal with the insert attached and slathered the insert threads with JB Weld and screwed it back in. Cleaned up the overflow and let it sit for a day and then was able to remove the pedal no problem. Just be sure not to get the JB Weld on or near the pedal spindle or threads, just the insert threads.
Moose is offline   Reply With Quote
Old 06-25-06, 07:51 PM   #4
mtnbiker66
Old School Rad
Thread Starter

mtnbiker66's Avatar

Join Date: Sep 2004
Location: The old Mountains
Bikes: Blur LT
Posts: 8,212
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Moose
I had that exact problem, just backed out the pedal with the insert attached and slathered the insert threads with JB Weld and screwed it back in. Cleaned up the overflow and let it sit for a day and then was able to remove the pedal no problem. Just be sure not to get the JB Weld on or near the pedal spindle or threads, just the insert threads.
I tried the red locktite,I'm out of the green ( I've used it to set bearing in industrial equipment.). I may try the JBweld thing. Thanks
__________________
Like a circus monkey on a stolen Harley......
mtnbiker66 is offline   Reply With Quote
Old 06-25-06, 08:05 PM   #5
Moose
mousse de chocolat

Moose's Avatar

Join Date: Jul 2001
Location: Northeast Ohio, USA
Bikes: Masi Speciale Fixed, Fuji America Fixed, "Modernized" Gitane
Posts: 1,141
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Loctite works best on good threads. If your problem is anything like mine, the threads on the crankarm are messed up because the insert is epoxied in there in the first place. Someone didn't grease the pedal threads and/or overtightened the pedal causing the insert to break loose when the pedal removal was attempted, taking some of the aluminum threads with it.

Someone suggested to me that pedal washers should be used with these cranks. I say just use grease on the pedal threads and don't overtighten!
Moose is offline   Reply With Quote
Old 10-23-06, 06:40 PM   #6
okrobie
Junior Member

Join Date: Oct 2006
Location: Jacksonville FL
Bikes: Specialized Allez Comp, Schwinn Mesa
Posts: 16
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Hi all, Thanks for having this cool forum.

I had the same problem, but I didn't belong to the forum and I buggered up the insert trying to get it off the pedal. The method suggested here would have saved me some grief. Anyway I called SRAM and they said to take the cranks to a local bike shop and they would replace them free. My LBS called them and as far as I know they are on the way. I inderstand the factory mod uses a setscrew screwed somehow into the insert. I'll let you know when they arrive.

Best regards, Jim
okrobie is offline   Reply With Quote
Old 10-27-06, 01:31 PM   #7
okrobie
Junior Member

Join Date: Oct 2006
Location: Jacksonville FL
Bikes: Specialized Allez Comp, Schwinn Mesa
Posts: 16
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Wow did I ever have a suprise. Like Christmas.

My LBS called this morning and informed me that the replacement for my crank had arrived. He went on to tell me that they no longer had replacement cranks for that set, so they sent me an upgrade.

What I got was a brand new set of Howitzer Hussefelt cranks, including chainrings and... an upgraded bottom bracket. It is the new type with external bearings. (Shimano Hollowtech II)

I guess my choice for drivetrain stuff in the future will be Truvativ!!! I have never heard of such good service.

Best regards to all, Jim

P.S. The inserts are pinned in place so they will not rotate

Last edited by okrobie; 10-27-06 at 06:03 PM.
okrobie is offline   Reply With Quote
Old 10-27-06, 07:44 PM   #8
Moose
mousse de chocolat

Moose's Avatar

Join Date: Jul 2001
Location: Northeast Ohio, USA
Bikes: Masi Speciale Fixed, Fuji America Fixed, "Modernized" Gitane
Posts: 1,141
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
This comes as no surprise to me, these guys really understand customer service.
Moose is offline   Reply With Quote
Old 10-27-06, 08:47 PM   #9
MattP.
Obeying Gravity

Join Date: Oct 2004
Location: Bellingham, WA
Bikes:
Posts: 2,962
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Warranty! They will send you knew ones, couple of guys at my shop got theirs warrantied The new ones have a pin that keeps the insert in.
MattP. is offline   Reply With Quote
Old 10-27-06, 08:53 PM   #10
MattP.
Obeying Gravity

Join Date: Oct 2004
Location: Bellingham, WA
Bikes:
Posts: 2,962
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

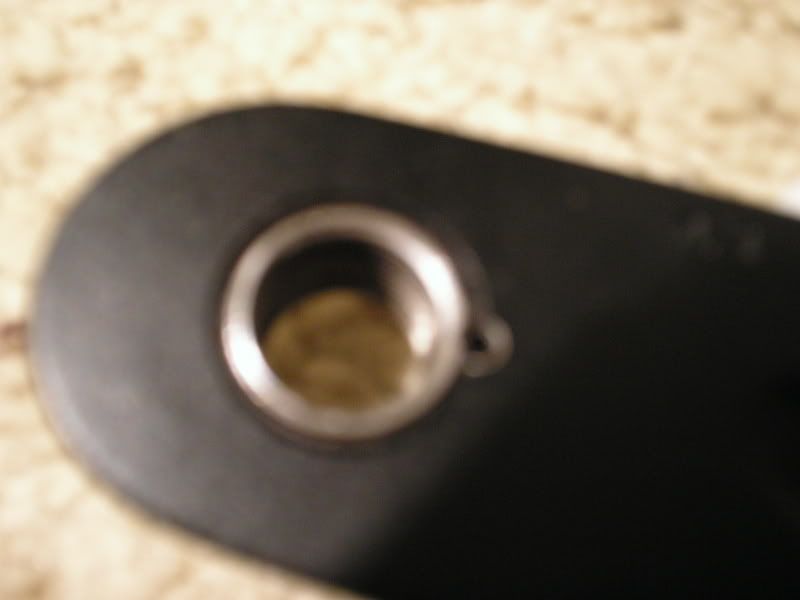

I just happened to have a set of the warrantied Hussefelts around the house Sorry for the horrible pic, but I think you'll be able to see the pin
