Tight tire install... tips?

Stupid search function... i tried going back like 15 pages but couldn't find the recent thread..

new tubes,tires and wheels.. both front and back same amount of tire left to be folded in
Jakedatc is offline   Reply With Quote
Old 01-03-08, 10:46 PM   #2
operator
cab horn

Join Date: Jun 2004
Location: Toronto
Bikes: 1987 Bianchi Campione
Posts: 28,306
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
1) Tire levers
2) Check that your rimtape isn't too wide
operator is offline   Reply With Quote
Old 01-03-08, 10:49 PM   #3
JTGraphics
Senior Member

JTGraphics's Avatar

Join Date: Dec 2006
Location: So Cal
Bikes:
Posts: 2,673
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Remove a little air from tube so you can push the tire bead into the center of the rim (area in red) were the deepest part is you only need to do this to the side your trying to get on not both sides this will give you the needed room to get it in. Pushing in any part will do give it a try.

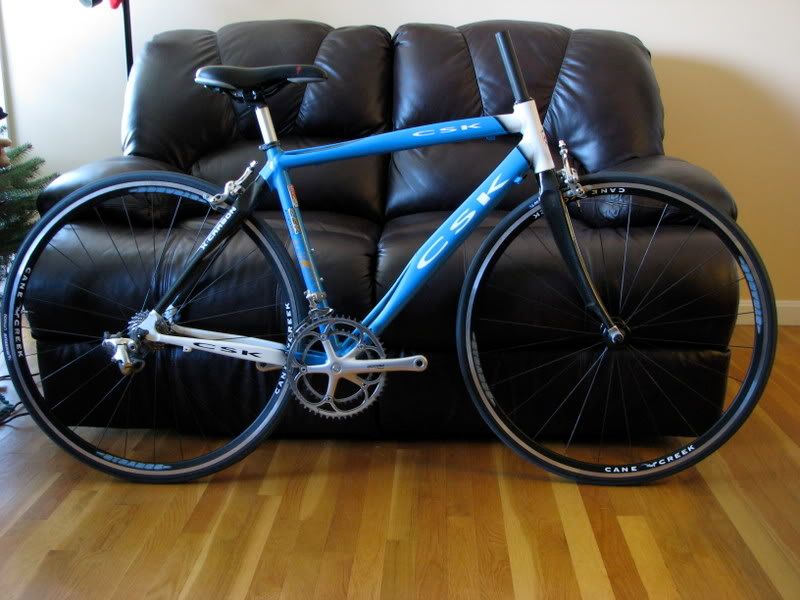

Attached Images
File Type: jpg tire1.jpg (55.5 KB, 76 views)
__________________
It may not be fancy but it gets me were I need to go.
http://www.jtgraphics.net/cyclist_bicycles.htm
JTGraphics is offline   Reply With Quote
Old 01-03-08, 10:51 PM   #4
LastPlace
Senior Member

Join Date: Jun 2005
Bikes:
Posts: 776
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
'TIRE BEAD JACK'..............Check out the bottom of the page.


http://www.koolstop.com/Accessories/index.php


Never met a tire too tough to tame with a 'Tire Bead Jack'.
LastPlace is offline   Reply With Quote
Old 01-04-08, 05:51 AM   #5
bindibadgi
Member

bindibadgi's Avatar

Join Date: Jan 2008
Bikes: Steel Avanti Hammer
Posts: 44
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I just installed some tight as buggery tyres on my bike so I feel your pain. Here's what worked for me:

Use some talcom powder all over so it doesn't stick to the rim and get too tight
Warm up the tyre somehow as suggested
Get the bead right in (towards the hub) as this gives you more room
Use levers
When it's nearly on (like your picture), sit it up with the bit to be done at the top and facing away from you, grab the top and try to roll it back towards you.

If all else fails, do what I did and make some little string clamps to hold the bead in so you have enough to work with (yes I actually did this).

That's my newbie contribution. I hope it helps. I also hope the tyres stretch once they're on because I don't want all that pain out on the road!
bindibadgi is offline   Reply With Quote
Old 01-04-08, 06:10 AM   #6
onbike 1939
Senior Member

onbike 1939's Avatar

Join Date: Dec 2004
Location: Fife Scotland
Bikes: Airnimal Chameleon; Ellis Briggs; Moulton TSR27 Moulton Esprit
Posts: 1,989
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
These are the answer to not only your problem but anyone having this difficulty. One of the levers is placed on the top of the rim and then hooked over the tyre in order to pull it up and over into position.


http://shrunk.net/8ae3a5db
onbike 1939 is offline   Reply With Quote
Old 01-04-08, 09:01 AM   #7
Da Tinker
Can't ride enough!

Da Tinker's Avatar

Join Date: Aug 2002
Location: south Louisiana
Bikes: IFab Crown Jewel, Giant Defy, Hardtail MTB, Fuji finest, Bianchi FG conversion
Posts: 1,235
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Warm the tires up in the clothes dryer.

In spite of 'standards', there are variations in tire & rim dimensions. If you use a tire that is on the small end of the standard & a rim on the large end, you wind up with a very tight fit. On the other end of the spectrum, you could wind up with combo that could slip right off the rim.

Ask a well seasoned bike mechanic about different combos.
Da Tinker is offline   Reply With Quote
Old 01-04-08, 09:20 AM   #8
twobikes
Healthy and active

twobikes's Avatar

Join Date: Mar 2007
Location: Caldwell, Idaho USA
Bikes: mid-60's Dunelt 10-speed, Specialized Allez Sport Tripple, Trek 7.2 FX
Posts: 887
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I would use tire levers, but make sure the tube is fully inside the rim and that you do not catch it with the levers and pinch it. Some tires and rims are simply just that way and are tough to mount. My 27 x 1 1/4 tires are impossible to mount without tire levers.
twobikes is offline   Reply With Quote
Old 01-04-08, 09:43 AM   #9
Road_Biker
Goggles & Doo-rag ready!

Road_Biker's Avatar

Join Date: Aug 2007
Location: Hampton Roads, VA
Bikes:
Posts: 48
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I have had the best luck by keeping the bead of the tire at the rim center of the wheel. That provides the most length when pulling the bead over the rim. Keeping the sidewall beads compressed and in the center of the wheel rim can sometimes eliminate the need for tire levers. You need hair on your fingers for that to work.
Road_Biker is offline   Reply With Quote
Old 01-04-08, 11:05 AM   #10
Bolo Grubb
Senior Member

Bolo Grubb's Avatar

Join Date: Jun 2004
Location: Tucson, AZ
Bikes: 1984 Trek 720 with a Nexus hub, 2016 Cannondale Synapse
Posts: 1,801
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 17 Post(s)
since you got a lot of good suggestions for dealing with the tight tire, I will give you one for dealing with the search function.

Use Google. Like this. In the Google search window type "tight tire site:www.bikeforums.net" with out the quotes and it with search this sight for those key words (change key word(s) as needed). I have found this to be very helpful for me.
Bolo Grubb is online now   Reply With Quote
Old 01-04-08, 11:25 AM   #11
lokerola
Senior Member

lokerola's Avatar

Join Date: Jan 2005
Location: Alexandria VA
Bikes: Specialized Allez Comp Cro-Mo
Posts: 464
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
One more insight on tire levers. Last month I installed a new set of tubes and tires on my Neuvation wheels and within 10 mins on the trainer I got a flat. I patched the tube and the next day on the road, another flat (same tire and same tube, but in a different location). I replaced the entire tube this time. Next day another flat with the new tube. Now I was getting pissed. I replaced the rim tape, and installed yet another tube and yet another flat within 20 miles. What the heck? I was starting to think I was crazy. I then realized these were tough tires to install I had switched to some new tire levers with steel cores (I had broked the 2 plastic ones I had lying around). During the instal the steel cored tire levers were damaging the inside of the rim where the last bit of tire was getting put on- putting little sharp edges on the inside of the rims. I ended up gently sanding down the inside of the rim and switching back to plastic tire levers and no more flats.
__________________
Our Lady of Blessed Acceleration, don't fail me now.




lokerola is offline   Reply With Quote
Old 01-04-08, 11:57 AM   #12
Jakedatc
Senior Member
Thread Starter

Jakedatc's Avatar

Join Date: Oct 2007
Location: Lil Rhody
Bikes:
Posts: 2,541
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Thanks for all the great info.. I left them 90% on the wheel last night in a warm room and this morning they went on with only a bit of elbow grease and the pull the bead inward trick.. didn't even need the tire irons today.

success
Jakedatc is offline   Reply With Quote
Old 01-04-08, 12:06 PM   #13
twobikes
Healthy and active

twobikes's Avatar

Join Date: Mar 2007
Location: Caldwell, Idaho USA
Bikes: mid-60's Dunelt 10-speed, Specialized Allez Sport Tripple, Trek 7.2 FX
Posts: 887
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Bolo Grubb View Post
Use Google. Like this. In the Google search window type "tight tire site:www.bikeforums.net" with out the quotes and it with search this sight for those key words (change key word(s) as needed). I have found this to be very helpful for me.
Thanks much for the tip. It works better than the regular BF search function and works well on other sites, too.
twobikes is offline   Reply With Quote
Old 01-04-08, 05:38 PM   #14
bindibadgi
Member

bindibadgi's Avatar

Join Date: Jan 2008
Bikes: Steel Avanti Hammer
Posts: 44
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Yes, thanks Bolo Grubb for the tip. I always search that way, since it seems to beat all the forum search functions I've ever come across.

Google is our friend.
bindibadgi is offline   Reply With Quote
Old 01-04-08, 10:25 PM   #15
Coyote2
Senior Member

Coyote2's Avatar

Join Date: Sep 2005
Bikes:
Posts: 2,393
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
FYI -- DON'T use tire levers to install tire - you'll probably pinch and puncture the tube. There is a way of gripping and twisting the tire to get it mounted when they fit so tightly -- I can't describe it on the 'net, but any decent mechanic can show you the move in 5 seconds. Just ask at your LBS.
Coyote2 is offline   Reply With Quote
Old 01-04-08, 10:56 PM   #16
Toyman991
Senior Member

Join Date: Feb 2005
Location: Tampa
Bikes:
Posts: 96
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Hah! It's because they're Michelins. I use Continentals on two of my bikes and they're a breeze to install. The Celeste Michelin Axials on my Bianchi on the other hand...
Toyman991 is offline   Reply With Quote
Old 01-05-08, 12:57 AM   #17
jcjordan
JCJordan

Join Date: Jan 2008
Bikes: Trek 1500, Trek 7200FX and The Fuga
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Coyote2 View Post
FYI -- DON'T use tire levers to install tire - you'll probably pinch and puncture the tube. There is a way of gripping and twisting the tire to get it mounted when they fit so tightly -- I can't describe it on the 'net, but any decent mechanic can show you the move in 5 seconds. Just ask at your LBS.
In winter I always have to use the tire levers to get my Conti Force/Attacks on to the rims, GP 4000s are OK, but the F/A are just to tight once it gets down below 8C.

Never pinched a tube yet, but I agree that it is a big risk though.
jcjordan is offline   Reply With Quote
Old 01-05-08, 10:57 PM   #18
Falchoon
Senior Member

Falchoon's Avatar

Join Date: Oct 2002
Location: Oz
Bikes:
Posts: 915
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by Toyman991 View Post
Hah! It's because they're Michelins. I use Continentals on two of my bikes and they're a breeze to install. The Celeste Michelin Axials on my Bianchi on the other hand...
Yeh I had great trouble trying to get Michelins on and off a previous bike, I now use Continental GP4000 and they are super easy. I was told by a bike mechanic to use talcum powder too.
Falchoon is offline   Reply With Quote
Old 01-05-08, 11:19 PM   #19
SweetLou
Senior Member

SweetLou's Avatar

Join Date: Jul 2007
Bikes:
Posts: 2,114
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Start at the valve, don't end at the valve.
SweetLou is offline   Reply With Quote
Old 01-05-08, 11:48 PM   #20
Spiduhman
Senior Member

Spiduhman's Avatar

Join Date: Nov 2007
Location: CenCal - SLO
Bikes: S2, Wilier GTR (Arr), Giant VT, Myata 3-10
Posts: 663
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by SweetLou View Post
Start at the valve, don't end at the valve.
Ya, and wipe some spit on the tight part of the bead - before the tight moment!
Spiduhman is offline   Reply With Quote
Old 01-06-08, 12:34 AM   #21
Wil Davis
Curmudgeon

Wil Davis's Avatar

Join Date: Aug 2005
Location: Nausea, New Hamster
Bikes: (see http://wildavis.smugmug.com/Bikes) Bianchi Veloce (2005), Nishiki Cascade (1992), Schwinn Super Sport (1983)
Posts: 1,572
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by SweetLou View Post
Start at the valve, don't end at the valve.
Sounds like bad advice…

…I always start opposite the valve, and work around from both sides to finish at the valve.

Just think about it for a moment; if you start at the valve, the bead of the tyre won't sit as low in the rim because the valve will be in the way; starting from opposite the valve, will make it easier to get the bead as low in the rim as possible, thus making it easier to get the bead over the rest of the rim.

- Wil
Wil Davis is offline   Reply With Quote
Old 01-06-08, 01:17 AM   #22
SweetLou
Senior Member

SweetLou's Avatar

Join Date: Jul 2007
Bikes:
Posts: 2,114
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
No, you should start at the stem. You can get the bead down far enough to get the tire on. But ending at the stem complicates things. The stem will only be partially through the hole, making it harder to get the tire on and the possibility of damaging the stem. Unless you have the stem all the way down, then the tube won't be fully in the tire giving a better chance of catching the tube underneath the tire, again, a bad thing.

Start at the stem and end at the opposite side.
SweetLou is offline   Reply With Quote
Old 01-06-08, 08:22 AM   #23
Wil Davis
Curmudgeon

Wil Davis's Avatar

Join Date: Aug 2005
Location: Nausea, New Hamster
Bikes: (see http://wildavis.smugmug.com/Bikes) Bianchi Veloce (2005), Nishiki Cascade (1992), Schwinn Super Sport (1983)
Posts: 1,572
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
With the greatest of respect, SweetLou, what you're saying makes very little sense…

- Wil
Wil Davis is offline   Reply With Quote
Old 01-06-08, 09:40 AM   #24
Moose
mousse de chocolat

Moose's Avatar

Join Date: Jul 2001
Location: Northeast Ohio, USA
Bikes: Masi Speciale Fixed, Fuji America Fixed, "Modernized" Gitane
Posts: 1,141
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I always start at the valve. I have never failed to complete any tire install.
__________________
I feel more like I do now than when I first got here.
Moose is offline   Reply With Quote
Old 01-06-08, 09:56 AM   #25
DDYTDY
Senior Member

DDYTDY's Avatar

Join Date: Nov 2006
Location: Methuen, Massachusetts
Bikes:
Posts: 519
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Moose View Post
I always start at the valve. I have never failed to complete any tire install.
Me 2
DDYTDY is offline   Reply With Quote
