Remove a cassette with missing lockring?

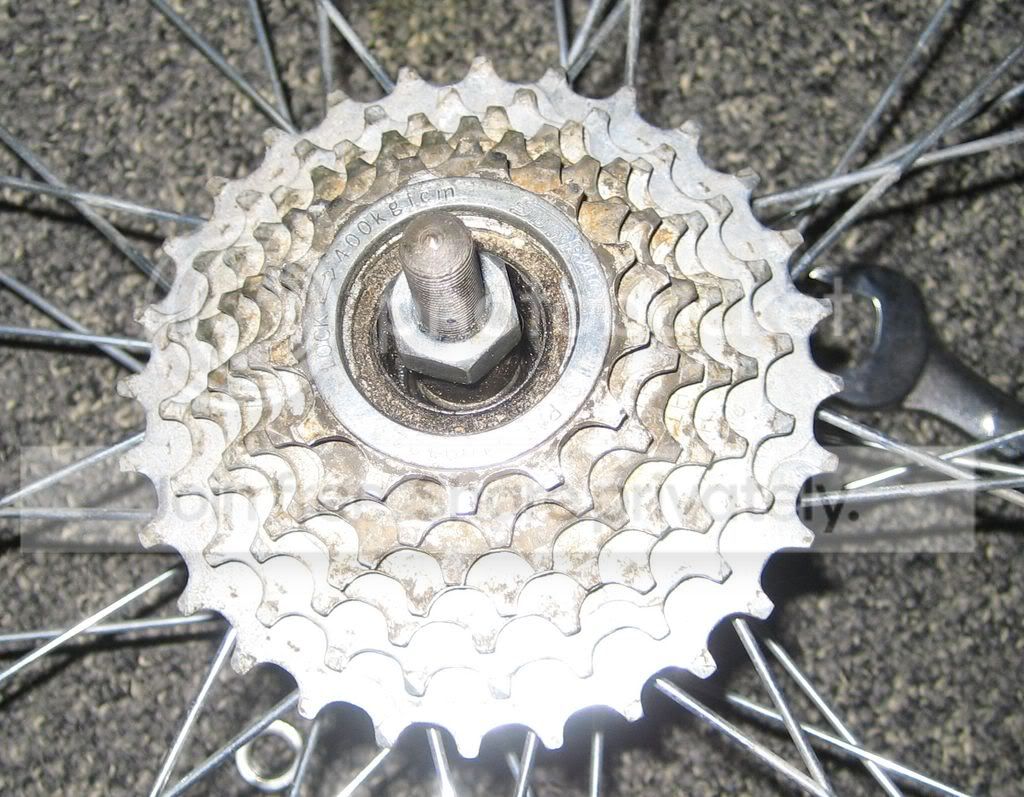

I have an inherited 1997 Fuji Odessa MTB. I'm trying to replace the rear cogs (7-speed) and went to remove the (what I believe to be a cassette) then noticed there's no lock ring. Strange, even though the visible ring says LOCK. It says Sun Race on it. I have the Park FR-5 which only fits on the way inner splines that dosnt rotate. Here's what it looks like



Am I missing something or is there really no lock ring on there? How do I get this cassette off? Or is it a freewheel? Help Appreciated. Thanks.
thehum is offline   Reply With Quote
Old 03-27-08, 06:27 PM   #2
Camilo
Senior Member

Join Date: Apr 2007
Bikes:
Posts: 4,077
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 42 Post(s)
This might help:
http://www.parktool.com/repair/readhowto.asp?id=48
Camilo is offline   Reply With Quote
Old 03-27-08, 06:35 PM   #3
thehum
Senior Member
Thread Starter

thehum's Avatar

Join Date: Dec 2007
Location: Boston, MA
Bikes:
Posts: 278
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
hey i am actually following that guide but i'm still confused because it says "lock" but doesn't have a lock ring so I suspect its a freewheel but would like verification. thanks.
thehum is offline   Reply With Quote
Old 03-27-08, 06:41 PM   #4
Little Darwin
The Improbable Bulk

Little Darwin's Avatar

Join Date: Jul 2005
Location: Wilkes-Barre, PA
Bikes: Many
Posts: 8,401
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
On some 7 speed cassettes the small cog is the lock ring.

You will need 2 chain whips, one to hold the cassette, and one to rotate the small cog counter-clockwise.

Things will look familiar once the small cog is removed.

EDIT: The UG cassette is hard to find, so if you are thinking of replacing, you have only a few choices.
__________________
Slow Ride Cyclists of NEPA

People do not seem to realize that their opinion of the world is also a confession of character.
- Ralph Waldo Emerson
Little Darwin is offline   Reply With Quote
Old 03-27-08, 07:05 PM   #5
thehum
Senior Member
Thread Starter

thehum's Avatar

Join Date: Dec 2007
Location: Boston, MA
Bikes:
Posts: 278
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Well I figured it out. It was actually a Freewheel. I managed to unscrew it using the FR-5 lockring removal tool. All is well. Fooled me. Thanks though.
thehum is offline   Reply With Quote
Old 03-27-08, 07:57 PM   #6
BCRider
Senior Member

BCRider's Avatar

Join Date: Mar 2008
Location: The 'Wack, BC, Canada
Bikes: Norco (2), Miyata, Canondale, Soma, Redline
Posts: 5,456
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I was going to say that it IS a freewheel. In your picture you can see down along the axle much too far for it to be a freehub setup.
