Rear Derailleur cable: Clamp on inside or outside of bolt?

When I'm stringing my rear derailleur (10sp DA) I thought I was supposed to clamp the cable on the in-board side of the clamp bolt. (As pictured)


However I had the derailleur installed at the LBS, and the mechanic guy says "Oh yeah, it is better to clamp the cable on the outside of the bolt" -something about it tends to want to bend the pulleys into the spokes a little over time, even with the correct limit adjustment.
He also clipped of the little "finger" deal on the washer of the clamp bolt for some reason while doing this. It operates fine as is; but I'm wondering, is this guy full of crap? I mean Shimano designed it to be on the inside I think, so what the hell?

Anyone else ever heard of this?
Bevo Bill is offline   Reply With Quote
Old 11-10-08, 03:51 PM   #2
roadfix
hello

roadfix's Avatar

Join Date: May 2003
Location: Los Angeles
Bikes:
Posts: 18,557
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
If the cable is not anchored on the correct side the derailleur will not index properly. Doing so alters the pull ratio.
roadfix is offline   Reply With Quote
Old 11-10-08, 03:55 PM   #3
onbike 1939
Senior Member

onbike 1939's Avatar

Join Date: Dec 2004
Location: Fife Scotland
Bikes: Airnimal Chameleon; Ellis Briggs; Moulton TSR27 Moulton Esprit
Posts: 1,989
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 44 Post(s)
If you take off the clamp bolt you will see a serrated line below where the cable is supposed to be run.
onbike 1939 is offline   Reply With Quote
Old 11-10-08, 03:56 PM   #4
Bevo Bill
/\/\oderator
Thread Starter

Bevo Bill's Avatar

Join Date: Feb 2008
Location: St. Louis
Bikes: 07 BMC SSX
Posts: 70
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Strange. I have ridden the bike as-is with it clamped on the "wrong" side, and it works perfectly fine, contrary to 'conventional widsom'. So given that, I haven't bothered to change it back to the "correct" side, yet. I suppose I'll change it back soon enough.

I was really just wondering if anyone had ever heard of a similar suggestion, or if there is truth to this rumor.
Bevo Bill is offline   Reply With Quote
Old 11-10-08, 08:05 PM   #5
dvs cycles
Senior Member

Join Date: Oct 2007
Location: SoCal
Bikes:
Posts: 1,163
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I just installed one a few hours ago. Directions specifly say the way in the picture is the way to do it.
Mine works just great that way and I'm sure Shimano intends it that way.
dvs cycles is offline   Reply With Quote
Old 11-10-08, 08:18 PM   #6
vettefrc2000
Senior Member

vettefrc2000's Avatar

Join Date: Jun 2008
Location: Somewhere North of Detroit and moving fast!
Bikes: 1976 Fuji America 1980 Fuji America 1984 Fuji America TS V 1982 Fuji Royale II 1993 Trek 970 1997 Trek 5000 2004 Trek Calypso 2007 Trek Portland 2008 Surly LTH
Posts: 696
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Bevo Bill View Post
When I'm stringing my rear derailleur (10sp DA) I thought I was supposed to clamp the cable on the in-board side of the clamp bolt. (As pictured)


However I had the derailleur installed at the LBS, and the mechanic guy says "Oh yeah, it is better to clamp the cable on the outside of the bolt" -something about it tends to want to bend the pulleys into the spokes a little over time, even with the correct limit adjustment.
He also clipped of the little "finger" deal on the washer of the clamp bolt for some reason while doing this. It operates fine as is; but I'm wondering, is this guy full of crap? I mean Shimano designed it to be on the inside I think, so what the hell?

Anyone else ever heard of this?
Full of crap? Yes, most definitely. That is one of the reasons I have a full set of shop tools.

FWI...I would go back and make them give me replacement hardware.
vettefrc2000 is offline   Reply With Quote
Old 11-10-08, 08:44 PM   #7
operator
cab horn

Join Date: Jun 2004
Location: Toronto
Bikes: 1987 Bianchi Campione
Posts: 28,306
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Bevo Bill View Post
When I'm stringing my rear derailleur (10sp DA) I thought I was supposed to clamp the cable on the in-board side of the clamp bolt. (As pictured)


However I had the derailleur installed at the LBS, and the mechanic guy says "Oh yeah, it is better to clamp the cable on the outside of the bolt" -something about it tends to want to bend the pulleys into the spokes a little over time, even with the correct limit adjustment.
He also clipped of the little "finger" deal on the washer of the clamp bolt for some reason while doing this. It operates fine as is; but I'm wondering, is this guy full of crap? I mean Shimano designed it to be on the inside I think, so what the hell?

Anyone else ever heard of this?
That is a load of ****.

I cringed when you mentioned that he actually modified the washer cable is supposed to run under. What a ****ing idiot.
operator is offline   Reply With Quote
Old 11-10-08, 09:10 PM   #8
Panthers007
Great State of Varmint

Panthers007's Avatar

Join Date: Sep 2008
Location: Dante's Third Ring
Bikes:
Posts: 7,479
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

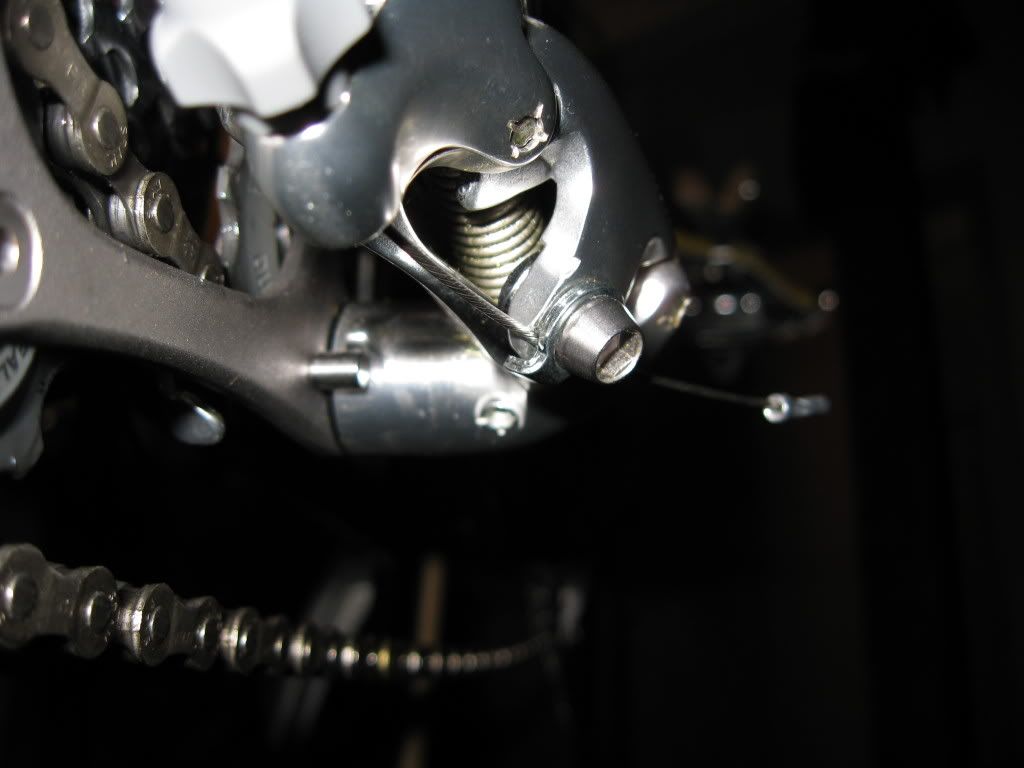

Well this seems to have fit nicely. It's an Ultegra:

Panthers007 is offline   Reply With Quote
Old 11-10-08, 09:16 PM   #9
mechBgon
Senior Member

mechBgon's Avatar

Join Date: Jul 2002
Bikes:
Posts: 6,957
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Panthers007 View Post
Well this seems to have fit nicely. It's an Ultegra:

Your washer is 90 counterclockwise of its intended orientation, but you have the cable on the correct side of the bolt.
Attached Images
File Type: png RD-6500.PNG (12.5 KB, 11 views)

Last edited by mechBgon; 11-10-08 at 09:24 PM.
mechBgon is offline   Reply With Quote
Old 11-10-08, 09:28 PM   #10
Panthers007
Great State of Varmint

Panthers007's Avatar

Join Date: Sep 2008
Location: Dante's Third Ring
Bikes:
Posts: 7,479
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I'm aware. However it's more stable in this position. So chock one up for Shimano's loopy. And one up for the LBS mentioned above being mostly loopy.
Panthers007 is offline   Reply With Quote
Old 11-10-08, 09:40 PM   #11
mechBgon
Senior Member

mechBgon's Avatar

Join Date: Jul 2002
Bikes:
Posts: 6,957
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Panthers007 View Post
I'm aware. However it's more stable in this position. So chock one up for Shimano's loopy. And one up for the LBS mentioned above being mostly loopy.
Actually, the reason for Shimano's orientation is that the bent tab gives the cable a definite fulcrum point, as you can see if you look at the photo of the Dura-Ace derailleur in the first post. But it should work adequately well regardless Yeah, the original post had me shaking my head at the LBS in question.
mechBgon is offline   Reply With Quote
Old 11-10-08, 09:44 PM   #12
roadfix
hello

roadfix's Avatar

Join Date: May 2003
Location: Los Angeles
Bikes:
Posts: 18,557
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Quote:
Originally Posted by mechBgon View Post
Actually, the reason for Shimano's orientation is that the bent tab gives the cable a definite fulcrum point, as you can see if you look at the photo of the Dura-Ace derailleur in the first post.
Ahh, that makes total mechanical sense. I always wondered what the purpose of that tab was for.
roadfix is offline   Reply With Quote
Old 11-10-08, 09:48 PM   #13
dperreno
Senior Member

Join Date: May 2008
Location: Beverly Hills, MI
Bikes: '72 Fuji Finest, '80 Austro-Daimler Inter 10, '06 Fuji Team Issue, '06 Salsa Las Cruces, Nashbar Frame single speed
Posts: 566
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Call me crazy but I thought the tab was simply to prevent the washer from rotating as you tighten the bolt...
__________________
Doug

'72 Fuji Finest
'80 Austro-Daimler Inter10
'06 Fuji Team Issue
'06 Salsa Las Cruces
Nashbar Single Speed
dperreno is offline   Reply With Quote
Old 11-10-08, 09:57 PM   #14
operator
cab horn

Join Date: Jun 2004
Location: Toronto
Bikes: 1987 Bianchi Campione
Posts: 28,306
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by dperreno View Post
Call me crazy but I thought the tab was simply to prevent the washer from rotating as you tighten the bolt...
This is exactly what it is for.
operator is offline   Reply With Quote
Old 11-10-08, 10:12 PM   #15
dperreno
Senior Member

Join Date: May 2008
Location: Beverly Hills, MI
Bikes: '72 Fuji Finest, '80 Austro-Daimler Inter 10, '06 Fuji Team Issue, '06 Salsa Las Cruces, Nashbar Frame single speed
Posts: 566
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by operator View Post
This is exactly what it is for.
Aha! So I AM Crazy... they were right after all!
__________________
Doug

'72 Fuji Finest
'80 Austro-Daimler Inter10
'06 Fuji Team Issue
'06 Salsa Las Cruces
Nashbar Single Speed
dperreno is offline   Reply With Quote
Old 11-10-08, 10:23 PM   #16
mechBgon
Senior Member

mechBgon's Avatar

Join Date: Jul 2002
Bikes:
Posts: 6,957
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by dperreno View Post
Call me crazy but I thought the tab was simply to prevent the washer from rotating as you tighten the bolt...
edit: after a closer look, I think you guys are correct, it's to prevent rotation. The cable doesn't rest against the tab when it's in its intended groove. Sorry for my goof-up, I must've had Campy on the brain

Last edited by mechBgon; 11-12-08 at 03:03 PM.
mechBgon is offline   Reply With Quote
Old 11-10-08, 10:34 PM   #17
firereign
Banned

Join Date: Nov 2008
Bikes:
Posts: 86
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
If it works, whats the big deal?!?!
firereign is offline   Reply With Quote
Old 11-10-08, 10:57 PM   #18
mechBgon
Senior Member

mechBgon's Avatar

Join Date: Jul 2002
Bikes:
Posts: 6,957
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
BTW, Bevo Bill, the replacement cable-anchor assembly is Quality Bicycle Products #DP7727 for the Dura-Ace version (with aluminum washer), if you feel like having them get you one. Otherwise you can order one from Harris Cyclery: http://harriscyclery.net/page.cfm?Pa...ils&sku=DP7727
mechBgon is offline   Reply With Quote
Old 11-10-08, 11:06 PM   #19
roadfix
hello

roadfix's Avatar

Join Date: May 2003
Location: Los Angeles
Bikes:
Posts: 18,557
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
I better just stick to riding my fixed gear bikes.....
roadfix is offline   Reply With Quote
Old 11-11-08, 04:59 AM   #20
maddmaxx
Small Member

maddmaxx's Avatar

Join Date: Nov 2003
Bikes: Leader home built hardtail, Diamondback Response
Posts: 7,136
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 132 Post(s)
If you use the tab on the washer as a point to pull the cable against, then you will not pull it up tight against the threads of the anchor screw. If you don't pull it up aginst the screw threads, then you will not ding the screw threads or cable when tightening the screw.

Cable position, inside or outside of the screw does make a small difference in the indexing of the derailleur. Its enough to make the difference between so/so and perfect shifting.

Generally, you will find that the major manufacturers have spent serious time designing their equipment and that following their diagrams or instructions will provide pretty good results.
__________________
We are an empire. Use it wisely.
maddmaxx is offline   Reply With Quote
Old 11-11-08, 05:54 AM   #21
Bevo Bill
/\/\oderator
Thread Starter

Bevo Bill's Avatar

Join Date: Feb 2008
Location: St. Louis
Bikes: 07 BMC SSX
Posts: 70
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Ok, thanks all for the confirmation. I actually went and changed it back to the correct side now.

I'd consider going back to the shop to vent and get reparations; but I don't think I'm that persnickety
( http://www.maplewoodbicycle.com/ ) <----I'll just name names
I haven't been back to them since.
Bevo Bill is offline   Reply With Quote
