Why are the sprockets on the crank inverse from the sprockets on the cassette?

If you start from the frame and count outwards, the cassette goes large gear, smaller gear, smaller gear, etc. On the crank, assuming you have a double or a triple, they go smaller, larger, larger.

I know there is a good and probably obvious reason, but I am not mechanical enough to figure it out by intuition. Could someone please tell me?

Thanks.
bryroth is offline   Reply With Quote
Old 02-23-09, 08:23 AM   #2
Metzinger
Primate

Metzinger's Avatar

Join Date: Jan 2006
Location: gone
Bikes: Concorde Columbus SL, Rocky Mountain Edge, Sparta stadfiets
Posts: 2,582
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
So it looks better.
So you don't have to crossover to get max high and low gears.
So there are fewer rings that can come in contact with your calf.
Howzat?
Metzinger is offline   Reply With Quote
Old 02-23-09, 08:46 AM   #3
crocodilefundy
Senior Member

Join Date: Jun 2008
Bikes:
Posts: 411
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
look at how the derailleur functions. it would be much more complicated to try to shift gears if you had to navigate between the crank arm and the big chain ring.
crocodilefundy is offline   Reply With Quote
Old 02-23-09, 09:06 AM   #4
Metzinger
Primate

Metzinger's Avatar

Join Date: Jan 2006
Location: gone
Bikes: Concorde Columbus SL, Rocky Mountain Edge, Sparta stadfiets
Posts: 2,582
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I've got another:
So the right side chainstay has got more clearance from the rings.
This is fun!
Metzinger is offline   Reply With Quote
Old 02-23-09, 09:25 AM   #5
bikinfool
I have senior moments...

bikinfool's Avatar

Join Date: Oct 2008
Location: Woodside, CA
Bikes: Many
Posts: 2,152
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Better chainline.
bikinfool is offline   Reply With Quote
Old 02-23-09, 09:39 AM   #6
DOS
Senior Member

DOS's Avatar

Join Date: Feb 2008
Location: Arlington, VA USA
Bikes:
Posts: 1,495
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Quote:
Originally Posted by bryroth View Post
If you start from the frame and count outwards, the cassette goes large gear, smaller gear, smaller gear, etc. On the crank, assuming you have a double or a triple, they go smaller, larger, larger.

I know there is a good and probably obvious reason, but I am not mechanical enough to figure it out by intuition. Could someone please tell me?

Thanks.
While size wise, rear goes from big to small, gear wise both front and rear go from smaller gear to larger gear as you move to the right; its just that big ring up front=big gear while litte cog in back = big gear. So from a gearing stand point there is consistency in that for every shift outward, front or rear, you are increasing gear inches.
DOS is offline   Reply With Quote
Old 02-23-09, 09:42 AM   #7
AEO
Senior Member

AEO's Avatar

Join Date: Jun 2007
Location: A Coffin Called Earth. or Toronto, ON
Bikes: Bianchi, Miyata, Dahon, Rossin
Posts: 12,258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
also try sticking a 34T where the 11T would usually go, you'll find that the cog will be grinding away at your stays.
__________________
Food for thought: if you aren't dead by 2050, you and your entire family will be within a few years from starvation. Now that is a cruel gift to leave for your offspring. ;)
http://sanfrancisco.ibtimes.com/arti...ger-photos.htm
AEO is offline   Reply With Quote
Old 02-23-09, 09:59 AM   #8
DaveSSS
Senior Member

Join Date: Sep 2008
Location: Loveland, CO
Bikes: Two LOOK 585s, one KG461
Posts: 4,987
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
The opposite arrangement would create poor chainlines and the big ring would hit the chainstay.
DaveSSS is offline   Reply With Quote
Old 02-23-09, 11:03 AM   #9
flian
Pilot Deeper

flian's Avatar

Join Date: Jun 2008
Location: Suthrun Elanoy
Bikes:
Posts: 145
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Envision the chain as it comes off a small outer chainring bumping into the bigger inner ring as you shift to a large inner sprocket on the rear.
flian is offline   Reply With Quote
Old 02-23-09, 11:16 AM   #10
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Bikes: Klein, Merckx, Trek, Bike Friday
Posts: 6,993
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 259 Post(s)
There are some exceptions to the rule

DiabloScott is offline   Reply With Quote
Old 02-23-09, 11:42 AM   #11
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 29,117
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Quote:
Originally Posted by DiabloScott View Post
There are some exceptions to the rule

Except the outside chain always remain on the same chain ring and isn't shifted. That's a weird synchronizing set-up. Why was it done that way?
HillRider is offline   Reply With Quote
Old 02-23-09, 11:52 AM   #12
zzyzx_xyzzy
headtube.

zzyzx_xyzzy's Avatar

Join Date: Sep 2008
Bikes:
Posts: 804
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by HillRider View Post
Except the outside chain always remain on the same chain ring and isn't shifted. That's a weird synchronizing set-up. Why was it done that way?

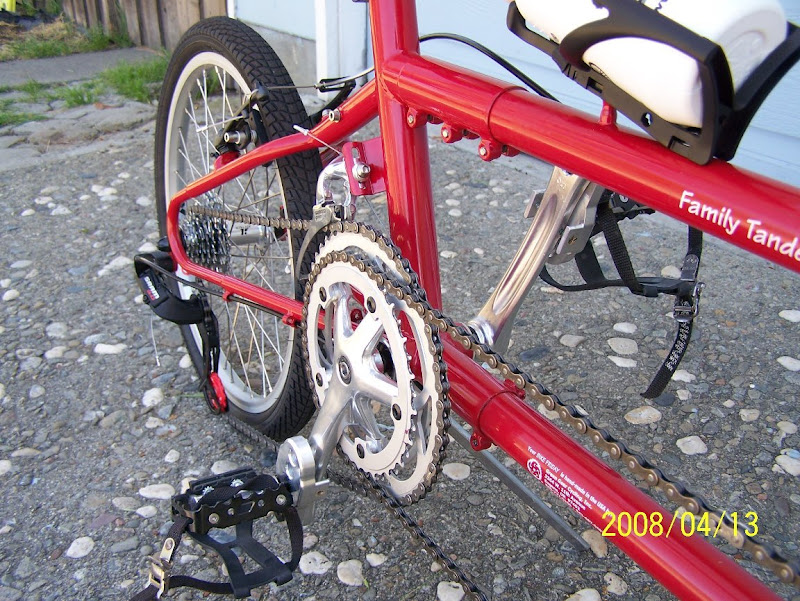

Single-side drive doesn't require expensive tandem-specific cranksets, is a pretty good reason.

See here: http://www.bikexprt.com/bicycle/tancrank.htm
zzyzx_xyzzy is offline   Reply With Quote
Old 02-23-09, 11:56 AM   #13
stedalus
Senior Member

Join Date: Sep 2008
Bikes:
Posts: 598
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
The chainline argument never quite made sense to me since to get to the middle of the total gear range, where presumably you're spending most of your time, you're going to be somewhat cross-chained. Of course, the tradeoff of the reversed setup is that your lowest and highest gears might be unusable, but you can likely work around that.

Seat/chainstay clearance is of course the big problem, and you can't easily do anything about that.
stedalus is offline   Reply With Quote
Old 02-23-09, 12:01 PM   #14
TandemGeek
hors category

TandemGeek's Avatar

Join Date: Jan 2002
Bikes:
Posts: 7,213
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Quote:
Originally Posted by HillRider View Post
Except the outside chain always remain on the same chain ring and isn't shifted. That's a weird synchronizing set-up. Why was it done that way?
Actually, and although it's hard to see, there is an inner chain ring hidden behind the largest driving ring and a derailleur on this Bike Friday - Family Tandem.

Same-side sync drives are used for a number of reasons:
- They're economical in that they use two standard cranksets instead of a more expensive tandem cross-over crankset.
- They put less wear and tear on the rear bottom bracket, not that that's a big issue as bottom brackets are pretty beefy.
- They move all the chains to one side of the bike.
- Etc...

As to why the timing ring was put outboard instead of inboard for a same-side drive, there are some plusses and minuses on putting them inboard vs. outboard and it ultimately comes down to chain stay clearance, chain lines and things that are gemane to each tandem.
TandemGeek is offline   Reply With Quote
Old 02-23-09, 12:05 PM   #15
LarDasse74
Guest

Join Date: Jul 2008
Location: Grid Reference, SK
Bikes: I never learned to ride a bike. It is my deepest shame.
Posts: 3,769
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by HillRider View Post
Except the outside chain always remain on the same chain ring and isn't shifted. That's a weird synchronizing set-up. Why was it done that way?
That is awfully cool. I suppose it would not be difficult to arrange it similarily but with the synch chain on the granny ring and with useful big and middle chainrings. Or even better - use one of the 4th chainring adapters that used to be available and have a useful triple...

...might get a little crowded around the f. derailleur, though.
LarDasse74 is offline   Reply With Quote
Old 02-23-09, 12:18 PM   #16
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 29,117
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Quote:
Originally Posted by zzyzx_xyzzy View Post
Single-side drive doesn't require expensive tandem-specific cranksets, is a pretty good reason.

See here: http://www.bikexprt.com/bicycle/tancrank.htm
Thanks for the reference, that was a very interesting article. The only downside I can see to the single-side drive is that the Q-factor for both cranks has to be quite large to keep the synchronizing chain's chainline straight.
HillRider is offline   Reply With Quote
Old 02-23-09, 01:08 PM   #17
DOS
Senior Member

DOS's Avatar

Join Date: Feb 2008
Location: Arlington, VA USA
Bikes:
Posts: 1,495
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Quote:
Originally Posted by stedalus View Post
The chainline argument never quite made sense to me since to get to the middle of the total gear range, where presumably you're spending most of your time, you're going to be somewhat cross-chained. Of course, the tradeoff of the reversed setup is that your lowest and highest gears might be unusable, but you can likely work around that.

Seat/chainstay clearance is of course the big problem, and you can't easily do anything about that.
What would be implication for rear derailleur of reversing the direction of the cogs? Would "high normal" become "low normal" and "low normal" become "high normal"

I am having a hard time imagining a rear cassette with big cog on the outside, even absent chainline and seatstay issues. Logically it just makes sense to me to move chain in same direction both front and rear to move to higher gears (i.e. to the right). Also, when shifting from small ring/cog to larger, because I am in essence lifting the chain up to get from smaller to larger, pushing the lever on my shifters in the same direction the chain is moving (i.e. to the left for right shifter/rear cogs and to the right for left shifter/front rings) also makes logical sense to my brain. Could be, however, I am just used to what I am used to and could get used to doing things backwards.
DOS is offline   Reply With Quote
Old 02-23-09, 01:26 PM   #18
AEO
Senior Member

AEO's Avatar

Join Date: Jun 2007
Location: A Coffin Called Earth. or Toronto, ON
Bikes: Bianchi, Miyata, Dahon, Rossin
Posts: 12,258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
you can get a high rise RD which would reverse the low normal and high normal thing.
__________________
Food for thought: if you aren't dead by 2050, you and your entire family will be within a few years from starvation. Now that is a cruel gift to leave for your offspring. ;)
http://sanfrancisco.ibtimes.com/arti...ger-photos.htm
AEO is offline   Reply With Quote
Old 02-23-09, 01:34 PM   #19
stedalus
Senior Member

Join Date: Sep 2008
Bikes:
Posts: 598
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by DOS View Post
Also, when shifting from small ring/cog to larger, because I am in essence lifting the chain up to get from smaller to larger, pushing the lever on my shifters in the same direction the chain is moving (i.e. to the left for right shifter/rear cogs and to the right for left shifter/front rings) also makes logical sense to my brain. Could be, however, I am just used to what I am used to and could get used to doing things backwards.
The derailleurs have to do the exact opposite when you shift the other way, so on the surface it seems like it's possible. I imagine you would have to re-engineer the derailleurs to make it work well. Maybe if I get bored one day I'll reorder a few sprockets on a cassette and see what the derailleur does. If it is workable, I bet Shimano has a patent on it.

In any case, I don't deny that there are other, probably more important, reasons to do things the way we do now. I just don't think that improved chainline is one of them in most situations.
stedalus is offline   Reply With Quote
Old 02-23-09, 01:45 PM   #20
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Bikes: Klein, Merckx, Trek, Bike Friday
Posts: 6,993
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 259 Post(s)
Quote:
Originally Posted by HillRider View Post
The only downside I can see to the single-side drive is that the Q-factor for both cranks has to be quite large to keep the synchronizing chain's chainline straight.
Since this is the entry level Bike Friday tandem, I'm sure the motivation was cost but I thought it was really smart.

The Q-factor for the stoker is exactly the same as if it were a standard triple - less than it would be for a triple with a synch chainring on the left side too.

I'm not sure how they got the synch chain line right though - maybe the BB shell is not symetrical, or maybe the synch chain is so long the chain line isn't that critical.




DiabloScott is offline   Reply With Quote
Old 02-23-09, 01:45 PM   #21
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 29,117
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 179 Post(s)
Quote:
Originally Posted by AEO View Post
you can get a high rise RD which would reverse the low normal and high normal thing.
Shimano calls it "Rapid Rise" or "Low normal" and the spring tension pulls the cage toward the largest cog.

IIRC, Sun Tour made a front derailleur that was in effect "Rapid Rise", that is the spring tension moved the cage toward the big chainring and the cable tension pulled it toward the smaller rings. The reasoning here was to have both shifters do the same thing (upshift or downshift) while moving in the same direction. It never really caught on.
HillRider is offline   Reply With Quote
Old 02-23-09, 01:46 PM   #22
Booger1
Senior Member

Join Date: Sep 2007
Location: Gaseous Cloud around Uranus
Bikes:
Posts: 3,730
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
They same reason the chain is on the right?
Booger1 is offline   Reply With Quote
Old 02-23-09, 01:59 PM   #23
DOS
Senior Member

DOS's Avatar

Join Date: Feb 2008
Location: Arlington, VA USA
Bikes:
Posts: 1,495
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Quote:
Originally Posted by DiabloScott View Post
Boy that's some height differential between front and stoker seats. Is that standard for tandems. It would seem to put stokers nose in a rather unpleasant location relative to the front rider's chamois.
DOS is offline   Reply With Quote
Old 02-23-09, 02:13 PM   #24
DiabloScott
It's MY mountain

DiabloScott's Avatar

Join Date: Sep 2006
Location: Mt.Diablo
Bikes: Klein, Merckx, Trek, Bike Friday
Posts: 6,993
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 259 Post(s)
Quote:
Originally Posted by DOS View Post
Boy that's some height differential between front and stoker seats. Is that standard for tandems. It would seem to put stokers nose in a rather unpleasant location relative to the front rider's chamois.
Well, there's a big height difference between the captain and the stok-kid.



The ability to accomodate the height difference without any modifications was the reason I went with this Bike Friday tandem instead of something more conventional.
DiabloScott is offline   Reply With Quote
Old 02-23-09, 02:52 PM   #25
tatfiend
Gear Hub fan

Join Date: Nov 2008
Location: Reno, NV
Bikes: Civia Hyland Rohloff, Swobo Dixon, Colnago, Univega
Posts: 2,830
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Not germane to chain line but many old tandems from the 1890s or so did have the lady up front as the old rules of courtesy included "ladies first". Most such setups included remote steering so that the stoker could steer the bike. Many had both capable of steering so that the strongest presumably won! Usually set up so the stoker had a higher saddle to look over the head of the captain. Added complication to meet the requirements of Victorian etiquette.
__________________
Gear Hubs Owned: Rohloff disc brake, SRAM iM9 disc brake, SRAM P5 freewheel, Sachs Torpedo 3 speed freewheel, NuVinci CVT, Shimano Alfine SG S-501, Sturmey Archer S5-2 Alloy. Other: 83 Colnago Super Record, Univega Via De Oro

Visit and join the Yahoo Geared Hub Bikes group for support and links.
http://groups.yahoo.com/group/Geared_hub_bikes/
tatfiend is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -6. The time now is 05:30 AM.
