why no cable housing on top tubes?

I am wondering why there are no bikes with cable housing along the top tubes? The steel cables could get damaged and same for under the down tube. You could have these housing items between cable bosses. Anyone know why?
rwideman is offline   Reply With Quote
Old 06-16-09, 07:32 PM   #2
shouldberiding
Senior Member

shouldberiding's Avatar

Join Date: Aug 2008
Location: Madison, WI
Bikes: '08 Trek 7.3FX
Posts: 811
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Less friction.
shouldberiding is offline   Reply With Quote
Old 06-16-09, 07:33 PM   #3
AEO
Senior Member

AEO's Avatar

Join Date: Jun 2007
Location: A Coffin Called Earth. or Toronto, ON
Bikes: Bianchi, Miyata, Dahon, Rossin
Posts: 12,258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
older bikes have full length of cable housing from the lever to the caliper.

it's heavier and sloppier that way.

the cables, they're pretty strong.
__________________
Food for thought: if you aren't dead by 2050, you and your entire family will be within a few years from starvation. Now that is a cruel gift to leave for your offspring. ;)
http://sanfrancisco.ibtimes.com/arti...ger-photos.htm
AEO is offline   Reply With Quote
Old 06-16-09, 07:35 PM   #4
JanMM
rebmeM roineS

JanMM's Avatar

Join Date: Jan 2006
Location: In Central IN
Bikes: RANS V3, RANS V-Rex, RANS Screamer
Posts: 13,516
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
My wife's Giant hybrid has cable housing along the top tubes. You can stop worrying about that cable getting damaged.
By the way, I don't remember having cable damage problems on exposed cable on any of our bikes.
__________________
RANS V3 - Ti, RANS V-Rex - cromo, RANS Screamer - cromo
JanMM is online now   Reply With Quote
Old 06-16-09, 07:40 PM   #5
Hydrated
Reeks of aged cotton duck

Hydrated's Avatar

Join Date: Oct 2007
Location: Middle Georgia, USA
Bikes: 2008 Kogswell PR mkII, 1976 Raleigh Professional, 1996 Serotta Atlanta, 1984 Trek 520, 1979 Raleigh Comp GS, 1995 Trek 950, 1979 Raleigh DL-1 Tourist
Posts: 1,175
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

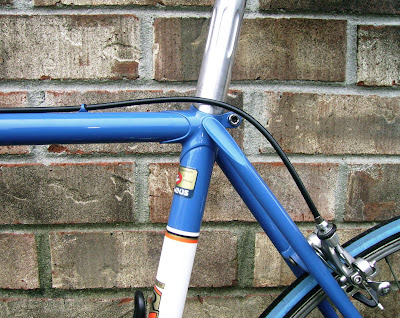

Lots of bikes have braze-ons for top tube routing of cable housings...

Hydrated is offline   Reply With Quote
Old 06-16-09, 07:42 PM   #6
rwideman
Junior Member
Thread Starter

Join Date: May 2009
Bikes:
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I agree with not any damage on the cable. i was just theorizing as I am building a bike and I am to the cable installation and I dont find anything on road bikes with full length cable housing. Just pondering. It is answered, less friction and weight. Thanks all
rwideman is offline   Reply With Quote
Old 06-16-09, 07:43 PM   #7
rwideman
Junior Member
Thread Starter

Join Date: May 2009
Bikes:
Posts: 9
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Hydrated View Post
Lots of bikes have braze-ons for top tube routing of cable housings...

Interesting. Is this a road bike? Looks like it from the size of the tire.
rwideman is offline   Reply With Quote
Old 06-16-09, 07:58 PM   #8
Hydrated
Reeks of aged cotton duck

Hydrated's Avatar

Join Date: Oct 2007
Location: Middle Georgia, USA
Bikes: 2008 Kogswell PR mkII, 1976 Raleigh Professional, 1996 Serotta Atlanta, 1984 Trek 520, 1979 Raleigh Comp GS, 1995 Trek 950, 1979 Raleigh DL-1 Tourist
Posts: 1,175
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Friction and weight... bah!

Bike manufacturers don't eliminate the housings to save weight or reduce friction. They do it to save every penny that they can on their cost of materials. Four feet of housing times thousands of bikes adds up to a lot of cash saved.

Those naked cables enter and leave sections of housing along the way to the brakes... and each of those interfaces generates friction. I'd wager that the friction from an uninterrupted run of quality housing is lower than that from a cable that goes through four different cable/housing interfaces.
Hydrated is offline   Reply With Quote
Old 06-16-09, 08:07 PM   #9
caloso
Packfodding 3

caloso's Avatar

Join Date: Jul 2002
Location: Sacramento, California, USA
Bikes: Ridley Excalibur, Gazelle Champion Mondial, On-One Pompino, Specialized Rock Hopper
Posts: 34,101
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 244 Post(s)
Quote:
Originally Posted by rwideman View Post
Interesting. Is this a road bike? Looks like it from the size of the tire.
Look here. You'll see hundreds of road bikes with cable housing on the top tube.
caloso is offline   Reply With Quote
Old 06-16-09, 08:10 PM   #10
tatfiend
Gear Hub fan

Join Date: Nov 2008
Location: Reno, NV
Bikes: Civia Hyland Rohloff, Swobo Dixon, Colnago, Univega
Posts: 2,830
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
A lot of older Italian steel road frames had housing guides on the top tube for the rear brake cable. My 83 Colnago does. Hydrated's bike looks like it may well be an older Italian frame too based on the Columbus tubing sticker I see on the seat tube.

Most current geared hub bikes I am aware of also have provisions for full length housing runs for both shifter and brake cables. My Swobo Dixon has them while my Civia Hyland Rohloff has provisions for two shifter cables and brake hydraulic hose. Full length housings do help keep dirt from getting into the cable housings IMO.
__________________
Gear Hubs Owned: Rohloff disc brake, SRAM iM9 disc brake, SRAM P5 freewheel, Sachs Torpedo 3 speed freewheel, NuVinci CVT, Shimano Alfine SG S-501, Sturmey Archer S5-2 Alloy. Other: 83 Colnago Super Record, Univega Via De Oro

Visit and join the Yahoo Geared Hub Bikes group for support and links.
http://groups.yahoo.com/group/Geared_hub_bikes/
tatfiend is offline   Reply With Quote
Old 06-16-09, 08:18 PM   #11
Ranman
Senior Member

Join Date: Dec 2005
Location: Woodstock, IL
Bikes:
Posts: 92
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
They do it to save every penny that they can on their cost of materials. Four feet of housing times thousands of bikes adds up to a lot of cash saved.
What is the price of brazing and painting 3 or 4 more cable guides on thousands of bikes?
__________________
'84 Trek 660 , '88 Trek 1500 ,'89 Trek 400 , '97 Trek 720 , '99 Trek 2200, '02 Trek 520
Ranman is offline   Reply With Quote
Old 06-16-09, 08:20 PM   #12
AEO
Senior Member

AEO's Avatar

Join Date: Jun 2007
Location: A Coffin Called Earth. or Toronto, ON
Bikes: Bianchi, Miyata, Dahon, Rossin
Posts: 12,258
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Hydrated View Post
Friction and weight... bah!

Bike manufacturers don't eliminate the housings to save weight or reduce friction. They do it to save every penny that they can on their cost of materials. Four feet of housing times thousands of bikes adds up to a lot of cash saved.

Those naked cables enter and leave sections of housing along the way to the brakes... and each of those interfaces generates friction. I'd wager that the friction from an uninterrupted run of quality housing is lower than that from a cable that goes through four different cable/housing interfaces.
says you. it's quite different to have to run +2m of housing as opposed to 1.2~1.4m of housing. front brake and rear brake are noticeably different because of the length difference.
__________________
Food for thought: if you aren't dead by 2050, you and your entire family will be within a few years from starvation. Now that is a cruel gift to leave for your offspring. ;)
http://sanfrancisco.ibtimes.com/arti...ger-photos.htm
AEO is offline   Reply With Quote
Old 06-16-09, 08:22 PM   #13
Hydrated
Reeks of aged cotton duck

Hydrated's Avatar

Join Date: Oct 2007
Location: Middle Georgia, USA
Bikes: 2008 Kogswell PR mkII, 1976 Raleigh Professional, 1996 Serotta Atlanta, 1984 Trek 520, 1979 Raleigh Comp GS, 1995 Trek 950, 1979 Raleigh DL-1 Tourist
Posts: 1,175
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Ranman View Post
What is the price of brazing and painting 3 or 4 more cable guides on thousands of bikes?
About the same as brazing and painting those cable stops that go along with those naked cables on your top tube.
Hydrated is offline   Reply With Quote
Old 06-17-09, 06:45 AM   #14
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 29,108
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
There is no realistic downside to exposed rear brake cables along the top tube, particularly with stainless steel cables. The minor weight, friction and cost savings are incidental and, what, if any, benefit is there to full length housing?

When you think of the huge expense some riders go to to save a few grams, the loss of 25 to 30 grams of cable housing weight at no cost or function penalty has to be a plus.
HillRider is offline   Reply With Quote
Old 06-17-09, 07:53 AM   #15
cbchess
Map maker

cbchess's Avatar

Join Date: Feb 2008
Location: Richmond,VA
Bikes: Ventana El Ciclon, Walt Works 29er, Specialized Enduro (fixed up for my son).
Posts: 728
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I prefer full housing, less slop to get in and dirty the cable run. Most of my bikes have full housing runs, But I have one that does not. I keep saying I am going to drill out the stops so I can run full housing but I have not yet. It seems to be alright. But I do have to replace the cable more often as it gets much dirtier.
cbchess is offline   Reply With Quote
Old 06-17-09, 07:59 AM   #16
GV27
Light Makes Right

GV27's Avatar

Join Date: Apr 2005
Location: Green Mountain, Colorado
Bikes: Gianni Motta Criterium, Dean Hardtail
Posts: 1,521
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by AEO View Post
says you. it's quite different to have to run +2m of housing as opposed to 1.2~1.4m of housing. front brake and rear brake are noticeably different because of the length difference.
2m of housing? What sort of bike are we talking about? I guess then it might make a difference? Never tried it. 1m certainly doesn't make any difference.......
GV27 is offline   Reply With Quote
Old 06-17-09, 08:15 AM   #17
peripatetic
Senior Member

peripatetic's Avatar

Join Date: Oct 2004
Location: NYC
Bikes: All 70s and 80s, only steel.
Posts: 2,124
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Hydrated View Post
Lots of bikes have braze-ons for top tube routing of cable housings...


Your housing is too long.
peripatetic is offline   Reply With Quote
Old 06-17-09, 08:19 AM   #18
Hydrated
Reeks of aged cotton duck

Hydrated's Avatar

Join Date: Oct 2007
Location: Middle Georgia, USA
Bikes: 2008 Kogswell PR mkII, 1976 Raleigh Professional, 1996 Serotta Atlanta, 1984 Trek 520, 1979 Raleigh Comp GS, 1995 Trek 950, 1979 Raleigh DL-1 Tourist
Posts: 1,175
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by HillRider View Post
There is no realistic downside to exposed rear brake cables along the top tube, particularly with stainless steel cables. The minor weight, friction and cost savings are incidental and, what, if any, benefit is there to full length housing?
Now now... every system has its downside. And every system has its upside.

Exposed cables will be more susceptible to damage than housed cables. You probably won't rip exposed cables off of your bike under normal conditions, but they will get tweaked or pulled more often than housed cables... resulting in more frequent adjustments. And before it even gets posted... spare me the "I have exposed cables and I haven't had to adjust my brakes since 1998!" I know that some people are careful and will rarely bump or pull those cables... and that's good. No problem for you then.

Now to answer your question about the benefits of housed cables. The main reason that I like housings along the top tube is because housings make the top tube usable. What I mean is this: I ride my bike every day to work and to run errands. So I sometimes need to carry things, and sometimes I carry stuff by strapping bags or items onto the frame with velcro straps. If I use exposed cables, the straps may interfere with the operation of the cables running along the top tube. With housings I can simply strap the item on and go. No worries about cable travel or binding.

And I couldn't ride my favorite bike without housed cables. My 1984 Trek 520 rides like a Cadillac with its comfy position and stretched out frame that soaks up bumps. I like the longish top tube but it comes at a price... the standover height is too tall for me to stand comfortably with both feet flat on the ground. The frame fits me great when I'm in the saddle, but not when I'm stopped. When I stop, I tend to unclip one foot and stand with the frame leaned to one side. The back of my thigh rests across the top tube... if I used exposed cables, this would be a problem. But my housings don't care. I know that this is an odd benefit to using housings, but it is a benefit.


Quote:
Originally Posted by HillRider View Post
When you think of the huge expense some riders go to to save a few grams, the loss of 25 to 30 grams of cable housing weight at no cost or function penalty has to be a plus.

I know what you're saying about weight savings, but if you actually look at the numbers it starts to look kind of silly. Do you know that 30 grams equals 1.05 ounces? If saving 1.05 ounces is going to make that much difference to your performance, then go for it.

But almost every rider out there is carrying around more than 1.05 ounces of bad dietary choices. Hell's bells... a single fluid ounce of water weighs 1.04 ounces. Just go pee before you get on the bike. Or pass on that post-ride slice of pizza.
Hydrated is offline   Reply With Quote
Old 06-17-09, 08:24 AM   #19
Hydrated
Reeks of aged cotton duck

Hydrated's Avatar

Join Date: Oct 2007
Location: Middle Georgia, USA
Bikes: 2008 Kogswell PR mkII, 1976 Raleigh Professional, 1996 Serotta Atlanta, 1984 Trek 520, 1979 Raleigh Comp GS, 1995 Trek 950, 1979 Raleigh DL-1 Tourist
Posts: 1,175
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by tatfiend View Post
Hydrated's bike looks like it may well be an older Italian frame too based on the Columbus tubing sticker I see on the seat tube.
LOL... sorry I unintentionally misled you. That's not my bike. I just found that picture on the interwebz.
Hydrated is offline   Reply With Quote
Old 06-17-09, 08:39 AM   #20
GV27
Light Makes Right

GV27's Avatar

Join Date: Apr 2005
Location: Green Mountain, Colorado
Bikes: Gianni Motta Criterium, Dean Hardtail
Posts: 1,521
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I've got an old Italian frame setup like that picture (slighly shorter cable, but still....). My new English frame (Mercian) would've been like that had I not opted for the internal routing. Haven't gotten that yet - not sure if I'll be feeding a housing all the way through or just the cable. Either way, it's housed.
GV27 is offline   Reply With Quote
Old 06-17-09, 08:54 AM   #21
GV27
Light Makes Right

GV27's Avatar

Join Date: Apr 2005
Location: Green Mountain, Colorado
Bikes: Gianni Motta Criterium, Dean Hardtail
Posts: 1,521
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Hydrated View Post
I know what you're saying about weight savings, but if you actually look at the numbers it starts to look kind of silly. Do you know that 30 grams equals 1.05 ounces? If saving 1.05 ounces is going to make that much difference to your performance, then go for it.

But almost every rider out there is carrying around more than 1.05 ounces of bad dietary choices. Hell's bells... a single fluid ounce of water weighs 1.04 ounces. Just go pee before you get on the bike. Or pass on that post-ride slice of pizza.
Well, I agree that it's silly but there are a lot of folks out there who see $100/oz as a good deal. The big difference between a pair of Eggbeater C and Eggbeater 4Ti is 4oz and $400. With frames it's a lot more expensive than that. At those rates a free oz is priceless!
GV27 is offline   Reply With Quote
Old 06-17-09, 09:32 AM   #22
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Rock Springs, WY
Bikes: My War
Posts: 27,183
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
Quote:
Quote:
Originally Posted by peripatetic View Post
Your housing is too long.
Is that really considered too long? I like mine about like that to keep the housing off the paint.
LesterOfPuppets is offline   Reply With Quote
Old 06-17-09, 09:46 AM   #23
GV27
Light Makes Right

GV27's Avatar

Join Date: Apr 2005
Location: Green Mountain, Colorado
Bikes: Gianni Motta Criterium, Dean Hardtail
Posts: 1,521
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
6 of 1, 1/2 dozen of the other. Makes no functional difference
GV27 is offline   Reply With Quote
Old 06-17-09, 10:13 AM   #24
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Rock Springs, WY
Bikes: My War
Posts: 27,183
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
If the cable stops are slotted, exposed systems are much easier to lube than full length housing systems.
LesterOfPuppets is offline   Reply With Quote
Old 06-17-09, 10:31 AM   #25
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 29,108
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
One other comment on this topic. I notice from the pictures posted here and from my own '83 Trek 400 that full housed rear brake cables seem to be run along the top of the top tube (the 12:00 O'clock position) while open cables are routed on the lower left side (7:00 O'clock) of the top tube.

The 7:00 routing seems more out of the rider's way so I wonder why it isn't done with fully housed cables too.
HillRider is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -6. The time now is 08:19 AM.
