Flip Flop Internally Geared Hub?

I have a regular flip flop hub with a single speed and a fixed cog, but if I'm going to coast I have decided I want more gears.

So, has anyone seen, or heard of an internally geared hub where I could mount a fixed cog on the other side?

Alternatively if there is an internally geared up that can lock that might work too. However, I am used to a gear ratio of about 42-14 and wouldn't want something drastically easier or drastically harder.

Anyone know anything?

(this is double posted from single-speed and fixed gear, please don't shoot me)
tramnineteen is offline   Reply With Quote
Old 02-16-10, 01:07 PM   #2
garage sale GT
Banned

Join Date: May 2009
Bikes:
Posts: 2,078
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
A company in England makes a cog which bolts to the disc brake mount of a front xtr hub because they feel it makes a better fixed rear hub than what's out there.

Maybe you could try to get one of those and bolt it to a disc-compatible Sturmey Archer. I don't recall the name of the company, sorry. Also, the chainline might be too different between the normal sprocket and the disc mount sprocket.

Last edited by garage sale GT; 02-16-10 at 01:41 PM.
garage sale GT is offline   Reply With Quote
Old 02-16-10, 01:26 PM   #3
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Bikes:
Posts: 5,945
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Sturmey Archer makes a 3 speed hub with a band brake mount on the left side. I'm pretty sure the thread on band brakes use a standard English thread, so you could theoretically thread a track cog on there and use it as a flip flop. Chain line should be within reason.
No way to posistively lock that cog on there though, so I wouldn't be relying on it as a braking device.
http://www.sturmey-archer.com/produc.../id/40/specs/1

All of this is really uneccessary though as Sturmey Archer has now released the 3 speed fixie.
http://www.sturmey-archer.com/products/hubs/cid/3/id/47
It will take a screw on freewheel cog or a Shimano freehub splined cog to make it fixed.

Last edited by Dan Burkhart; 02-16-10 at 06:44 PM.
Dan Burkhart is offline   Reply With Quote
Old 02-16-10, 03:12 PM   #4
MichaelW
Senior Member

Join Date: Feb 2001
Location: England
Bikes:
Posts: 12,923
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
The 6-bolt rotor fixing is by velosolo. They do some good conversion kits that are worth a look.

A few days ago I saw a review of a fixed/freewheel hub that could be switched by rotating a disk, ie no need to remove the hub. Began with A......
MichaelW is offline   Reply With Quote
Old 02-16-10, 03:16 PM   #5
Dan Burkhart
Senior member

Dan Burkhart's Avatar

Join Date: Oct 2004
Location: Oakville Ontario
Bikes:
Posts: 5,945
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Quote:
Originally Posted by MichaelW View Post
The 6-bolt rotor fixing is by velosolo. They do some good conversion kits that are worth a look.

A few days ago I saw a review of a fixed/freewheel hub that could be switched by rotating a disk, ie no need to remove the hub. Began with A......
Hey, thanks for posting that. That will work beautifully for a mid drive on a project I'm working on.
Dan Burkhart is offline   Reply With Quote
Old 02-16-10, 03:32 PM   #6
fuzz2050
Real Men Ride Ordinaries

fuzz2050's Avatar

Join Date: Sep 2008
Bikes:
Posts: 3,701
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Not that the bolt on cog isn't a great idea, but I don't think it would work (at least not very well) for what the OP has in mind. Using it on the disk side of a multi-speed hub would require two dramatically different length chains. It is possible to just have two quick links, but this is getting to be an increasingly difficult 'flip'.

Flip flop IGH is complicated by cable routing, when it's in 'fixed mode' your going to have the shifter cables just floating around, not attached to anything.

I guess what the OP wants is a shiftable flip flop hub with 75%, direct drive, 125% and fixed gears. The S3x just came out, can't we be happy with that for now?
fuzz2050 is offline   Reply With Quote
Old 02-16-10, 04:02 PM   #7
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Bikes: Several, mostly not name brands.
Posts: 16,448
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
Why not just get a 3-speed fixed gear hub?
JohnDThompson is offline   Reply With Quote
Old 02-16-10, 04:08 PM   #8
garage sale GT
Banned

Join Date: May 2009
Bikes:
Posts: 2,078
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Man wants to coast some of the time.

It'd be cool to have an FG with a clutch so you could go fixed/free on the fly.
garage sale GT is offline   Reply With Quote
Old 02-16-10, 05:34 PM   #9
tatfiend
Gear Hub fan

Join Date: Nov 2008
Location: Reno, NV
Bikes: Civia Hyland Rohloff, Swobo Dixon, Colnago, Univega
Posts: 2,830
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Not a multi gear setup but the New SRAM Torpedo is a Fixed/Freewheel hub which is switched by turning a slotted end shaft in one end of the axle. It takes only a few seconds to switch it between fixed and freewheeling operation. IIRC it comes with spacers for 120mm or 130mm dropouts spacing too.

Almost any IGH with an integral disc brake mount should be capable of having an adapter machined to mount a sprocket but getting the correct chainline for ready flipping of the hub might be difficult.
__________________
Gear Hubs Owned: Rohloff disc brake, SRAM iM9 disc brake, SRAM P5 freewheel, Sachs Torpedo 3 speed freewheel, NuVinci CVT, Shimano Alfine SG S-501, Sturmey Archer S5-2 Alloy. Other: 83 Colnago Super Record, Univega Via De Oro

Visit and join the Yahoo Geared Hub Bikes group for support and links.
http://groups.yahoo.com/group/Geared_hub_bikes/
tatfiend is offline   Reply With Quote
Old 02-17-10, 02:47 PM   #10
tramnineteen
Senior Member
Thread Starter

tramnineteen's Avatar

Join Date: Jul 2008
Location: Portland, OR
Bikes: Killo TT
Posts: 276
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks everyone. Your insights helped guide my research. Here is my plan, if you could advise me on it's feasibility.

A Shimano Alifine 8 speed hub

Center Lock kit for center lock hub to work with 6 bolt rotor

6 bolt attching cog like this

these sti shifters (these ones are ugly IMO)

As for cable routing, I am willing to re-route the cable when not in use, detaching it from the hub and using these to hold it elsewhere
tramnineteen is offline   Reply With Quote
Old 02-17-10, 03:08 PM   #11
tatfiend
Gear Hub fan

Join Date: Nov 2008
Location: Reno, NV
Bikes: Civia Hyland Rohloff, Swobo Dixon, Colnago, Univega
Posts: 2,830
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by tramnineteen View Post
Thanks everyone. Your insights helped guide my research. Here is my plan, if you could advise me on it's feasibility.

A Shimano Alifine 8 speed hub

Center Lock kit for center lock hub to work with 6 bolt rotor

6 bolt attching cog like this

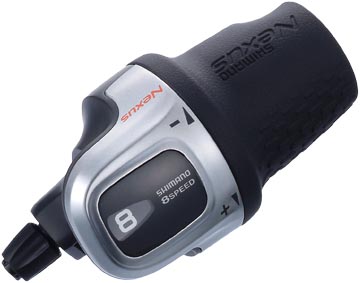

these sti shifters (these ones are ugly IMO)

As for cable routing, I am willing to re-route the cable when not in use, detaching it from the hub and using these to hold it elsewhere
The difference in chain lines between the two sprockets may be a problem when switching from normal to flipped wheel positions. I am not sure what the normal distance from hub center line to a disc brake is.

The Versa shifter is designed and sized for road drop bars while the Shimano one is sized for MTB bars and would require use of a Hubbub to mount on drop bars.
__________________
Gear Hubs Owned: Rohloff disc brake, SRAM iM9 disc brake, SRAM P5 freewheel, Sachs Torpedo 3 speed freewheel, NuVinci CVT, Shimano Alfine SG S-501, Sturmey Archer S5-2 Alloy. Other: 83 Colnago Super Record, Univega Via De Oro

Visit and join the Yahoo Geared Hub Bikes group for support and links.
http://groups.yahoo.com/group/Geared_hub_bikes/
tatfiend is offline   Reply With Quote
Old 02-17-10, 03:22 PM   #12
tramnineteen
Senior Member
Thread Starter

tramnineteen's Avatar

Join Date: Jul 2008
Location: Portland, OR
Bikes: Killo TT
Posts: 276
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Assuming the disk brakes are not normally closer to center than the cog would be and the adapter doesn't exceed this would there be a way to push the cog out father?

Spacers perhaps?

Also, how difficult is detaching the shifting cable from an IGH?
tramnineteen is offline   Reply With Quote
Old 02-17-10, 03:49 PM   #13
zzyzx_xyzzy
headtube.

zzyzx_xyzzy's Avatar

Join Date: Sep 2008
Bikes:
Posts: 804
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by tramnineteen View Post
Assuming the disk brakes are not normally closer to center than the cog would be and the adapter doesn't exceed this would there be a way to push the cog out father?

Spacers perhaps?

Also, how difficult is detaching the shifting cable from an IGH?
Some people think the Nexus/Alfine is hard but not in my experience. downshift to 1, unbolt the wheel, pull the housing out of the cable stop, rotate the hub around and unwrap the cable. when the end barrel rotates a bit it comes out of its hook. I think people forget that you can pull the housing out of the stop first.

Although, if you have full length shift cable housing you might just be able to flip the wheel over and not detach the cable at all, just have it clamped to the downtube so it can run up either left or right chainstays, maybe with a hook/guide on the bottom bracket for tire clearance, nice and tidy
