Salvaging a front wheel

My bike is a 2004 Trek 5200 and I got rolled over by a car at a stoplight a few weeks back. I walked away unscathed and only the front wheel of the bike was damaged. The wheel is a Bontrager Race Lite 18h w/ paired radial lacing. I took it apart over the weekend and the hub is still good so I'd simply like to lace all the old hardware to a new rim. Does anyone know what this rim is and if it is available a la carte? Google has not turned up any results...

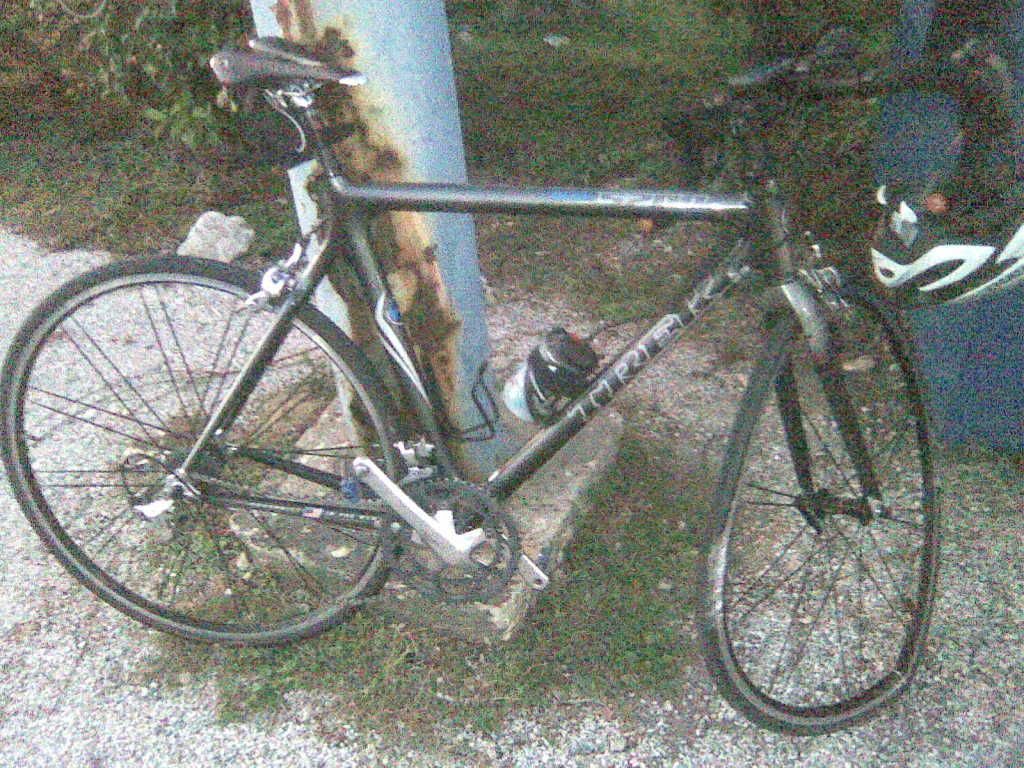

Craptastic cell photo of the post collision bike to follow.

Thanks.

MaxPlanck is offline   Reply With Quote
Old 08-09-10, 07:32 AM   #2
MrCjolsen
Senior Member

MrCjolsen's Avatar

Join Date: Nov 2004
Location: Davis CA
Bikes: Surly Cross-Check, '85 Giant road bike (unrecogizable fixed-gear conversion
Posts: 3,957
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Velocity makes a few rims that come in 18h drillings. Aeroheads and Fusions.

Note that wheel builds get tricky the lower the spoke count due to much higher tension.
MrCjolsen is offline   Reply With Quote
Old 08-09-10, 07:38 AM   #3
MaxPlanck
Nobel Laureate
Thread Starter

MaxPlanck's Avatar

Join Date: May 2008
Location: San Antonio, TX
Bikes: Trek 5202/Giant NRS 1
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Yes indeed, an 18h Velocity fusion is the fall back plan if I'm unable to locate this precise rim. I'm not sure I'd be able to reuse the spokes though as the Velocity rims do not have paired hole drillings. Would this change the spoke length enough to force me to buy another set of spokes?
MaxPlanck is offline   Reply With Quote
Old 08-09-10, 07:46 AM   #4
davidad
Senior Member

Join Date: Feb 2009
Bikes:
Posts: 4,833
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Best to check with a Trek dealer or a Rolf dealer.
Isn't that a 20 spoke rim?
davidad is offline   Reply With Quote
Old 08-09-10, 08:15 AM   #5
Wordbiker
Pwnerer

Wordbiker's Avatar

Join Date: Jun 2005
Location: Pagosa Springs, CO, USA
Bikes: Road, MTB, Cruiser, Chopper, BMX
Posts: 2,907
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by davidad View Post
Best to check with a Trek dealer or a Rolf dealer.
Isn't that a 20 spoke rim?
According to [video]http://www.bikepedia.com/quickbike/BikeSpecs.aspx?Year=2004&Brand=Trek&Model=5200&Type=bike[/video]:

Quote:
Bontrager Race Lite, 20-hole/24-hole
My Trek account shows there are '03/'04 Race Lite rims available in 20 hole.
__________________
Quote:
Originally Posted by ahsposo View Post
Ski, bike and wish I was gay.
Wordbiker is offline   Reply With Quote
Old 08-09-10, 09:47 AM   #6
MaxPlanck
Nobel Laureate
Thread Starter

MaxPlanck's Avatar

Join Date: May 2008
Location: San Antonio, TX
Bikes: Trek 5202/Giant NRS 1
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Well, looking at the photos on bikepedia, it looks like I have a 2006 model (http://www.trekbikes.com/us/en/bikes/2006/archive/5200). I'm 98% sure that it is a 18h wheel dispite printed evidence otherwise. I've counted it thrice before, but will do so again today after work.

Thanks for the responses so far.
MaxPlanck is offline   Reply With Quote
Old 08-09-10, 11:49 AM   #7
Steve Katzman
Cat 6

Steve Katzman's Avatar

Join Date: May 2003
Location: Orlando, FL
Bikes: Scott CR-1, Serotta Legend, Serotta CR, Co-Motion Speedster tandem, Masi Nuevo Strada fixie
Posts: 219
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by MaxPlanck View Post
I'm 98% sure that it is a 18h wheel dispite printed evidence otherwise. I've counted it thrice before, but will do so again today after work.
It sure looks like a 20 spoke count from your picture. Most wheels have a spoke count that is divisible by 4.
Steve Katzman is offline   Reply With Quote
Old 08-09-10, 12:26 PM   #8
blamp28
Bikaholic

blamp28's Avatar

Join Date: Dec 2006
Location: Western, Michigan
Bikes: Trek Fuel 90, Giant OCR, Rans Screamer Tandem
Posts: 1,465
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Wether or not you get a Bontrager rim, I would highly recommend getting new spokes to go with the build. Your spokes have been stressed and therefore weakened. IMHO it would be foolish to save a few bucks and assemble another wheel using those spokes. Did the driver pay for your damage if they were at fault?
blamp28 is offline   Reply With Quote
Old 08-09-10, 04:35 PM   #9
MaxPlanck
Nobel Laureate
Thread Starter

MaxPlanck's Avatar

Join Date: May 2008
Location: San Antonio, TX
Bikes: Trek 5202/Giant NRS 1
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
So apparently I can not count... it is indeed a 20 hole wheel. I called the local Trek dealer and they can no longer get the 20 hole rim, so I'm just going to go with a 20h Fusion and new spokes to boot.

The driver did pay for the damage, so the cost is not that big of a deal... I would simply prefer to hold onto my money. It seems to be a moot point now though.

Thanks for all the help.
MaxPlanck is offline   Reply With Quote
Old 08-09-10, 05:07 PM   #10
cycle_maven
Collector of Useless Info

Join Date: Aug 2009
Bikes:
Posts: 1,408
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I hope you took the bike into a shop for them to inspect for frame damage- a crack in the carbon fiber of the frame or fork and it could fail catastrophically without any warning. If the rim is that twisted from being run over by a car, I would at least replace the fork- I would feel pretty scared riding on a fork that held a wheel that sustained that amount of damage.
cycle_maven is offline   Reply With Quote
Old 08-09-10, 05:11 PM   #11
caloso
Packfodding 3

caloso's Avatar

Join Date: Jul 2002
Location: Sacramento, California, USA
Bikes: Ridley Excalibur, Gazelle Champion Mondial, On-One Pompino, Specialized Rock Hopper
Posts: 33,626
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 59 Post(s)
Quote:
Originally Posted by cycle_maven View Post
I hope you took the bike into a shop for them to inspect for frame damage- a crack in the carbon fiber of the frame or fork and it could fail catastrophically without any warning. If the rim is that twisted from being run over by a car, I would at least replace the fork- I would feel pretty scared riding on a fork that held a wheel that sustained that amount of damage.
Concur.
caloso is offline   Reply With Quote
Old 08-10-10, 07:34 AM   #12
MaxPlanck
Nobel Laureate
Thread Starter

MaxPlanck's Avatar

Join Date: May 2008
Location: San Antonio, TX
Bikes: Trek 5202/Giant NRS 1
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
The bike was given a thorough inspection by my LBS and they deemed everything rideable. I'll check into new forks though. Is this sort of failure one that would first show up as a crack which could be caught by regular inspection, or could everything look fine and then suddenly the fork explodes going over a bump?
MaxPlanck is offline   Reply With Quote
Old 08-10-10, 08:07 AM   #13
cycle_maven
Collector of Useless Info

Join Date: Aug 2009
Bikes:
Posts: 1,408
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Don't know... I've never had any of my carbon frames or forks explode, so my information is purely anecdotal. But I've never crashed badly enough to twist up a wheel on one either. I believe your LBS, though- they are the pro's and know more about your bike better than me! If they've gone over it and said it's rideable, then I wouldn't worry too much- they would know the failure modes of your particular frame. Maybe the whole carbon explosion thing is a secret plot by the steel-is-real crowd to get everybody to be scared of their bikes.

Good luck, and hope your new wheel turns out fast and smooth.
cycle_maven is offline   Reply With Quote
Old 08-10-10, 10:22 AM   #14
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 7
Posts: 18,870
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 230 Post(s)
Hub's hole drilling equally spaced? a rim that is equally spaced, all holes equidistant from each other, will be reasonable to build up as radially spoked .
as opposed to trying to figure out the paired spoke scheme again..
fietsbob is offline   Reply With Quote
Old 08-10-10, 01:07 PM   #15
Tunnelrat81
Senior Member

Tunnelrat81's Avatar

Join Date: Jun 2006
Bikes:
Posts: 1,358
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
AFAIK, the Bontrager front hubs have equally spaced flange drillings, and the rears are set up in pairs.... HOWEVER, that doesn't mean that you'll be able to lace it radially to any rim, because the holes in the two flanges wont' have standard offset. I would assume that with a paired spoke, radial front wheel the drillings from the left and right sides would be only very slightly offset to each other (the radial distance between the paired spokes), rather than being half offset. For example, with the wheel unbuilt, a spoke placed perpendicularly through one flange hole toward the opposite flange would likely (on your hub) hit JUST next to the opposing flange hole, rather than exactly between two of them. This would create a problem with lacing to a standard rim. I'd look hard for a stock rim (through a LBS) or try to find another company who does paired drilling and order a rim and spokes (since with a non stock rim the spoke length will likely be different).

I did some similar research a few years ago with regards to a rear bontrager paired spoke rim. Although I decided to scrap the idea since rebuilding would still cost ~$100 and I would still have a rear wheel with too few spokes (IMO), I do vaguely remember someone telling me that Velocity does offer paired spoke options in some of their standard rims. Some of the wheel builders on here may be able to confirm or deny this option.

-Jeremy

Last edited by Tunnelrat81; 08-10-10 at 01:10 PM.
Tunnelrat81 is offline   Reply With Quote
Old 08-11-10, 06:53 AM   #16
MaxPlanck
Nobel Laureate
Thread Starter

MaxPlanck's Avatar

Join Date: May 2008
Location: San Antonio, TX
Bikes: Trek 5202/Giant NRS 1
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Good call on the flange offset Jeremy. I checked it out last night and indeed the hub is designed to be laced with paired spokes. Looks like the easiest thing to do at this point would be just to buy a new front wheel.
MaxPlanck is offline   Reply With Quote
Old 08-11-10, 07:44 AM   #17
bjoerges
LBS Employee/Commuter

Join Date: May 2008
Location: Madison Heights, MI
Bikes: 2007 Trek Soho, 2010 Gary Fisher Monona w/ Xtracycle FreeRadical, 198X Facet BioTour 2000
Posts: 243
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by fietsbob View Post
Hub's hole drilling equally spaced? a rim that is equally spaced, all holes equidistant from each other, will be reasonable to build up as radially spoked .
as opposed to trying to figure out the paired spoke scheme again..
The paired spoke scheme is fairly easy. The spokes that pair at the hub have holes directly across from each other on the hub so that they are slightly offset at the rim but equal on the hub.


From the picture, you can only count 18 spokes, but there are 2 hidden behind the brakeset, that is definitely a 20H rim. The Trek Dealer site shows 53 rims available that match your original (or 9 or the RaceXLite if you want to take this opportunity to upgrade)
