Who makes their own parts?

I've been fixing bikes since I was old enough to know how and I'm technically a fully qualified engineer .... so If I ever need a non standard, difficult to get or expensive part I have no problem with just making one provided I can.

Does anyone else?

and I don't mean just bolting together I mean starting with plate, billet etc material and finishing with a part ?

I've just finished a 14t sprocket for my sturmey archer hub ( I know these are not non standard, difficult to get or even expensive but I wanted a practice piece for making chain rings eventually)

Ive made two stem's, one super long (2 foot) for my bent and one extra long for my twenty.

I made the whole SWB recumbent frame + many bit's for it

Various light mounts + a set of lights (although these were machined from existing torches rather then totally made)

Bash guard for my MTB (still going strong after 10 years and being welded up and re-drilled for a different crank twice)

Of course along the way I've had some failure's , some monumental involving many hours of wasted time and materials.

So I'm just wondering if anyone else does ? or do people usually just search for an alternative and/or reach for the wallet ?

Am I a freak?
Fish_man is offline   Reply With Quote
Old 10-24-10, 10:07 AM   #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 7
Posts: 19,614
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 431 Post(s)
I envy your machine shop, My Father's was broken up in the Estate Sale.

76 I built a DIY frame, 90's I got to hands on work with the guy [his shop]
I asked to help build my load bearing tour bike..
so was a few self designed components like:

Split extra wide Randonneur Handlebars, from 2 narrow ones..
and a 4" wide open face stem to put them together,
adapting an Odyssey hydraulic MTB steering damper,
and a pivoting rear wheel stand that holds the bike up
on campsites on soft ground that seems like butter to push your tent pegs into.

Last edited by fietsbob; 10-24-10 at 10:27 AM.
fietsbob is offline   Reply With Quote
Old 10-24-10, 10:14 AM   #3
Fish_man
Senior Member
Thread Starter

Join Date: Sep 2010
Bikes:
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
It's not a machine shop .. I wish I could afford one.

Machinery wise I have a pillar drill which sort of doubles for very light milling work, a very very small lathe (less then 2 foot long), bench grinder and welding machine all crammed into the under stairs in our little 1 bed flat.
Fish_man is offline   Reply With Quote
Old 10-24-10, 10:31 AM   #4
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 7
Posts: 19,614
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 431 Post(s)
I can only barely afford small apartments..
I keep going to Garage sales and they want to keep the garage..
fietsbob is offline   Reply With Quote
Old 10-24-10, 12:08 PM   #5
Tunnelrat81
Senior Member

Tunnelrat81's Avatar

Join Date: Jun 2006
Bikes:
Posts: 1,358
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
I'd love to have the tools and know-how to design and build my own stuff. I would imagine that most of the guys on this sub-forum feel the same way. At work we have a machinist who's done some minor welding jobs for me and is VERY capable with the fabrication side too, but as far as making actual component parts, that's something that he has neither the time or interest in doing for me. He does work related stuff for us all the time and I'm always impressed with the quality and detail work he can do. I don't think I'm artistic enough to be a good machinist, but I may give it a go to a limited degree someday anyway. Bummer though that you seem to need quite expensive tools and a decent sized shop to do the really fancy stuff.

Oh, and you've GOT to post some pictures of everything that you mentioned in the OP, especially the sprocket. =)

-Jeremy
Tunnelrat81 is offline   Reply With Quote
Old 10-24-10, 12:31 PM   #6
Fish_man
Senior Member
Thread Starter

Join Date: Sep 2010
Bikes:
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
http://s12.photobucket.com/albums/a2...man/Recumbent/ thats the bent .. although the "good" stem isn't on there yet

The bashguard is at my mum's ATM

and the bit's for the twenty (lights, sprocket and stem) will have to wait till after I've finished dinner
Fish_man is offline   Reply With Quote
Old 10-24-10, 12:35 PM   #7
Fish_man
Senior Member
Thread Starter

Join Date: Sep 2010
Bikes:
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)



Those are some not very good pictures of the lights
Fish_man is offline   Reply With Quote
Old 10-24-10, 12:55 PM   #8
Fish_man
Senior Member
Thread Starter

Join Date: Sep 2010
Bikes:
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
sprocket .... it's not very neat and still has the paper pattern stuck to it ... but functionally it's fine and as a practice piece was 100% successful ... If i was so inclined I could neaten it up .... but whats the point .. you can barely see it amd it's going to be covered in oil 90% of the time

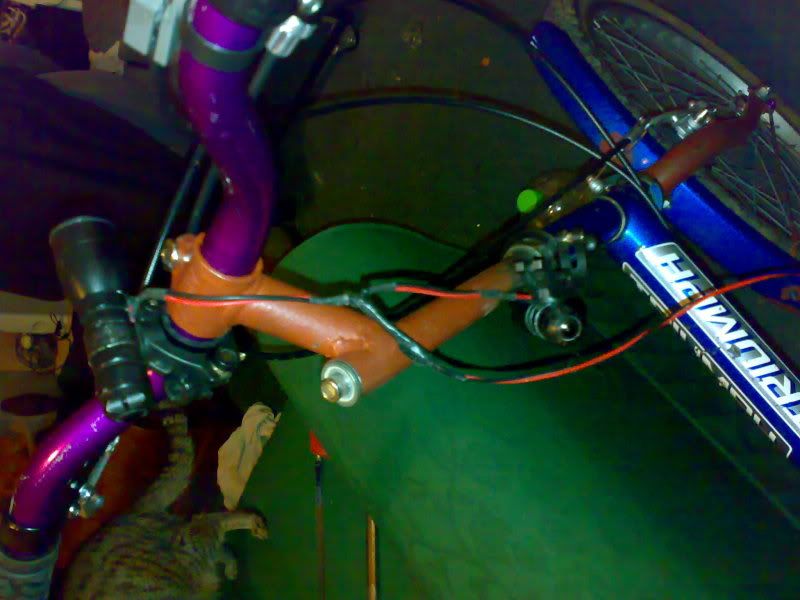

extra long stem for the twenty .... there is another 4-5 inches in the head tube ... + the light's as they are now .... Ive fitted new bar clamps since that last picture.

XXXL stem for the bent ... The holow stem bolt is modified as well, in fact the stem was designed around the hollow stem bolt.
Fish_man is offline   Reply With Quote
Old 10-24-10, 01:46 PM   #9
dedhed
SE Wis

dedhed's Avatar

Join Date: Apr 2005
Location: Milwaukee, WI
Bikes: '68 Raleigh Sprite, '02 Raleigh C500, '84 Raleigh Gran Prix, '91 Trek 400
Posts: 2,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
I don't usually fab bike parts but do plenty on keeping my old '76 plow truck going. Just made some stainless plates to beef up my neighbor's snowblower where it was rusted through.
I always have some basic steel stock and Aluminum shapes in stock. I wish I had a lathe. I just have the basics, drill press, oxy torch, mig welder, grinders, and a sawzall. I can use the 10' lathe and bridgeport at work, but prefer to not use up that good will unless needed, although our blacksmith has done some heavier or life critical welding for me.
dedhed is offline   Reply With Quote
Old 10-24-10, 01:56 PM   #10
Tunnelrat81
Senior Member

Tunnelrat81's Avatar

Join Date: Jun 2006
Bikes:
Posts: 1,358
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Comforting to see that I'm not the only guy here with an old couch ( or is that an easy chair?) in the garage. Just need to find the time or opportunity to get it up to my brother-in-law's house. We're doing a spin class in our garage for the second winter starting this week and I really could use the extra space.

*edit* Just saw the carpet and realized that it might not be your garage. It's so confusing when so many people keep bikes inside the house.

=Jeremy
Tunnelrat81 is offline   Reply With Quote
Old 10-24-10, 02:05 PM   #11
Fish_man
Senior Member
Thread Starter

Join Date: Sep 2010
Bikes:
Posts: 64
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
House ... living room in fact ... though it does often end up looking like a garage.
Fish_man is offline   Reply With Quote
Old 10-24-10, 02:28 PM   #12
skilsaw
Senior Member

skilsaw's Avatar

Join Date: Jul 2010
Location: Victoria, Canada
Bikes: Cannondale t1, Koga-Miyata World Traveller
Posts: 1,546
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
No fabricating, but I've stripped bikes totally, rattle can painted, and re-built in my 1 room apartment.
The carpet at the time didn't show dirt or grease... good. But washers, bearings, and other small parts got lost in it.

I'm in awe of anyone who has the talent, and a suitable set of tools.
skilsaw is offline   Reply With Quote
Old 10-24-10, 08:18 PM   #13
cal_gundert05
My name is Mike, not Cal

Join Date: Jul 2006
Bikes:
Posts: 474
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I've never made my own parts, or much of anything for that matter.

But I have been thinking of a few modifications of parts and things I'd like to try on a future build. One of them is welding or brazing a single splined cog over/around the fixed cup of a cup-and-cone style bottom bracket; in the rare event that you need to remove the fixed cup, it seems like a better means of doing so than using a wrench or vice on the flats of the cup, especially if you already have a chainwhip. I'd need to get someone else to do it, though.

I was also trying to think of something similar for the top race and locknut of a threaded headset, so you could adjust them on the road (say, while touring) with other tools that one is more likely to carry than two headset wrenches.
cal_gundert05 is offline   Reply With Quote
Old 10-24-10, 11:51 PM   #14
ArthurIhde
Senior Member

Join Date: Oct 2010
Bikes:
Posts: 173
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
ahaa,nice garage
ArthurIhde is offline   Reply With Quote
Old 10-25-10, 12:00 AM   #15
Sixty Fiver
Bicycle Repair Man !!!

Sixty Fiver's Avatar

Join Date: Sep 2007
Location: YEG
Bikes: See my sig...
Posts: 27,262
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
Where I get to work...



The frame jig is a little hard to see and the powder coating gets done in the back room.

Sixty Fiver is offline   Reply With Quote
Old 10-25-10, 12:02 AM   #16
Sixty Fiver
Bicycle Repair Man !!!

Sixty Fiver's Avatar

Join Date: Sep 2007
Location: YEG
Bikes: See my sig...
Posts: 27,262
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 9 Post(s)
And this is what comes out of this little shop... world class touring bikes.



And hand made hubs...

Sixty Fiver is offline   Reply With Quote
Old 10-25-10, 12:06 AM   #17
tatfiend
Gear Hub fan

Join Date: Nov 2008
Location: Reno, NV
Bikes: Civia Hyland Rohloff, Swobo Dixon, Colnago, Univega
Posts: 2,830
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Hobbyist machinist with a lathe and mill/drill. I have made a number of parts for bikes including custom mounting plates for ring lock installations on a couple of bikes and both headlight and taillight mounts as well as my own version of the Hubbub adapter for installing a twist grip shifter on drop bars.
__________________
Gear Hubs Owned: Rohloff disc brake, SRAM iM9 disc brake, SRAM P5 freewheel, Sachs Torpedo 3 speed freewheel, NuVinci CVT, Shimano Alfine SG S-501, Sturmey Archer S5-2 Alloy. Other: 83 Colnago Super Record, Univega Via De Oro

Visit and join the Yahoo Geared Hub Bikes group for support and links.
http://groups.yahoo.com/group/Geared_hub_bikes/
tatfiend is offline   Reply With Quote
Old 10-25-10, 01:33 AM   #18
dabac
Senior Member

Join Date: Mar 2008
Bikes:
Posts: 5,412
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Quote:
Originally Posted by Fish_man View Post
I've been fixing bikes since I was old enough to know how and I'm technically a fully qualified engineer .... so If I ever need a non standard, difficult to get or expensive part I have no problem with just making one provided I can.

Does anyone else?
Did a back yard conversion from Ashtabula to 3-piece crank once. Took the BB shell from a frame beyond saving, used a lathe to turn a couple of old pipe fittings into adapter rings to keep the slimmer BB shell centered in the bigger one and welded it all together.

Converted a cup & cone freewheel hub into a cartridge bearing hub. Basically kept the hub flanges, knocked the cups out, enlarged bearing seats to match cartridge size. Had to cut the center out of the hub and fit a wider pipe to make room for the spacer that supports the inner races.

The most visible one and the one that sees most use, my DIY bike lights.
The plate is a piece of cutting board, The clips that holds the assembly to the bar are pipe fittings.
The lamp housings were originally garden lights. They had spikes at the back which were just possible to cut down and thread for the rear bracket, an aluminium strip out of an old printer.

3-way switch, for full + dipped beam. Full is a 20W Halogen, dipped is a 5W direct replacement diode with the same pin width. Full/dipped symbols are cut from fluorescent plastic.

Have some more silly examples of excessive engineering you might once be exposed to when/if I get them to work....
Attached Images
File Type: jpg PICT0064..jpg (92.2 KB, 4 views)
File Type: jpg PICT0059..jpg (95.6 KB, 3 views)
dabac is offline   Reply With Quote
Old 10-25-10, 03:19 AM   #19
MichaelW
Senior Member

Join Date: Feb 2001
Location: England
Bikes:
Posts: 12,923
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
I have made a front lamp bracket from an old crank. I was able to use the square taper face as the fork crown mating surface and shaped the rest of the part with hand tools. The MkII bracket will incorporate a cantilever uphanger as well as a lamp bracket.
MichaelW is offline   Reply With Quote
Old 10-29-10, 09:21 AM   #20
itsmoot
in cog neato

itsmoot's Avatar

Join Date: Mar 2008
Location: Missouri
Bikes:
Posts: 357
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Sixty Fiver View Post
Where I get to work...

Are you using the bathtub to shield the welding tank from sparks or something? And it looks like there are rearview mirrors mounted on the toilet seat? Neat idea, but it looks like you'd have to turn around anyway to use them.



Now you're just showing off.


Last edited by itsmoot; 10-29-10 at 09:24 AM.
