Park Tool Cable/Housing Cutter - problems

Has anyone had problems with this tool? Mine wouldn't cut cable right out of the box. It wouldn't even cut one strand - it just binds up and folds the cable over.

I emailed Park Tool and they apologized and asked for a shipping address to send me another one. No questions or for me to send mine back, so I guess we'll see.

I figured I should of just bought a good cable cutter at the hardware store... Hopefully its just a fluke, I seem to have good luck with Park stuff...
tip is offline   Reply With Quote
Old 02-25-11, 11:46 AM   #2
Burton
Certified Bike Brat

Burton's Avatar

Join Date: Jan 2011
Location: Montreal, Quebec
Bikes:
Posts: 4,251
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Definately a fluke

First time I`ve heard of issues with a Park cable cutter myself. I`ve used a dozen different ones and they all worked flawlessly on cables. These is some deformation on cable housing. but I haven`t found a cutter that dosn`t do that.

Have also used Pedros cutters and the cut on housing is less square and the Pedros also lacks the crimping functionality thats built into the Park Tool design.

But sounds like you`re getting good customer service from them. Post an update when the replacement shows up.
Burton is offline   Reply With Quote
Old 02-25-11, 11:57 AM   #3
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter
Posts: 29,418
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
The cutter requires that the pivot bolt holding both halves together is as tight as possible while allowing movement. It's critical that there's zero gap between the jaws as they close, otherwise you'll have the problem you experienced. It's the same as with scissors, if you've ever tried to cut paper with scissors with a loose pivot you'll know the problem.

If the bolt is tight, it's likely that your cutter's jaws weren't properly ground flat on the inner faces - rare but could happen.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline   Reply With Quote
Old 02-25-11, 01:06 PM   #4
tip
Senior Member
Thread Starter

tip's Avatar

Join Date: Jan 2011
Location: PNW
Bikes: Novara Randonee, Trek 800
Posts: 75
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by FBinNY View Post
The cutter requires that the pivot bolt holding both halves together is as tight as possible while allowing movement. It's critical that there's zero gap between the jaws as they close, otherwise you'll have the problem you experienced. It's the same as with scissors, if you've ever tried to cut paper with scissors with a loose pivot you'll know the problem.
That was the first thing I checked... It looks like it just isn't sharp.
tip is offline   Reply With Quote
Old 02-25-11, 01:43 PM   #5
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 28,776
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
My Park cable cutters have worked very well for years so I have to assume yours is a fluke and Park appears to be more than willing to fix the problem.

I do find that it, and other cable cutters, work very well on all inner wires and on index-type shift housing. They work less well on spiral-wound brake housing and I prefer a pair of good side cutters and I work the cutting jaws between the coils as I cut. A flat file quickly smooths up any remaining burs.
HillRider is offline   Reply With Quote
Old 02-25-11, 02:27 PM   #6
cyclist2000
Senior Member

cyclist2000's Avatar

Join Date: Sep 2009
Location: Up
Bikes: Masi (retired), Giant TCR, Eisentraut, Jamis Aurora Elite, Zullo (trainer bike), Cannondale, 84 Stumpjumper, Waterford(N+1), Tern D8 (N+1), looking for a Ti frame
Posts: 3,025
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I use the park cable cutters to cut cables and a dremel to cut housings. I had a tendency to squash housing with the cutters. Also I think that if I only use the cable cutters for cables that they will stay sharper.
cyclist2000 is offline   Reply With Quote
Old 02-25-11, 02:47 PM   #7
dperreno
Senior Member

Join Date: May 2008
Location: Beverly Hills, MI
Bikes: '72 Fuji Finest, '80 Austro-Daimler Inter 10, '06 Fuji Team Issue, '06 Salsa Las Cruces, Nashbar Frame single speed
Posts: 566
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I had to tighten up the pivot bolt slightly on my Park cutters, and now they work very well.
__________________
Doug

'72 Fuji Finest
'80 Austro-Daimler Inter10
'06 Fuji Team Issue
'06 Salsa Las Cruces
Nashbar Single Speed
dperreno is offline   Reply With Quote
Old 02-25-11, 03:13 PM   #8
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Bikes:
Posts: 9,420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
I've only used mine a couple of times but they work fine for the most part. I tend to squash the housing a bit with them, but that's what an ice pick is for. Thought about getting a dremmel for that part and realized that for the few times I do that it just wasn't worth it.
himespau is offline   Reply With Quote
Old 02-25-11, 10:01 PM   #9
vredstein
Senior Member

vredstein's Avatar

Join Date: Aug 2008
Location: Tucson, Arizona
Bikes: '02 Lemond Buenos Aires, '98 Fuji Touring w/ Shimano Nexus premium, '06 Jamis Nova 853 cross frame set up as commuter, '03 Fuji Roubaix Pro 853 back up training bike
Posts: 704
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by himespau View Post
I've only used mine a couple of times but they work fine for the most part. I tend to squash the housing a bit with them, but that's what an ice pick is for. Thought about getting a dremmel for that part and realized that for the few times I do that it just wasn't worth it.
An ice pick? What size housing are you using anyways?
vredstein is offline   Reply With Quote
Old 02-26-11, 08:37 AM   #10
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Bikes:
Posts: 9,420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
Well it's called an ice pick, but it's actually very small and thin. More like a heavy duty version of what I used to call a hole starter when I was a kid.
himespau is offline   Reply With Quote
Old 02-26-11, 09:47 AM   #11
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 28,776
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Quote:
Originally Posted by vredstein View Post
An ice pick? What size housing are you using anyways?
Anything with a sharp point will work. You aren't trying to shove it far into the housing, you just need to round out the very end where it was cut. I use a large "disecting needle" I liberated from my lab at work decades ago but even a small nail will work.
HillRider is offline   Reply With Quote
Old 02-26-11, 10:12 AM   #12
operator
cab horn

Join Date: Jun 2004
Location: Toronto
Bikes: 1987 Bianchi Campione
Posts: 28,306
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by vredstein View Post
An ice pick? What size housing are you using anyways?
Hahahahahhahahahahahahahahaha

Maybe i'm just reallly hungover on a saturday morning but that is ****ing hilarious.
operator is offline   Reply With Quote
Old 02-26-11, 01:23 PM   #13
cdale4ever
Senior Member

cdale4ever's Avatar

Join Date: Feb 2011
Location: NE Ohio
Bikes: Multiplying
Posts: 113
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by HillRider View Post
My Park cable cutters have worked very well for years so I have to assume yours is a fluke and Park appears to be more than willing to fix the problem.

I do find that it, and other cable cutters, work very well on all inner wires and on index-type shift housing. They work less well on spiral-wound brake housing and I prefer a pair of good side cutters and I work the cutting jaws between the coils as I cut. A flat file quickly smooths up any remaining burs.
+1 on this method. I only use my Park cutters for the cable itself - never the housing. In addition to the flat file, I also use a little Xacto round file for cleaning up any burrs on the inside of the housing.
__________________
1989 Cannondale 3.0 Criterium (Built from frameset)
1989 Cannondale 3.0 SR900 (Full Campy)
1989/90 Cannondale 3.0 Road (frame only)
1989 Cannondale 3.0 Criterium (frame only)
1990 Cannondale 3.0 Criterium (frame only)
1986 Trek 400
1986 Raleigh Elkhorn (MTB)
1973 Raleigh Super Course
Lots of wheels and old parts, not enough time
cdale4ever is offline   Reply With Quote
Old 02-28-11, 07:07 PM   #14
tip
Senior Member
Thread Starter

tip's Avatar

Join Date: Jan 2011
Location: PNW
Bikes: Novara Randonee, Trek 800
Posts: 75
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
**UPDATE**

Park sent me a brand new CN-10! No questions asked, not even proof of ownership.

Pretty awesome customer service if you ask me. Now the real question, what do I do with my old ones? I figured they would ship me a self-addressed envelope for the old ones, but nothing. I bought them from Jenson. I would feel pretty shi**y returning them now, after I got a free replacement. What would you do?
tip is offline   Reply With Quote
Old 02-28-11, 07:21 PM   #15
bikeman715
Senior Member

bikeman715's Avatar

Join Date: Mar 2008
Location: Salinas , Ca.
Bikes: Bike Nashbar AL-1 ,Raligh M50 , Schwinn Traveler , and others
Posts: 2,402
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
just get rid of them , throw them out.
bikeman715 is offline   Reply With Quote
Old 02-28-11, 08:19 PM   #16
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter
Posts: 29,418
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
Don't chuck them, they're salvageable so it would be a waste.

Donate
the cutters to a local non-profit that fixes bikes, teaches repair, builds bikes for charity, or anything similar. They can be salvaged and made as good as new, so what would be a solid waste problem could do others a world of good.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline   Reply With Quote
Old 02-28-11, 08:44 PM   #17
tip
Senior Member
Thread Starter

tip's Avatar

Join Date: Jan 2011
Location: PNW
Bikes: Novara Randonee, Trek 800
Posts: 75
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Good idea on donating. There is no way I could chuck these $30 cutters. I wonder if I could sharpen them myself?
tip is offline   Reply With Quote
Old 02-28-11, 08:49 PM   #18
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter
Posts: 29,418
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
If you open them all the way and emai me photos of both sides (I'm most interested in the ground area near the notch), I can walk you through a resharpen process.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline   Reply With Quote
Old 03-01-11, 10:09 PM   #19
tip
Senior Member
Thread Starter

tip's Avatar

Join Date: Jan 2011
Location: PNW
Bikes: Novara Randonee, Trek 800
Posts: 75
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

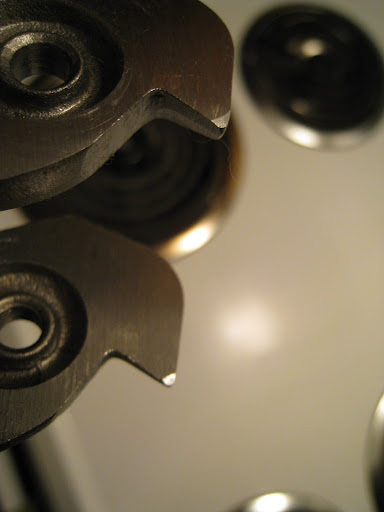

Here you go, let me know what you think. Thanks!





tip is offline   Reply With Quote
Old 03-01-11, 10:33 PM   #20
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter
Posts: 29,418
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
OK, it's an easy fix. Start thinking who the lucky nonprofit will be.

Look at the third photo with the ground face up. Note the worn or dull area at the notch of the lower jaw. In order for these to cut effectively the ground faces must come all the way to the edge ao they pass each other with zero clearance. Here's how to grind as good as new.

1- do not grind the flat face, under any circumstances. Be very careful, if you damage the ground face it'll be extremely difficult to fix, and require special tools.

2- you need a bench grinder with a stone that still has a sharp corner. If you don't have one you need dress the stone to make a sharp corner.

3- with the grinder off, set the tool rest so you can put the into the corner above the wheels centerline. You want to be high enough that you'll be grinding to a roughly 80° angle. You might need to be creative in arrange the tool rest to give you the right angle.

4- Grind, with the flat face up, plunging the notch directly into the corner (no back and forth motion). Warning, it'll get hot fast so do short bursts, and either quench in cold water, or rest between grinding sessions.

5- Grind until you've gone past the worn zone, so you have a sharp corner at the peak of the V and 2-3mm up each side.

6- repeat same process on other side, be careful you want to match both sides so the 2 apexes of the notches pass each other.

7- reassemble the cutter, and do not cut spokes with it.

BTW- wear real safety goggles with a single lens across the bridge of your nose, and close fitting sides, especially when dressing the wheel. Particles come off the wheel at 7200 feet per minute (roughly 80mph) and can bounce off your nose or cheek into your eyes.

If you don't have access to what's needed, PM me and you can send me the tool and I'll grind it for you and return it. No charge for charity work.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -6. The time now is 03:00 AM.
