The Great Seatpost Saga

So six months ago, I have a little problem. The seat is too low. Not a bunch, just a smidgen, need to raise it maybe a quarter inch (6mm). So I loosen the seatbolt screw, and the seatpost refuses to budge. Problem!

Turns out, the frame is steel, the seatpost is aluminum, when they're in contact and wet, you get corrosion, and the corrosion products are bulkier than the original metals. So the seatpost gets packed in tighter and tighter when it corrodes.

So I run it down to the bike store where I bought it. They jiggle it a bit, nothing. So they turn the bike upside down, clamp the seatpost in a vise, and twist the frame back and forth with all the gusto they dare to use. Nothing. "Sorry, nothing we can do!" Translation: "We can get this thing loose, but there's a distinct chance that we'll ruin a frame doing it, so we dare not try any further if we'd have to pay for your bike." So that's the end of that. By the way, grease on the seatpost is supposed to prevent this problem, and the bike mechanic assures me that he greased it when he assembled it.

Fast forward a few months. The seat height is still bugging me. It's nothing I can't ride, just not quite right, either. And in the meantime, I've researched the topic and found I'm not alone. Unfortunately, people are usually faced with this problem with junk frames, where they don't mind ruining a frame or letting it soak in penetrant for a month, and I don't have that option. Thus, I apply my ingenuity to the situation.

First, I seek out the PB Blaster. Now, you're supposed to dump this down the seat tube with the bike upside down and the crank removed, and then let it set for a couple of weeks while you repeat the process. Only problem is that I'm riding my bike every day, and the crank needs to stay in place. So I hose the seatpost down with PB Blaster several times over several days from the top side. No change.

I get a brainstorm, or maybe read about it, I forget which. Aluminum expands and contracts more than steel with temperature changes. Chilling the frame ought to shrink the seatpost more than the frame and make it looser. So I buy $10 worth of dry ice, apply it to the frame, nothing, no change whatever. Scratch that idea.

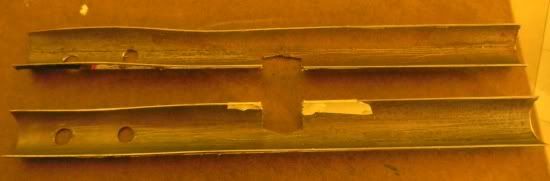

So I make up the Seat Post Impact Puller. And finally, yesterday, I applied it to the problem. I took an old steel bike frame, split tubes lengthwise, cut out notches to fit around the top of the seat post thus:

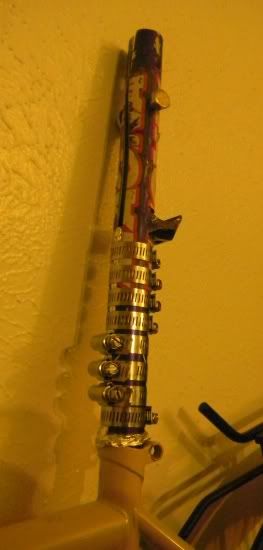

Then I attached it to the seatpost thusly, using multiple hose clamps torqued down pretty good. (I put some foil in between to try to avoid scarring the seatpost too badly.)


Then I attached the top part, a steel bar with a 2 or 3-lb hammer head slid over it, with cross bolt at the top.


Voila! I can now hammer that pesky seat post right out of the frame. So I start in WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM WHAM etc. Nothing. Zilch. It doesn't move a millimeter. All that work to make that contraption and it's totally useless, unless you just enjoy hammering on a bicycle. Grrrrr. (On a positive note, the hose clamps held the thing on the seatpost without slipping, so this does have SOME possibilities!)

So in a fit of desperation, I resort to the dreaded hacksaw. I cut the seatpost off about 3/4" above the clamp, and started slitting it lengthwise inside. I carefully cut it on one side, nothing. This is a slow and tedious process, by the way. When I sawed the seatpost off, I discovered that it is fairly thick, too, it's not sheet metal that you're going to pry out of there. Anyway, I got it sawed on the inside of one side, with no change, so I flipped the bike over and started sawing the other side. Got it sawed through, I thought, and still no change. I knew if I actually got it cut all the way through on both sides, two pieces ought to just fall out of there, so I kept working at it on one side and then the other. Finally, as I was sawing, the blade suddenly seized up, and I knew I had it. I see-sawed the blade loose, locked the vise grips on the stub of the seatpost and I was now able to turn it. A few minutes later, I had it worked out of there.


This sawing process took about 4 hours for both cuts. When I got it out, I found that one cut wasn't all the way through at the bottom. So I think if you actually cut it all the way through, it would only take the one cut. Sawing away at your good bike with a hacksaw will sure enough make you feel like you are doing something mighty stupid. I kept wondering if any minute, the blade wasn't going to come popping through the side of the seat tube. I envisioned myself taking the bike down to the bike shop and saying "I accidentally sawed my bike in half, can you put all these components on another frame please?" But when it was all done, there seemed to be minimal damage to the steel surfaces. I would still recommend any other method you can think of over this one. One of the problems is you can't see down in there to check on progress. So a borescope or whatever you can come up with to enable better inspection of progress would help considerably.

The new seatpost is now in place, and a few adjustments and I should be riding again. I post this so you can marvel at my mechanical ingenuity and dogged determination or laugh at my folly or whatever is appropriate.
__________________
"be careful this rando stuff is addictive and dan's the 'pusher'."

Last edited by StephenH; 03-28-11 at 08:52 PM.
StephenH is offline   Reply With Quote
Old 03-28-11, 10:44 PM   #2
greyghost_6
Pleasurable Pain

greyghost_6's Avatar

Join Date: Aug 2006
Location: Bloomington, IN
Bikes: Voodoo Rada, KHS Alite 4000, Smith & Wesson Tactical, Diamondback Response
Posts: 350
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I had the same problem. You should have tried a twist approach too instead of just hammering it out. Im sure you did but just didn't record it. What I finally did to get mine free was using a 20" pipe (monkey) wrench and twisted that sucker out of there (the more twist force you put the harder it clamps). It totally marred up the post with teeth marks. I soaked and re soaked in PB blaster for 4 days before this successfully worked though. I actually twisted it so hard the seat clamp actually twisted off the seat post, so the post was ruined but the frame was fine. I also tried the hot/cold approach with no success. I also tried sledge hammering it further into the frame just to get it loose enough to pull out! Luckily it was a 5 pound steel beast that could take the abuse.
greyghost_6 is offline   Reply With Quote
Old 03-28-11, 10:48 PM   #3
Steve530
Senior Member

Join Date: Jul 2008
Location: Knoxville, TN
Bikes: Klein
Posts: 911
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Nice story. I hope you greased the new seatpost.
Steve530 is offline   Reply With Quote
Old 03-29-11, 12:27 AM   #4
pdxtex
Portland, OR, USA

pdxtex's Avatar

Join Date: Feb 2004
Location: portland
Bikes: kona paddywagon, trek 2.1, lemond nevada city, gt zrx
Posts: 1,626
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
holy crap tim taylor. good job. that whole story was kind of making me antsy. glad it worked out. literally.
pdxtex is offline   Reply With Quote
Old 03-29-11, 05:34 AM   #5
Burton
Certified Bike Brat

Burton's Avatar

Join Date: Jan 2011
Location: Montreal, Quebec
Bikes:
Posts: 4,251
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Hi Stephan - top marks for ingenuity and entertainment, however it takes a lot more than just 6 months to get a seatpost siezed in that badly unless maybe it was buries in a snowback all winter and never greased in the first place.

So how old was the bike and how long did you actually have it before you decided that the seat height bugged you?
Burton is offline   Reply With Quote
Old 03-29-11, 11:34 AM   #6
StephenH
Uber Goober
Thread Starter

StephenH's Avatar

Join Date: Sep 2007
Location: Dallas area, Texas
Bikes:
Posts: 11,250
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
I think the bike is about 2-1/2 years old now. Whether the guy greased it when he put it together? I have no clue. I'm guessing on the 6- months business, I didn't mark "seatpost now stuck" on my calendar or anything. I don't know how long the seatpost was in one place. I think the change is just a bit of saddle sag or new padded shorts or something, not a big change but noticable.

I've ridden in the rain a couple of times, and I suspect one good soaking in the rain with the dissimilar metals and it's in there but good. Maybe a few quarts of sweat dribbled down through there, too.
__________________
"be careful this rando stuff is addictive and dan's the 'pusher'."
StephenH is offline   Reply With Quote
Old 03-29-11, 12:56 PM   #7
cycle_maven
Collector of Useless Info

Join Date: Aug 2009
Bikes:
Posts: 1,408
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Real difficult to dribble sweat down a seatpost... Are u sure it wasn't some other fluid?
cycle_maven is offline   Reply With Quote
Old 03-29-11, 01:13 PM   #8
skilsaw
Senior Member

skilsaw's Avatar

Join Date: Jul 2010
Location: Victoria, Canada
Bikes: Cannondale t1, Koga-Miyata World Traveller
Posts: 1,546
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I learned a lesson from your saga and last night, right after reading you story, I lubed my seatpost and steatpost bolt on bike #1. That was so satisfying, I removed and greased all the bolts one by one on the racks and bottle holders. I hope that with the greased threads, the bolts stay tight. Must pay attention to that now.

My other bike to do, then I can rest easy and ride through a Tsunami.
skilsaw is offline   Reply With Quote
Old 03-29-11, 01:51 PM   #9
Chombi
Senior Member

Chombi's Avatar

Join Date: Jul 2009
Bikes: 1986 Alan Record Carbonio, 1985 Vitus Plus Carbone 7, 1984 Peugeot PSV, 1972 Line Seeker, 1986(est.) Medici Aerodynamic (Project), 1985(est.) Peugeot PY10FC
Posts: 10,852
Mentioned: 5 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Try using "Freeze Off" (by CRC) penetrant spray next time. It worked great to release my stem quickly (in about a minute!) from my bike's steerer tube, after everything else failed to make it budge, including some of the most recommended penetrants/lubricants and a couple of weeks of soaking, twisting and pounding. The "cold shock" from the Freeze Off quickly broke up the corrosion and let the penetrant do it's work, while PB blaster, Liquid Wrench just sat soaking the stem and steerer tube for days and did nothing to it.

Chombi
Chombi is offline   Reply With Quote
Old 03-29-11, 02:10 PM   #10
3v1lD4v3
Senior Member

Join Date: Jul 2009
Bikes:
Posts: 90
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I think I remember seeing something about using vinegar to clear up the corrosion in Vintage.
3v1lD4v3 is offline   Reply With Quote
Old 03-29-11, 02:14 PM   #11
jccaclimber
Senior Member

Join Date: May 2005
Location: Terre Haute, Lafayette, or Indianapolis, IN, depending on the day
Bikes: n, I would like n+1
Posts: 1,917
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Burton View Post
Hi Stephan - top marks for ingenuity and entertainment, however it takes a lot more than just 6 months to get a seatpost siezed in that badly unless maybe it was buries in a snowback all winter and never greased in the first place.
So how old was the bike and how long did you actually have it before you decided that the seat height bugged you?
Au contraire mon ami. A couple years ago, having been working on bikes for roughly a decade, I had an aluminum seat post seize up in my steel tandem frame three months after install. It had been adjusted two months prior, so it wasn't stuck then either. I had that thing thickly coated in Park grease when I installed it. I suspect there were two contributing factors: First, while my commute was only around two miles, there was a lot of rain/snow. Second, it was an odd sized seat post (70's French tandem stoker), so I had machined a small amount off of a seat post I already had around, and this left a fresh oxidized surface, where normally you would already have a thin oxide coat. The formation of that thin oxide coat may have frozen it up. I ended up putting the seat post head in a bench vice, and twisting HARD to get it out. A quick run with a ball-hone down the seat tube, a fresh coating of grease, and I put it back in (it went in smoothly). Several years later I still haven't had any problems with it.
jccaclimber is offline   Reply With Quote
Old 03-29-11, 02:14 PM   #12
cyclist2000
Senior Member

cyclist2000's Avatar

Join Date: Sep 2009
Location: Up
Bikes: Masi (retired), Giant TCR, Eisentraut, Jamis Aurora Elite, Zullo (trainer bike), Cannondale, 84 Stumpjumper, Waterford(N+1), Tern D8 (N+1), looking for a Ti frame
Posts: 3,036
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Great story, it was long but I read every word in my meeting today. This needs to be reprinted every year to get everyone to grease their seatposts and quill stems.

I read something like this last year (they didn't do the hammer thing), that evening I greased the seatposts on all 9 bikes. So tonight I will grease the quill stems.
cyclist2000 is offline   Reply With Quote
Old 03-29-11, 03:03 PM   #13
TGUTTY
Junior Member

Join Date: Oct 2010
Bikes:
Posts: 11
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I like the ingenuity of the 'slam hammer'. A moot point now,but more weight maybe
TGUTTY is offline   Reply With Quote
Old 03-29-11, 04:16 PM   #14
JanMM
rebmeM roineS

JanMM's Avatar

Join Date: Jan 2006
Location: In Central IN
Bikes: RANS V3, RANS V-Rex, RANS Screamer
Posts: 13,339
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 16 Post(s)
I love a happy ending.
__________________
RANS V3 - Ti, RANS V-Rex - cromo, RANS Screamer - cromo
JanMM is offline   Reply With Quote
Old 03-29-11, 05:48 PM   #15
Steve530
Senior Member

Join Date: Jul 2008
Location: Knoxville, TN
Bikes: Klein
Posts: 911
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by 3v1lD4v3 View Post
I think I remember seeing something about using vinegar to clear up the corrosion in Vintage.
ammonia, for an aluminum post in a steel frame.
