Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

User Tag List

Reply

Thread Tools Search this Thread
Old 10-11-11, 07:30 AM   #1
estabro
lungbuster
Thread Starter

estabro's Avatar

Join Date: Sep 2008
Location: 132 & Bush
Bikes: Trek 5000 Road, SSFG Road, Kona FS MTN, Frankenbike
Posts: 653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
DIY: How to Rebuild Shimano Pedals (Photo & Instruction Thread)

Shimano Pedal Overhaul

Application:

Many Shimano pedal models; pictured here are my 5 year old M-540's

Tools Needed (may vary based on pedal model):

17mm wrench (or Shimano locknut tool)
7mm wrench
10mm wrench
8mm Allen wrench (or 15mm pedal wrench)
Grease
De-greaser
Q-Tips
Toothpick
Rags

Time Needed:

About 1 Hour

Removal:

1. Loosen/remove axle locknut until pedal bod separated from spindle with 17mm wrench




2. Loosen bearing locknut from end of spindle with 7mm wrench




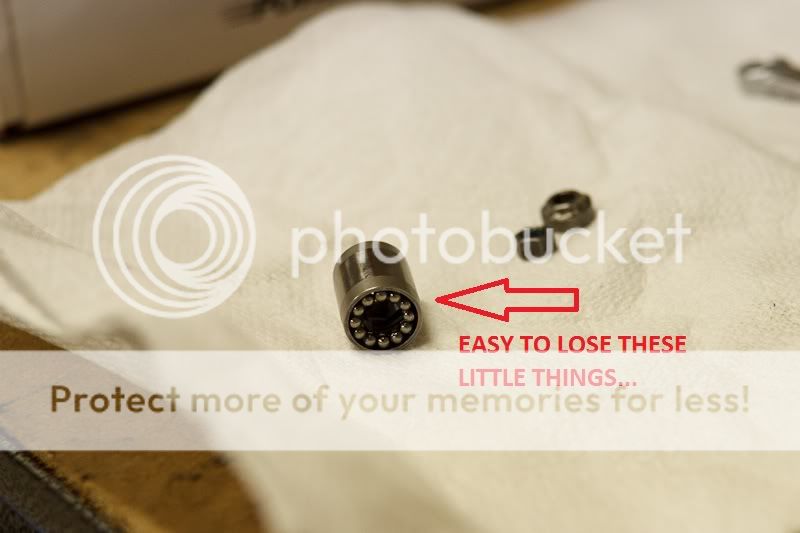

3. Loosen bearing pre-loan nut from spindle. CAUTION: do not lose any bearings!


4. Remove bearing race, bearings, and axle locknut. Remove rubber grommet from axle locknut. Clean all parts.

estabro is offline   Reply With Quote
Old 10-11-11, 07:31 AM   #2
estabro
lungbuster
Thread Starter

estabro's Avatar

Join Date: Sep 2008
Location: 132 & Bush
Bikes: Trek 5000 Road, SSFG Road, Kona FS MTN, Frankenbike
Posts: 653
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Reassembly:
1. Reinstall rubber grommet and slide axle locknut on spindle.

2. Put bearing race into position and screw bearing pre-load nut halfway.

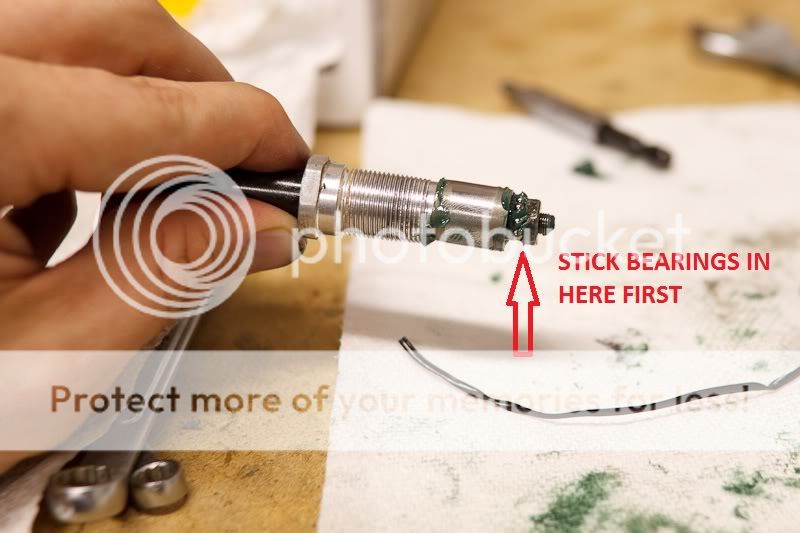

3. The hard part… Add grease under race and using a toothpick with a dab of grease on the end, pick up and place bearings on outside end, one by one. Push race down so these bearings don’t slip out and then install the inner bearings.



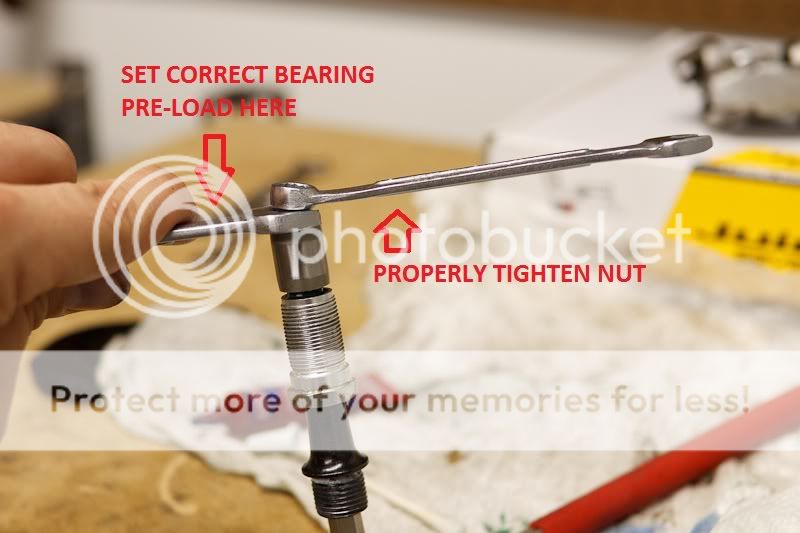

4. IMPORTANT: Tighten bearing pre-load nut so there is correct tension. Clean spindle end and bearing locknut with alcohol, apply Blue Loctite and then tighten using the 7mm and 10mm wrenches simultaneously. Allow proper time for Loctite to cure before reassembly.



5. Add more grease and then tighten pedal body to axle locknut.

6. Reinstall pedals on bike.
estabro is offline   Reply With Quote
Old 10-11-11, 07:39 AM   #3
mikezs
Noob

mikezs's Avatar

Join Date: Sep 2011
Location: Essex, UK
Bikes: Specialized Rockhopper Expert Disc 2009, Giant Boulder 510 Sports 1999, Olympic Competitor 1978
Posts: 71
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks for the tip about the order to reinstall bearings and keeping pedal mounted on the crank. I've just stripped my M515's down to every single part and was planning to do the bearings very soon.
mikezs is offline   Reply With Quote
Old 10-11-11, 10:30 AM   #4
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 28,844
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
I have Shimano PD-M515's on two bikes and the spindle/bearing assembly that threads into the body does not have a hex but a multi splined plastic head. Shimano sold a specific tool, TL-PD40, to remove them. It's just a plastic ring with mating splines inside and can be turned by hand. IIRC, it cost less than $5. Note that on the M515's the left pedal's spindle assembly is left-handed threaded just like the crank threads.
HillRider is offline   Reply With Quote
Old 10-11-11, 10:37 AM   #5
skijoring
Label here

Join Date: Sep 2004
Location: VT
Bikes:
Posts: 128
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Awesome, thank you for this.
skijoring is offline   Reply With Quote
Old 10-12-11, 02:46 AM   #6
mikezs
Noob

mikezs's Avatar

Join Date: Sep 2011
Location: Essex, UK
Bikes: Specialized Rockhopper Expert Disc 2009, Giant Boulder 510 Sports 1999, Olympic Competitor 1978
Posts: 71
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by HillRider View Post
I have Shimano PD-M515's on two bikes and the spindle/bearing assembly that threads into the body does not have a hex but a multi splined plastic head. Shimano sold a specific tool, TL-PD40, to remove them. It's just a plastic ring with mating splines inside and can be turned by hand. IIRC, it cost less than $5. Note that on the M515's the left pedal's spindle assembly is left-handed threaded just like the crank threads.
I got it for about $1.50 (0.89) from RoseBikes and had a 10 (~$16) voucher for them too! Can't imaging I'll use it more than once or twice, but I love to have a really wide range of tools!
mikezs is offline   Reply With Quote
Old 10-12-11, 06:25 AM   #7
davidad
Senior Member

Join Date: Feb 2009
Bikes:
Posts: 4,853
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
I don't know how to take one apart on the bike. I don't see the need to disasemble the cartridge. Wipe it down and clean out the pedal housing, then pack the pedal housing with grease and screw the cartridge back forcing out the old grease.
http://www.parktool.com/blog/repair-...pedal-overhaul
davidad is offline   Reply With Quote
Old 10-12-11, 06:56 AM   #8
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 28,844
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 66 Post(s)
Quote:
Originally Posted by davidad View Post
I don't know how to take one apart on the bike. I don't see the need to disasemble the cartridge. Wipe it down and clean out the pedal housing, then pack the pedal housing with grease and screw the cartridge back forcing out the old grease.
http://www.parktool.com/blog/repair-...pedal-overhaul
That's pretty much what I do too. A superficial cleaning of the cartridge and then new grease in the housing to purge the old as the pedal is reassembled.
HillRider is offline   Reply With Quote
Old 10-12-11, 07:51 AM   #9
Mr IGH
afraid of whales

Mr IGH's Avatar

Join Date: Apr 2009
Location: Front Range, CO
Bikes:
Posts: 3,624
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
Quote:
Originally Posted by HillRider View Post
That's pretty much what I do too....
Me too. The minute i saw all those itty bitty bearings I understood why some just toss them and buy a new set.
Mr IGH is offline   Reply With Quote
Old 10-12-11, 10:56 AM   #10
Airburst
Senior Member

Join Date: Oct 2009
Location: England, currently dividing my time between university in Guildford and home just outside Reading
Bikes: Too many to list here!
Posts: 1,921
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Is this valid for very old models? I have a set of SPDs which I think may be from the late '90s. The bearings feel a bit rough, and I've ridden them in the rain a lot, so I'm wondering if I should overhaul them. If I do, will the innards be like the pedal above, or like a standard set of pedals? They have the steel cleat saddle (I think it's called that) attached to the pedal body with two screws, unlike the modern ones which don't have anything there.
Airburst is offline   Reply With Quote
Old 10-12-11, 04:34 PM   #11
bionnaki
Senior Member

Join Date: Aug 2006
Bikes:
Posts: 886
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
nice. thanks.
my left A600 pedal is clicking -- need to overhaul it this week.
bookmarked.
bionnaki is offline   Reply With Quote
Old 10-13-11, 01:57 AM   #12
mikezs
Noob

mikezs's Avatar

Join Date: Sep 2011
Location: Essex, UK
Bikes: Specialized Rockhopper Expert Disc 2009, Giant Boulder 510 Sports 1999, Olympic Competitor 1978
Posts: 71
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Airburst View Post
Is this valid for very old models? I have a set of SPDs which I think may be from the late '90s. The bearings feel a bit rough, and I've ridden them in the rain a lot, so I'm wondering if I should overhaul them. If I do, will the innards be like the pedal above, or like a standard set of pedals? They have the steel cleat saddle (I think it's called that) attached to the pedal body with two screws, unlike the modern ones which don't have anything there.
Pic?
mikezs is offline   Reply With Quote
Old 10-13-11, 04:08 PM   #13
Airburst
Senior Member

Join Date: Oct 2009
Location: England, currently dividing my time between university in Guildford and home just outside Reading
Bikes: Too many to list here!
Posts: 1,921
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by mikezs View Post
Pic?

I'll post them tomorrow, if I can find my camera.
Airburst is offline   Reply With Quote
Old 10-14-11, 03:00 PM   #14
ThermionicScott
Gratuitous glib and snark

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)
Posts: 13,378
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 128 Post(s)
Great stuff. I'm tentatively planning to tear about and clean/relube everything on my Bianchi this winter, so I will definitely give this a whirl.
__________________
Quote:
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
RUSA #7498
ThermionicScott is offline   Reply With Quote
