Comfortable road bar setup

I've set up a number of road bars on older bicycles. But I'm confused about how most people set up them up.

Usually I see the shifters being placed so that the bottom tip of the shifter will touch a flat edge that runs along the bottom of the drops.

This doesn't seem comfortable to me. So on my last build, I tipped the bars up slightly so that the ramps up to the levers were fairly flat.

As a result I could move the handlebars ahead about an inch. This also helped the setup because the stem didn't quite reach enough.

But now I'm looking at another bike I'm building. The bars are set up at a steep angle and I'd like to make that angle less steep. However, the top tube + stem length is now adequate. So flattening out the ramp might place the bars too far out for me.

What guideline do you follow here?
gerv is offline   Reply With Quote
Old 11-21-11, 09:16 PM   #2
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Rock Springs, WY
Bikes: My War
Posts: 27,183
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
There are some bars on which you can meet both criteria you've mentioned. Ramps-to-hoods being a continuous flat surface and lever tips touching a straight edge held against the bottom of the ends of the bars.



As for your second to last paragraph, I'm not sure what you mean by "bars set up at a steep angle."
LesterOfPuppets is offline   Reply With Quote
Old 11-21-11, 09:32 PM   #3
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter
Posts: 30,825
Mentioned: 20 Post(s)
Tagged: 0 Thread(s)
Quoted: 858 Post(s)
Quote:
Originally Posted by gerv View Post
What guideline do you follow here?
The guideline is whatever works for you is right. Everybody is different, as is everybike. Differences in the relative height of the saddle and handlebar, top tube & stem extension, torso length, body angle, etc. all make trying to use a one-size-fits-all formula impractical. If it works, go with it. Later on you might tweak it a bit, and dial it in a bit better, but it's still a personal issue.

FWIW- while most shops set road bike bars up with the bottoms level, I've never been happy there. For 40+ years all my bikes have had the bars rotated forward a bit so the bottom slopes down at about 10 degrees. The brake levers are positioned a bit further down to compensate. That arrangement doesn't work well with anatomic bend bars, which is one reason I never liked them.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is online now   Reply With Quote
Old 11-21-11, 09:34 PM   #4
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Rock Springs, WY
Bikes: My War
Posts: 27,183
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
I like my bars rotated up, with the ends pointing down a bit also. If your ends are pointing at your bottom bracket (is that what you mean by "bars set up at a steep angle"? Maybe pics are in order), I think you've gone to far and should reevaluate.
LesterOfPuppets is offline   Reply With Quote
Old 11-21-11, 09:35 PM   #5
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 29,108
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 174 Post(s)
I'm not sure what model bars Lester has illustrated but they seem very similar to the FSA Wing Pros I have on three of my bikes. The reach can be set up nearly dead flat and in line with both Campy Ergo and Shimano STI brifters but the drops remain parallel to the ground. To me this is the ideal positioning.

BTW, FSA specifically recommends mounting the brifters so the tips of the brake levers are about 3-5 cm ABOVE a flat edge along the bottom of the drops. This is a bit higher than I actually place mine but the concept of the lever tip even with the bottom edge isn't sacred.
HillRider is offline   Reply With Quote
Old 11-21-11, 09:40 PM   #6
thirdgenbird
Senior Member

Join Date: Nov 2009
Bikes:
Posts: 7,108
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
check this out:

http://velonews.competitor.com/2011/...dlebars_197289


here are two of my bikes:


thirdgenbird is offline   Reply With Quote
Old 11-21-11, 10:05 PM   #7
gerv
In the right lane
Thread Starter

gerv's Avatar

Join Date: Dec 2005
Location: Des Moines
Bikes: 1974 Huffy 3 speed
Posts: 9,543
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Quote:
Originally Posted by LesterOfPuppets View Post

As for your second to last paragraph, I'm not sure what you mean by "bars set up at a steep angle."

I've had some bikes set up like this one and my wrists and thumb joint are soon reminding me of my age.
gerv is offline   Reply With Quote
Old 11-21-11, 10:15 PM   #8
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Rock Springs, WY
Bikes: My War
Posts: 27,183
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
It's been a LONG time since I've ridden with those kinda levers but I'm sure my thumbs would be rather displeased if I tried to ride on those non-existent "hoods".

I'm not sure what part of the setup you're targeting in the pic. Lever placement or bar angle.

For more comfy hoods, Cane Creek makes some levers that have big ol' slabs of hood for your hands to rest on that clicky levers have. They come with black hoods also: Scr-5


Last edited by LesterOfPuppets; 11-21-11 at 10:19 PM.
LesterOfPuppets is offline   Reply With Quote
Old 11-21-11, 10:19 PM   #9
gerv
In the right lane
Thread Starter

gerv's Avatar

Join Date: Dec 2005
Location: Des Moines
Bikes: 1974 Huffy 3 speed
Posts: 9,543
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Quote:
Originally Posted by thirdgenbird View Post
check this out:

http://velonews.competitor.com/2011/...dlebars_197289


here are two of my bikes:


Am I imagining this or does this setup give you about an extra inch or so? Perhaps a short top tube?

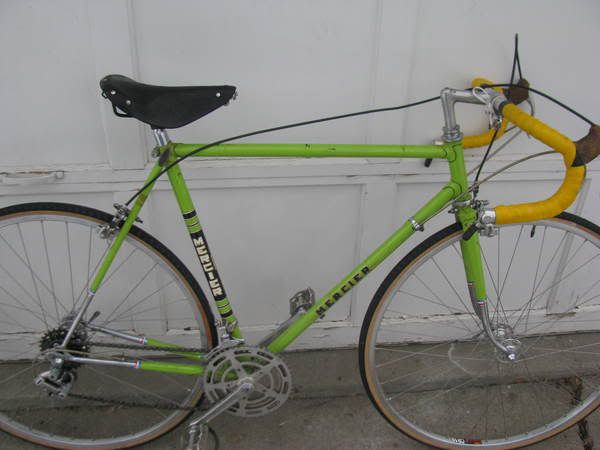

Actually this is the bike I am working on

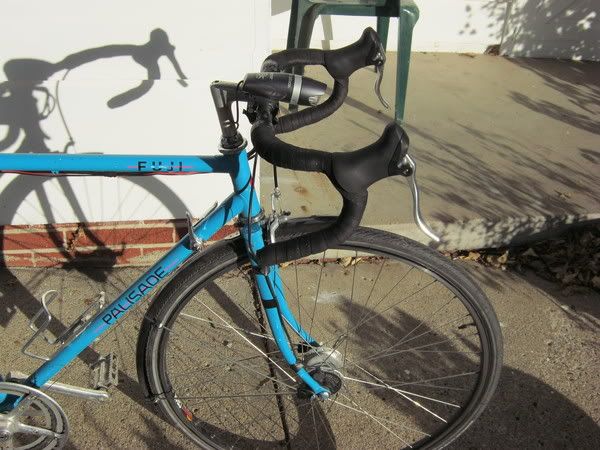

And this is one I set up recently


I find the latter setup much more comfortable and will probably make a similar adjustment to the green bike.
gerv is offline   Reply With Quote
Old 11-21-11, 10:22 PM   #10
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Rock Springs, WY
Bikes: My War
Posts: 27,183
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
Oh, yeah, that blue bike setup is pretty reasonable. Those brake levers seem ridiculously long on that thing. I'd ignore the straightedge advice and would probably place the levers about a centimeter lower on the bars personally. That'll probably give you a couple or three centimeters of lever below the straightedge, but whatevs.

I've got pretty small hands and I think a lower lever position would bring the levers closer to the drops.

Last edited by LesterOfPuppets; 11-21-11 at 10:27 PM.
LesterOfPuppets is offline   Reply With Quote
Old 11-21-11, 10:26 PM   #11
thirdgenbird
Senior Member

Join Date: Nov 2009
Bikes:
Posts: 7,108
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
do you mean an inch extra reach? i guess it would make the reach longer than having them rotated up further but this is how i have always built bikes.


you dont happen to sell bikes out of down town des moines do you?
thirdgenbird is offline   Reply With Quote
Old 11-21-11, 11:35 PM   #12
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 7
Posts: 22,067
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1104 Post(s)
Blue bike has an older bend style bar with a newer type brake lever.

the bar in #2 has a shorter ramp. which are an adaptation to the lever bodies getting longer
and the angle they meet the bar, note how the top example is rather a continuation of the bar.

when the shifters were elsewhere, longer ramp, then the hand grasps that portion
sliding forward to brake. whose hood portion was shorter..

but with the brifters staying on the lever hood is common,
so the bar bend brings it back towards you a bit.
fietsbob is offline   Reply With Quote
Old 11-22-11, 01:20 AM   #13
dnomel
Senior Member

Join Date: Jan 2010
Bikes:
Posts: 111
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Even those cheap old non aero brakes can be made pretty comfortable for the hoods position. They're too short by themselves so they need to become an extension of the bars. They and/or the bars probably need to be angled up a bit, and it can take some extra tape to get a good transition from bars to brakes. I think turning the brake levers inward also helps in a couple ways. It allows the hands to rest in a more comfortable position and more on the outsides of the hoods, and turning them in also tends to turn them down, smoothing the transition. If they have those additional levers for braking from the tops, I take them off and tape right over the nub they attached to. If they have hoods, I'll tape over the hoods.
dnomel is offline   Reply With Quote
Old 11-22-11, 01:54 AM   #14
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 7
Posts: 22,067
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1104 Post(s)
#7 looks like steel bars too . a shopping trip is in order.
fietsbob is offline   Reply With Quote
Old 11-22-11, 02:14 AM   #15
LesterOfPuppets
cowboy, steel horse, etc

LesterOfPuppets's Avatar

Join Date: Sep 2008
Location: Rock Springs, WY
Bikes: My War
Posts: 27,183
Mentioned: 13 Post(s)
Tagged: 0 Thread(s)
Quoted: 545 Post(s)
I used to run these bars with the ends parallel with the ground, which made the drops more comfortable but that made the ramps a ramp downward a bit much for my taste. So I rotated the bars up just a smidge and this is the happy medium:

LesterOfPuppets is offline   Reply With Quote
Old 11-22-11, 03:41 AM   #16
Kanegon
Senior Member

Kanegon's Avatar

Join Date: Oct 2011
Location: Brooklyn
Bikes: Puch mongrel, Raleigh GP, Centurion Lemans RS, Centurion Facet
Posts: 353
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
After years of only riding flat bars, I recently began riding drops. I must have readjusted the brakes and angle 10 times, i just can't hold'em like the pro racers. But I sure appreciate thm when riding against a 15mph headwind. Think the compact bar and big hood are one thing recent bikes got right, they look a lot more comfortable than vintage bends.

Kanegon is offline   Reply With Quote
Old 11-22-11, 07:07 AM   #17
bradtx
Senior Member

Join Date: Jun 2010
Location: Pearland, Texas
Bikes: Cannondale, Trek, Raleigh, Santana
Posts: 6,843
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 108 Post(s)
gerv, I initially set the brake lever position with a straight edge and adjust from there. I like my drops level, or nearly so, and I ride on the hoods quite a bit so generally my brake lever's final position is slightly higher than the initial position to obtain a comfortable hood position.

The only handle bars I was able to leave the brake levers in the traditional position while keeping the drops where I like them were a set of Cinelli 64s. Next easiest are the handle bars that are roughly equal in reach and drop and hardest are some ergo shaped handle bars. I try to have the bars set up before taping using test rides in the neighborhood and comparing with a proven well fit bike, but recently had to untape and adjust my touring bike.

Bottom line is don't worry about the traditional aesthetics, make it comfortable.

Brad
bradtx is online now   Reply With Quote
Old 11-22-11, 06:49 PM   #18
gerv
In the right lane
Thread Starter

gerv's Avatar

Join Date: Dec 2005
Location: Des Moines
Bikes: 1974 Huffy 3 speed
Posts: 9,543
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Quote:
Originally Posted by fietsbob View Post
Blue bike has an older bend style bar with a newer type brake lever.
Yes.. the blue bike is a cobble of various parts. The bars are steel Nittos from the early 1980s. 25.4 diameter. With modern Tektro levers.

The bar setup is pretty comfortable though... perhaps due more to the shape of the levers.

Quote:
Originally Posted by dnomel View Post
Even those cheap old non aero brakes can be made pretty comfortable for the hoods position. They're too short by themselves so they need to become an extension of the bars. They and/or the bars probably need to be angled up a bit, and it can take some extra tape to get a good transition from bars to brakes. I think turning the brake levers inward also helps in a couple ways. It allows the hands to rest in a more comfortable position and more on the outsides of the hoods, and turning them in also tends to turn them down, smoothing the transition. If they have those additional levers for braking from the tops, I take them off and tape right over the nub they attached to. If they have hoods, I'll tape over the hoods.
Unfortunately, a lot of older bicycles are set up with rather steep ramps and they are very challenging for older hands. I'm guessing they would have come set up that way. But... yes... you can improve the comfort somewhat.
gerv is offline   Reply With Quote
Old 11-22-11, 11:48 PM   #19
dnomel
Senior Member

Join Date: Jan 2010
Bikes:
Posts: 111
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
The bars I've had the best luck with, as far as getting comfortable on the hoods with old brakes, are the ones that bend up along the tops, and then angle out a bit to the drops. I'm not sure what they're called, but they seemed fairly common on older inexpensive bikes. The outward angle of the drops combined with turning the brake levers inward (a lot, like 30*) can create a nearly flat horizontal transition that allows the hands to rest on the bars and the outsides of the hoods in a position that feels more comfortable to me. Plus a lot of tape of course.
dnomel is offline   Reply With Quote
Old 11-23-11, 12:00 AM   #20
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 7
Posts: 22,067
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1104 Post(s)
My road bar setups were top Ramps horizontal, 2 Dirt Drops ,
shop take offs from MB1's

my touring bike I put together 2 narrow Randonneur bend bars
to make one wide one.
a custom stem clamps the 2 sections.
whose respective former centers were about 4" apart.

after the long overseas tour, I got a wide Nitto 'noodle'.
it's set up flat ramped as well..
fietsbob is offline   Reply With Quote
Old 11-23-11, 01:46 AM   #21
dnomel
Senior Member

Join Date: Jan 2010
Bikes:
Posts: 111
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by fietsbob View Post
My road bar setups were top Ramps horizontal, 2 Dirt Drops ,
shop take offs from MB1's

my touring bike I put together 2 narrow Randonneur bend bars
to make one wide one.
a custom stem clamps the 2 sections.
whose respective former centers were about 4" apart.

after the long overseas tour, I got a wide Nitto 'noodle'.
it's set up flat ramped as well..
Hey, thanks. I just googled randonneur and dirt drop. I think randonneur was more like I was trying to describe, but the dirt drop looks like just what I want. I'll have to keep an eye out for them now. Had no idea. Thanks again.
dnomel is offline   Reply With Quote
