Quick Release Tire + No Ridges = Bad Idea??

I have an old Bridgestone with a ridiculous kickstand that I never use. I want to take it off to make it lighter as well. Not that that's a huge problem. The problem that does exist though is the fact that the ridges to keep the nut from loosening is ON THE KICKSTAND. When I remove it, the metal underneath is smooth. If I wanted to remove the kickstand permanently and ride without it, how would I go about getting that ridged so a QR doesn't just slide right off? Am I worrying too much? Would it be ok w/o it? Thanks in advance folks.

-Ryan
RJMurphy is offline   Reply With Quote
Old 11-30-11, 03:14 PM   #2
corynardin
Senior Member

Join Date: Oct 2011
Location: Denver, CO
Bikes: Airborne, Quinta Roo Kilo, Performance R203
Posts: 107
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
If I understand you correctly your kickstand is sandwiched between your dropout and the nut of your QR? And the problem that you anticipate is that by removing your kickstand there will not be enough friction between the QR and the drop out and your wheel will come off unexpectedly?

As long as your QR skewer is snug I think you will be fine.
corynardin is offline   Reply With Quote
Old 11-30-11, 03:49 PM   #3
dave35
Senior Member

Join Date: Jun 2011
Location: Winnipeg, MB, Canada
Bikes:
Posts: 155
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
You have a kickstand which attaches to the dropouts somehow, rather than to a separate chainstay-mounted kickstand plate? Interesting. I would be curious to see a picture.

A QR mechanism will hold your rear axle in place just fine, with or without the help of 'ridges', and even with old horizontal dropouts. By all means, go ahead and remove your kickstand. Make sure your QR is tight... but, of course, you were doing that before, right?

You might be thinking of newer bikes with funny ridges ('lawyer lips') on the (usually front, sometimes rear) dropouts, which protect stupid people who don't put their QRs on tight enough. This is a silly design (it makes the QR less useful) unless you have front disc brakes, which can work their way free a wee bit at a time.
dave35 is offline   Reply With Quote
Old 11-30-11, 03:51 PM   #4
dave35
Senior Member

Join Date: Jun 2011
Location: Winnipeg, MB, Canada
Bikes:
Posts: 155
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
ALSO: make sure the axle isn't too long. It shouldn't stick out past the dropouts after you remove the kickstand; otherwise the skewer won't tighten against the dropout. If this is a problem (unlikely), you can shorten the axle slightly with a sharp hacksaw or grinder, leaving a locknut screwed on below the cut, and back the locknut off to smooth out the threads again.
dave35 is offline   Reply With Quote
Old 11-30-11, 03:55 PM   #5
gyozadude
Senior Member

gyozadude's Avatar

Join Date: Jun 2011
Location: Sunnyvale, California
Bikes: Bridgestone RB-1, 600, T700, MB-6 w/ Dirt Drops, MB-Zip, Bianchi Limited, Nashbar Hounder
Posts: 1,180
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
The QR ends themselves should be in contact with the dropout directly once you remove the kickstand. The QR inner faces themselves should have small ridges, or on the inside of the dropout, the axle locknut should have a recessed round ridge, or better, a serrated ridge. As long as you clamp the QR tight enough, it should hold without issues. I've owned a whole bunch of Bridgestones from mid 1980's with horizontal dropouts, some with stamped dropouts (Bridgestone 500 and below pre 1990) and some with forged (e.g. older 600 and 700). I never had a pull-out from a properly tightened QR in the rear. (I have pulled out the rear and crashed but on an improperly tightened rear QR). All my hubs had at least the inside locknuts have a round ridge on them. And that seems to suffice. And I'm a pretty big clyde and used to do lots of hill climbing and honking out of the saddle and sprints.
gyozadude is offline   Reply With Quote
Old 11-30-11, 03:59 PM   #6
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Bikes:
Posts: 9,422
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Does he need an extra washer in there to make up for the distance provided by the kickstand?
himespau is offline   Reply With Quote
Old 11-30-11, 05:16 PM   #7
RJMurphy
Senior Member
Thread Starter

RJMurphy's Avatar

Join Date: Sep 2011
Location: Denver, Co.
Bikes: 2012 GT Sensor 4.0, 2012 Aventon Mataro (Custom), 2014 Scattante XRL Team (Custom).
Posts: 105
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Exactly. And thank you. I'll give it a test on a short ride then.
RJMurphy is offline   Reply With Quote
Old 11-30-11, 05:51 PM   #8
ThermionicScott
Gratuitous glib and snark

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers)
Posts: 13,169
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 50 Post(s)
At the risk of condescending, you know how to tighten a QR properly, right? You adjust the nut on the other end so that you start to feel some resistance when you get the lever halfway closed.

- Scott
__________________
Quote:
Originally Posted by chandltp View Post
There's no such thing as too far.. just lack of time
RUSA #7498
ThermionicScott is offline   Reply With Quote
Old 11-30-11, 06:24 PM   #9
gbg
Senior Member

Join Date: Jan 2009
Bikes:
Posts: 628
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
When I was young there were no such things as lawyers lips. It just takes a few evolutionary throw backs to
forget about bike maintenance, get hurt, sue the company for not designing for stupidity and voila
everybody pays. Didn't one school just ban soccer balls from their field because a teacher got hurt by one.
If you keep your skewers locked in the same position you just have to look at them to know they are OK,
or heaven forbid bend down and check them.
gbg is offline   Reply With Quote
Old 11-30-11, 06:25 PM   #10
FastJake
Constant tinkerer

FastJake's Avatar

Join Date: May 2010
Location: Madison, Wisconsin
Bikes:
Posts: 7,574
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Laywer lips giving you grief? I file them off. Problem solved. On the bike that is. Regarding lawyers, there is probably no hope.

Quote:
Originally Posted by himespau View Post
Does he need an extra washer in there to make up for the distance provided by the kickstand?
No. Unless the skewer is way too long and bottoms out the threads. In that case, a shorter skewer would be called for. But a washer would work.
FastJake is offline   Reply With Quote
Old 11-30-11, 09:05 PM   #11
seedsbelize
Senior Member

seedsbelize's Avatar

Join Date: Nov 2010
Location: Tixkokob, Yucatán, México
Bikes: '84 Schwinn Letour Luxe, '87 Schw'inn Prelude, 91 Giant Yukon, 92 Schwinn Paramount PDG 5 '73 World Voyageur
Posts: 2,900
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 5 Post(s)
Quote:
Originally Posted by dave35 View Post
You have a kickstand which attaches to the dropouts somehow, rather than to a separate chainstay-mounted kickstand plate? Interesting. I would be curious to see a picture.

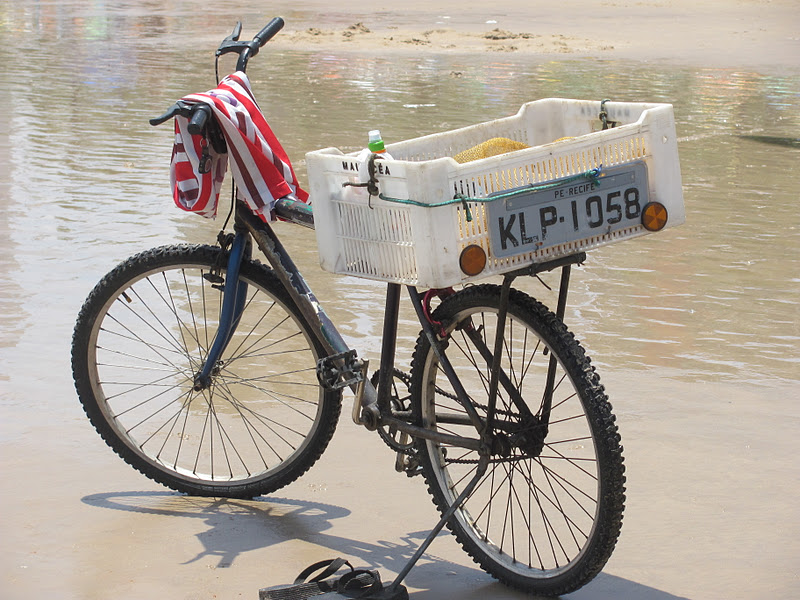

[IMG][/IMG]
They are quite common here, but this is the only picture I could find. My wife's bike has one. Hers has a support which then cups the outside of the chainstay.
__________________



Quote:
Originally Posted by Kactus View Post
Flubber.
seedsbelize is offline   Reply With Quote
Old 12-01-11, 09:31 AM   #12
Homebrew01
Super Moderator

Homebrew01's Avatar

Join Date: Jul 2004
Location: Ffld Cnty Connecticut
Bikes: Old Steelies I made, Old Cannondales
Posts: 19,595
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 61 Post(s)
Quote:
Originally Posted by ThermionicScott View Post
At the risk of condescending, you know how to tighten a QR properly, right? You adjust the nut on the other end so that you start to feel some resistance when you get the lever halfway closed.

- Scott
To add (just in case) ... the lever "flips" open & closed, NOT turned like a screw. And it should take a bit of a "grunt" to open & close.
__________________
Bikes: Old steel race bikes, old Cannondale race bikes, less old Cannondale race bike, crappy old mtn bike
Homebrew01 is offline   Reply With Quote
