Backwards BB

I just received a frame in the mail with a Campy Record BB.I noticed left side was on the right and the right side was on the left.(Sides are marked)Installed backwards!!I asked the seller and he said yeah it was installed backwards and had been ridden that way for 3 years and rode fine.Could it be??
trek330 is offline   Reply With Quote
Old 04-16-12, 03:19 PM   #2
ivan_yulaev
Senior Member

Join Date: Mar 2004
Location: San Diego, CA
Bikes: See sig.
Posts: 1,651
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
If it's an italian BB, I guess. English, well, it should work fine, as long as you never have to take the BB apart :-P
ivan_yulaev is offline   Reply With Quote
Old 04-16-12, 03:27 PM   #3
cny-bikeman
Mechanic/Tourist

Join Date: Apr 2007
Location: Syracuse, NY
Bikes: 2008 Novara Randonee - love it. Would have more bikes if I had time to ride them all. Previous bikes: 1968 Motobecane Mirage, 1972 Moto Grand Jubilee (my fav), Jackson Rake 16, 1983 C'dale ST500.
Posts: 6,440
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 100 Post(s)
Only possible with Italian threading. Assuming you just mean the cups were reversed there should not be a problem, but traditional cups would have a shoulder for the fixed cup to be locked against the bb face and lockring to lock the adjustable cup, which would be more than a bit awkward when you need to adjust the bb. I think we need a bit more detail or a pic.
cny-bikeman is offline   Reply With Quote
Old 04-16-12, 05:24 PM   #4
bobotech
Senior Member

Join Date: Jan 2012
Location: Spokane, WA
Bikes: Specialized Sequoia Elite/Motobecane Fantom Cross Team Ti/'85 Trek 520
Posts: 2,253
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
Could he just mean that the spindle was installed backwards? So the shorter end was on the drive side and the longer end was on the non-drive side?
bobotech is offline   Reply With Quote
Old 04-16-12, 06:37 PM   #5
onespeedbiker
Retro Grouch

onespeedbiker's Avatar

Join Date: Oct 2007
Location: Santa Cruz
Bikes: Yes
Posts: 2,210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
What makes the most sense is someone simply installed the BB backwards. Since a number of Campy BB are symmetrical, the chain line should not be a problem. My only concern would be getting the drive side tight enough as it is no longer the fixed side. If it was me I would R&R the BB and mount it the right way; but that's just me and I have the tools.
onespeedbiker is offline   Reply With Quote
Old 04-16-12, 06:56 PM   #6
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 29,124
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Is this a cup-and-cone or a cartridge type bb? For either one reversing the cups would work assuming the threading is Italian.
HillRider is offline   Reply With Quote
Old 04-16-12, 06:57 PM   #7
trek330
Senior Member
Thread Starter

Join Date: Apr 2010
Location: New York City
Bikes:
Posts: 728
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

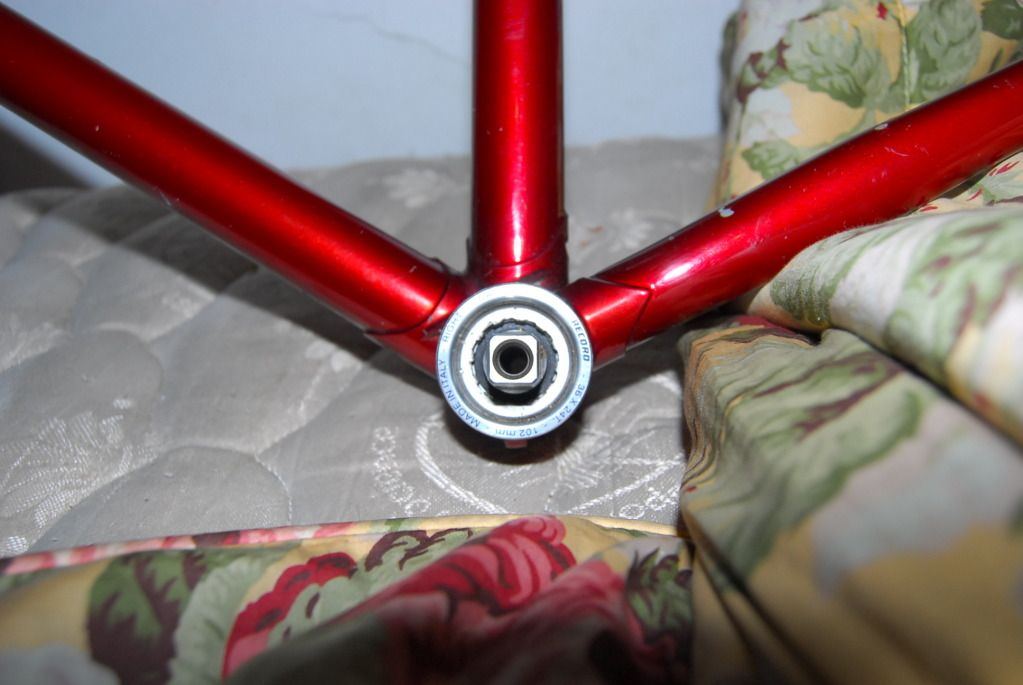

Notice the threads showing.on the drive side(it says left)Should that have a lock ring on it or something?The non drive side is flush.
trek330 is offline   Reply With Quote
Old 04-16-12, 06:58 PM   #8
trek330
Senior Member
Thread Starter

Join Date: Apr 2010
Location: New York City
Bikes:
Posts: 728
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
By the way this is a 1989 Pinarello Montello frame.
trek330 is offline   Reply With Quote
Old 04-16-12, 07:03 PM   #9
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 29,124
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
The threading is Italian (36 mmx24tpi) as engraved on the cup.
HillRider is offline   Reply With Quote
Old 04-17-12, 05:51 AM   #10
trek330
Senior Member
Thread Starter

Join Date: Apr 2010
Location: New York City
Bikes:
Posts: 728
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Please notice the exposed threads on the Driveside.(the original left)Should there be a lockring or something there?
trek330 is offline   Reply With Quote
Old 04-17-12, 07:45 AM   #11
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 29,124
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Quote:
Originally Posted by trek330 View Post
Please notice the exposed threads on the Driveside.(the original left)Should there be a lockring or something there?
There certainly should be a lock ring on the adjustable cup side and it should be on the non-drive side for access. I'd turn that bb around.
HillRider is offline   Reply With Quote
Old 04-17-12, 03:31 PM   #12
juls
over the hill

juls's Avatar

Join Date: Apr 2009
Location: florida
Bikes: 72 maino-74 raleigh pro-76 austro daimler inter 10-? giant kronos
Posts: 1,243
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 43 Post(s)
Could it just mean thread direction? My mtb was marked L on the drive side and R on the other/but it was a cartridge bb.
juls is offline   Reply With Quote
Old 04-17-12, 03:37 PM   #13
Bill Kapaun
Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Bikes: 86 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.
Posts: 9,496
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
Quote:
Originally Posted by juls View Post
Could it just mean thread direction? My mtb was marked L on the drive side and R on the other/but it was a cartridge bb.
And it also had opposite threads on the opposing sides, so it only goes in one way.
Italian has the same thread on both sides.
Bill Kapaun is online now   Reply With Quote
Old 04-17-12, 07:13 PM   #14
TonyA
Senior Member

Join Date: Sep 2011
Bikes:
Posts: 53
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by trek330 View Post
... he said yeah it was installed backwards and had been ridden that way for 3 years and rode fine. Could it be??
He rode it for 3 years without a lockring??
TonyA is offline   Reply With Quote
Old 04-17-12, 07:28 PM   #15
TonyA
Senior Member

Join Date: Sep 2011
Bikes:
Posts: 53
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Isn't that a cartridge BB? If not, what's the 102mm mean?
TonyA is offline   Reply With Quote
Old 04-17-12, 07:37 PM   #16
Drew Eckhardt
Senior Member

Drew Eckhardt's Avatar

Join Date: Apr 2010
Location: Sunnyvale, CA USA
Bikes:
Posts: 5,191
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Quote:
Originally Posted by trek330 View Post
Please notice the exposed threads on the Driveside.(the original left)Should there be a lockring or something there?
No - it's a cartridge bottom bracket.

Your Campagnolo cassette tool will work on it.
Drew Eckhardt is offline   Reply With Quote
Old 04-17-12, 07:45 PM   #17
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 29,124
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 181 Post(s)
Quote:
Originally Posted by Drew Eckhardt View Post
No - it's a cartridge bottom bracket.

Your Campagnolo cassette tool will work on it.
Looking again, I believe you are right, it is a cartridge, but why all the exposed threads on the one side? I have a Campy Chorus square taper cartridge bb in one bike (English threaded) and both cups thread in all the way. The ds cup has a flange that tightens against the bb shell and the nds cup threads in completely with no exposed threads. I wonder if someone "faced" the bb shell on the OP's bike too agressively and narrowed it.
HillRider is offline   Reply With Quote
Old 04-17-12, 08:15 PM   #18
trek330
Senior Member
Thread Starter

Join Date: Apr 2010
Location: New York City
Bikes:
Posts: 728
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by HillRider View Post
Looking again, I believe you are right, it is a cartridge, but why all the exposed threads on the one side? I have a Campy Chorus square taper cartridge bb in one bike (English threaded) and both cups thread in all the way. The ds cup has a flange that tightens against the bb shell and the nds cup threads in completely with no exposed threads. I wonder if someone "faced" the bb shell on the OP's bike too agressively and narrowed it.
what would the proper measure be?
trek330 is offline   Reply With Quote
Old 04-17-12, 11:54 PM   #19
onespeedbiker
Retro Grouch

onespeedbiker's Avatar

Join Date: Oct 2007
Location: Santa Cruz
Bikes: Yes
Posts: 2,210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
The BB shell should be 70mm wide
onespeedbiker is offline   Reply With Quote
Old 04-18-12, 08:49 AM   #20
trek330
Senior Member
Thread Starter

Join Date: Apr 2010
Location: New York City
Bikes:
Posts: 728
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by onespeedbiker View Post
The BB shell should be 70mm wide
I measured 69.6mm.
trek330 is offline   Reply With Quote
Old 04-18-12, 09:27 AM   #21
TonyA
Senior Member

Join Date: Sep 2011
Bikes:
Posts: 53
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Can you see whether that bit of exposed threading is in fact RH thread (as per Italian standard), and not LH thread as jules suggested?
TonyA is offline   Reply With Quote
Old 04-18-12, 11:26 AM   #22
onespeedbiker
Retro Grouch

onespeedbiker's Avatar

Join Date: Oct 2007
Location: Santa Cruz
Bikes: Yes
Posts: 2,210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by TonyA View Post
Can you see whether that bit of exposed threading is in fact RH thread (as per Italian standard), and not LH thread as jules suggested?
I have several campy BB and the Left and Right are directional, not for threads. If you look at the adjustable side (with the threads showing) you can see that it marked 36x24t for Italian threads (actually both sides are marked as Italian); by definition Italian threads are right hand thread on both sides..

Last edited by onespeedbiker; 04-18-12 at 11:49 AM.
onespeedbiker is offline   Reply With Quote
Old 04-18-12, 03:46 PM   #23
TonyA
Senior Member

Join Date: Sep 2011
Bikes:
Posts: 53
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Right, we're all agreed on what the standard is. But there's something non-standard here. The most likely thing by far is that it's just a non-standard installation, as everyone has said. But there's one thing that would really clinch it, and that's seeing the direction of that exposed thread. And how hard is it to look?

A minor point, but neither side of the cartridge is actually marked "Italian," as everyone keeps saying. They're marked "36x24T," and certainly you can infer from that that they have standard Italian thread direction. But you could also infer that my Bianchi has standard Italian threading, since the cups had no markings and the shell is 70mm wide; and in that case you'd be wrong. It's I.S.O. (1.370x24 RH/LH).
TonyA is offline   Reply With Quote
Old 04-18-12, 04:17 PM   #24
onespeedbiker
Retro Grouch

onespeedbiker's Avatar

Join Date: Oct 2007
Location: Santa Cruz
Bikes: Yes
Posts: 2,210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by TonyA View Post

A minor point, but neither side of the cartridge is actually marked "Italian," as everyone keeps saying. They're marked "36x24T," and certainly you can infer from that that they have standard Italian thread direction. But you could also infer that my Bianchi has standard Italian threading, since the cups had no markings and the shell is 70mm wide; and in that case you'd be wrong. It's I.S.O. (1.370x24 RH/LH).
There are a few 70mm shells that use English threads; that's a known quantity. One describes 36x24T as Italian, without the 36x24T you could be talking about a Fiat. Further the only BB cups that are marked 36x24T have right hand threads on both sides (Besides what's in a name? That which we call a rose by any other name would smell as sweet; sorry it was just too apropos to pass up). It would be like asking if your 1.370x24 cups might also have right hand threads on both sides; they don't because that configuration does not exist.

However, one is still stuck with the OP issue. At this point my only guess is that installing it backwards obviuosly will work. This king of BB installed does not use a lockring, so it appears there is something about mounting it backwards that causes the adjustable locking cup to sit more outboard on the right side than normal.

Last edited by onespeedbiker; 04-18-12 at 09:07 PM.
onespeedbiker is offline   Reply With Quote
Old 04-18-12, 09:08 PM   #25
onespeedbiker
Retro Grouch

onespeedbiker's Avatar

Join Date: Oct 2007
Location: Santa Cruz
Bikes: Yes
Posts: 2,210
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by trek330 View Post
I measured 69.6mm.
That is within tolerances for an Italian shell.
onespeedbiker is offline   Reply With Quote
