wheel truing stand.

need a recommendation on wheel truing stands. I dont want to spend over 150 bucks. I would like a stand that has guides on both sides, not just one side.
Homebrewevolver is offline   Reply With Quote
Old 07-11-12, 08:42 AM   #2
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter
Posts: 29,411
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
Quote:
Originally Posted by Homebrewevolver View Post
need a recommendation on wheel truing stands. I dont want to spend over 150 bucks. I would like a stand that has guides on both sides, not just one side.
This is just opinion, but save your dough. You already have a workable stand that you ride around on all the time. Use the frame and fork of your bike as a truing stand, the brake shoes are good guides for wobble (both sides as you requested). and for radial you can improvise a guide with a pencil and a couple of rubber bands, or something similar.

If/when you reach the point that you're going to get good value out of a stand, then you can shop for a decent one, expecting to spend about $200.00. The other alternative to using your bike as a stand is to see if there's a local bike co-op in your area. Their stands come with a very helpful feature -- free or cheap advice.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is online now   Reply With Quote
Old 07-11-12, 08:50 AM   #3
zaqwert6
New but not Noob

Join Date: Jun 2012
Location: Central Florida
Bikes: Madone Litespeed Paramount Colnago
Posts: 84
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Are you going to build wheels or just true them?
zaqwert6 is offline   Reply With Quote
Old 07-11-12, 08:51 AM   #4
himespau
Senior Member

himespau's Avatar

Join Date: Jun 2008
Location: Louisville, KY
Bikes:
Posts: 9,420
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 22 Post(s)
For building my first wheelset this one:
http://www.nashbar.com/bikes/Product...2_527473_-1___

worked pretty well for me and Nashbar has a 20% off coupon for today and tomorrow so you could get it for ~$80. Maybe not as precise as the Park stand with all the dials and gauges, but it got things very round for me.

I know a lot of people do use their bike (or a spare fork mounted in a bench vise), but I really wanted a dedicated stand and didn't have the cash for the Park.
himespau is offline   Reply With Quote
Old 07-11-12, 09:52 AM   #5
davidad
Senior Member

Join Date: Feb 2009
Bikes:
Posts: 4,830
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
I have an old Minoura and it does the job. I would also get a wheel dishing tool. http://www.nashbar.com/bikes/Product...52_-1___202575
davidad is offline   Reply With Quote
Old 07-11-12, 01:03 PM   #6
bobotech
Senior Member

Join Date: Jan 2012
Location: Spokane, WA
Bikes: Specialized Sequoia Elite/Motobecane Fantom Cross Team Ti/'85 Trek 520
Posts: 2,253
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Here is my fancy truing stand and wheel building tools:

I

Not shown is my 15 dollar Harbor Freight digital calipers. I actually prefer the park triangle spoke wrench over dedicated wrenches. I dunno why, I just do.

I keep meaning to upgrade my stand with a pair of clothespins for caliper sensors but I forget to. So I just use my thumb as a guide. I made it from a crashed Nishiki hi-ten frame.

It does both front and rear wheels.

I can get a wheel trued to under near perfect. I just get bored and call it good instead of going for absolute perfection.

I have built about 11 wheels on it so far. The last few wheels I built on it from scratch, I brought into my coop to do final touch-ups on and they need nearly nothing. I can even get dish pretty danged close, I just flip the wheel around in my stand and try to get both sides equidistant from the sides of the tubes.

I check spoke tension with my fingers and feel. I can get that pretty close.

Building wheels is all about feel and knowing that when you move a nipple in one spot, the rim will move in a wave fashion near it.

I'm still a big newbie but enjoy building wheels.
Attached Images
File Type: jpg truingstand.jpg (95.1 KB, 44 views)
bobotech is offline   Reply With Quote
Old 07-11-12, 01:11 PM   #7
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter
Posts: 29,411
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 86 Post(s)
Quote:
Originally Posted by bobotech View Post
Here is my fancy truing stand and wheel building tools:
You forgot to mention the sophisticated collapsing feature, slide the cross piece out ogf the BB shell, and is slides under your bed for storage.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is online now   Reply With Quote
Old 07-11-12, 01:22 PM   #8
SteamingAlong
Senior Member

Join Date: May 2012
Location: North Attleboro, MA
Bikes: 2011 Steamroller; 1998 Cannondale F-400; 1981 Motobecane Jubilee Sport
Posts: 231
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I actually came back to this thread a second time to mention something like Bobotech recommended. One of the eHow sites on the intertubes has directions on building a truing stand using an old fork.
SteamingAlong is offline   Reply With Quote
Old 07-11-12, 02:37 PM   #9
peugeot mongrel
Senior Member

peugeot mongrel's Avatar

Join Date: Jul 2010
Location: San Antonio, Texas
Bikes: 84 Coppi - 94 Hujsak - 82 Colnago Superissimo - 78 Ciöcc - 73 Lambert - 78 Motobecane Grand Record - 87 Peugeot Triathlon - 66 Peugeot H-40 - 78 Peugeot U08 - 85 Raleigh C-40 - 82 miyata 310 - 82 Univega - 85 Sterling SIS Mixte
Posts: 362
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)

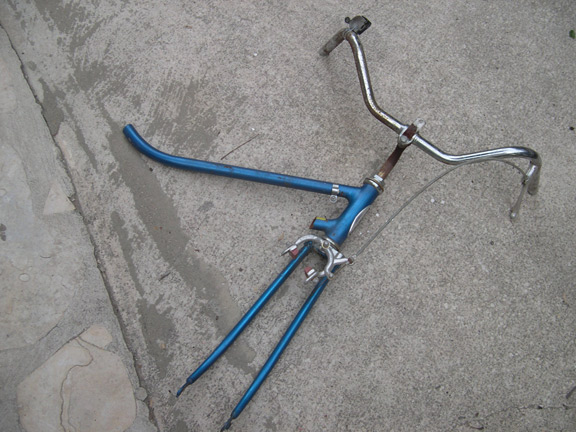

Here is mine as found

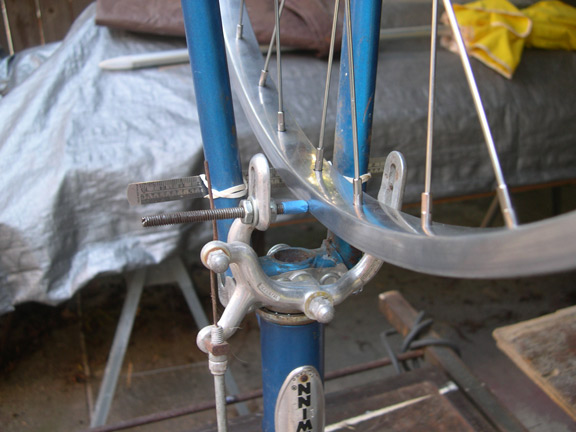

spread the fork for rear then use spacers for a front



lock the caliper.

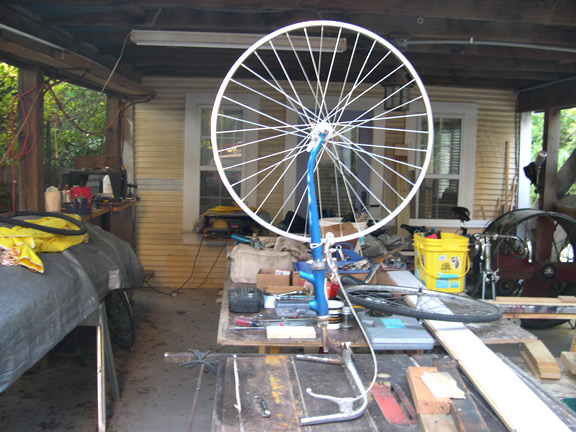

This just happend to be the right height for sitting on the couch & tweaking wheels.


peugeot mongrel is offline   Reply With Quote
Old 07-11-12, 03:36 PM   #10
Dodgensince74
Senior Member

Join Date: May 2010
Location: Phoenix, Az
Bikes: "10" Trek 7.3, early 90's Raliegh Dash, late 80's Takara 12spd Road Bike
Posts: 161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
if you want a factory made truing stand you can find some on ebay, I've been seeing the Park TS-2's going for about $150, but there are other brands there for a lot less money.
Dodgensince74 is offline   Reply With Quote
Old 07-11-12, 04:26 PM   #11
Stratman351
Senior Member

Stratman351's Avatar

Join Date: Jun 2011
Bikes:
Posts: 155
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
I have the Spin Doctor II stand, paid $70. Not as nice as those from Park and certain others, but it works well for me.
Stratman351 is offline   Reply With Quote
Old 07-11-12, 04:45 PM   #12
lvolpe
Member

Join Date: Nov 2006
Location: Stamford, CT
Bikes:
Posts: 44
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I also would recommend the Minoura Pro Truing Stand for basic wheel truing. I have not built any wheels with it but have trued wheels without any problem. It also folds away for storage. Here is the link to the Minoura page for information

http://www.minourausa.com/english/to...ruepro2-e.html

Edit: here is the link to the current model

http://www.minourausa.com/english/tool-e/ft1-e.html

Last edited by lvolpe; 07-11-12 at 04:49 PM. Reason: wrong ling
lvolpe is offline   Reply With Quote
Old 07-11-12, 06:11 PM   #13
Stratman351
Senior Member

Stratman351's Avatar

Join Date: Jun 2011
Bikes:
Posts: 155
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by lvolpe View Post
I also would recommend the Minoura Pro Truing Stand for basic wheel truing. I have not built any wheels with it but have trued wheels without any problem. It also folds away for storage. Here is the link to the Minoura page for information

http://www.minourausa.com/english/to...ruepro2-e.html

Edit: here is the link to the current model

http://www.minourausa.com/english/tool-e/ft1-e.html
That looks like a pretty nice unit.
Stratman351 is offline   Reply With Quote
Old 07-11-12, 06:20 PM   #14
ChrisM2097
Senior Member

ChrisM2097's Avatar

Join Date: Jun 2011
Location: Milpitas, CA
Bikes: 2007 Specialized Rockhopper Disc; Trek 7.5 FX
Posts: 981
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
http://www.amazon.com/Sunlite-Deluxe...l+truing+stand

I use this one. It works just fine for me for wheel truing and building.

ChrisM2097 is offline   Reply With Quote
Old 07-11-12, 08:10 PM   #15
IthaDan
Senior Member

IthaDan's Avatar

Join Date: Jan 2012
Location: Ithaca, NY
Bikes: Click on the #YOLO
Posts: 4,871
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I just picked up a park pro 2.2 on craigslist for $75 a couple weekends ago, they're out there.
__________________

Shimano : Click :: Campy :: Snap :: SRAM : Bang
