Chain guide - do you think this will work?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Chain guide - do you think this will work?

Old 08-29-12, 08:27 AM
  #1
Senior Member
Thread Starter

wphamilton's Avatar

Join Date: Apr 2011
Location: Alpharetta, GA
Posts: 15,280

Bikes: Nashbar Road

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2934 Post(s)
Liked 341 Times in 228 Posts
Chain guide - do you think this will work?

The problem: every once in awhile, if I shift into my highest gear while spinning out - the chain is slack - I'll drop the chain off the outside of the chain ring.

I have a 1x8 configuration on a road bike using a cheapo single chain ring, the kind where the drive side crank is solidly welded to the ring. On front I have the ring, the chain, and nothing else. This works fine and I never drop the chain inside, just rarely outside if I don't keep some tension on the chain. I shortened my chain slightly thinking it might add some tension, but that hasn't worked. I don't see any way a bash guard can be added to this ring and crank, but correct me if I'm wrong. S-Ram makes some very expensive solutions for track bikes I think, but I don't feel like splurging on this.

I know I could put an old front derailleur on and that would probably work, but that's a little goofy even for me. So I thought I'd go to the hardware store and get a P clamp for the seat tube and a short piece of steel bar or long bolt, and just bend it back over and outside the chain just a few mm from contact. Or maybe just two p-clamps, one for the frame and one for the chain, mimicking a FD. Before I experiment though, do you think that will work or would it risk ripping things to pieces? Is there a reasonable off the shelf solution? Maybe a chain tensioner I can install on front?
wphamilton is offline
Old 08-29-12, 08:40 AM
  #2
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,656

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 2026 Post(s)
Likes: 0
Liked 1,095 Times in 741 Posts
Shift into your big-big (OK, big-only) combination and see if there is still some slack in the rear derailleur travel. If there is remove enough chain links to just allow shifting into the lowest gear safely. Unless you have a very limited rear derailleur or your biggest cog is huge, you should never have slack in your highest gear unless the chain is much too long.
HillRider is offline
Old 08-29-12, 08:47 AM
  #3
Senior Member
Thread Starter

wphamilton's Avatar

Join Date: Apr 2011
Location: Alpharetta, GA
Posts: 15,280

Bikes: Nashbar Road

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2934 Post(s)
Liked 341 Times in 228 Posts
Did that HillRider, I used the no-slack plus two links without derailleur method originally, which looked to me like a half-link too long, and later took two links out. The cassette range is pretty big, 11-30, but shifting is good.

ps by "highest" I mean the 11 tooth cog.

Last edited by wphamilton; 08-29-12 at 08:58 AM.
wphamilton is offline
Old 09-01-12, 09:48 PM
  #4
Senior Member
Thread Starter

wphamilton's Avatar

Join Date: Apr 2011
Location: Alpharetta, GA
Posts: 15,280

Bikes: Nashbar Road

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2934 Post(s)
Liked 341 Times in 228 Posts
Not as pretty as I'd envisioned, but we'll see if it works at least.



Please pardon the dirty parts ...
Attached Images
File Type: jpg
chain guide.jpg (42.0 KB, 46 views)
wphamilton is offline
Old 09-02-12, 04:42 AM
  #5
Junior Member

Join Date: Jun 2009
Location: Columbus, OH
Posts: 23
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
https://www.paulcomp.com/ckclamp.html

I have one of these on my 1x9 bike.
tcristy is offline
Old 09-02-12, 05:03 AM
  #6
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,225

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1572 Post(s)
Liked 642 Times in 363 Posts
Originally Posted by wphamilton
Not as pretty as I'd envisioned, but we'll see if it works at least.

.
That looks less goofy to you than a front derailleur with the limit screws dialed in to hold it where you need?
Retro Grouch is offline
Old 09-02-12, 07:06 AM
  #7
bike whisperer

Kimmo's Avatar

Join Date: Dec 2009
Location: Melbourne, Oz
Posts: 9,533

Bikes: https://weightweenies.starbike.com/forum/viewtopic.php?f=10&t=152015&p=1404231

Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 1520 Post(s)
Liked 716 Times in 508 Posts
Originally Posted by wphamilton
Is there a reasonable off the shelf solution?
Paul's chain keeper is pretty tidy... but darn spendy if that price is typical.
Kimmo is offline
Old 09-02-12, 07:26 AM
  #8
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Posts: 33,656

Bikes: '96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '20 Surly Midnight Special, All are 3x10. It is hilly around here!

Mentioned: 39 Post(s)
Tagged: 0 Thread(s)
Quoted: 2026 Post(s)
Likes: 0
Liked 1,095 Times in 741 Posts
Originally Posted by Retro Grouch
That looks less goofy to you than a front derailleur with the limit screws dialed in to hold it where you need?
I suppose it has the advantage of looking intentional, not that he just "forgot" to remove the fd. I think a neater one could be made from a fd braze-on adapter clamp with a retaining bracket bolted on in place of the fd. It would be a lower cost, home made version of the Paul chain keeper Kimmo referenced.
HillRider is offline
Old 09-02-12, 09:01 AM
  #9
Senior Member
Thread Starter

wphamilton's Avatar

Join Date: Apr 2011
Location: Alpharetta, GA
Posts: 15,280

Bikes: Nashbar Road

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2934 Post(s)
Liked 341 Times in 228 Posts
Originally Posted by Retro Grouch
That looks less goofy to you than a front derailleur with the limit screws dialed in to hold it where you need?
Sure! A long lever arm held under tension balanced by a wire, just to hold a cage in place is to me extremely goofy, rube goldberg. I'll replace that metal bracket some time, it's just all I could find in the cabinet. Or take apart an old FD like hillrider suggests ... which needs a longer clamp because of the angle ... nothing is easy without lots of spare parts and a machine shop
wphamilton is offline
Old 09-02-12, 10:09 AM
  #10
Senior Member

Retro Grouch's Avatar

Join Date: Feb 2004
Location: St Peters, Missouri
Posts: 30,225

Bikes: Catrike 559 I own some others but they don't get ridden very much.

Mentioned: 16 Post(s)
Tagged: 0 Thread(s)
Quoted: 1572 Post(s)
Liked 642 Times in 363 Posts
Originally Posted by wphamilton
Sure! A long lever arm held under tension balanced by a wire, just to hold a cage in place is to me extremely goofy, rube goldberg. I'll replace that metal bracket some time, it's just all I could find in the cabinet. Or take apart an old FD like hillrider suggests ... which needs a longer clamp because of the angle ... nothing is easy without lots of spare parts and a machine shop
Don't use the wire. Install the front derailleur and dial in the low limit screw until the cage is where you want it.
Retro Grouch is offline
Old 09-02-12, 10:36 AM
  #11
Senior Member
Thread Starter

wphamilton's Avatar

Join Date: Apr 2011
Location: Alpharetta, GA
Posts: 15,280

Bikes: Nashbar Road

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2934 Post(s)
Liked 341 Times in 228 Posts
You're right but my objection with a front derailleur is it's over-engineered for the purpose, and would be silly if you designed a chain guide that way. Evidently I'm as ocd about some things as other cyclists, just different things I guess.

I wonder about wrapping a chain cover over that and maybe mounted or wrapped to the bottom of the down-tube. If nothing else a strip of aluminum or polycarbinate. Or split some conduit?

Last edited by wphamilton; 09-02-12 at 10:40 AM.
wphamilton is offline
Old 09-02-12, 10:36 AM
  #12
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,598

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,354 Times in 861 Posts
When you want to throw some money at the thing,
a disc chainguard on the outside looks nice..
and either a second one on the inside of the single CR, or a chain-minder ,
to stop the unshipping on the inside..

I have a big one for my small wheel IGH setup which has a chain-tesioner,

Small ones are made for a Cyclo-cross bike option, 44,42t..

Paul's is a California manufacturer, rather than an exported idea ,
re imported from Asia. that is why his stuff costs more .

Last edited by fietsbob; 09-02-12 at 10:44 AM.
fietsbob is offline
Old 09-02-12, 10:49 AM
  #13
Senior Member
Thread Starter

wphamilton's Avatar

Join Date: Apr 2011
Location: Alpharetta, GA
Posts: 15,280

Bikes: Nashbar Road

Mentioned: 71 Post(s)
Tagged: 0 Thread(s)
Quoted: 2934 Post(s)
Liked 341 Times in 228 Posts
That would be ideal, involving replacing the ring and cranks unfortunately. I'm hesitant to pay Paul's prices. Any decent priced 44-46 tooth ring with double guards would work for me though.
wphamilton is offline
Old 09-02-12, 11:04 AM
  #14
working on my sandal tan

ThermionicScott's Avatar

Join Date: Aug 2011
Location: CID
Posts: 22,625

Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)

Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 3868 Post(s)
Liked 2,560 Times in 1,574 Posts

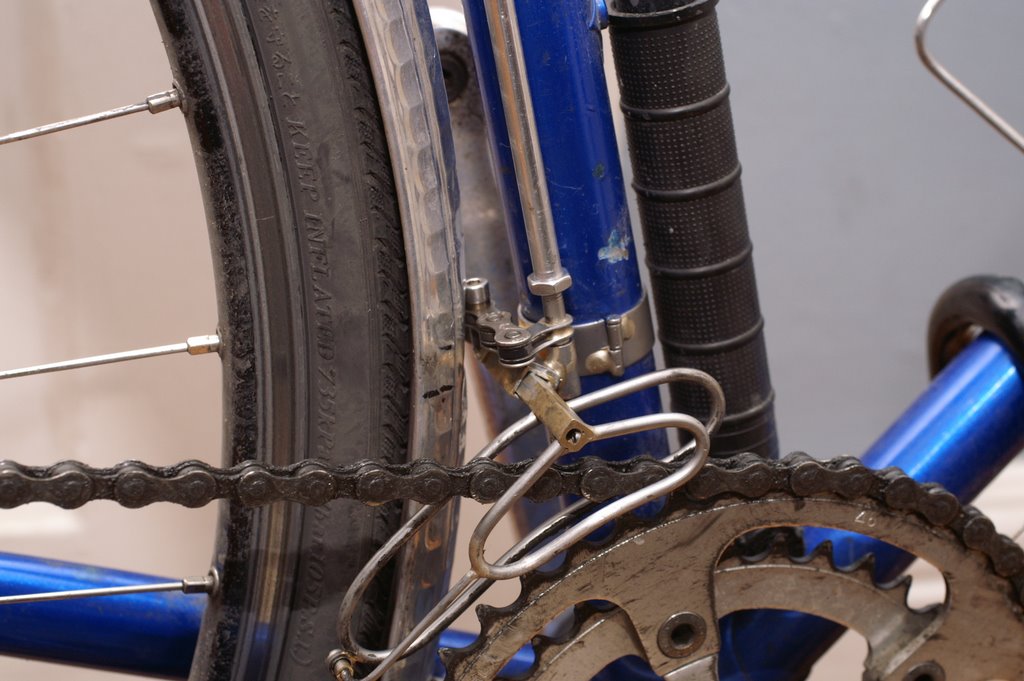

Maybe you could fashion a constructeur-style FD that doesn't move. Then it'd be fairly light and keep the chain from going anywhere:



From https://bikeville.blogspot.com/2010/0...erailleur.html
__________________
Originally Posted by chandltp
There's no such thing as too far.. just lack of time
Originally Posted by noglider
People in this forum are not typical.
RUSA #7498
ThermionicScott is offline
