Crankset and bottom bracket questions

The bike is a Specialized Rockhopper of unknown vintage. The frame is good, even pretty, much of the rest is problematic. When you grab the crank arms there is play. So, does that mean there is a bottom bracket problem? The crankset looks problematic too. Here is a picture of the largest chain ring. Is this shot?



If I have to replace the crankset and bottom bracket, how do you determine size and whether they are compatible? I can find cheap cranksets online but they don't say what size bottom bracket they take.

I did measure the outside of the bottom bracket shell and it is 73mm.
goldfinch is offline   Reply With Quote
Old 04-18-14, 10:33 AM   #2
AnkleWork
Senior Member

Join Date: Jan 2013
Location: High Plains
Bikes: old clunker
Posts: 1,953
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 8 Post(s)
Quote:
Originally Posted by goldfinch View Post
. . . When you grab the crank arms there is play. . .
Where's the play:
between the crank and spindle?
between the spindle and BB cartridge?
between the cartridge and shell?
somewhere else?

The teeth look probably OK.
AnkleWork is offline   Reply With Quote
Old 04-18-14, 10:43 AM   #3
goldfinch
Senior Member
Thread Starter

goldfinch's Avatar

Join Date: Apr 2011
Location: Minnesota/Arizona and between
Bikes: Trek Madone 4.7 WSD, 1969 Schwinn Collegiate, Surly Long Haul Trucker, Terry Classic, Gary Fisher Marlin, Litespeed Ocoee
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by AnkleWork View Post
Where's the play:
between the crank and spindle?
between the spindle and BB cartridge?
between the cartridge and shell?
somewhere else?

The teeth look probably OK.
It is hard for me to say. How can you tell? Let me describe what I can observe. If I push and pull on one crank arm the entire crank moves a bit. Not up and down but back and forth. Inotherwords, I can see the chain rings and other arm move when I move the left arm. It is like the crank is a smidgen too wide for the bracket. It is possible that there is a bad installation as the bike was originally obtained from an incompetent source.

If there is anything else I can try to diagnose this let me know.
goldfinch is offline   Reply With Quote
Old 04-18-14, 10:44 AM   #4
HillRider
Senior Member

Join Date: Aug 2005
Location: Pittsburgh, PA
Bikes: '''96 Litespeed Catalyst, '05 Litespeed Firenze, '06 Litespeed Tuscany, '12 Surly Pacer, All are 3x8,9 or 10. It is hilly around here!
Posts: 28,776
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
I agree, localize the play. Then, if it really is the bottom bracket, remove the old one and measure the spindle length. It seems to be a square taper spindle so matching the length and bb shell width should define the replacement. I also agree the teeth look ok and that crank has riveted chainrings so replacing them isn't an option anyway.

What does need attention is that chain.

Edit: I just saw your second posting. So the crank moves laterally only, not radially? I wonder if someone installed a bottom bracket meant for a 68 mm shell width.
HillRider is offline   Reply With Quote
Old 04-18-14, 10:44 AM   #5
cny-bikeman
Mechanic/Tourist

Join Date: Apr 2007
Location: Syracuse, NY
Bikes: 2008 Novara Randonee - love it. Would have more bikes if I had time to ride them all. Previous bikes: 1968 Motobecane Mirage, 1972 Moto Grand Jubilee (my fav), Jackson Rake 16, 1983 C'dale ST500.
Posts: 6,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Simple logic and observation should suffice here - If the arms move in unison the problem is the BB, which means adjustment/overhaul/replacement for the ball and cup style or tightening/replacement for the cartridge style. If only one moves then it is that crank. To help you efficiently we need to know what is "problematic" about the crankset.

p.s. Unless it's a severe optical illusion it appears the front derailleur is not in line with the chainwheels.
__________________
There's no such thing as a routine repair.

Don't tell me what "should" be - either it is, it isn't, or do something about it.

If you think I'm being blunt take it as a compliment - if I thought you were too weak to handle the truth or a strong opinion I would not bother.

Please take the time to post clearly so we can answer quickly. All lowercase and multiple typos makes for a hard read. Thanks!
cny-bikeman is offline   Reply With Quote
Old 04-18-14, 10:47 AM   #6
goldfinch
Senior Member
Thread Starter

goldfinch's Avatar

Join Date: Apr 2011
Location: Minnesota/Arizona and between
Bikes: Trek Madone 4.7 WSD, 1969 Schwinn Collegiate, Surly Long Haul Trucker, Terry Classic, Gary Fisher Marlin, Litespeed Ocoee
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
So, because the crank arms move in unison it is the bottom bracket?

I do know that the chain needs replacing. The placement of the front derailleur is an optical illusion.

So, the one very short tooth on the big ring is a feature? Or a problem but not significant?
goldfinch is offline   Reply With Quote
Old 04-18-14, 10:52 AM   #7
bikeman715
Senior Member

bikeman715's Avatar

Join Date: Mar 2008
Location: Salinas , Ca.
Bikes: Bike Nashbar AL-1 ,Raligh M50 , Schwinn Traveler , and others
Posts: 2,402
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
"So, the one very short tooth on the big ring is a feature? Or a problem but not significant? " It a feature , it is to aid in shifting .
bikeman715 is offline   Reply With Quote
Old 04-18-14, 10:58 AM   #8
goldfinch
Senior Member
Thread Starter

goldfinch's Avatar

Join Date: Apr 2011
Location: Minnesota/Arizona and between
Bikes: Trek Madone 4.7 WSD, 1969 Schwinn Collegiate, Surly Long Haul Trucker, Terry Classic, Gary Fisher Marlin, Litespeed Ocoee
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thank you all. So, if I got this right the next step is for me to remove the crankset (which I know how to do), and see what kind of bottom bracket I have.
goldfinch is offline   Reply With Quote
Old 04-18-14, 11:06 AM   #9
goldfinch
Senior Member
Thread Starter

goldfinch's Avatar

Join Date: Apr 2011
Location: Minnesota/Arizona and between
Bikes: Trek Madone 4.7 WSD, 1969 Schwinn Collegiate, Surly Long Haul Trucker, Terry Classic, Gary Fisher Marlin, Litespeed Ocoee
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by HillRider View Post
Edit: I just saw your second posting. So the crank moves laterally only, not radially? I wonder if someone installed a bottom bracket meant for a 68 mm shell width.

I missed your edit. I am not really sure what you mean by laterally or radially. I can say that if I grab a crank arm no matter what is its orientation to the bb I can move the arm maybe a millimeter or a bit less in relation to the bb shell and the other side also moves. I can pull it up and down or back and forth. So I take it that means both laterally and radially.
goldfinch is offline   Reply With Quote
Old 04-18-14, 11:49 AM   #10
goldfinch
Senior Member
Thread Starter

goldfinch's Avatar

Join Date: Apr 2011
Location: Minnesota/Arizona and between
Bikes: Trek Madone 4.7 WSD, 1969 Schwinn Collegiate, Surly Long Haul Trucker, Terry Classic, Gary Fisher Marlin, Litespeed Ocoee
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

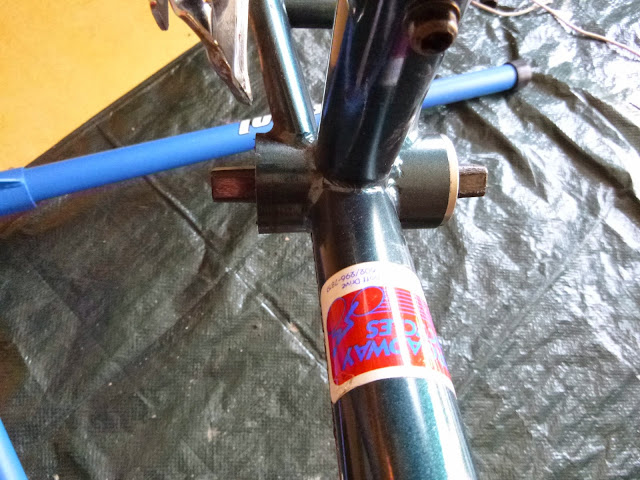

OK, crankset is off (it was stubborn). Here is what I have, nothing has been removed. Note that one side has a silver "cover" on the bb shell and the other does not.

What do I have? I do have the "spliney" tool to remove this in my box of tools spouse gave me. I am just unsure whether this is the right bb for the bike or not.





goldfinch is offline   Reply With Quote
Old 04-18-14, 12:13 PM   #11
SkyDog75
Senior Member

Join Date: May 2011
Location: Upstate NY
Bikes: Bianchi San Mateo and a few others
Posts: 2,078
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 31 Post(s)
That's a sealed cartridge bottom bracket. The bad news is that if there's play in the spindle, it's shot. The good news is that they're inexpensive and easy to replace. A Shimano UN55 replacement for that should cost you in the neighborhood of $25. Measure the length of your current spindle and find a replacement that's sized to match. (Assuming your current one's spindle is correctly sized.)

To remove and replace, you'll just need a wrench and a bottom bracket tool (the "spliney tool" you mentioned) like a Park Tool BBT-22 or BBT-32.
SkyDog75 is online now   Reply With Quote
Old 04-18-14, 12:15 PM   #12
cny-bikeman
Mechanic/Tourist

Join Date: Apr 2007
Location: Syracuse, NY
Bikes: 2008 Novara Randonee - love it. Would have more bikes if I had time to ride them all. Previous bikes: 1968 Motobecane Mirage, 1972 Moto Grand Jubilee (my fav), Jackson Rake 16, 1983 C'dale ST500.
Posts: 6,234
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Actually you first need to make sure both sides are tightened. If they are then yes, indeed you need to replace the cartridge unit.
__________________
There's no such thing as a routine repair.

Don't tell me what "should" be - either it is, it isn't, or do something about it.

If you think I'm being blunt take it as a compliment - if I thought you were too weak to handle the truth or a strong opinion I would not bother.

Please take the time to post clearly so we can answer quickly. All lowercase and multiple typos makes for a hard read. Thanks!
cny-bikeman is offline   Reply With Quote
Old 04-18-14, 12:17 PM   #13
bikeman715
Senior Member

bikeman715's Avatar

Join Date: Mar 2008
Location: Salinas , Ca.
Bikes: Bike Nashbar AL-1 ,Raligh M50 , Schwinn Traveler , and others
Posts: 2,402
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
On the right side of the bike tighten the seal unit ( the silver cover ) by turning it to the left ( counter clockwise ) as hard as you can until it can not move . Then do the same to the left side but not as hard ,it made of plastic and can and will break if you use too must stress on it .Tighten it to the right ( clock wise ). Replace the crankarms and see if the problem has gone away . If not then you need to replace the Bottom bracket . It a seal unit and it written on with what size you need to replace it with .

Last edited by bikeman715; 04-18-14 at 12:20 PM.
bikeman715 is offline   Reply With Quote
Old 04-18-14, 12:21 PM   #14
Bill Kapaun
Senior Member

Bill Kapaun's Avatar

Join Date: Feb 2007
Location: Mid Willamette Valley, Orygun
Bikes: 86 RockHopper,2008 Specialized Globe. Both upgraded to 9 speeds.
Posts: 9,195
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Likely there is a size marked on the BB that you'll be able to see, once it's removed.
Bill Kapaun is offline   Reply With Quote
Old 04-18-14, 12:55 PM   #15
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 7
Posts: 18,779
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 210 Post(s)
Quote:
I did measure the outside of the bottom bracket shell and it is 73mm.
normal for BB shells these days, on Mountain bikes.
fietsbob is online now   Reply With Quote
Old 04-18-14, 03:34 PM   #16
goldfinch
Senior Member
Thread Starter

goldfinch's Avatar

Join Date: Apr 2011
Location: Minnesota/Arizona and between
Bikes: Trek Madone 4.7 WSD, 1969 Schwinn Collegiate, Surly Long Haul Trucker, Terry Classic, Gary Fisher Marlin, Litespeed Ocoee
Posts: 3,980
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by cny-bikeman View Post
Actually you first need to make sure both sides are tightened. If they are then yes, indeed you need to replace the cartridge unit.
Quote:
Originally Posted by bikeman715 View Post
On the right side of the bike tighten the seal unit ( the silver cover ) by turning it to the left ( counter clockwise ) as hard as you can until it can not move . Then do the same to the left side but not as hard ,it made of plastic and can and will break if you use too must stress on it .Tighten it to the right ( clock wise ). Replace the crankarms and see if the problem has gone away . If not then you need to replace the Bottom bracket . It a seal unit and it written on with what size you need to replace it with .
Oh super yay, ja you betcha! When I put the spliney tool on it I could tighten and loosen it by hand. So, I first cleaned out the extensive gunk and the did as you guys instructed and tightened the bottom bracket. I re-installed the cranks. No play at all.

Here I was ready to buy a new crankset and new bottom bracket.

BTW, the bottom bracket doesn't grind or anything and seems to turn just fine.

Now to the next junky bike in the pile!

I can't thank all of you enough. I learned a lot today.
goldfinch is offline   Reply With Quote
Old 04-18-14, 04:28 PM   #17
bikeman715
Senior Member

bikeman715's Avatar

Join Date: Mar 2008
Location: Salinas , Ca.
Bikes: Bike Nashbar AL-1 ,Raligh M50 , Schwinn Traveler , and others
Posts: 2,402
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Quote:
Originally Posted by goldfinch View Post
Oh super yay, ja you betcha! When I put the spliney tool on it I could tighten and loosen it by hand. So, I first cleaned out the extensive gunk and the did as you guys instructed and tightened the bottom bracket. I re-installed the cranks. No play at all.

Here I was ready to buy a new crankset and new bottom bracket.

BTW, the bottom bracket doesn't grind or anything and seems to turn just fine.

Now to the next junky bike in the pile!

I can't thank all of you enough. I learned a lot today.
Glad we can help , it what we are here for .
