Need Help with Quill Stem Adapter Diameter

Sorry for a newbie question. I'm currently in the process of upgrading/updating my bike and I would like to replace the stock stem with threadless quill stem adapter , but I don't know which size should I buy.

This is my old stem. It's 22.2 in diameter. I think I have a 1'' threaded fork (not sure).



Replacement stem that I have - 28,6/25,4 mm fork diameter.



So should I buy the 25,4-28,6 (1'' to 1 1/8'') adapter or the 22.2-28.6 adapter?
Attached Images
File Type: jpg DSC02948.jpg (81.9 KB, 3 views)
File Type: jpg DSC02949.jpg (53.9 KB, 4 views)
File Type: jpg new-stem.jpg (89.0 KB, 2 views)
File Type: jpg stem-ahead.jpg (79.0 KB, 3 views)

Last edited by rekt; 07-16-14 at 08:18 AM.
rekt is offline   Reply With Quote
Old 07-16-14, 08:32 AM   #2
Andrew R Stewart
Andrew R Stewart

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder
Posts: 6,786
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 71 Post(s)
It would be nice if the linked pages had better descriptions... Looks like the 22.2-28.6 is the size you need to convert a 1" fork (that has a 22.2 ID) to a stem with a 28.6 ID. Andy.
Andrew R Stewart is offline   Reply With Quote
Old 07-16-14, 08:43 AM   #3
JBHoren
Living 'n Dying in ¾-Time

JBHoren's Avatar

Join Date: Dec 2008
Location: Greenacres, FL
Bikes:
Posts: 603
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)

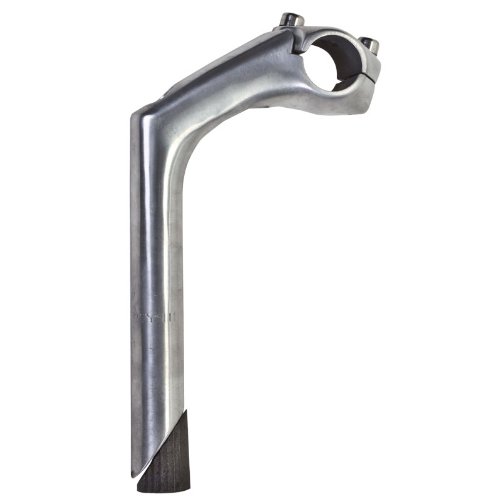

An alternative is this Sunlite pop-top quill stem; there are others, as well.

__________________
1990 Bianchi Volpe
JBHoren is offline   Reply With Quote
Old 07-16-14, 09:19 AM   #4
FBinNY
Senior Member

Join Date: Apr 2009
Location: New Rochelle, NY
Bikes: too many bikes from 1967 10s (5x2)Frejus to a Sumitomo Ti/Chorus aluminum 10s (10x2), plus one non-susp mtn bike I use as my commuter
Posts: 29,960
Mentioned: 9 Post(s)
Tagged: 0 Thread(s)
Quoted: 362 Post(s)
The adapter is giving the true size, which for you is 22.2mm or 7/8" to fit into a 1" fork with a 1/16" wall thickness. The 1" (25.4mm) adapter fits the ID of a 1-1/8" fork with a 1/16" wall.
__________________
FB
Chain-L site

An ounce of diagnosis is worth a pound of cure.

“Never argue with an idiot. He will only bring you down to his level and beat you with experience.”, George Carlin

“One accurate measurement is worth a thousand expert opinions” - Adm Grace Murray Hopper - USN

WARNING, I'm from New York. Thin skinned people should maintain safe distance.
FBinNY is offline   Reply With Quote
Old 07-16-14, 09:35 AM   #5
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 7
Posts: 20,416
Mentioned: 11 Post(s)
Tagged: 0 Thread(s)
Quoted: 655 Post(s)
a tall one ... High Rider Stem Adapter 28.6/22.2 | SOMA Fabrications
fietsbob is offline   Reply With Quote
Old 07-17-14, 01:29 PM   #6
patoff
Junior Member

Join Date: Jul 2014
Bikes:
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by JBHoren View Post
An alternative is this Sunlite pop-top quill stem; there are others, as well.

Handlebar clamp : 25.4, 26.0 or 31.8 ?

Thanks
patoff is offline   Reply With Quote
Old 07-17-14, 05:10 PM   #7
JBHoren
Living 'n Dying in ¾-Time

JBHoren's Avatar

Join Date: Dec 2008
Location: Greenacres, FL
Bikes:
Posts: 603
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 12 Post(s)
Quote:
Originally Posted by patoff View Post
Handlebar clamp : 25.4, 26.0 or 31.8 ?
Dunno... just know of it.
__________________
1990 Bianchi Volpe
JBHoren is offline   Reply With Quote
Old 07-17-14, 09:15 PM   #8
e_guevara
Senior Member

Join Date: Oct 2004
Bikes: Cannondale CAAD10 Team, Giant TCR
Posts: 691
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by JBHoren View Post
Quote:
Originally Posted by patoff View Post
Handlebar clamp : 25.4, 26.0 or 31.8 ?

Thanks
Dunno... just know of it.
Most of the time, quill stems are 26.0, but I've seen a fair number of 25.4 as well. Haven't seen a vintage-style quill stem that fits 31.8.
