Obsolete French Threads

So I've answered this to my self may of times, which is no, but its worth a try:

Is there an alternative bottom bracket for my old skoo Peugeot besides the Phil Wood BB cups. I was thinking of re tapping the threads to maybe an Italian threading, you know something more accessable will that work or will I destroy a frame?

Cheers,
Michelle
MichelleMachete is offline   Reply With Quote
Old 12-28-07, 02:52 PM   #2
miamijim
Senior Member

miamijim's Avatar

Join Date: Aug 2003
Location: Tampa, Florida
Bikes:
Posts: 13,409
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
http://cyclespeugeot.com/Threading.html

Edco BB's are available in French threading although I'm not sure of availablity and spindle length.

http://www.velo-orange.com/edbobr.html
miamijim is offline   Reply With Quote
Old 12-28-07, 03:17 PM   #3
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Bikes:
Posts: 16,827
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
I've got a set of French Sugino cups you can have. You will have to use your old lockring. I'd tell you to come and pick it up, but yor name scares me.
Grand Bois is offline   Reply With Quote
Old 12-28-07, 04:05 PM   #4
MichelleMachete
MichelleMachete
Thread Starter

MichelleMachete's Avatar

Join Date: Aug 2007
Location: Oakland, CA, San Jose CA, (Future) Portland OR
Bikes: old ass Peugot and a Surley Long Haul Trucker
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I'll leave my machete at home, JK. No thanks I have spares, is there any way to alter the BB shell so I can install a sealed cartridge BB.
MichelleMachete is offline   Reply With Quote
Old 12-28-07, 04:17 PM   #5
el twe
crotchety young dude

el twe's Avatar

Join Date: Jan 2005
Location: SF, CA
Bikes: IRO Angus; Casati Gold Line; Redline 925; '72 Schwinn Olympic Paramount
Posts: 4,818
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
If you can find an old Shimano UN-73 (I think) cartridge BBs (the one with two removable cups), the Phil cups should work. On that note, does anyone know if the Miche BB will work with Phil cups?
__________________
Quote:
Originally Posted by CardiacKid View Post
I explained that he could never pay me enough cash for the amount of work I had put into that bike and the only way to compensate me for it was to ride the hell out of it.
IRO Angus Casati Gold Line
el twe is offline   Reply With Quote
Old 12-28-07, 04:21 PM   #6
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Bikes:
Posts: 16,827
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
I've heard of force fitting a British threaded cartridge bottom bracket, but I'm not going to try it on my PX10! Actually, it probably won't hurt the shell because it's steel and the BB is aluminum. It's just not the right way to do things.

I think I'm going to try an Edco from Velo Orange since I want to use a NR triple on my Peugeot. The 120mm spindle should be about right and the Edco makes the chainline adjustable to some extent.
Grand Bois is offline   Reply With Quote
Old 12-28-07, 04:24 PM   #7
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Bikes:
Posts: 16,827
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Quote:
Originally Posted by el twe View Post
If you can find an old Shimano UN-73 (I think) cartridge BBs (the one with two removable cups), the Phil cups should work. On that note, does anyone know if the Miche BB will work with Phil cups?
I know for a fact that it won't work. I tried it. The diameter of the Miche bb is too large. A machinist might be able to solve that problem, but they don't work cheap.
Grand Bois is offline   Reply With Quote
Old 12-28-07, 04:35 PM   #8
MichelleMachete
MichelleMachete
Thread Starter

MichelleMachete's Avatar

Join Date: Aug 2007
Location: Oakland, CA, San Jose CA, (Future) Portland OR
Bikes: old ass Peugot and a Surley Long Haul Trucker
Posts: 43
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
The Edco from Velo Orange is tempting but I need a narrow spindle. 120mm is just too long for what I'm trying to do. (not converting it into a fixie or a single speed)
MichelleMachete is offline   Reply With Quote
Old 12-28-07, 05:52 PM   #9
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Bikes:
Posts: 16,827
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
I'm not convinced that a cartridge bottom bracket is a big improvement and I'm afraid that there won't be replacements for square taper cartridge bottom brackets available a few years down the road. I'm only willing to try the Edco because I can't find the spindle I need. I've got a couple of new NR thickwall cupsets, but Campy never made a spindle for a Record triple and thickwall cups.
Grand Bois is offline   Reply With Quote
Old 12-28-07, 06:15 PM   #10
unworthy1
Stop reading my posts!

unworthy1's Avatar

Join Date: Sep 2004
Bikes:
Posts: 9,432
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 93 Post(s)
Quote:
Originally Posted by MichelleMachete View Post
I'll leave my machete at home, JK. No thanks I have spares, is there any way to alter the BB shell so I can install a sealed cartridge BB.
Since we're just hashing things up: I'd bet you could install 2 BSC (both RH thread) *adjustable* side cups in your FR BB with only minor swearing and no machine shop visit required. You WOULD need one of the Shimano units with both removable cups and 2 of the *alloy* cups would be best (avoid the plastic cups) since you would be doing some forced minor deformation of the threads. This would allow you to select whatever size spindles Shimano made of those UN-73s(?), and then you can fit a modern-ish JIS crank as well...otherwise it's a lot of fussing and cobbling if you have good FR cups and a crank/spindle that fits, already.
unworthy1 is offline   Reply With Quote
Old 12-28-07, 07:32 PM   #11
austex
Senior Member

Join Date: Jan 2005
Bikes:
Posts: 161
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
In the latest issue of Bicycle Quarterly, Jan Heine describes how to install sealed bearings in a British- or French-threaded b/b. Takes some bit of machining, but you get larger bearings and ready renewability.
austex is offline   Reply With Quote
Old 12-28-07, 07:34 PM   #12
bugmenot
Senior Member

Join Date: Apr 2006
Bikes:
Posts: 141
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I think you need a UN-71 or 72 to do the Phil Wood cup trick. Also, some Tange cartridge BBs have removable cups and may be worth a look.

I wish all cartridge BB makers would publish how much R/L spindle offset each size had, to make fitting easier.
bugmenot is offline   Reply With Quote
Old 12-28-07, 07:36 PM   #13
John E
feros ferio

John E's Avatar

Join Date: Jul 2000
Location: www.ci.encinitas.ca.us
Bikes: 1959 Capo; 1980 Peugeot PKN-10; 1981 Bianchi; 1988 Schwinn KOM-10;
Posts: 17,307
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 139 Post(s)
Quote:
Originally Posted by Dirtdrop View Post
I've heard of force fitting a British threaded cartridge bottom bracket ...
That works only with a Swiss-threaded bottom bracket, unless you can cross-thread a LH 24TPI cup into a RH 1mm BB shell. (The dual RH thread cup approach outlined above should work, as well.) If you use aluminum cups, there is virtually no danger of damaging your steel BB shell. For almost 10 years my PKN-10 has had an English-threaded Sugino fixed cup and a French-threaded adjustable cup.
__________________
"Early to bed, early to rise. Work like hell, and advertise." -- George Stahlman
Capo [dschaw'-poe]: 1959 Modell Campagnolo, S/N 40324; 1960 Sieger, S/N 42624
Peugeot: 1970 UO-8, S/N 0010468
Bianchi: 1981 Campione d'Italia, S/N 1.M9914
Schwinn: 1988 Project KOM-10, S/N F804069
John E is offline   Reply With Quote
Old 12-28-07, 07:42 PM   #14
Noah Scape
can't member

Noah Scape's Avatar

Join Date: Jan 2005
Location: Iowa City
Bikes:
Posts: 1,721
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)

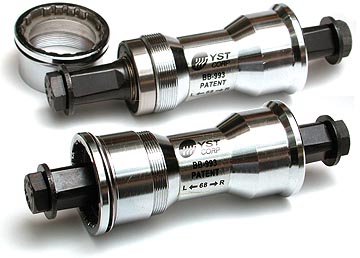

What ever happened with those YST bottom brackets. When I googled them I found that Harris dropped them because of inconsistent quality. Are they still around?

Noah Scape is offline   Reply With Quote
Old 12-28-07, 07:57 PM   #15
stronglight
Old Skeptic

stronglight's Avatar

Join Date: Jan 2006
Location: New Mexico, USA
Bikes: 19 road bikes & 1 Track bike
Posts: 1,044
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by MichelleMachete View Post
So I've answered this to my self may of times, which is no, but its worth a try:

Is there an alternative bottom bracket for my old skoo Peugeot besides the Phil Wood BB cups. I was thinking of re tapping the threads to maybe an Italian threading, you know something more accessable will that work or will I destroy a frame?

Cheers,
Michelle
Yes, you CAN re thread the BB. We've done this (re-tapped for an Italian BB) and it will works out nicely - so long as the BB shell is thick enough so you are not shaving the shell down to the thickness of a tin can. With better quality bikes the shells always seem to be thicker. With some of the low-end bikes they may have used thinner welded sheet steel to form the BB, so look for a seam or weld line.

The real advantage to doing so would be to use a more modern style of crankset. Otherwise, If you plan to keep a square tapered crankset, and if the cups are still in decent condition, I wouldn't bother. You can still find replacement spindles in N.O.S. condition for a reasonable price on eBay, and with a change of ball bearings (higher grade preferred) the bike should run just fine for a very long time.

Curious... what were your ultimate intentions for making the BB change?
stronglight is offline   Reply With Quote
Old 12-28-07, 08:07 PM   #16
Ex Pres
#39

Ex Pres's Avatar

Join Date: Dec 2007
Location: the 35223 (AL)
Bikes:
Posts: 6,338
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 49 Post(s)
One additional thing on my retapped BB (from your mech forum thread). When I went from the cup/cone that was in the retapped shell to a sealed unit I had to do some additional grinding in the shell, in the area between the threaded ends, to get the sealed unit (a Campy Chorus) to drop in correctly.
Ex Pres is offline   Reply With Quote
Old 12-28-07, 09:12 PM   #17
miamijim
Senior Member

miamijim's Avatar

Join Date: Aug 2003
Location: Tampa, Florida
Bikes:
Posts: 13,409
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 77 Post(s)
Quote:
Originally Posted by Noah Scape View Post
What ever happened with those YST bottom brackets. When I googled them I found that Harris dropped them because of inconsistent quality. Are they still around?

Plenty of those on Ebay.....
miamijim is offline   Reply With Quote
Old 12-28-07, 11:11 PM   #18
Grand Bois
Senior Member

Grand Bois's Avatar

Join Date: Mar 2005
Location: Pinole, CA, USA
Bikes:
Posts: 16,827
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 135 Post(s)
Those YST bottom brackets require chamfering of the bottom bracket shell like the old Mavic units. You have to find a shop that has the tool and someone that knows how to use it. It won't be cheap and you'll end up with a POS bottom bracket. Phil Wood probably won't cost much more and you'll have a lifetime bottom bracket.
Grand Bois is offline   Reply With Quote
Old 12-29-07, 01:44 AM   #19
spider-man
Ferrous wheel

Join Date: Apr 2005
Location: New Orleans
Bikes: 2004 Gunnar Rock Hound MTB; 1988 Gitane Team Pro road bike; 1986-ish Raleigh USA Grand Prix; mid-'80s Univega Gran Tourismo with Xtracycle Free Radical
Posts: 1,388
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by el twe View Post
If you can find an old Shimano UN-73 (I think) cartridge BBs (the one with two removable cups), the Phil cups should work. On that note, does anyone know if the Miche BB will work with Phil cups?
I used a UN-72 with Phil cups on an old Raleigh.
spider-man is offline   Reply With Quote
