Old(ish?) Sugino Info?

(xposted in SSFG)

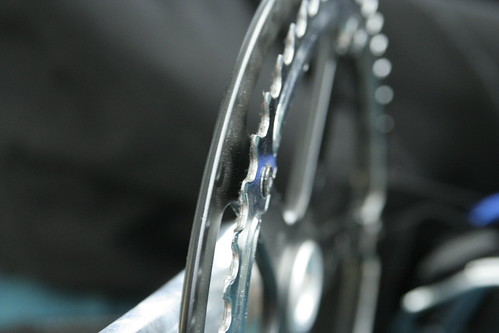

I picked up a crankset at work today for next to nothing (yay "junk" bins). It's clearly meant for track use, 48T, 1/8" and 165mm. The only identifying things besides the usual crankarm junk is "Sugino No. 3". Theres some more details to it, such as the peculiar chainring mounting. It appears to have a riveted chainring, but the spider says 46-48T, implying the ring capacities? I haven't bothered to measure the BCD yet, as I haven't even figured out how to change the rings yet. I'd post photos, but I'd rather prefer information on this Sugino No. 3 as a whole.
geeknerd99 is offline   Reply With Quote
Old 05-30-08, 01:48 AM   #2
LWaB
Senior Member

Join Date: Dec 2005
Location: Auld Blighty
Bikes: Early Cannondale tandem, '99 S&S Frezoni Audax, '65 Moulton Stowaway, '52 Claud Butler, TSR30, Brompton
Posts: 2,240
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Photos would be helpful.
LWaB is offline   Reply With Quote
Old 05-30-08, 07:21 AM   #3
awc380
Senior Member

Join Date: Sep 2005
Location: Hull, QC
Bikes:
Posts: 661
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
We'd prefer photos as a whole
awc380 is offline   Reply With Quote
Old 05-30-08, 11:43 AM   #4
geeknerd99
Gone Tarcking. Back Later
Thread Starter

Join Date: Nov 2007
Location: Blacksburg, VA
Bikes: Iron Horse Warrior Team (tricked to high heaven), Jamis Coda Sport (frame and fork, built into CX commuter), Gary Fisher Opie Dirt Jumper,SE Lager tarck bike
Posts: 502
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)








geeknerd99 is offline   Reply With Quote
Old 05-31-08, 08:40 AM   #5
ga_mueller
Senior Member

ga_mueller's Avatar

Join Date: Mar 2006
Location: San Jose, CA
Bikes: 1978 Nishiki Superbe, 1982 Miyata Team, 1987 Miyata 912, 1987 Davidson Challenge, 1993 Bridgestone RB1-7
Posts: 325
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Very cool. Here it is on a Japanese web page (scroll down a bit). And the crappy Google translation:

Translation: Japanese English
純正ではクランク一体型のシングルギヤが付いています.クランクは軽合のようですが,ギヤは鉄製でカシメで付いておりギヤの交換は出来ません. SUGINOのHPを見てもこの手の製品は載っておらず,すでに製造中止されているようです
Clank is genuine and lower body with a single gear. Crank case, but it is light, gear, with the iron in KASHIME gear and can not be exchanged. SUGINO HP's look at this kind of product Is not listed, already have been discontinued.
ga_mueller is offline   Reply With Quote
Old 05-31-08, 09:13 AM   #6
LWaB
Senior Member

Join Date: Dec 2005
Location: Auld Blighty
Bikes: Early Cannondale tandem, '99 S&S Frezoni Audax, '65 Moulton Stowaway, '52 Claud Butler, TSR30, Brompton
Posts: 2,240
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Cheap swaged cast crank, meant for cheap singlespeed or 3 speed city bikes. The spider allows a range of chainring sizes, factory-fitted rings only.
LWaB is offline   Reply With Quote
Old 05-31-08, 09:47 AM   #7
cyclotoine
Senior Member

cyclotoine's Avatar

Join Date: Jul 2004
Location: Yukon, Canada
Bikes:
Posts: 8,558
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
LWaB has nailed it. As soon as I read rivited I knew it was a cheepo swaged....

The looks like a 3/32nd ring to my eyes. Still no reason you couldn't use it on a conversion or something.
__________________
1 Super Record bike, 1 Nuovo Record bike, 1 Pista, 1 Road, 1 Cyclocross/Allrounder, 1 MTB, 1 Touring, 1 Fixed gear
cyclotoine is offline   Reply With Quote
Old 05-31-08, 05:24 PM   #8
LWaB
Senior Member

Join Date: Dec 2005
Location: Auld Blighty
Bikes: Early Cannondale tandem, '99 S&S Frezoni Audax, '65 Moulton Stowaway, '52 Claud Butler, TSR30, Brompton
Posts: 2,240
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by cyclotoine View Post
The looks like a 3/32nd ring to my eyes.
Good eyes. It is a 3/32 ring, so the crank is aimed at cheap 5 sp derailleur city bikes. The same crank and chainring is/was used with a different spider and another smaller chainring to make a double crank.
LWaB is offline   Reply With Quote
