    Vintage cyclocross (or suitable) frames?

    I'm interested in building up a cyclocross bike with a vintage steel frame. I'd prefer a lugged frame if possible. I saw a ZEUS on ebay recently but was outbid. In retrospect I should have bid higher.

    I'm pretty sure Gazelle made some, and I've seen the Alans (though I really rather have steel than aluminum), but I'm unaware of other frames with cantilever bosses, ability to run at least 700x32 tires and geometry vaguely acceptable for cyclocross type riding (obviously i'm not looking to build a championship level race bike, but do plan on riding the bike).

    What frames should I be keeping an eye out for? Thanks for any tips!

  2. #2
    N+1 redxj's Avatar
    Join Date
    Sep 2004
    Location
    Ann Arbor, MI
    My Bikes
    A few
    Posts
    1,326
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    A coworker of mine has a Pinnarelo cross bike (late 80's ish steel, but not lugged). I have also see a Guercottis cross bike as well. The easiest thing to look out for is a vintage touring bike. They usually came equipped with canti brakes and many had 27" wheels so you can fit big fat 700c cross tires with room to spare. I have an 83' Nishiki Seral built up as my cross/commuter bike and had knobby 700cX35 tires with room. The one thing is sometimes the conversion from 27" to 700c can be a pain where the brakes are concerned. A lot of the vintage bikes with canti posts had the post mounted too high to easily convert to 700c (pad needs to move 4mm lower from 27"->700c).

  3. #3
    Senior Member cyclodan's Avatar
    Join Date
    Feb 2004
    Location
    S.E. Mi.
    Posts
    277
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Well I have to disagree on the recommendation to look for an old touring frame. The similarity ends with the canti bosses. Touring geometry will be long stays and low bottom bracket while a 'cross bike needs high bottom bracket and snappy handling. Actually there are lots of Japanese lugged "sport-touring" frames from late '70s to mid '80s that have good geometry and tire clearance for cyclocross tires.

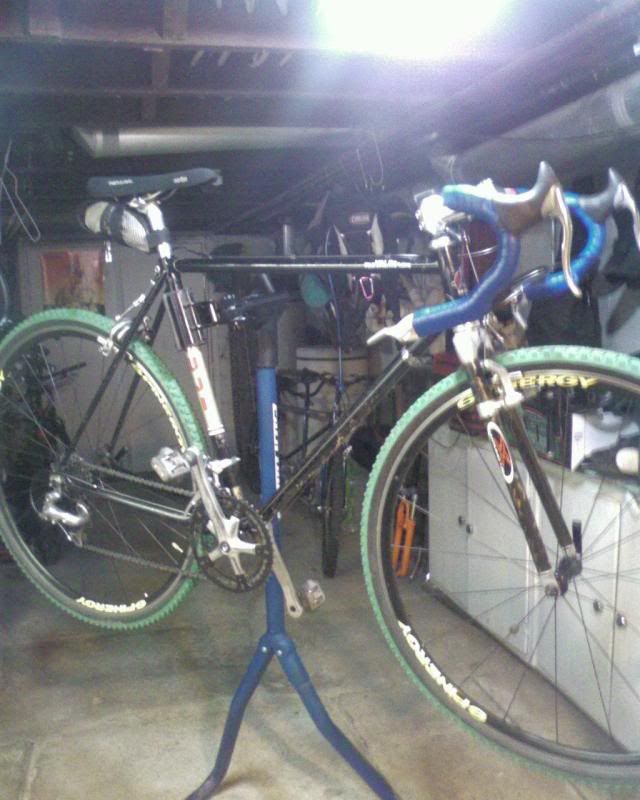

    Here's what I did with an '82 Fuji Del Rey...(sorry for the phone photos, someday I'll get a decent camera)

    Yeah the fork is worth more than the rest of the bike put together.



    Rear brake is a Dura Ace from before Dura Ace was a group. Plenty of mud clearance.

  4. #4
    Surf Bum
    Join Date
    Aug 2008
    Location
    Pacifica, CA
    My Bikes
    Vintage Trek, Vintage Diamond Back Mountain Bike, Bianchi Axis CrossBike
    Posts
    2,011
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Sweet! That one looks really cool.

    I went to the big bike swap meet at the SF Cow Palace today but didn't see any older cross bikes at all (closest was a schwinn criss cross or whatever those were called). But... I did find a great deal on a brand new modern cross bike that I couldn't resist. Got a new leftover '07 bianchi axis for $650 out the door (i.e. no tax). It's not exactly what I'd want if I wanted a racing only bike, but the triple chainrings and big cassette will come in handy on the big hills around my house and I can make changes/updates for next winter if I use this one as a racing bike.

    I'll still be looking for a vintage frame though because I like working on bikes...

  5. #5
    Waiting for his CX YungBurke's Avatar
    Join Date
    Jul 2008
    Location
    Atlanta, Georgia; Lewisburg Pennsyvania
    My Bikes
    Jamis Satellite, Motobecane Fantom Cross UNO, Fuji Team singlespeed
    Posts
    453
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    pics?
    Revised Stable:
    2008 Jamis Satellite- Fast road, racing, club rides, touring
    2009 Motobecane Fantom CX UNO- singletrack, fire roads, touring, urban riding
    1982 Fuji Team Singlespeed- dad's ride, coffee shop, screwing about

  6. #6
    just say shimaNO Choke's Avatar
    Join Date
    Jul 2008
    Location
    Wyoming
    My Bikes
    Ciocc, Bellesi, Bianchi, Cramerotti, Scapin, Ibis, Dirt Works
    Posts
    44
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)
    While it's not vintage the Bianchi Cross Project USA is a lugged steel frame. It's built with Zero Uno tubing and has a semi-sloping fork. They started making them around 1996 IIRC.

  7. #7
    Senior Member Grand Bois's Avatar
    Join Date
    Mar 2005
    Location
    Pinole, CA, USA
    Posts
    15,107
    Mentioned
    4 Post(s)
    Tagged
    0 Thread(s)
    Would a Schwinn Crosspoint be suitable?


  8. #8
    Senior Member cyclodan's Avatar
    Join Date
    Feb 2004
    Location
    S.E. Mi.
    Posts
    277
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    A lot of the lower end Schwinn "cross" series bikes from BITD were kinda porky but this one is built with True Temper DB tubes, so that's good. Looks like nice short chainstays. With the right parts pick this would probably work pretty well as CX'er.

  9. #9
    Surf Bum
    Join Date
    Aug 2008
    Location
    Pacifica, CA
    My Bikes
    Vintage Trek, Vintage Diamond Back Mountain Bike, Bianchi Axis CrossBike
    Posts
    2,011
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by YungBurke View Post
    pics?
    Of the new bike? Here's a quick cell phone pic. I couldn't resist getting new pedals and shoes as well. Just doing my part for the economy, you know. The frame color is "glossy primer". I'll be changing the bar tape to black asap. It rides great! But it's totally modern looking, so I'll still be on the lookout for a vintage frame to build up into a 1x9 or something.


  10. #10
    formerly turdsandwich j. hughes's Avatar
    Join Date
    Mar 2008
    Location
    Charlotte, NC; Huntington, WV
    My Bikes
    1993 Specialized Allez Pro, 1984 Trek 520, 198? Ross Mt St Helens, 1980 Raleigh Super Gran Prix, 197? Raleigh Gran Prix
    Posts
    430
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    I've been wanting to do the same type thing with an old frame. Would a Trek 420 (1990ish) be a suitable candidate?

    Last edited by j. hughes; 11-30-08 at 06:47 PM.

  11. #11
    Senior Member cyclodan's Avatar
    Join Date
    Feb 2004
    Location
    S.E. Mi.
    Posts
    277
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    As far as the Trek 420 goes, you can always add an aftermarket fork (you can still get 1" threadless CX fork, right?) but I doubt you would have enough tire clearance on the frame for a decent sized tire.

  12. #12
    Surf Bum
    Join Date
    Aug 2008
    Location
    Pacifica, CA
    My Bikes
    Vintage Trek, Vintage Diamond Back Mountain Bike, Bianchi Axis CrossBike
    Posts
    2,011
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    You know, it might. I'll try to put one of my 32mm tired wheels into my old trek 600 and see. If it fits in there, it'd probably fit a 420 as well. I didn't even consider making a cross bike out of the 600 because the frame is a bit too big for me.

  13. #13
    Senior Member Grand Bois's Avatar
    Join Date
    Mar 2005
    Location
    Pinole, CA, USA
    Posts
    15,107
    Mentioned
    4 Post(s)
    Tagged
    0 Thread(s)
    I thought that cantilever brakes were a prerequisite for cross bikes. If I'm wrong, it's only because I know very little about cross bikes.

    I brought up the Crosspoint because my sister has a couple of them sitting in her garage. I'm sure they haven't been ridden since I test rode them five years ago. I've hinted that I'd be willing to take them off of her hands, but no luck so far. They ride nice, but I'd change the grip shifters. The LX components work fine, but they're not much to look at. Shimano keeps the price down by painting instead of polishing.

  14. #14
    CroMosexual purevl's Avatar
    Join Date
    May 2007
    Location
    Murray, Ky
    Posts
    658
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by cyclodan View Post
    Rear brake is a Dura Ace from before Dura Ace was a group. Plenty of mud clearance.
    Did that brake caliper come with a cable anchor like that or did you add it? I ask because most (including other examples of this brake i've seen) center-pull calipers require a fixed-length double ended straddle cable. I just fabricated an "adapter" for one of my projects that allows me to adjust straddle length similar to what is shown in your picture. I thought if you did something similar we could compare notes, or if you found something available off the shelf you could steer me in that direction.
    If wanting fair bike prices makes me a leftist I don't wanna be right.

  15. #15
    Senior Member
    Join Date
    May 2005
    Posts
    7,283
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by Dirtdrop View Post
    Would a Schwinn Crosspoint be suitable?

    A Crosspoint is a hybrid, not a cyclocross bike. Still, no reason it couldn't be built up into a cyclocross bike, although the geometry may be different.

    Now this is a cyclocross bike.

  16. #16
    Senior Member cyclodan's Avatar
    Join Date
    Feb 2004
    Location
    S.E. Mi.
    Posts
    277
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Dirtdrop, while canti's are almost universally used for CX I don't think the UCI requires it. I saw a custom build once with an extremely rare short armed WTB rollercam brake. A lot of people do use V brakes too. One could spec a custom frame with bosses for those Paul's retro "Racer" (Mafac) style brakes I suppose. The main thing is clearance for a 35mm knobbie and some mud.

    Quote Originally Posted by purevl View Post
    Did that brake caliper come with a cable anchor like that or did you add it? I ask because most (including other examples of this brake i've seen) center-pull calipers require a fixed-length double ended straddle cable. I just fabricated an "adapter" for one of my projects that allows me to adjust straddle length similar to what is shown in your picture. I thought if you did something similar we could compare notes, or if you found something available off the shelf you could steer me in that direction.
    Yeah that brake originally had the fixed length cable. I slotted the Avid Tri-dangle so I could slide it over the straddle wire. Once I assembled everything I realized I really needed the adjustability at the brake arm so I just used an anchor bolt from a side-pull brake and all was good.
