Ted williams 3 wheel trike

I have an old 3 wheeler and the only identification is an old old faded sticker saying sears, roebuck, and company ted williams quality. after searching and pouring over the crazy amount of information on this forum i found out more about the trike. it's a 3 speed. still, what i haven't found, is where i could possibly buy parts for it? i got this trike when i was around 13 and that'd been almost 13 years ago. it was used when i got it. i looked at buying a new trike but i'd rather fix this one back up. it's not in very good shape, but nothing i couldn't repair if i had the right stuff. So, my question is this. Where can I find parts for this trike? I tried searching but didn't find what i wanted. Hopefully some of you more experienced people can help.
Ghost147 is offline   Reply With Quote
Old 03-03-09, 08:20 PM   #2
dbakl
Senior Member

Join Date: Nov 2005
Bikes: Cinelli, Paramount, Raleigh, Carlton, Zeus, Gemniani, Frejus, Legnano, Pinarello, Falcon
Posts: 5,775
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Ted Williams' endorsement deal with Sears ran from about 1960 to 1970, so I'd guess its from that time frame. Sears didn't make it, just bought it from a manufacturer and rebranded it. I have a 1965 catalog, but it doesn't show a 3-wheeler.

I know nothing about 3-wheelers but imagine most parts are typical bicycle parts. How are the 3-speeds made, in the hub, a freewheel, at the crank or a differential?
dbakl is offline   Reply With Quote
Old 03-03-09, 08:27 PM   #3
Ghost147
Member
Thread Starter

Join Date: Mar 2009
Bikes:
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I have no idea lol. I've only had 2 bikes in my life. my lil one that still has the training wheels on it from when we found out my balance is non-existant and this one. i rode it untill i got a car (about 2 yrs) and then i didn't ride it too much in such a small town. my expierence is not much for 2 wheeler or 3 wheelers. if i could find it i would link it, but i've had no such luck.
Ghost147 is offline   Reply With Quote
Old 03-03-09, 08:28 PM   #4
StephenH
Uber Goober

StephenH's Avatar

Join Date: Sep 2007
Location: Dallas area, Texas
Bikes:
Posts: 11,235
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
What exactly is it you're needing? And from the "Ted Williams", I assume this is a standard adult tricycle?

A lot of the parts on it ought to be pretty generic- things like front wheel, tires, brake shoes, cables, handlebars, seatposts, seat, etc., you could probably go to any bike store and pick some up, or get online at www.niagaracycle.com if you know exactly what it is you need.

The wheel bearings are probably pretty standard, but you may have to take them out and run them down to the local bike shop to figure what it is you have.

The 3-speed hubs on some of these are an oddity- they're similar to a 3-speed bike hub, but have an extra sprocket. BUt I think they show up on Ebay on occasion.

Old Sears bikes get no respect in the used market. So fix it up, but don't expect to make your money back on it.
__________________
"be careful this rando stuff is addictive and dan's the 'pusher'."
StephenH is offline   Reply With Quote
Old 03-03-09, 08:31 PM   #5
Ghost147
Member
Thread Starter

Join Date: Mar 2009
Bikes:
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
im not fixing it up for resale. it's for personal use cause a new one would cost too much. i guess the parts im most worried about and/or don't understand is the gear shifting part. the handle, the part where the cable connects i suppose to what yoru calling the hub (this peice is rusted out). the hub it's self i guess is ok, ofc im still guessing as to what your calling a hub. it dosen't have the different sized gears like i've seen on mountain bikes. so yeah, im pretty confused. I just know i'd really like to get it working as a 3 speed again.
Ghost147 is offline   Reply With Quote
Old 03-03-09, 08:39 PM   #6
yepyep
Senior Member

Join Date: Oct 2008
Bikes:
Posts: 264
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Here is a Ted Williams Trike in a M.A.S.H (fixed gear freestyle) spoof. This one was a single speed version.
http://www.youtube.com/watch?v=m3SOT8NCOEY
yepyep is offline   Reply With Quote
Old 03-03-09, 08:53 PM   #7
kpug505
Senior Member

kpug505's Avatar

Join Date: Oct 2006
Location: Puyallup Washington
Bikes: Motobecane Mirage fixed gear, Nashbar Alpha Road 5000, Bianchi Grizzly, Coppi Fiorelli, , Schwinn Trike, , GT All Terra, Old Peugeot, Nishiki 3 speed, Bugatti, Cannondale Black Lightning, Dura All, Bianchi Touring, Bridgestone T700 & more
Posts: 1,847
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Got pics? Some nice close ups of the parts you would like to replace. Also wipe the hub off and look for a name or # on it. I'm guessing it's a Shimano unit. There are shifter and cables on ebay often but you need to know what model yours is. I'm guessing its a 3sc (if it's got a coaster brake).
__________________
Quote:
Originally Posted by CardiacKid View Post
We don't cotton to people who cut things off their bikes in these here parts.

Check out my bike blog!
kpug505 is offline   Reply With Quote
Old 03-03-09, 09:21 PM   #8
Ghost147
Member
Thread Starter

Join Date: Mar 2009
Bikes:
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
ok i will take some pics in the morning and try to get em up tomorrow afternoon provided i don't work too late. dawn to dusk shifts really kill the time.
Ghost147 is offline   Reply With Quote
Old 03-03-09, 11:06 PM   #9
StephenH
Uber Goober

StephenH's Avatar

Join Date: Sep 2007
Location: Dallas area, Texas
Bikes:
Posts: 11,235
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
I haven't dealt with the trikes, but understand there is some variation.

See this item for starters. This might or might not work on your trike, and yours may not be set up anything like this:
http://www.niagaracycle.com/product_...oducts_id=6005
This is a 3-speed hub similar to what's used in a rear wheel on a bike. However, it has a second sprocket on it so it can be used to turn the rear axle.

You may wind up having to cannibalize another trike to get parts for yours if it's too odd.
__________________
"be careful this rando stuff is addictive and dan's the 'pusher'."
StephenH is offline   Reply With Quote
Old 03-04-09, 12:10 AM   #10
kpug505
Senior Member

kpug505's Avatar

Join Date: Oct 2006
Location: Puyallup Washington
Bikes: Motobecane Mirage fixed gear, Nashbar Alpha Road 5000, Bianchi Grizzly, Coppi Fiorelli, , Schwinn Trike, , GT All Terra, Old Peugeot, Nishiki 3 speed, Bugatti, Cannondale Black Lightning, Dura All, Bianchi Touring, Bridgestone T700 & more
Posts: 1,847
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by yepyep View Post
Here is a Ted Williams Trike in a M.A.S.H (fixed gear freestyle) spoof. This one was a single speed version.
http://www.youtube.com/watch?v=m3SOT8NCOEY
That's awesome! It's actually a really good spoof.....I love the squeaky slow roll at the end when the music stops...
__________________
Quote:
Originally Posted by CardiacKid View Post
We don't cotton to people who cut things off their bikes in these here parts.

Check out my bike blog!
kpug505 is offline   Reply With Quote
Old 03-04-09, 12:18 AM   #11
yepyep
Senior Member

Join Date: Oct 2008
Bikes:
Posts: 264
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks,
That thing did squeak! After that shoot we put that trike through the gauntlet. Flexy, flexy frame. I did however find a new owner after that.
yepyep is offline   Reply With Quote
Old 03-04-09, 05:33 AM   #12
wahoonc
Senior Member

wahoonc's Avatar

Join Date: Jan 2005
Location: On the road-USA
Bikes: Giant Excursion, Raleigh Sports, Raleigh R.S.W. Compact, Motobecane? and about 20 more! OMG
Posts: 16,687
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Given the age of it, it could be any of several manufacturers, with the nod going to Columbia. Pictures of the trike and what you need to replace will be a huge help.

Aaron
__________________
Webshots is bailing out, if you find any of my posts with corrupt picture files and want to see them corrected please let me know. :(

ISO: A late 1980's Giant Iguana MTB frameset (or complete bike) 23" Red with yellow graphics.

"Cycling should be a way of life, not a hobby.
RIDE, YOU FOOL, RIDE!"
_Nicodemus

"Steel: nearly a thousand years of metallurgical development
Aluminum: barely a hundred
Which one would you rather have under your butt at 30mph?"
_krazygluon
wahoonc is offline   Reply With Quote
Old 03-04-09, 06:26 AM   #13
Ghost147
Member
Thread Starter

Join Date: Mar 2009
Bikes:
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

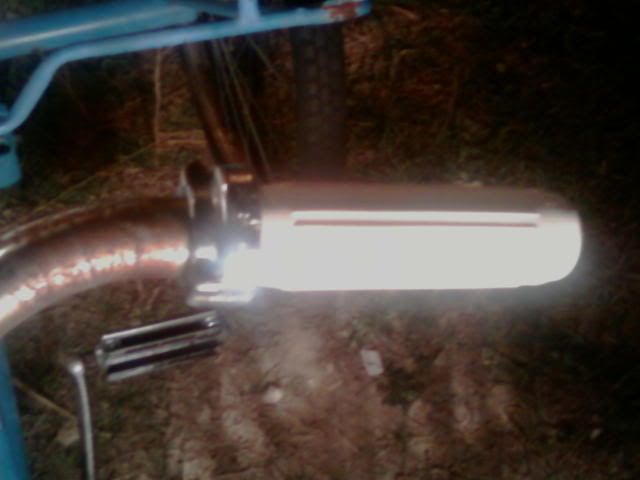

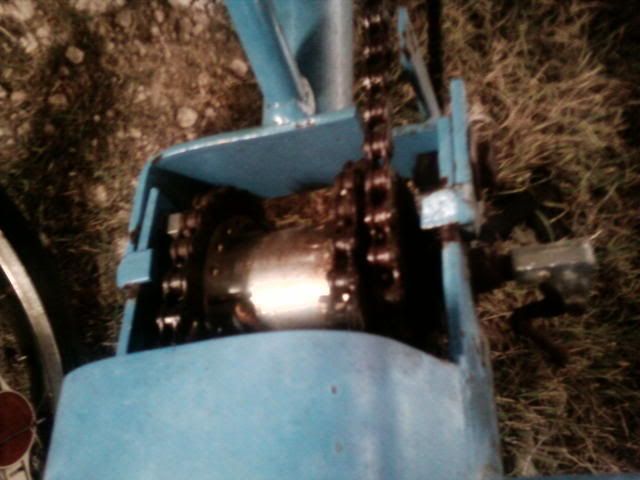

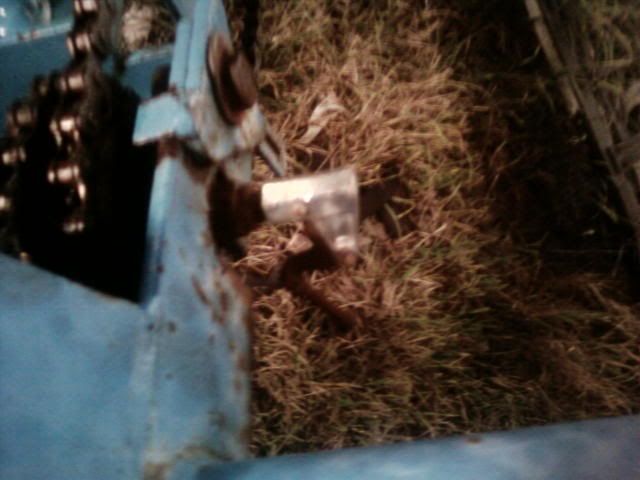

ok ima try this.


the lil shifter thingy that is rusted out


the hub


the shifter on the handlebars.

also all that is written on the hub is 3 speed hub pat.#3021728

I hope this is what yall need.
Ghost147 is offline   Reply With Quote
Old 03-04-09, 12:07 PM   #14
kpug505
Senior Member

kpug505's Avatar

Join Date: Oct 2006
Location: Puyallup Washington
Bikes: Motobecane Mirage fixed gear, Nashbar Alpha Road 5000, Bianchi Grizzly, Coppi Fiorelli, , Schwinn Trike, , GT All Terra, Old Peugeot, Nishiki 3 speed, Bugatti, Cannondale Black Lightning, Dura All, Bianchi Touring, Bridgestone T700 & more
Posts: 1,847
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
From the pics I do believe your hub is a Shimano unit because of the bellcrank in the second pic.

Shifter:
http://cgi.ebay.com/Shimano-3-3-3-Th...3A1%7C294%3A50
Cable:
http://cgi.ebay.com/Shimano-Twist-gr...3A1%7C294%3A50
Bellcrank:
http://cgi.ebay.com/Shimano-Three-Sp...QQcmdZViewItem

If your hub is toast (which I doubt)you're gonna have a hard time finding a suitable replacement because yours has dual drive cogs. Your hub is actually just a regular hub that the manufacturer welded the drive cogs to so you may be able to do the same if you can find the right cogs or remove yours without ruining them.

Good luck!
__________________
Quote:
Originally Posted by CardiacKid View Post
We don't cotton to people who cut things off their bikes in these here parts.

Check out my bike blog!
kpug505 is offline   Reply With Quote
Old 03-04-09, 01:04 PM   #15
Ghost147
Member
Thread Starter

Join Date: Mar 2009
Bikes:
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Thanks so much! I will order those parts when i get home. What tire size is this bike? Im guessing 26in.
Ghost147 is offline   Reply With Quote
Old 03-04-09, 01:24 PM   #16
yepyep
Senior Member

Join Date: Oct 2008
Bikes:
Posts: 264
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Mine used 24" tires. I think most trikes do.
yepyep is offline   Reply With Quote
Old 03-04-09, 04:25 PM   #17
graywolf
Senior Member

Join Date: Dec 2007
Location: Boone NC USA
Bikes: Bianchi hybrid. Dunelt 3-sp. Raleigh basket case. Wanting a Roadster.
Posts: 622
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
That hub is very likely fine. You may need to repack the bearings. Reoil it. I have never worked on a Shimano hub so I am no expert, but the Sturmey Archer hubs are nearly indestuctable, and I would imagine the Shimano is too.

The tricycle makers start with a standard bicycle hub and modify it to work by attaching an output sprocket on the near side of the hub. If it is boled on you can probably modify a hub to take the sprocket. If it is welded on you can probably have one welded on a new hub. But before doing anything like that consider just replacing the internals, that is fairly easy to do on a SA hub and probably on that Shimano hub too.
graywolf is offline   Reply With Quote
Old 03-04-09, 05:13 PM   #18
Sainted
The Reader

Join Date: Mar 2009
Location: Texas
Bikes: none
Posts: 6
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
most trikes now use 20 inch on front and most on rear unless they are racer or tourer oriented check out Utah trikes websight for a lot of good articles
Sainted is offline   Reply With Quote
Old 03-04-09, 09:18 PM   #19
wahoonc
Senior Member

wahoonc's Avatar

Join Date: Jan 2005
Location: On the road-USA
Bikes: Giant Excursion, Raleigh Sports, Raleigh R.S.W. Compact, Motobecane? and about 20 more! OMG
Posts: 16,687
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Bell crank and shifter makes me think Shimano. Make sure the hub is not a 3.3.3, they are not a real strong hub. Hopefully the hub works as is, repair/replacement parts for the Shimano IGH are all but non existent. I have seen another brand of hub made just like that, but cannot recall if it was SA or Sachs.

Aaron
__________________
Webshots is bailing out, if you find any of my posts with corrupt picture files and want to see them corrected please let me know. :(

ISO: A late 1980's Giant Iguana MTB frameset (or complete bike) 23" Red with yellow graphics.

"Cycling should be a way of life, not a hobby.
RIDE, YOU FOOL, RIDE!"
_Nicodemus

"Steel: nearly a thousand years of metallurgical development
Aluminum: barely a hundred
Which one would you rather have under your butt at 30mph?"
_krazygluon
wahoonc is offline   Reply With Quote
Old 03-04-09, 09:40 PM   #20
Noam Zane
Senior Member

Join Date: Oct 2005
Bikes:
Posts: 169
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I had one up to last year and do still have some photos available if anyone is interested.

It has a shimano 3 speed hub equipped with a coaster brake. It has that forementioned secondary cog welded to the hub housing.

The bike was constructed of what seemed to be a modified standard bike with a rear assembly that could be disassembled fairly quickly for moving or storage.

I had real concerns about the flimsiness of the front end of the bike especially the head tube, very dicey. I pointed it out to the buyer and he brushed it off telling me he was going to re-enforce the frame before he motorized it! I wished him good luck and haven't heard from him since. I imagine it languishing in a cluttered garage somewhere.
Noam Zane is offline   Reply With Quote
Old 03-04-09, 09:42 PM   #21
Ghost147
Member
Thread Starter

Join Date: Mar 2009
Bikes:
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
yeah, from what i learnt from the patent number it's a shimano hub. as far as the bell housing... how exactly do i replace it? I did finally get one of the tires off and found it is a 24x1.75. wish i'da known that when i was buyin parts at the walmart. got a new set of 26's and tubes. oh well, i got the recipt.

EDIT: ok all 3 of the parts listed have been ordered/bid on. the darn cable dosen't have a buy it now. anyways, any advise on installing these parts? the cable is pretty self explanitory, and as near as i can tell without taking my current shifter apart, the twist grip will install/uninstall with 2 screws. the bell housing has me concerned though as i've not even looked too closely at it

Last edited by Ghost147; 03-04-09 at 10:08 PM.
Ghost147 is offline   Reply With Quote
Old 03-04-09, 10:31 PM   #22
kpug505
Senior Member

kpug505's Avatar

Join Date: Oct 2006
Location: Puyallup Washington
Bikes: Motobecane Mirage fixed gear, Nashbar Alpha Road 5000, Bianchi Grizzly, Coppi Fiorelli, , Schwinn Trike, , GT All Terra, Old Peugeot, Nishiki 3 speed, Bugatti, Cannondale Black Lightning, Dura All, Bianchi Touring, Bridgestone T700 & more
Posts: 1,847
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
You can see some instructions for the bellcrank here. You can find more instructions with a google search for "shimano bellcrank adjustment" or "shimano bellcrank replacement".
__________________
Quote:
Originally Posted by CardiacKid View Post
We don't cotton to people who cut things off their bikes in these here parts.

Check out my bike blog!
kpug505 is offline   Reply With Quote
Old 03-05-09, 05:24 AM   #23
wahoonc
Senior Member

wahoonc's Avatar

Join Date: Jan 2005
Location: On the road-USA
Bikes: Giant Excursion, Raleigh Sports, Raleigh R.S.W. Compact, Motobecane? and about 20 more! OMG
Posts: 16,687
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Ghost147 View Post
yeah, from what i learnt from the patent number it's a shimano hub. as far as the bell housing... how exactly do i replace it? I did finally get one of the tires off and found it is a 24x1.75. wish i'da known that when i was buyin parts at the walmart. got a new set of 26's and tubes. oh well, i got the recipt.

EDIT: ok all 3 of the parts listed have been ordered/bid on. the darn cable dosen't have a buy it now. anyways, any advise on installing these parts? the cable is pretty self explanitory, and as near as i can tell without taking my current shifter apart, the twist grip will install/uninstall with 2 screws. the bell housing has me concerned though as i've not even looked too closely at it
The bell crank is threaded on to the axle. You GENTLY remove it with a wrench of the correct size. When you take it off there should be a push rod inside the hollow axle. It may be gummed up, if that is the case GENTLY pull it out with a pair of vise grips, then you will need to clean it and the inside of the axle. I have used a Q-tip dipped in lacquer thinner before. You will also want to lay the hub on it's side and drip some oil down the inside of the axle after cleaning.

Aaron
__________________
Webshots is bailing out, if you find any of my posts with corrupt picture files and want to see them corrected please let me know. :(

ISO: A late 1980's Giant Iguana MTB frameset (or complete bike) 23" Red with yellow graphics.

"Cycling should be a way of life, not a hobby.
RIDE, YOU FOOL, RIDE!"
_Nicodemus

"Steel: nearly a thousand years of metallurgical development
Aluminum: barely a hundred
Which one would you rather have under your butt at 30mph?"
_krazygluon
wahoonc is offline   Reply With Quote
Old 03-06-09, 06:51 AM   #24
Esteban32696
Senior Member

Join Date: Feb 2007
Bikes:
Posts: 1,131
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Sounds like you are on your way to getting it back on the road, with good help from the people above.. If you have to buy any cables/housings, be sure to measure their length first.
Esteban32696 is offline   Reply With Quote
Old 03-07-09, 04:50 PM   #25
Ghost147
Member
Thread Starter

Join Date: Mar 2009
Bikes:
Posts: 36
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Yes Esteban. Now if my job would only cooperate and give me time to work on it. I won the bid on the cable for the shifter last night and the bellcrank is on it's way already shipped. i spent around $157 at wal-mart for new tires, tubes, seat, rust remover, pedals, brake pads, brake cable, ect. Hopefully I will find time this weekend to install atleast a little of it, but im not gonna get too into it untill the bellcrank, shifter, and cable come in. the temptation to ride it will be too much if i get the tires/tubes in too soon. On the other hand, my fiancee, who has some sort of older bike. I haven't gotten a look at it, decided to just spend $108 on a new mongoose mtn bike from wal-mart. it dose has a shimano gear setup which atleast now i have an idea what that means. I'll post some pictures when im done with it. Im debating on going back with the original colors.

Which reminds me, would anyone know where to find a rear fender for it? I removed them when i was younger cause mud kept hanging up inside of them. i found 1 but not the other.

Thanks for all the help thusfar, and with a bit more, this will be one antique being seen every weekend in the parks.
Ghost147 is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -6. The time now is 05:38 PM.
