Old 07-14-11, 02:49 PM   #1
roburrito
Senior Member
Thread Starter

Join Date: Mar 2011
Location: Boston MA
Bikes:
Posts: 171
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Lotus Eclair Refurbish Project

UPDATE: Finally finished! Check the end of this post for the final result!

I picked up a Lotus Eclair recently. The bike was in pretty bad condition but I could see the diamond through the rough. And I've been wanting to build a touring bike for some time.

The bike:

(It had a saddle and bar tape, but I removed them before I took the picture)

Tange 2001 Manalloy double-butted frame, Shimano Deore touring group, and a wicked Sakae crankset (its a triple missing the granny ring). The only thing I'm not a fan of are the weak looking rack mounts.

A few more shots:
Imprint on fork crown
Deore downtube shifters
Headtube and badge

I'm calling this a refurbish and not a restore because I plan on using a more modern drivetrain and mostly just keeping the original frame and fork. I'd like to keep the Sakae crankset, but the length is 170mm and I usually spin 175. And the left crankarm doesn't match.

So far I've got the frame broken down. Another shot with the stickers removed and cleaned up a bit. Despite the rust and grime it broke down fairly easily. It was a pleasant surprise.

The plan now is to strip the paint. I haven't decided whether to have it soda blasted or strip it with Tal Strip (done it in the past, its a pain in the rear). Most blasters are quoting me around $150, which is out of my budget for the frame. Sugarcoat lists $75 for blasting but that's still pushing it. I got quoted $50 by a blaster in Rhode Island but its hour drive.

For paint I'm planning on doing it myself with a HVLP spray gun. Current plan is English Racing Green body with a cream headtube and seatpost panel. Also considering English Racing Green body with metalic silver lugs and seatpost panel since the fork looks chromed.

All update the thread when the next step is completed. Let me know what you think! (And if you know a cheap media blaster in the Boston area).

Update 1 (7/14/11):
After several hours of sanding, polishing, and a little very careful painting I'm fairly pleased with the headbadge!



Update 2 (7/29/11):
Frame is back from the sandblaster! Time for some dents to repair some minor dents in the frame!



Update 3 (12/12/11):
Big update, finished body work, primed, painted, applied decals, and finished clear.

Primed:


Painted the white:


Painted with decal:


With clear and headbadge:

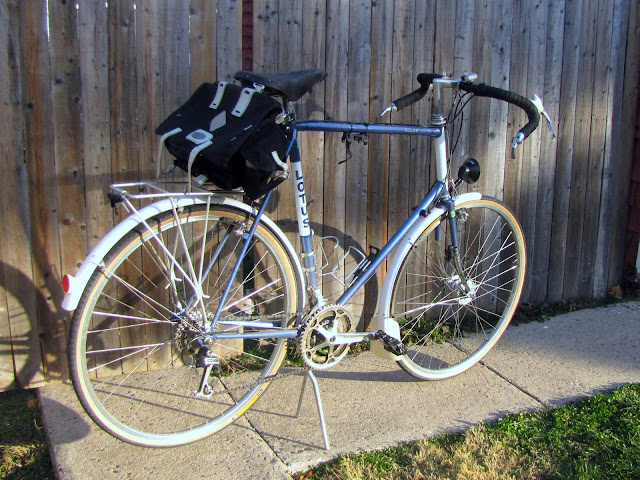

Update 4 (12/23/11):

Finally all assembled and riding. Ran into some drama getting the down tube shifter bosses retapped, but everything turned out okay. Its not classic touring, haters are going to hate, but I like the setup for now.







Let me know what you think! I haven't gotten a comment in this thread since July!

Last edited by roburrito; 12-23-11 at 03:13 PM.
roburrito is offline   Reply With Quote
Old 07-14-11, 05:30 PM   #2
commonlaw
Senior Member

commonlaw's Avatar

Join Date: May 2010
Bikes:
Posts: 60
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Love the way these feel. I have a Unique and it rides like a dream. Are you planning on replacing any decals/markings?
commonlaw is offline   Reply With Quote
Old 07-14-11, 05:39 PM   #3
AZORCH
Senior Member

AZORCH's Avatar

Join Date: Aug 2010
Location: Liberty, Missouri
Bikes: 1946 Hobbs of Barbican | 1966 Paramount P-13 | 1971 Raleigh International | 1982 Gazelle AA Champion Mondial Special | 1980s Freschi Supreme Super Cromo | 1985 Katakura Silk | 1989 Waterford PDG Paramount | 2012 Boulder Brevet | 2014 Cycles Toussaint
Posts: 2,770
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Check your fork. I hope it's just the angle in the photograph, but it looks off to me.
AZORCH is offline   Reply With Quote
Old 07-14-11, 06:13 PM   #4
enso88
Senior Member

Join Date: Jul 2008
Bikes:
Posts: 58
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
if you are going to paint it why not change those rack mounts? now would be the time. i would love to find a lotus tourer, it would go perfect with my lotus Classique
enso88 is offline   Reply With Quote
Old 07-14-11, 06:46 PM   #5
-holiday76
No one cares

-holiday76's Avatar

Join Date: Jan 2008
Location: Yardley, Pa
Bikes:
Posts: 5,600
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
nice! i have a giant one





__________________
I prefer emails to private messages - holiday76@gmail.com
Jack Taylor Super Tourist, Jack Taylor Super Tourer Tandem, Jack Taylor Tour of Britain, Px-10, Carlton Flyer,Fuji The Finest, Bianchi Squadra,Salsa Fargo, Santa Cruz Tallboy, Cetma Largo, Riv Betty Foy (wife's), Gitane 500A Mini Racer (sons).
-holiday76 is offline   Reply With Quote
Old 07-14-11, 07:14 PM   #6
roburrito
Senior Member
Thread Starter

Join Date: Mar 2011
Location: Boston MA
Bikes:
Posts: 171
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by AZORCH View Post
Check your fork. I hope it's just the angle in the photograph, but it looks off to me.
Picture made me check the fork too, but its just the angle of the shot.

Quote:
Originally Posted by -holiday76 View Post
nice! i have a giant one
Digging the dark blue. And the white headtube and panel is exactly what I was thinking of doing. Do you have the same rack mounts? How have they been for touring?

Updated first post with a polished headbadge!

Last edited by roburrito; 07-14-11 at 07:23 PM.
roburrito is offline   Reply With Quote
Old 07-14-11, 07:20 PM   #7
Snydermann
Lotus Monomaniac

Snydermann's Avatar

Join Date: Mar 2011
Location: Pennsylvania
Bikes:
Posts: 1,047
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
That is indeed a cool bike, congratulations.

If you do a quick-and-dirty chemical strip of the frame and then take it to the blaster for final clean-up you can save a substantial amount of money. Not only does this remove some of the paint, it weakens anything that is left over and reduces blasting time. I worked for a powder coating business for a period of time and quite often we'd hit parts with chemical stripper before blasting.

Since you asked what I think, I vote you keep the bike as original as possible. Based on correspondence gained from VintageLOTUSbicycles.com , the Eclair and Odyssey models with the rack mounts and cantilever brakes are high on the desirability chart, and are also some of the most visited pages on the site. You may be sorry with the resale value later if you customize the bike too much.
__________________
Always searching for Lotus literature and memorabilia for use at www.VintageLOTUSbicycles.com, can you help?
Snydermann is offline   Reply With Quote
Old 07-14-11, 07:41 PM   #8
-holiday76
No one cares

-holiday76's Avatar

Join Date: Jan 2008
Location: Yardley, Pa
Bikes:
Posts: 5,600
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by roburrito View Post

Digging the dark blue. And the white headtube and panel is exactly what I was thinking of doing. Do you have the same rack mounts? How have they been for touring?
yup, same rack mounts. Mine also came with the original front and rear racks.

It's been fine, I've carried many a heavy load on the bike. It's very predictable and stable like a touring bike should be. Some might say boring, but it does its job well. I'm sure you'll like yours.
__________________
I prefer emails to private messages - holiday76@gmail.com
Jack Taylor Super Tourist, Jack Taylor Super Tourer Tandem, Jack Taylor Tour of Britain, Px-10, Carlton Flyer,Fuji The Finest, Bianchi Squadra,Salsa Fargo, Santa Cruz Tallboy, Cetma Largo, Riv Betty Foy (wife's), Gitane 500A Mini Racer (sons).
-holiday76 is offline   Reply With Quote
Old 07-14-11, 07:43 PM   #9
roburrito
Senior Member
Thread Starter

Join Date: Mar 2011
Location: Boston MA
Bikes:
Posts: 171
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Snydermann View Post
Since you asked what I think, I vote you keep the bike as original as possible. Based on correspondence gained from VintageLOTUSbicycles.com , the Eclair and Odyssey models with the rack mounts and cantilever brakes are high on the desirability chart, and are also some of the most visited pages on the site. You may be sorry with the resale value later if you customize the bike too much.
I can always keep the original parts around in case the bike ever gains collectors value. But the cranks are already non-original and Deore isn't exactly Campi
roburrito is offline   Reply With Quote
Old 07-14-11, 07:49 PM   #10
Snydermann
Lotus Monomaniac

Snydermann's Avatar

Join Date: Mar 2011
Location: Pennsylvania
Bikes:
Posts: 1,047
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by -holiday76 View Post
. . . Mine also came with the original front and rear racks.
Hey neighbor, I'm right down the street from Phoenixville.

Are there any markings or do you know who made the original racks on your Lotus? I've had a few people ask but I don't know the answer. The catalog just states "Blackburn-Type".
__________________
Always searching for Lotus literature and memorabilia for use at www.VintageLOTUSbicycles.com, can you help?
Snydermann is offline   Reply With Quote
Old 07-14-11, 07:53 PM   #11
-holiday76
No one cares

-holiday76's Avatar

Join Date: Jan 2008
Location: Yardley, Pa
Bikes:
Posts: 5,600
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
pretty sure they are blackburn but I'll go out and check them later tonight or tomorrow.

So you're right down the street eh? funny, i had the same avatar as you do for a while as well. I love my lotus. I'll have to check out your web site.

for now here's a few pics

https://picasaweb.google.com/holiday76/LotusEclair
__________________
I prefer emails to private messages - holiday76@gmail.com
Jack Taylor Super Tourist, Jack Taylor Super Tourer Tandem, Jack Taylor Tour of Britain, Px-10, Carlton Flyer,Fuji The Finest, Bianchi Squadra,Salsa Fargo, Santa Cruz Tallboy, Cetma Largo, Riv Betty Foy (wife's), Gitane 500A Mini Racer (sons).
-holiday76 is offline   Reply With Quote
Old 07-14-11, 07:58 PM   #12
nlerner
Senior Member

Join Date: Dec 2005
Bikes:
Posts: 9,906
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 45 Post(s)
Hmm, I donated a couple of kids bikes to the "roll it forward" program, but I didn't realize what got donated would end up in the hands of BF-ers! Are they selling off what was donated? Somehow I thought they'd be fixed up and given to people who couldn't afford decent bikes.

Neal
nlerner is offline   Reply With Quote
Old 07-14-11, 08:07 PM   #13
southpawboston
Senior Member

southpawboston's Avatar

Join Date: Aug 2008
Location: Somerville, MA and Catskill Mtns
Bikes:
Posts: 4,008
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by -holiday76 View Post
nice! i have a giant one

Holiday, that is one sweet looking Lotus!
__________________
Velo Lumino - Lighting components and integration solutions for fine hand-built and classically inspired bicycles

Riding the Catskills blog

Flickr

1971 Mercian Olympic | 1972 Jeunet 630 | 1982 Jack Taylor Tour of Britain | 1984 Shogun 1500 650B | 2013 Rawland Stag | 2014 Jeff Lyon L'Avecaise | 2015 Bike Friday Haul-a-Day
southpawboston is offline   Reply With Quote
Old 07-14-11, 08:21 PM   #14
-holiday76
No one cares

-holiday76's Avatar

Join Date: Jan 2008
Location: Yardley, Pa
Bikes:
Posts: 5,600
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by southpawboston View Post
Holiday, that is one sweet looking Lotus!
thank you sir I've definitely got a good amount of enjoyment out of it. It was my go to bike for a long time because I really like being able to carry a lot of crap with it.

I've yet to actually tour on it as being a father put that on temporary hiatus
__________________
I prefer emails to private messages - holiday76@gmail.com
Jack Taylor Super Tourist, Jack Taylor Super Tourer Tandem, Jack Taylor Tour of Britain, Px-10, Carlton Flyer,Fuji The Finest, Bianchi Squadra,Salsa Fargo, Santa Cruz Tallboy, Cetma Largo, Riv Betty Foy (wife's), Gitane 500A Mini Racer (sons).
-holiday76 is offline   Reply With Quote
Old 07-14-11, 08:46 PM   #15
roburrito
Senior Member
Thread Starter

Join Date: Mar 2011
Location: Boston MA
Bikes:
Posts: 171
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by nlerner View Post
Hmm, I donated a couple of kids bikes to the "roll it forward" program, but I didn't realize what got donated would end up in the hands of BF-ers! Are they selling off what was donated? Somehow I thought they'd be fixed up and given to people who couldn't afford decent bikes.

Neal
No no no. They are still donating the bikes to kids that need them, I've volunteered at some of their give aways and worked in their shop, its a great program! But some people donated old steel road bikes, something that kids in the projects can't really use. So John started a small program to trade their road bikes for adult mountain bikes. They were mostly old steel road bikes in serious need of repair. The nicer road bikes go to the Boston Bike School program. If you've got a decent adult 26" mountain bike kicking around, send Roll It Forward an email!
roburrito is offline   Reply With Quote
Old 07-29-11, 08:23 PM   #16
roburrito
Senior Member
Thread Starter

Join Date: Mar 2011
Location: Boston MA
Bikes:
Posts: 171
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Frame is back from the sandblaster! Updated first post with picture.
roburrito is offline   Reply With Quote
Old 12-12-11, 08:46 PM   #17
roburrito
Senior Member
Thread Starter

Join Date: Mar 2011
Location: Boston MA
Bikes:
Posts: 171
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Finally finished paint! Big update in the top post. Now I just need to assemble!
roburrito is offline   Reply With Quote
Old 12-23-11, 03:14 PM   #18
roburrito
Senior Member
Thread Starter

Join Date: Mar 2011
Location: Boston MA
Bikes:
Posts: 171
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Everything is finally finished! More pictures updated to the first post.

roburrito is offline   Reply With Quote
Old 12-23-11, 07:39 PM   #19
r0ckh0und
Senior Member

r0ckh0und's Avatar

Join Date: Jun 2009
Location: Plano, IL.
Bikes:
Posts: 1,155
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Absolutely beautiful!!! Nice work roburrito!
__________________
Certified thread killer


http://plainoldsteel.blogspot.com/

'79/'80 Sekai 2700, Early 70's PX-10, '90/'91 Club Fuji, '83 Miyata 610, '70ish Zeus Gran Sport, '88 Centurion Ironman Master, '89 Bridgestone RB1, '99/'00 Gunnar Rockhound, '99 Surly Cross Check, '09 Surly Cross Check, Fuji Saratoga
r0ckh0und is offline   Reply With Quote
Old 12-23-11, 08:08 PM   #20
illwafer
)) <> ((

illwafer's Avatar

Join Date: Mar 2008
Location: San Diego, CA
Bikes:
Posts: 2,396
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
uh, that is awesome. so cool and unique. great job on the paint too!
illwafer is offline   Reply With Quote
Old 12-23-11, 08:24 PM   #21
gomango
Senior Member

Join Date: Jul 2006
Location: STP
Bikes:
Posts: 13,289
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 37 Post(s)
I'd like to try bars like that before I get much older.

Nice work, no doubt.

What tires you put on her?
__________________


Bikes and stuff

https://www.flickr.com/photos/36270004@N06/
gomango is offline   Reply With Quote
Old 12-23-11, 09:11 PM   #22
roburrito
Senior Member
Thread Starter

Join Date: Mar 2011
Location: Boston MA
Bikes:
Posts: 171
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Continental Top Touring 2000. 700x32c. I've had them as my second set for my cross bike for awhile. Good for packed dirt roads.

I like the bullhorns because with drop bars I always ride the hoods and rarely go to the drop. Bullhorns give you the hood hand position but much longer, giving a nice variation on how upright/forward you want to be.
roburrito is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -6. The time now is 02:39 AM.
