    Criterium Road bike? What did I buy?

    I picked this up today. 531 Reynolds frame. It is to dirty to find a serial number. Could it be a Carlton Criterium by chance? It has a city sticker dated 1975 so it is either a 75 or older. I do not think the derailleurs are original to the bike. Stronglight Cranks and headset. The head badge is faded. Any ideas?
    My bikes - 1989 Schwinn Circuit - 1950`s Criterium (French)
    Wife`s Bike - 1980 Schwinn Voyageur 11.8

  2. #2
    Senior Member Steve Whitlatch's Avatar
    Join Date
    Sep 2013
    Location
    Chicago area
    My Bikes
    1989 Schwinn Circuit
    Posts
    799
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)
    My bikes - 1989 Schwinn Circuit - 1950`s Criterium (French)
    Wife`s Bike - 1980 Schwinn Voyageur 11.8

  3. #3
    coprolite fietsbob's Avatar
    Join Date
    Jun 2010
    Location
    NW,Oregon Coast
    My Bikes
    7
    Posts
    589
    Mentioned
    31 Post(s)
    Tagged
    0 Thread(s)
    "Criterium" is a type of in town bike race , that's where the name came from, they put on it. who ever 'they' may be..

    cottered crank is early 60's or before.. tear it down .. if the BB is French Thread that may be the Country of Origin
    28.0 seat tube, rather than 28.6 [9/8"] it may be French , like wise 22.0 stem vs 22.2 [7/8"]

    if the other.. then the fractional tube sizes was standard.

    Stronglight is a French Company , its still going today ..

    bodged on the band shifter .. other parts lost.. a braze on replacement & repaint may tidy that up
    wing nut friction adjustment lost out to a bolt threaded into the boss , later.. standard.
    Last edited by fietsbob; 08-30-14 at 04:58 PM.

  4. #4
    Senior Member Chicago Al's Avatar
    Join Date
    Jun 2009
    Location
    Chicago, the leafy NW side
    Posts
    2,190
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)
    Looks like the French version of the '531' decal.
    I never think I have hit hard, unless it rebounds.

    - Dr Samuel Johnson

  5. #5
    Senior Member Steve Whitlatch's Avatar
    Join Date
    Sep 2013
    Location
    Chicago area
    My Bikes
    1989 Schwinn Circuit
    Posts
    799
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by Chicago Al View Post
    Looks like the French version of the '531' decal.
    Well that explains the rust. Should have known. I googled criterium and only found Carlton. It only has one shifter boss. Must have been a five speed at one time? I bought the bike from an 82 year old man that proudly rode it for the last forty five years. He said he purchased it from a friend.
    My bikes - 1989 Schwinn Circuit - 1950`s Criterium (French)
    Wife`s Bike - 1980 Schwinn Voyageur 11.8

  6. #6
    verktyg verktyg's Avatar
    Join Date
    Jul 2006
    Location
    SF Bay Area
    My Bikes
    Lots, my current favorite is a 1988 Peugeot Birraritz, next 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1980 Gios, 1973 Holdsworth
    Posts
    336
    Mentioned
    6 Post(s)
    Tagged
    0 Thread(s)
    It looks like it's a well made bike.

    My guess is that it's an early to mid 60s bike. The CRITERIUM name is hand lettered so it was probably built by a small shop in the UK or possibly a small French "constructeur" (custom frame builder). Back then a lot of serious riders had custom built bikes.

    It may have had a single lever down tube shifter with either a "suicide" front shifter or it was built as a 5 speed. The original rear derailleur was probably a Simplex or Huret.

    The "fish mouth" treatment of the rear stay ends was a French trait but other features scream British built.

    An easy way to tell is to measure the stem - 21.9mm or 22mm would make it French (or Swiss or Spanish). 22.2mm would most likely make it a British bike.

    The other thing would be to remove the stem and top lock nut on the headset. Measure the steerer - 25mm = French, 25.4mm = British.

    The bottom bracket spindle is a Stronglight but the and crank arms are not.

    Good luck...

    verktyg

    Chas.
    Last edited by verktyg; 08-30-14 at 02:03 PM.
    Things aren't always what the seem... Don't believe everything you think!

    Chas.

  7. #7
    Senior Member Lascauxcaveman's Avatar
    Join Date
    Nov 2011
    Location
    Pacific Northwest
    My Bikes
    A green one, "Ragleigh," or something.
    Posts
    1,502
    Mentioned
    14 Post(s)
    Tagged
    0 Thread(s)
    Cool details. I especially like the oddball pump peg and the little roller guide for the RD cable riding over the BB.

    Nice find
    ● 1971 Grandis SL ● 1972 Lambert Grand Prix ● 1972 Raleigh Super Course ● 1972 Peugeot UE-18 Mixte ● 1980 Apollo Prestige fixie ● 1982 Motobecane Jubile Sport ● 1983 Nishiki Landau ● 1984 Peugeot PH10LE ● 1984 Bianchi Limited ● 1985 Peugeot Vagabond ● 1985 Trek 600 ● 1985 Shogun Prairie Breaker ● 1985 Raleigh Elkhorn ● 1986 Univega Nuovo Sport ● 1987 Schwinn Tempo ● 1996 Kona Lava Dome ● And a Bike to Be Named Later ●

  8. #8
    verktyg verktyg's Avatar
    Join Date
    Jul 2006
    Location
    SF Bay Area
    My Bikes
    Lots, my current favorite is a 1988 Peugeot Birraritz, next 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1980 Gios, 1973 Holdsworth
    Posts
    336
    Mentioned
    6 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by Chicago Al View Post
    Looks like the French version of the '531' decal.
    Nah, it's British...

    French Reynolds 531 decals say "GUARANTI CONSTRUIT AVEC"


    English language Reynolds 531 decal...


    verktyg

    Chas.
    Things aren't always what the seem... Don't believe everything you think!

    Chas.

  9. #9
    Senior Member crank_addict's Avatar
    Join Date
    Aug 2013
    Posts
    840
    Mentioned
    6 Post(s)
    Tagged
    0 Thread(s)
    Steve- Nice going! You'll have it ready to ride in no time. Keeper? Would make for a cool rider for the early Sat. group rides.

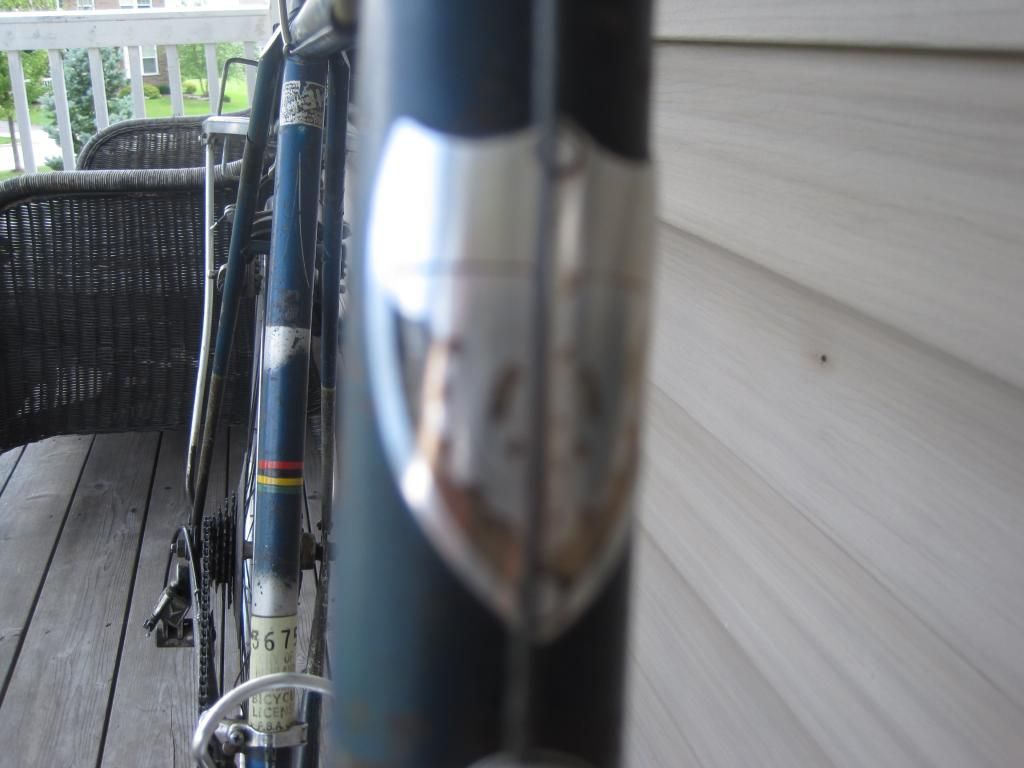

    Might take some time to i.d. that badge but you have enough there to help. French, English.... wild guess but perhaps a special built Condor?? Frame has some interesting details. Cable guide on topside of the bottom bracket, pump mount, shifter boss. Obvious the derailleur and shifters were swapped out at one time. The rest of it is neat. I wouldn't touch the paint. Fork can carefully be straightened on a press.

  10. #10
    Senior Member
    Join Date
    Sep 2007
    Location
    Wilmette, IL
    Posts
    4,400
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)
    I think its French built.
    this is what I am seeing???


    Early 60's. Bikes of that era would come into the States as Criterium, Tour de France, Europe-Sport.

    Stay ends look typical french. The pulley for the rear deraileur is of that era. The Campy cable guide leads me to think early Gran Sport derailleurs. The BB spindle is a quality Stronglight spindle. The cranks are not original. I would think it came with Stronglight crank and Simplex rings, probably 46-49 or 45-52. Someone wanted lower gears and swapped out the cranks.

    I'd clean it up and try to find some period parts for it. It shows its age but could look pretty cool fixed up.
    Last edited by big chainring; 08-30-14 at 02:16 PM.

  11. #11
    Senior Member Chicago Al's Avatar
    Join Date
    Jun 2009
    Location
    Chicago, the leafy NW side
    Posts
    2,190
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)
    Mon ami,

    Far be it from me to argue with your expertise de velo, but the decal Steve shows looks to me like it reads in the upper left something very much like 'Garanti Construit Avec' and lower right, ' 3 Tubes Renforces.' So, all 531 but only the main triangle being butted...I think.

    My Grand Record has another French 531 decal, typically sliding down the seat tube, with the 531 straight across, indicating the main triangle is butted 531, the stays...maybe not 531 at all?



    Quote Originally Posted by verktyg View Post
    Nah, it's British...

    French Reynolds 531 decals say "GUARANTI CONSTRUIT AVEC"


    English language Reynolds 531 decal...


    verktyg

    Chas.
    Last edited by Chicago Al; 08-30-14 at 02:22 PM.
    I never think I have hit hard, unless it rebounds.

    - Dr Samuel Johnson

  12. #12
    verktyg verktyg's Avatar
    Join Date
    Jul 2006
    Location
    SF Bay Area
    My Bikes
    Lots, my current favorite is a 1988 Peugeot Birraritz, next 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1980 Gios, 1973 Holdsworth
    Posts
    336
    Mentioned
    6 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by big chainring View Post
    I think its French built.
    this is what I am seeing???
    Quote Originally Posted by Chicago Al View Post
    Mon ami,

    Far be it from me to argue with your expertise de velo, but the decal Steve shows looks to me like it reads in the upper left something very much like 'Garanti Construit Avec' and lower right, ' 3 Tubes Renforces.' So, all 531 but only the main triangle being butted...I think.
    On closer examination, you're right! What was I thinking - DOH!

    Old French Reynolds 531 stickers said 3 TUBES RENFORCES (butted main tubes) - BASSES (chain stays) et MONTANTS (seat stays)



    Later French decals like in the top picture said butted main tubes, forks and rear stays made of Reynolds 531.

    That pretty much rules out British made.

    Most towns in France had at least one bike shop that made custom frames. It's likely that the bike came from one of those shops.

    verktyg

    Chas.
    Last edited by verktyg; 08-30-14 at 04:35 PM.
    Things aren't always what the seem... Don't believe everything you think!

    Chas.

  13. #13
    Unreasonably tall member non-fixie's Avatar
    Join Date
    Aug 2009
    Location
    The Land of REAL GOUDA Cheese and Tulips
    My Bikes
    all the ones nobody else seems to want ...
    Posts
    2,609
    Mentioned
    25 Post(s)
    Tagged
    1 Thread(s)
    Wow, Steve. Nice find!

    If the clean line below the current FD band is from the original suicide shifter, I think it will have been a Huret. A Simplex has its band higher up on the seat tube.

    Clunker or not, it's gotta have gears!

  14. #14
    Senior Member Steve Whitlatch's Avatar
    Join Date
    Sep 2013
    Location
    Chicago area
    My Bikes
    1989 Schwinn Circuit
    Posts
    799
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)
    The funny thing about this purchase was I felt like it was a Seinfeld episode. I answered the ad on cl and spoke witb the old mans wife because he is hard of hearing. She told me when she married him she also married his bike. He rode it everyday. He cared for it. I asked if it had scratches or dents. She yelled my questions to her husband. I was expecting to find a pristine condition bike. When i arrived to see the bike, the old guy was standing there holding it , very proudly. He starts telling me how much he loved the bike and how great it wax. I had to buy the bike because I did not want to hurt his feelings. Not only is he hard of hearing, he must be blind as a bat. The bike is missing half its paint and looks like it never had a good cleaning. If it brought him so much joy, im sure it will bring me some as well. Looks kind of cool with all that patina. I will need to clean hrr up and see.
    My bikes - 1989 Schwinn Circuit - 1950`s Criterium (French)
    Wife`s Bike - 1980 Schwinn Voyageur 11.8

  15. #15
    Senior Member Steve Whitlatch's Avatar
    Join Date
    Sep 2013
    Location
    Chicago area
    My Bikes
    1989 Schwinn Circuit
    Posts
    799
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by big chainring View Post
    I think its French built.
    this is what I am seeing???


    Early 60's. Bikes of that era would come into the States as Criterium, Tour de France, Europe-Sport.

    Stay ends look typical french. The pulley for the rear deraileur is of that era. The Campy cable guide leads me to think early Gran Sport derailleurs. The BB spindle is a quality Stronglight spindle. The cranks are not original. I would think it came with Stronglight crank and Simplex rings, probably 46-49 or 45-52. Someone wanted lower gears and swapped out the cranks.

    I'd clean it up and try to find some period parts for it. It shows its age but could look pretty cool fixed up.
    I have a set of Gran Sport I can put on the bike. I will need to find period correct wheels. It will be a fun project. It's my size. Its a keeper.
    My bikes - 1989 Schwinn Circuit - 1950`s Criterium (French)
    Wife`s Bike - 1980 Schwinn Voyageur 11.8

  16. #16
    verktyg verktyg's Avatar
    Join Date
    Jul 2006
    Location
    SF Bay Area
    My Bikes
    Lots, my current favorite is a 1988 Peugeot Birraritz, next 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1980 Gios, 1973 Holdsworth
    Posts
    336
    Mentioned
    6 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by Chicago Al View Post
    My Grand Record has another French 531 decal, typically sliding down the seat tube, with the 531 straight across, indicating the main triangle is butted 531, the stays...maybe not 531 at all?

    I've seen quite a few all Reynolds 531 Motobecane frames with Reynolds decals on the forks but CONSTRUIT AVEC 3 TUBES RENFORCES decals on the frames (indicating that only the 3 Main Tubes are Reynolds 531).

    These were post 1974 through early 1980s bikes with the gold band at the bottom of the decal.


    My 1977 Le Champion and my 1982 Grand Record are that way.

    Le Champion


    Grand Record


    I suspect that either Motobecane ran out of all Reynolds decals or the were too frugal (cheap is such an ugly word) to get the correct French decals from Reynolds!

    verktyg

    Chas.
    Things aren't always what the seem... Don't believe everything you think!

    Chas.

  17. #17
    Senior Member crank_addict's Avatar
    Join Date
    Aug 2013
    Posts
    840
    Mentioned
    6 Post(s)
    Tagged
    0 Thread(s)
    Steve- Head badge hunt:
    Perhaps try velobase or request in the CR list.

  18. #18
    Senior Member Chicago Al's Avatar
    Join Date
    Jun 2009
    Location
    Chicago, the leafy NW side
    Posts
    2,190
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)
    My GR, which I believe to be a '74, has that '3 main tubes' decal, but also a 531 fork. However the MB catalogs in the early 70s list the GR frame as having 'Reynolds 531 tubing' that year, then in 1975 '531 tubing throughout' and so on, probably until the tubing changed to Vitus. The Le Champion of 1974 has that 'throughout' note as well. So it could be the decals are (more or less) right.

    Anyway, back to Steve's velo-mystere, the 531 tubing indicates a high quality bike, and I bet someone is going to ID the headbadge. There's obviously a gear in the lower center--but I don't think it's a Miyata! Going through that vertically appears to be a caduceus. And I think I can make out a letter or two above it. I'll be back, as this gives me an idea.


    Quote Originally Posted by verktyg View Post
    I've seen quite a few all Reynolds 531 Motobecane frames with Reynolds decals on the forks but CONSTRUIT AVEC 3 TUBES RENFORCES decals on the frames (indicating that only the 3 Main Tubes are Reynolds 531).

    These were post 1974 through early 1980s bikes with the gold band at the bottom of the decal.


    My 1977 Le Champion and my 1982 Grand Record are that way.

    Le Champion


    Grand Record


    I suspect that either Motobecane ran out of all Reynolds decals or the were too frugal (cheap is such an ugly word) to get the correct French decals from Reynolds!

    verktyg

    Chas.
    I never think I have hit hard, unless it rebounds.

    - Dr Samuel Johnson

  19. #19
    verktyg verktyg's Avatar
    Join Date
    Jul 2006
    Location
    SF Bay Area
    My Bikes
    Lots, my current favorite is a 1988 Peugeot Birraritz, next 1984 Gitane Super Corsa, 1981 Bianchi Campione Del Mondo, 1992 Paramount OS, 1990 Bianchi Mondiale, 1988 Colnago Technos, 1985 RalieghUSA Team Pro, 1980 Gios, 1973 Holdsworth
    Posts
    336
    Mentioned
    6 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by Chicago Al View Post
    My GR, which I believe to be a '74, has that '3 main tubes' decal, but also a 531 fork. However the MB catalogs in the early 70s list the GR frame as having 'Reynolds 531 tubing' that year, then in 1975 '531 tubing throughout' and so on, probably until the tubing changed to Vitus. The Le Champion of 1974 has that 'throughout' note as well. So it could be the decals are (more or less) right.
    It doesn't make a lot of sense that a bike maker as large as Motobecane would make frames with only the 3 main tube and fork made of Reynolds 531 while the rear triangle was made of "gas pipe" tubing. But, a centime saved is a croissant earned!

    In 1974 Reynolds changed the design of their decals - they added a gold bar at the top of the fork decals and at the bottom of the frame decals.



    The old style decals appeared on some French bikes through 1975.

    The 1970-72 Grand Record frames were only 3 main tubes Reynolds 531 - the forks and rear stays were "something else".


    The 1973, 1974 and 1975 Motobecane catalog specs call out Reynolds 531 frame with Reynolds 531 fork for the GR. In 1974 they introduced the Grand Jubile which WAS only 3 main tubes Reynolds 531.

    There is a a simple way to tell if the chain stays are Reynolds 531 or "something else".

    Look inside the BB. If the chain stays are seamless then then they're probably Reynolds 531. If you see seams then they're "something else" tubing.


    verktyg

    Chas.
    Things aren't always what the seem... Don't believe everything you think!

    Chas.

  20. #20
    Senior Member rootboy's Avatar
    Join Date
    Apr 2005
    Location
    Sand Spit East
    Posts
    12,528
    Mentioned
    66 Post(s)
    Tagged
    2 Thread(s)
    "The 1973, 1974 and 1975 Motobecane catalog specs call out Reynolds 531 frame with Reynolds 531 fork for the GR. "

    FWIW, Chas, here is the decal on my Grand Record frame. Bike dates to 1974 based on the component specs in the catalog. Same as Chicago Al's decal.
    TA Professional 3 pin crank. Nitto bar and stem, Universal Super 68 brakes, Nuovo Record drive train, etc.

    Fork has the Reynolds 531 decals.


  21. #21
    Senior Member rootboy's Avatar
    Join Date
    Apr 2005
    Location
    Sand Spit East
    Posts
    12,528
    Mentioned
    66 Post(s)
    Tagged
    2 Thread(s)
    BTW Chas, that's a neat tip on checking the stays for a tubing seam. Going to check mine.

  22. #22
    Senior Member Steve Whitlatch's Avatar
    Join Date
    Sep 2013
    Location
    Chicago area
    My Bikes
    1989 Schwinn Circuit
    Posts
    799
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)
    Thank for all the great info so far. I measured the Seat Tube at 28.0 and the stem 22.0, so it`s French I would assume. The bike has 27 inch wheels. The front wheel is a newer alloy wheel that looks like it came off an 80's Schwinn or something. The rear wheel has a Rigida chrome rim with a Normandy hub. Would this bike have come with 27 inch wheels or 700 C wheels? I will want to replace them with a better set of wheels that would be more period correct.
    My bikes - 1989 Schwinn Circuit - 1950`s Criterium (French)
    Wife`s Bike - 1980 Schwinn Voyageur 11.8

  23. #23
    Senior Member Steve Whitlatch's Avatar
    Join Date
    Sep 2013
    Location
    Chicago area
    My Bikes
    1989 Schwinn Circuit
    Posts
    799
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)
    Looking at the rear brake tells me 27 inch wheels if the calipers are original because they are at the max reach adjustment setting. Were 27 inch wheels used for racing back in the day? Sorry, I was born in 1965.
    My bikes - 1989 Schwinn Circuit - 1950`s Criterium (French)
    Wife`s Bike - 1980 Schwinn Voyageur 11.8

  24. #24
    DRF aka Thrifty Bill wrk101's Avatar
    Join Date
    Jan 2008
    Location
    The NC Mountains
    My Bikes
    Too many to list, all vintage
    Posts
    19,455
    Mentioned
    57 Post(s)
    Tagged
    1 Thread(s)
    In the mid 1960s, the Schwinn Paramount came with 27 inch wheels.

  25. #25
    Senior Member Chicago Al's Avatar
    Join Date
    Jun 2009
    Location
    Chicago, the leafy NW side
    Posts
    2,190
    Mentioned
    2 Post(s)
    Tagged
    0 Thread(s)
    I am tempted to open up my Grand Record's BB to check for seams in the stay, Chas! But maybe I can hold off till next overhaul. I don't remember seeing any. BTW I thought there was some distinction between the straight '531' and diagonal, but it's not straight gauge vs butted as 'renforce' would mean butted.

    Back to Steve's bike:
    I think I see an 'R' in the headbadge. And maybe it's not a caduceus crossing the gear, but something else...kinda looks like a stylized figure of a woman/goddess holding arms/wings above head. Winged arms is a feature of the Egyptian goddess Isis. No idea what the symbolism would be there...if it was a caduceus (like in the medical symbol) that was an attribute of Hermes/Mercury, therefore symbolising speed.

    BTW Steve, it doesn't look particularly rusty for a 50 year old bike that has been ridden hard, and may even have gotten some salt on it during its travels. I haven't found French bikes to be particularly prone to rusting, nor Japanese bikes to be immune to it, either. It is all down to the conditions they are ridden and kept in.
    Last edited by Chicago Al; 08-31-14 at 10:03 AM.
    I never think I have hit hard, unless it rebounds.

    - Dr Samuel Johnson

Page 1 of 2 12 LastLast

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
