Disc brakes and fenders

This is becoming a problem on my Vassago Fisticuff I have noticed. I currently have a set of SKS Commuter Hybrids (45mm) and I can get everything mounted but requires some bending and also mounting to the brake mount which I would rather avoid.

I should also mention I am having an issue with the fender pushing up tight against the front derailleur. I am considering going to a smaller fender if some decent suggestions are listed. I can still return these and would prefer it that way vs buying another set outright.

What adapters have you used and had success?

Last edited by Mr Pink57; 12-29-10 at 07:32 AM.
Mr Pink57 is online now   Reply With Quote
Old 12-29-10, 07:49 AM   #2
RobertFrapples
all-weather commuter

Join Date: Mar 2009
Location: Rochester, NY
Bikes: Graham Cycles Kilo-Graham all season fat bike, and a few others
Posts: 314
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I got a thin piece of metal about half an inch wide and 3 inches long and drilled a hole into each end. I then bent it into an S and screwed one end to the fender/rack mount hole on the frame and attached the fender to the other end. Now I can adjust how far the fender stay end is away from the fork to make it clear the brake caliper.

Let me know if that is not clear enough and I will take a picture.
RobertFrapples is offline   Reply With Quote
Old 12-29-10, 08:02 AM   #3
Mr Pink57
Did I catch a niner?
Thread Starter

Mr Pink57's Avatar

Join Date: Dec 2010
Location: a van down by the river
Bikes: Vassago Fisticuff/Surly Ogre/Surly Pugsley/Surly Pugsley 29+
Posts: 507
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
A picture would help thanks.
Mr Pink57 is online now   Reply With Quote
Old 12-29-10, 10:58 AM   #4
gear
Senior Member

gear's Avatar

Join Date: Sep 2004
Location: North shore of Mass.
Bikes:
Posts: 2,131
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Why are you against using the brake mount for the fender stay?
gear is offline   Reply With Quote
Old 12-29-10, 11:11 AM   #5
NormanF
Senior Member

Join Date: Mar 2007
Bikes:
Posts: 5,370
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
In the shop, installation of the fenders is done with some cutting of the lengths to make the fit perfect.
NormanF is offline   Reply With Quote
Old 12-29-10, 11:21 AM   #6
MichaelW
Senior Member

Join Date: Feb 2001
Location: England
Bikes:
Posts: 12,936
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
The issue with disc brakes is interference witht the fender stay: there is no straight-line route. My LBS bent the stays to route under the front caliper. You can cut, drill and form some metal to make a bracket to relocate a fender eyelet.
If your fenders are too wide for your front mech and casuing interference, you can remove some of the fender material. I use a dremel tool to chip away until the shape is correct (usually to produce a thin neck between the chainstays)
MichaelW is offline   Reply With Quote
Old 12-29-10, 11:53 AM   #7
commo_soulja
Senior Member

commo_soulja's Avatar

Join Date: Aug 2008
Location: C-Ville
Bikes: are fun to ride
Posts: 1,144
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I had no problems mounting my fenders on my Salsa. The PB fenders came with spacers to use on the caliper side of the fender stays. No need for bending, twisting, cursing. Does your frame and fork come equipped with eyelets for fenders or are you jury-rigging it?
commo_soulja is offline   Reply With Quote
Old 12-29-10, 12:12 PM   #8
Seattle Forrest
Senior Member

Seattle Forrest's Avatar

Join Date: Mar 2010
Location: Seattle, WA
Bikes:
Posts: 14,579
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1480 Post(s)
Fenders really aren't all they're cracked up to be. You're probably better off using a rear cargo rack (with something on the top to block water) and a front clip-on.
Seattle Forrest is offline   Reply With Quote
Old 12-29-10, 12:18 PM   #9
CCrew
Older than dirt

CCrew's Avatar

Join Date: May 2008
Location: Winchester, VA
Bikes: Too darn many.. latest count is 11
Posts: 5,343
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Fenders can be fun to fit on discs.

One trick I've used is to use an extra long bolt on one of the caliper mounts. You run two nuts onto the bolt, then screw the bolt into the caliper mount fully engaged. You run the first nut town to the caliper mount to tighten and the second one outboard for the fender stay mount.

Don't have one here at the moment to take pictures of, but the description works.

Rear if you have to run a disc specific rack you can sometimes go with a bit longer bolt and use the same mount as the rack - either outboard or inboard of the rack mount.

All that said though, I don't find fenders to be the be-all end-all anymore and don't run them. If it's raining you're going to get wet anyway. A rear rack will usually stop the stripe up the back syndrome. Have two new sets of SKS's on the shop wall should I change my mind

Commo Soulja, like that Salsa. Building a Vaya now.

Last edited by CCrew; 12-29-10 at 12:21 PM.
CCrew is offline   Reply With Quote
Old 12-29-10, 12:21 PM   #10
slide23
Senior Member

slide23's Avatar

Join Date: Nov 2007
Location: Portland OR
Bikes:
Posts: 128
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

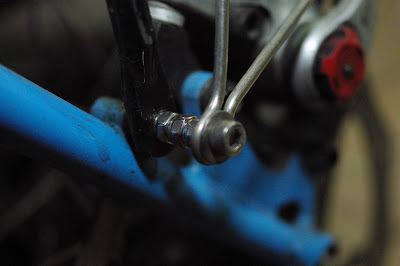

Make a "standoff" to clear the caliper.

I used a longer stainless M5 bolt with a stack of nuts and washers in order to push the stay out past the disc caliper. With that particular bike, given the positioning of the braze-on, the stay ended up being too short to reach the fender. I cut a piece of another stay, bent it, and then used silver wire to wrap the stays and bent piece together.


I assume that Seattle Forrest's comment is facetious.
slide23 is offline   Reply With Quote
Old 12-29-10, 12:23 PM   #11
DJConspicious
Senior Member

Join Date: Aug 2009
Bikes:
Posts: 129
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I'm quite new to disc brakes so I'm just now getting familiar with it. What do you mean by caliper mounts, in relation to this image?



EDIT - I'm assuming this is what you mean by one of the two caliper mounts,



Right?
DJConspicious is offline   Reply With Quote
Old 12-29-10, 12:34 PM   #12
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Bikes: 2013 Kona Jake, 2015 Kona Jake the Snake, 2008 Kona Major Jake, 2013 Kona Jake the Snake, 2006 Kona Kula, 2012 Ridley Excalibur, 2001 LeMond Buenos Aires, 1984 Pinarello Gran Turismo, 1982 Trek 614, 1978 Austro-Daimler, 1987 Pinarello Montello
Posts: 9,170
Mentioned: 23 Post(s)
Tagged: 0 Thread(s)
Quoted: 302 Post(s)
On my Muirwoods 29er, I use a stack of old V-brake washers to push the fender stay out from the brake.



Aside from giving me a lot of flexibility over how high the stack is, this setup lets me have the fender stay angled out away from the frame (using the "toe-in" adjustment feature of the washers).
Andy_K is offline   Reply With Quote
Old 12-29-10, 12:58 PM   #13
irclean
Born Again Pagan

irclean's Avatar

Join Date: Aug 2009
Location: Southwestern Ontario
Bikes: Schwinn hybrid, Raleigh MTB
Posts: 2,242
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Seattle Forrest View Post
Fenders really aren't all they're cracked up to be. You're probably better off using a rear cargo rack (with something on the top to block water) and a front clip-on.
?!!

For my rear fender I used the supplied spacer supplied with my PB Cascadias to clear the caliper (why all manufacturers don't mount calipers on the chain stays to avoid this problem is beyond me):



My bike lacked eyelets on the front dropouts, so I bent and trimmed the struts to allow them to be mounted on the lowrider braze-ons:

irclean is offline   Reply With Quote
Old 12-29-10, 01:00 PM   #14
seeker333
__________

seeker333's Avatar

Join Date: Feb 2004
Bikes: yes!
Posts: 3,168
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
If the fender is interfering with f. derailleur, just cut away 5mm of fender edge to give clearance. SKS rears were actually made this way for a long time.

As far as fender stay interference with disc brake, simplest thing to do is bend them around to give clearance. Not the prettiest solution, but, you'll hardly notice after a while.

Mounting fenders well can be a real challenge that may require a little resourcefulness and creativity.
seeker333 is offline   Reply With Quote
Old 12-29-10, 01:08 PM   #15
Seattle Forrest
Senior Member

Seattle Forrest's Avatar

Join Date: Mar 2010
Location: Seattle, WA
Bikes:
Posts: 14,579
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1480 Post(s)
Quote:
Originally Posted by slide23 View Post
I assume that Seattle Forrest's comment is facetious.
I went from having a bike that fit me perfectly, to a bike I could only turn if the crank arms were at 6 and 12 o'clock. Fenders were the only "upgrade" I think I've ever made to a bike that left me disappointed. My comment was serious; it's the fenders that are of feces.
Seattle Forrest is offline   Reply With Quote
Old 12-29-10, 01:48 PM   #16
chipcom
Infamous Member

chipcom's Avatar

Join Date: Sep 2005
Location: Ohio
Bikes: Surly Big Dummy, Fuji World, 80ish Bianchi
Posts: 24,366
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Seattle Forrest View Post
Fenders really aren't all they're cracked up to be. You're probably better off using a rear cargo rack (with something on the top to block water) and a front clip-on.
incorrect
__________________
"Let us hope our weapons are never needed --but do not forget what the common people knew when they demanded the Bill of Rights: An armed citizenry is the first defense, the best defense, and the final defense against tyranny. If guns are outlawed, only the government will have guns. Only the police, the secret police, the military, the hired servants of our rulers. Only the government -- and a few outlaws. I intend to be among the outlaws" - Edward Abbey
chipcom is offline   Reply With Quote
Old 12-29-10, 01:49 PM   #17
chipcom
Infamous Member

chipcom's Avatar

Join Date: Sep 2005
Location: Ohio
Bikes: Surly Big Dummy, Fuji World, 80ish Bianchi
Posts: 24,366
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Seattle Forrest View Post
I went from having a bike that fit me perfectly, to a bike I could only turn if the crank arms were at 6 and 12 o'clock. Fenders were the only "upgrade" I think I've ever made to a bike that left me disappointed. My comment was serious; it's the fenders that are of feces.
Then you were doing it wrong.
__________________
"Let us hope our weapons are never needed --but do not forget what the common people knew when they demanded the Bill of Rights: An armed citizenry is the first defense, the best defense, and the final defense against tyranny. If guns are outlawed, only the government will have guns. Only the police, the secret police, the military, the hired servants of our rulers. Only the government -- and a few outlaws. I intend to be among the outlaws" - Edward Abbey
chipcom is offline   Reply With Quote
Old 12-29-10, 02:46 PM   #18
Seattle Forrest
Senior Member

Seattle Forrest's Avatar

Join Date: Mar 2010
Location: Seattle, WA
Bikes:
Posts: 14,579
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1480 Post(s)
So there's a way to stick a piece of plastic behind the front wheel without reducing clearance between your toe and the front wheel?
Seattle Forrest is offline   Reply With Quote
Old 12-29-10, 03:45 PM   #19
slide23
Senior Member

slide23's Avatar

Join Date: Nov 2007
Location: Portland OR
Bikes:
Posts: 128
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Seattle Forrest View Post
So there's a way to stick a piece of plastic behind the front wheel without reducing clearance between your toe and the front wheel?
So that is your specific experience. Don't stick your feet in the wheel. Pretty simple.

But there is no better system for keeping spray off the rider and bicycle, other than not riding in the rain.
slide23 is offline   Reply With Quote
Old 12-29-10, 04:50 PM   #20
JanMM
rebmeM roineS

JanMM's Avatar

Join Date: Jan 2006
Location: In Central IN
Bikes: RANS V3, RANS V-Rex, RANS Screamer
Posts: 13,526
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Quote:
Originally Posted by chipcom View Post
incorrect
+1
__________________
RANS V3 - Ti, RANS V-Rex - cromo, RANS Screamer - cromo
JanMM is online now   Reply With Quote
Old 12-29-10, 05:11 PM   #21
Seattle Forrest
Senior Member

Seattle Forrest's Avatar

Join Date: Mar 2010
Location: Seattle, WA
Bikes:
Posts: 14,579
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1480 Post(s)
Quote:
Originally Posted by slide23 View Post
So that is your specific experience. Don't stick your feet in the wheel. Pretty simple.

But there is no better system for keeping spray off the rider and bicycle, other than not riding in the rain.
Nothing to do with feet in the wheel: I was able to turn the bike wherever my feet happened to be in the pedal rotation, until I got fenders. Honestly, I prefer cornering with the crank arms at 3 and 9 o'clock than 6 and 12, because in a series of hair-pins, you don't have to keep changing. It's a habit I got into. And fenders get in the way.

Anyway, a rear rack does most of the job of a rear fender. I'd rather have a clip on front fender than a normal one. And I find it's better to ride in water -proof or -tolerable pants ( merino or goretex, for example ) than with fenders.
Seattle Forrest is offline   Reply With Quote
Old 12-29-10, 05:16 PM   #22
JanMM
rebmeM roineS

JanMM's Avatar

Join Date: Jan 2006
Location: In Central IN
Bikes: RANS V3, RANS V-Rex, RANS Screamer
Posts: 13,526
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 53 Post(s)
Planet Bike Speedez fenders can be used to avoid mounting right at the brake. I have one on the rear of my V3 recumbent and a conventional Hardcore fender on the front (with a bent fender stay and longer screws with nylon spacers).


__________________
RANS V3 - Ti, RANS V-Rex - cromo, RANS Screamer - cromo

Last edited by JanMM; 12-29-10 at 05:33 PM.
JanMM is online now   Reply With Quote
Old 12-29-10, 06:39 PM   #23
CCrew
Older than dirt

CCrew's Avatar

Join Date: May 2008
Location: Winchester, VA
Bikes: Too darn many.. latest count is 11
Posts: 5,343
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by slide23 View Post
I assume that Seattle Forrest's comment is facetious.
I don't think so. Seriously, you think you're going to ride in the rain and not get wet?

I've run fenders. Get any speed and the water coming off the front wheel is still going to blow forward off the top of the wheel then back in your face. Rear with the right rack (I use Topeak MTX which are essentially closed at the top) isn't going to throw the water up your back, and beyond that the rest is rain - you're still going to get wet. Sure, I'll give you that you may not get as dirty, but once you're wet you can only get so wet..
CCrew is offline   Reply With Quote
Old 12-29-10, 07:38 PM   #24
chipcom
Infamous Member

chipcom's Avatar

Join Date: Sep 2005
Location: Ohio
Bikes: Surly Big Dummy, Fuji World, 80ish Bianchi
Posts: 24,366
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Seattle Forrest View Post
So there's a way to stick a piece of plastic behind the front wheel without reducing clearance between your toe and the front wheel?
You're kidding, right?
__________________
"Let us hope our weapons are never needed --but do not forget what the common people knew when they demanded the Bill of Rights: An armed citizenry is the first defense, the best defense, and the final defense against tyranny. If guns are outlawed, only the government will have guns. Only the police, the secret police, the military, the hired servants of our rulers. Only the government -- and a few outlaws. I intend to be among the outlaws" - Edward Abbey
chipcom is offline   Reply With Quote
Old 12-29-10, 07:42 PM   #25
chipcom
Infamous Member

chipcom's Avatar

Join Date: Sep 2005
Location: Ohio
Bikes: Surly Big Dummy, Fuji World, 80ish Bianchi
Posts: 24,366
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Seattle Forrest View Post
Nothing to do with feet in the wheel: I was able to turn the bike wherever my feet happened to be in the pedal rotation, until I got fenders. Honestly, I prefer cornering with the crank arms at 3 and 9 o'clock than 6 and 12, because in a series of hair-pins, you don't have to keep changing. It's a habit I got into. And fenders get in the way.

Anyway, a rear rack does most of the job of a rear fender. I'd rather have a clip on front fender than a normal one. And I find it's better to ride in water -proof or -tolerable pants ( merino or goretex, for example ) than with fenders.
So basically, because you have a frame that isn't well suited for fenders for your application, all fender applications are bad?
__________________
"Let us hope our weapons are never needed --but do not forget what the common people knew when they demanded the Bill of Rights: An armed citizenry is the first defense, the best defense, and the final defense against tyranny. If guns are outlawed, only the government will have guns. Only the police, the secret police, the military, the hired servants of our rulers. Only the government -- and a few outlaws. I intend to be among the outlaws" - Edward Abbey
chipcom is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -6. The time now is 03:32 PM.
