Old 02-22-13, 09:25 AM   #1
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Lightbulb EBike Toolbox - Bargains! $

Index

Charging
Controllers
Wiring - circuits - connectors

Lights
Meters
Tires
Fuses

Sorry! Just click on pictures to go to, where available.

Thought I'd post up some of the bargains I've found!
This one seemed impressive enough to post, added a few others ... consolidated links to some of my finds.
Dc 10v-90v 0-50a dual Digital led voltmeter, ammeter, watt meter, amp hour meter $23.99
Ordered one up ...


DC-DC 3.8V-60V (80V if 3wire) 20A Dual-display Digital LCD Power Current Voltage, AMP Meter, watt meter, Ah meter $13.69
Its little brother ... I've been using one for several months ... love it!
Many more functions but sketchy instructions are in Chinglish



1600 Lumen XML Cree XM-L T6 LED Zoomable Focus Black Flashlight Torch 8W 5Modes $9.74
Wonderfully bright ... 5modes is more annoying than useful.



Imax B6 1- 6s cells Lipo NiMh Balance Battery RC Charger $22.77
Great little tool!



1-8S Lipo Battery Low Voltage Tester Buzzer Alarm $2.79
Programmable, individual bank LVA- Low Voltage Alarm
Displays pack voltage then individual bank voltages
Use multiple for larger packs. I ran to front bars using 8 wire Ethernet cable (7s 25.9V Li-ion)
Use as voltage meter only, hook to wires going to 24V leds on throttle. (30V max)



24-60V 500-1000W Motor Brush Controller for Electric Bike Bicycle & Scooter $45.50
Rugged, durable ... nearly indestructible. Waterproof construction!?


Belden tinned copper tubular braid/ground strap 5/16" X 20' $12.99
10-9gauge Tinned Copper Braid - Great for connecting cells, solders nicely 30-50A continuous recommended



I'll try to remember - find more!

Sorry! Just click on pictures to go to, where available.

Last edited by DrkAngel; 02-11-16 at 10:24 PM.
DrkAngel is offline   Reply With Quote
Old 02-22-13, 11:03 AM   #2
powell
Senior Member

Join Date: Aug 2011
Location: Western Canada
Bikes: E+ kit, Tidal Force, BIONX
Posts: 436
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 3 Post(s)
No way that torch light can put out 1600 lumens from XML Cree LED
typical China brand exaggeration / cheating
Maybe from three XML you could get it
IMAX shown is NOT compete charger, you need power supply to hook up to it

Last edited by powell; 02-22-13 at 11:06 AM.
powell is offline   Reply With Quote
Old 02-22-13, 12:16 PM   #3
FMB42
Senior Member

Join Date: Sep 2010
Bikes:
Posts: 454
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Bookmarked one and all. Thx DA.

As for LED flashlights in general; imo most 4-6 "bulb" units produce more than enough light for me. My wife bought 2 different 9 LED "bulb" FLs and both are almost too bright for normal use.
FMB42 is offline   Reply With Quote
Old 02-24-13, 10:34 AM   #4
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Lightbulb

More bargains ...

Just click on pictures to go to Link.

Cable Shielding Braided Tinned Copper 1/32nd inch dia. TWO ROLLS 100 ft Each $18.99
Great for "balance" wiring, solders nice and flexible 22gauge ~5A



Deans Ultra XT Plug 12 Pairs - $8.25
Genuine Deans, Deans style or type cheaper are cheaper and typically OK, but buy quantity as next deans style purchase might mate poorly!




ACS Southpaw LHS 1/2 x 1/6 x 16T Freewheel - $13.93
Easy 25% speed upgrade for eZips and many iZips! and others?




DNP Epoch 7spd 30-32 to 11T Freewheel - $34
Upgrades EZip w/44T Front Sprocket to near 30mph pedal assist (90 crank rpm)




72 CUSTOM LENGTH STAINLESS 13G SPOKES - $26 + $5 shipping

150 13g Niipples

Just click on pictures to go to Link.

Last edited by DrkAngel; 02-28-13 at 02:19 PM.
DrkAngel is offline   Reply With Quote
Old 02-28-13, 05:48 AM   #5
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Lightbulb

And more ...

Just click on pictures to go to Link.

60 Amp Drum Switch Forward/Off/Reverse Motor Control Rain Proof Reversing EA - $12.40

Great for eTrike, other small electric vehicle.




13T Motor Sprocket Upgrade, (Currie, eZip, iZip) - $18 includes shipping
Plug-n-Play - except you will need longer chain


Good fit, good alignment, just lengthen chain and all set to go!
OEM eZip top speed @24V w/9T sprocket = 15mph.
15mph / 9T x 13T = 21.66mph (20mph USA "legal" - reasonable expectation)



2 In 1 1600Lm Zoomable CREE XM-L T6 LED HeadLamp Headlight Flashlight + Charger - US $17.99
Zoomable multi-brightness + strobe headlight and multi-mode tailight - See and be seen!
Mount on helmet!




iMax B6 too complex?
Tiger Wing 2~6S LiPo/Lion/LiFe and 2~15S NiMH/NiCD batteries T6 Compact Charger - $19.99
Simple Analog controls - some may prefer to "Digital interface"




Just click on pictures to go to Link.

Last edited by DrkAngel; 02-28-13 at 04:16 PM.
DrkAngel is offline   Reply With Quote
Old 03-02-13, 02:53 PM   #6
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
And More More ...

Just click on pictures to go to Link.

12V flexible "Pad Heaters" - $5-$6 per pair

Run "in series" from higher voltages as battery pack heaters etc.


Batteries vs Cold - heat pad test results, in "series" etc.




DC-DC 3.2 - 40V to 1.5 - 35V Step-Down Adjustable Converter Power Module - $1.49
12V 3A for lights, battery pack heaters (above item), etc.?






eZip Rear Brake Pads - $5.95
Most notably, the older eZips require a "deep" brake pad for the rear wheel ... this work nicely!


Direct link


Cheap Turn, Tail, brake LED w/"horn" - $5.54
Not good enough for daylight use but "good" for night and lower brightness days.
I upgraded LEDS - project not documented ... sorry!





7s - Tenergy Intelligent 2A Charger for 25.9V 7S Li-ion / Li-Polymer Battery Pack - $23.99
Bulk charger with "safety charging algorithms"
Great budget item but 4.2V per bank - not a balancing charger!
Gotta rip one open and try to trim voltage ... will report.
Other Tenergy chargers should have similar circuits.





10s - Tenergy Smart Charger for 37V 10-Cell 2A Li-ion/LIPO Battery Pack w/ Tamiya - $18.49
Bulk charger with "safety charging algorithms"
Special price w/Tamiya! Add your own connector.





13s - 54.6V DC 1A Power Adapter for 48V LiPo battery pack - $29.99
Bulk charger with "safety charging algorithms"

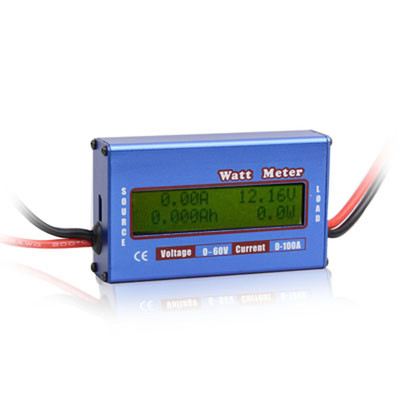

Digital 60V/100A Balance Voltage Power Analyzer Watt Meter Tool - $19.99
Looks to be a great little tool! No Balance Function!





New Digital 60V/100A Battery Balance Voltage Power Analyzer Watt Meter - $19.98
Auto-balancing and much more - 2s - 6s only - ordered one up!
One more reason to try a 22.2V pack for a 24V eBike!




Just click on pictures to go to Link.


.....
DrkAngel is offline   Reply With Quote
Old 08-26-13, 08:11 AM   #7
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
JST-XH 2S-8S Battery Balance Board Adapter - for iMax B8+

- $2.09 +$1.99 shipping


Great Project item
12V ~250+ lumen 2x Cree led w/diffuser dome

- $4.42


4 x 7s Balance cable
- $6.59 w/$1.74 shipping


2 x 8s Balance cable
- $4.99 w/ $1.74 shipping

Last edited by DrkAngel; 08-26-13 at 06:13 PM.
DrkAngel is offline   Reply With Quote
Old 09-17-13, 08:29 PM   #8
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

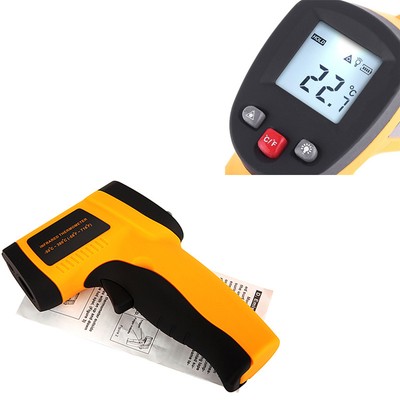

Cheap Infrared Meter
Don't singe your fingers!
- $12.33 + $1.29ship

Alloy - Aero Bars
Great price! Simple bolt on - of fair-reasonable quality.
<$20 - Shipped!
DrkAngel is offline   Reply With Quote
Old 09-17-13, 08:30 PM   #9
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Lightbulb

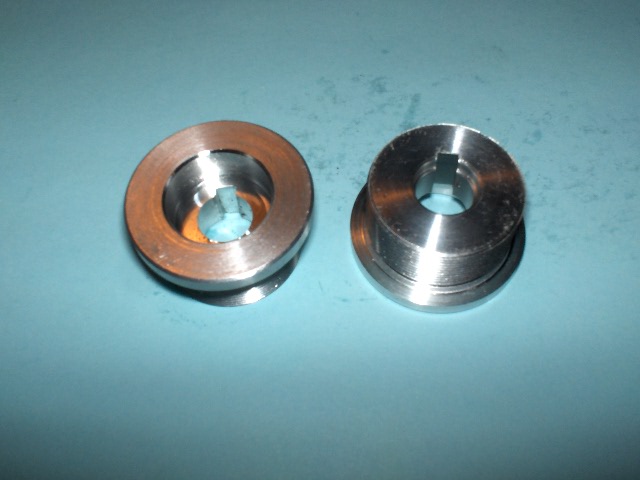

Alloy version for the 13 - 14 - 15t freewheel now Available!
Adds a freewheel sprocket to the Currie (eZip-iZip) gear reduction motors.
2024 Aluminum 11 mm ID with 4 mm key way Adaptor for freewheel sprocket 13, 14 & 15 tooth 30 mm x 1.0 OD - $19.95
- $19.95

120V 25A volt, watt, Ah + battery %
- $24.50

4 digit display 100th V capable - $3.89
Range: DC 4.50-30.00V ( Can Measure Voltage Directly )
Click on Picture
- $3.89

Avenir Pro Spoke Wrench Set
- $8.99

Last edited by DrkAngel; 09-18-13 at 04:40 AM.
DrkAngel is offline   Reply With Quote
Old 09-17-13, 08:31 PM   #10
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Lightbulb

Consolidated Li-ion charger bargains - All-Battery.com offers free shipping with $75 order and "THANKS" code.

Tenergy Intelligent 2A Charger for 25.9V 7S Li-ion / Li-Polymer Battery Pack -- Anderson Connector - $14.95
Unbelievable price!
Great for 25.9V Li-ion, as 24V SLA replacement.




10s - Tenergy Smart Charger for 37V 10-Cell 2A Li-ion/LIPO Battery Pack w/ Tamiya - $18.74
Bulk charger with "safety charging algorithms"
Special price w/Tamiya! Add your own connector.




13s - 54.6V DC 1A Power Adapter for 48V LiPo battery pack - $29.99
Bulk charger with "safety charging algorithms"



Additional All-Battery.com Chargers ... but of "limited" bargain status.
See - All-Battery.com - Li-ion chargers for 1-4s, 6s, 7s, 8s, 9s, 10s, 13s and 15s chargers.
See - All-Battery.com - LiFePO4 chargers for 6s, 7s, 8s, 9s chargers and 10s, 12s ,13s, 15s, 16s chargers

10pcs Balance Wire Extension 30cm - 3s, 4s, 5s, 6s, 7s, 8s, 10s, 12s!... $4-$14 w/free ship
22AWG. They appear to be silicone?


Last edited by DrkAngel; 07-30-14 at 08:43 AM.
DrkAngel is offline   Reply With Quote
Old 09-25-13, 07:40 PM   #11
Ivy wang
Banned.

Join Date: Sep 2013
Location: China
Bikes: Giant
Posts: 19
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
This is a good place to find the electric bike parts.I'm interested in the lcd ,I want to test my battery at home.
Attached Images
File Type: jpg dual-display-voltage-voltmeter.jpg (33.4 KB, 34 views)
Ivy wang is offline   Reply With Quote
Old 07-27-14, 11:24 AM   #12
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Lightbulb Tires

Back to Index


Tires

Might have just found my new - Best Bargain Tire!

Schwinn - 26" x 2.125" heavy ... and it doesn't look too impressive ...
But!
Kevlar Belted!
40-65psi!
Price: $15.38 & FREE Shipping on orders over $35. (I bought 2 & $5 gloves to get free shipping)

I bought 3 more of these.
The last 3.
But ... "More on the way" and orders still accepted at $15.38.
The large size and nearly flat tread seem ideal for my eTrike.


UPDATED Review:
Tires are taller than previous 2.125 tires ... I had to remove fenders for good clearance.
Under pressure tread is not as flat as pictured, not recommended for heavy turning but great for more casual riding.
Tried to wear off the "whiskers" with a series of loops and swerves and observed very good turning traction.
65lb pressure, maybe aided by Kevlar belt, seems to greatly reduce rolling resistance over previous 40lb "cruising" tires of similar tread pattern.


I lucked into finding these tires that meet my requirement almost perfectly!
Tread is a a nice compromise between the mountain bike tread and the smooth tires that came with the eZip.
26" x 1.90"
Pressure @65psi is acceptably "good".
City/commuter sidewall protection.
Kevlar reinforced for puncture resistance.
Reflective sidewall.
The reflective stripe, though not precisely positioned (under close inspection), is a nice bonus.

- only $15.72 each.
This is great bicycle parts source w/free shipping on $100 order (USA only).
UPDATED Review:
Very nice improvement over previous tires.
Center rib causes tire to track "true", there is a noticeable effort required to turn!
leaning, at higher speeds, provides very smooth turns.
Bike has excellent no handed stability without the sudden wobble experienced previously.
Good pressure, Kevlar belt and center rib combine for excellent low rolling resistance?

Just in time for Winter!
Schwinn MTB Tire with Kevlar, 26 x 1.95" - $14.57
Free shipping with $35 order!
Low inventory but - Order now to insure price.


I used a similar tread pattern to build my Homemade Studded Tires, but the Kevlar belt might make "studding" these problematic?

Schwinn Kevlar Tires ... 3 Types - $14.57 - Free ship w/$35 order

Nice "hybrid" tire.
40-65psi
Click on picture


Back to Index

Last edited by DrkAngel; 07-30-14 at 10:52 AM.
DrkAngel is offline   Reply With Quote
Old 07-29-14, 05:41 AM   #13
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Lightbulb Lighting

Back to Index

Lighting Roundup

Cheap Turn, Tail, brake LED w/"horn" - $5.54
Not good enough for daylight use but "good" for night and lower brightness days.
I upgraded LEDS - project not documented ... sorry!



Great Project item
Plastic base removable!
T20 12V ~250+ lumen(?) 2x Cree led w/diffuser dome

- $4.42

Update:
Playing with these, building a turn signal led upgrade.
Finally noticed that these are dual mode.
1 pos wire uses .5w and the 2nd uses 1.5w 1x - 3x brightness!.
Great for running light and turn signal ...
or tail light and brake light.
And
Price dropped to $3.60 per pair!
I am using the ...

- $1.19 / shipped

Flash mode and speed are adjustable.

1600 Lumen XML Cree XM-L T6 LED Zoomable Focus Black Flashlight Torch 8W 5Modes $9.74
Wonderfully bright ... 5modes is more annoying than useful.


A 12V flasher that works! ... Even with low drain LEDs!!!
Alternates between 1/16 - Full brightness approximately every .6 - .7 second.
Tested at 3 and 6 watt with no speed variance.
Turn Signal Flasher Blinker Relay 12V 2 Pin Motorcycle - $1.49


Car 8 LED DRL Daytime Running LED Light Super White 12V
Very noticeable in daylight, especially when flashing.

- $5.85

Ordered up a lights, turn, horn control module ... several choices

- <$7

"500 Lumen" High/Low/Strobe Zoomable Light
- ~$6.22


Bike Light Mount
- ~$15+

2PCS T10 (smaller) 1.5W 105-135LM 1-LED White Light - 12V
- 2/$1.54

"15w" permanent mount headlight 10-80V
- ~$15

Going with a ~12V system.
I decided was the best option - best component selection
I will use a small 3s Lipo pack but add ...
DC-DC 3.2 - 40V to 1.5 - 35V Step-Down Adjustable Converter Power Module - $1.49
... adjusted to 12.30V as primary lighting power and dedicated lighting battery recharger.
For my 6s, 7s and 9s bike batteries.
Might add diode to isolate lighting battery when no power from main bike battery.

Step Down Adjustable Converter

Back to Index

Last edited by DrkAngel; 07-30-14 at 10:49 AM.
DrkAngel is offline   Reply With Quote
Old 07-30-14, 02:36 AM   #14
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Lightbulb Metering

Back to Index


Sorry! - Just click on pictures to go to, where available.

Thought I'd post up some of the bargains I've found!
This one seemed impressive enough to post, added a few others ... consolidated links to some of my finds.
Meters!



Dc 10v-90v 0-50a dual Digital led voltmeter, ammeter, watt meter, amp hour meter $23.99
Ordered one up ... 2 or 3 wire configurable



DC-DC 3.8V-60V (80V if 3wire) 20A Dual-display Digital LCD Power Current Voltage, AMP Meter, watt meter, Ah meter $13.69
Its little brother ... I've been using one for several months ... love it!
Many more functions but sketchy instructions are in Chinglish







Imax B6 1- 6s cells Lipo NiMh Balance Battery RC Charger $22.77
Great little tool!

"Genuine" iMax are of "good" quality ...
Unfortunately ... "genuine" is difficult to determine.
HobbyKing.com lists genuine and fake, side by side.
"Fakes", from any, in business for a while, source, are typically of reasonable quality ...
But ... ?


1-8S Lipo Battery Low Voltage Tester Buzzer Alarm $2.79
Programmable, individual bank LVA- Low Voltage Alarm
Displays pack voltage then individual bank voltages
Use multiple for larger packs. 2 for upto 16s, 3 for 24s etc.
I ran to front bars using 8 wire Ethernet cable (7s 25.9V Li-ion)
Use as voltage meter only, hook to wires going to 24V leds on throttle. (30V max)

Accuracy varies greatly!


Dedicated power required for <5V use


New Low Price
New Digital 60V/100A Battery Balance Voltage Power Analyzer Watt Meter - $16.07+
Auto-balancing and much more - 2s - 6s only - ordered one up!
One more reason to try a 22.2V pack for a 24V eBike!

Found a nice item!
Small Volt - Amp meter, applicable to most chargers. < $5

30V 10A


100V 10A

Update - received item. Balance function works nicely, with pack voltage - no external power required.
Bleeds down higher voltage banks and beeps when balance complete.
Can even be used for bottom balancing!



120V 25A volt, watt, Ah + battery %
- $24.50

4 digit display 100th V capable - $3.89
Range: DC 4.50-30.00V ( Can Measure Voltage Directly )
Click on Picture
- $3.89

Back to Index

Last edited by DrkAngel; 07-30-14 at 10:51 AM.
DrkAngel is offline   Reply With Quote
Old 07-30-14, 08:30 AM   #15
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Lightbulb Wiring Connectors Circuits

Back to Index

Belden tinned copper tubular braid/ground strap 5/16" X 20' $12.99
10-9gauge Tinned Copper Braid - Great for connecting cells, solders nicely 30-50A continuous recommended



Cable Shielding Braided Tinned Copper 1/32nd inch dia. TWO ROLLS 100 ft Each $18.99
Great for "balance" wiring, solders nice and flexible 22gauge ~5A



Deans Ultra XT Plug 12 Pairs - $8.25
Genuine Deans, Deans style or type cheaper are cheaper and typically OK, but buy quantity as next deans style purchase might mate poorly!


60 Amp Drum Switch Forward/Off/Reverse Motor Control Rain Proof Reversing EA - $12.40[/B]
Great for eTrike, other small electric vehicle.


DC-DC 3.2 - 40V to 1.5 - 35V Step-Down Adjustable Converter Power Module - $1.49
12V 3A for lights, battery pack heaters (above item), etc.?



Back to Index

Last edited by DrkAngel; 07-30-14 at 10:42 AM.
DrkAngel is offline   Reply With Quote
Old 07-30-14, 08:45 AM   #16
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Lightbulb Charging

Back to Index

Imax B6 1- 6s cells Lipo NiMh Balance Battery RC Charger $22.77
Great little tool!


iMax B6 too complex?
Tiger Wing 2~6S LiPo/Lion/LiFe and 2~15S NiMH/NiCD batteries T6 Compact Charger - $19.99
Simple Analog controls - some may prefer to "Digital interface"

[B][COLOR=#FF0000]

JST-XH 2S-8S Battery Balance Board Adapter - for iMax B8+

- $2.09 +$1.99 shipping


4 x 7s Balance cable
- $6.59 w/$1.74 shipping


2 x 8s Balance cable
- $4.99 w/ $1.74 shipping

Consolidated Li-ion charger bargains - All-Battery.com offers free shipping with $75 order and "THANKS" code.

Tenergy Intelligent 2A Charger for 25.9V 7S Li-ion / Li-Polymer Battery Pack -- Anderson Connector - $14.95
Unbelievable price!
Great for 25.9V Li-ion, as 24V SLA replacement.




10s - Tenergy Smart Charger for 37V 10-Cell 2A Li-ion/LIPO Battery Pack w/ Tamiya - $18.74
Bulk charger with "safety charging algorithms"
Special price w/Tamiya! Add your own connector.




13s - 54.6V DC 1A Power Adapter for 48V LiPo battery pack - $29.99
Bulk charger with "safety charging algorithms"



Additional All-Battery.com Chargers ... but of "limited" bargain status.
See - All-Battery.com - Li-ion chargers for 1-4s, 6s, 7s, 8s, 9s, 10s, 13s and 15s chargers.
See - All-Battery.com - LiFePO4 chargers for 6s, 7s, 8s, 9s chargers and 10s, 12s ,13s, 15s, 16s chargers

10pcs Balance Wire Extension 30cm - 3s, 4s, 5s, 6s, 7s, 8s, 10s, 12s!... $4-$14 w/free ship
22AWG. They appear to be silicone?



Back to Index

Last edited by DrkAngel; 07-30-14 at 10:40 AM.
DrkAngel is offline   Reply With Quote
Old 02-11-16, 05:44 AM   #17
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Cool Fuses


58V DC fuses 15A - 150A
58V Female Cartridge Fuse Holder Source???

80VDC Fuses
  • 250VAC Fuses 80-125V? DC Equivalent
  • 30A Slow Blow
  • 40A
  • 50A
  • 60A
  • 70A
  • 75A
  • 80A
  • 100A
  • 125A
  • 150A
    Note:
    250VAC = 80-125V? DC compatibility based on various claims and the ratings of multiple manufacturers with multi AC-DC compatible fuses
    Please test and confirm in safe environment before placing in service
Slow Blow fuses are recommended for most eBike applications.
Check descriptions for:
Slow
Delay
Slo
Lag

Last edited by DrkAngel; 02-12-16 at 09:03 AM.
DrkAngel is offline   Reply With Quote
Old 02-11-16, 08:20 PM   #18
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Cool J Case JCase 58V Low Profile Fuse Holder

58V Female Cartridge Fuse Holder Source???

J Case - JCase Fuse Holders
Found a few sources for J Case in-line fuse holders
Lot of 25 @ 10ga and various 8ga <$10 each

Lot of 25 J Case Cartridge In-Line Fuse Holder w/ Bracket 10 AWG 10" Long T68549 - $79 +shipping

J-CaseŽ FMX Series Fuse Holder, Standard, 8 ga., 60 amp max. - $8.45 + shipping

8ga 60A - $5.26 + shipping
DrkAngel is offline   Reply With Quote
Old 02-17-16, 08:13 AM   #19
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Lightbulb Fuses 32VDC - 58VDC - 80VDC - 125VDC

Quote:
Originally Posted by DrkAngel View Post

58V DC fuses 15A - 150A
58V Female Cartridge Fuse Holder Source???

80VDC Fuses
  • 250VAC Fuses 80-125V? DC Equivalent
  • 30A Slow Blow
  • 40A
  • 50A
  • 60A
  • 70A
  • 75A
  • 80A
  • 100A
  • 125A
  • 150A
    Note:
    250VAC = 80-125V? DC compatibility based on various claims and the ratings of multiple manufacturers with multi AC-DC compatible fuses
    Please test and confirm in safe environment before placing in service
Slow Blow fuses are recommended for most eBike applications.
Check descriptions for:
Slow
Delay
Slo
Lag
125VDC Fuses are typically in a larger format and of limited selection

Most Common:
20A
30A
40A
50A
60A

Fuse holders proprietary to fuse type selected.

Last edited by DrkAngel; 02-17-16 at 04:49 PM.
DrkAngel is offline   Reply With Quote
Old 07-03-16, 06:01 AM   #20
DrkAngel
Senior Member
Thread Starter

DrkAngel's Avatar

Join Date: Oct 2012
Location: Upstate NY
Bikes: Various "modded" eZips and multiple econversions
Posts: 334
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Battery Level-Condition Monitor

(1s - 7s) 5 in 1 RC Li-Fe Lipo Battery Voltage Balancer Meter Discharger LCD display - ~$8

Unlike a very similar previous posting, this does have continuous metering.
IR meter function works (repeated tests of same cells vary somewhat) should be used to compare like cells? (Same brand, capacity, model, charged voltage etc.)
Can't vouch for discharge or balance function.

Ideal for my 7s 25.9V 25.92Ah LiPo battery builds. Replaces 24V 10Ah (5-6Ah actual) oem SLA battery.
Will be mounted on my bars to monitor "fuel level" and bank voltages.
8 wire Ethernet cable adapts nicely.
Use multiple for more than 7s.

Testing battery drain (to operate continuously) with an old 3s 2000mAh RC LiPo.
Will post mAh use but should be negligible



UPDATE: 24+ hour run test showed "87% - 67%" discharge of 3s 1500mAh RC LiPo test pack. ~300mAh/day continuous run.
Most important was that discharge was even over the 3 cells.
...

Last edited by DrkAngel; 07-04-16 at 07:00 AM.
DrkAngel is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -6. The time now is 02:14 PM.
