Thread: HID Project

  1. #1
    Senior Member
    Join Date
    Jul 2008
    Location
    UK
    Posts
    1,753
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    HID Project

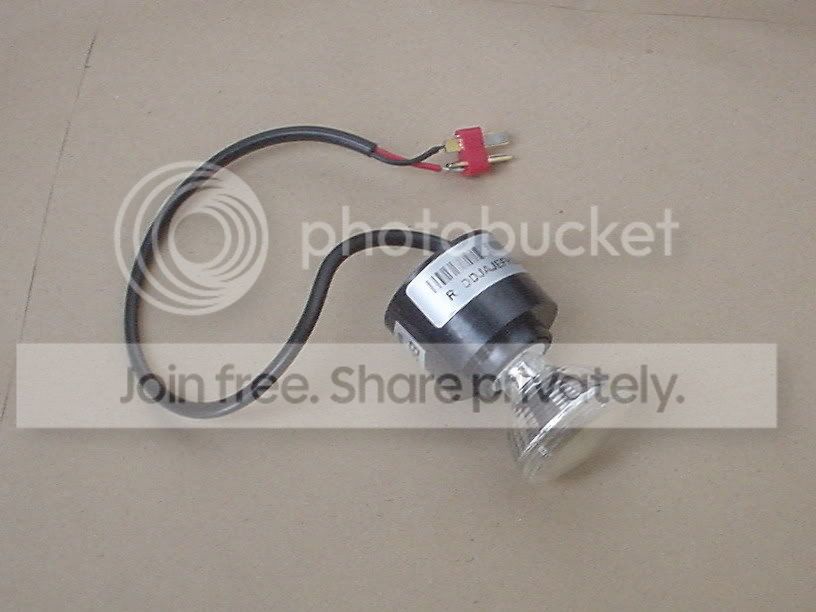

    I recently bought HID unit and wondered if anyone else had one like it or any ideas for an enclosure.







    Last edited by Unknown Cyclist; 02-21-09 at 10:59 AM.

  2. #2
    Senior Member
    Join Date
    Jul 2008
    Location
    UK
    Posts
    1,753
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

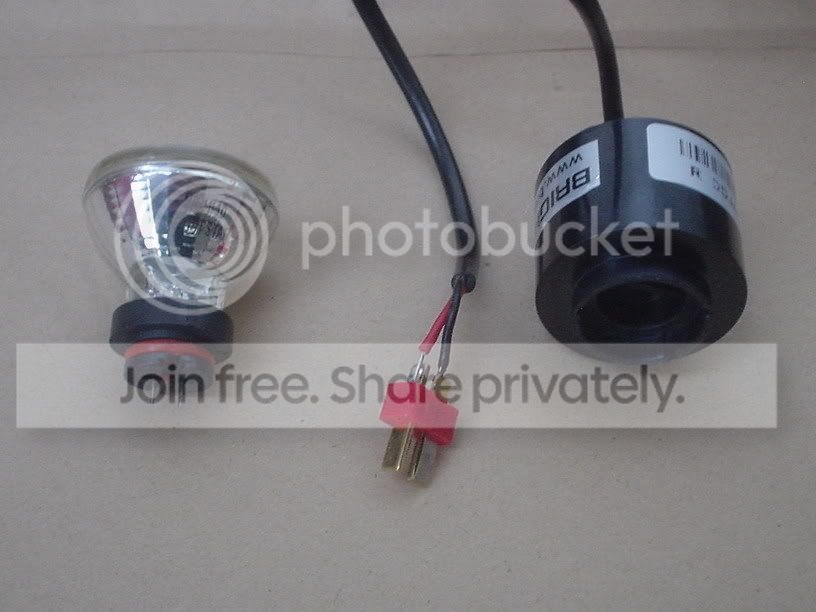

    The ballast has a web address on it: www.brightstar-hid.com.

    Specs for the ballast are:

    Voltage input DC 9V~16V
    Normal Voltage Input 12.8 VDC
    Normal Current Input 0.9A
    Power Output 10 5%
    Maximum Current Input 16.2A
    Operation Power DC 65 12V
    Operation Temperature -20C~80C
    Storage Temperature -40C~105C
    Efficiency over 85%

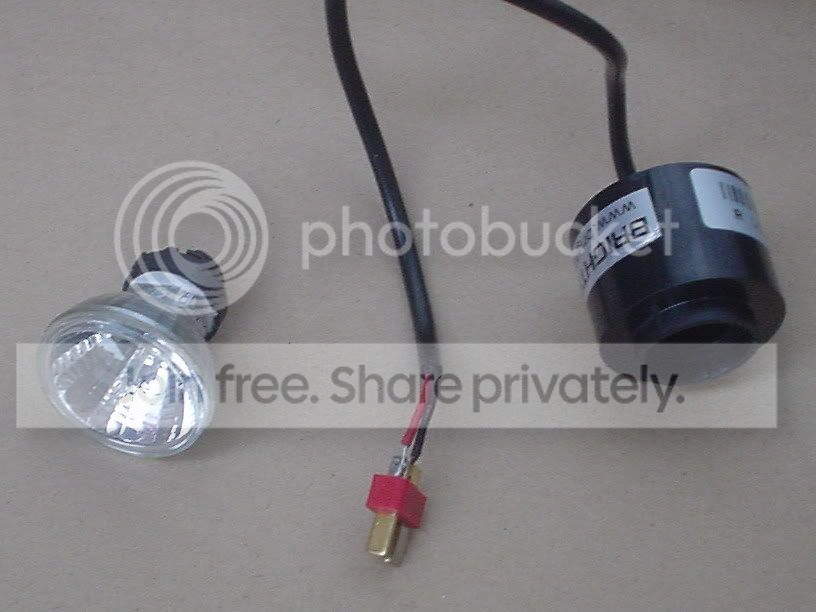

    And as far as I can tell the bulb is a 12W MR-11 10 (35mm diameter).

    Specs for the bulb are:
    Operation Voltage DC 65V 12V
    Wattage 10.5W 0.5W
    Current Input 0.9A
    Output (Luminance) 550lm
    Color Temperature 6000K
    Life Span(hrs) over 1000 hrs
    With UV-cut shield YES

    I've just carried out a runtime test using a 8 cell 3700 mAh sub-c nimh pack.

    The HID sustained full brightness for exactly 2.5 hours and voltage at the battery started at 10.65V (under load) and the ballast shut off when the voltage dropped to between 8V and 8.5V (under load).

    Light output seemed to be adequate and more floody than I expected.

  3. #3
    Got another new bike
    Join Date
    Nov 2007
    Location
    dundalk, md
    My Bikes
    pacific elite 3.1 w/upgrades and street slicks, got an iron horse maverick now, cannondale sr800, gt gtr pro rival
    Posts
    584
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    cool...beamshots please.

    what was the total cost on this?

  4. #4
    Senior Member Road Fan's Avatar
    Join Date
    Apr 2005
    Location
    Ann Arbor, MI
    My Bikes
    Terraferma 650b, Mondonico SL and ELOS, Masi Gran Criterium, Trek 610, Breezer Liberty, Georgena Terry Classic
    Posts
    11,108
    Mentioned
    6 Post(s)
    Tagged
    0 Thread(s)
    Very cool!

    You need to consider radiating excess heat in this design. The efficiency of an HID bulb is around 50% give or take, and the bulb input power (same as ballast output power) is in this case around 10 watts. So the waste heat generated in the bulb is 5 watts.

    The problem isn't as severe as with a 5 watt LED because the heat transfer requirement is not as stringent, but I think it could still heat up and distort.

    The electrical and temperature specs look automotive.

  5. #5
    Senior Member
    Join Date
    Jul 2008
    Location
    UK
    Posts
    1,753
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by Road Fan View Post
    Very cool!

    You need to consider radiating excess heat in this design. The efficiency of an HID bulb is around 50% give or take, and the bulb input power (same as ballast output power) is in this case around 10 watts. So the waste heat generated in the bulb is 5 watts.

    The problem isn't as severe as with a 5 watt LED because the heat transfer requirement is not as stringent, but I think it could still heat up and distort.

    The electrical and temperature specs look automotive.
    Cheers for the info, I was already concerned about waste heat so when I did the run test I placed the HID in a plastic tube (piece of waste pipe) after 2.5 hours the tube hadn't melted, touching the bulb wasn't a good idea however.

    Here are the main possiblities for an enclosure:

    Spice jar with clear lid (just happens to be the right size).


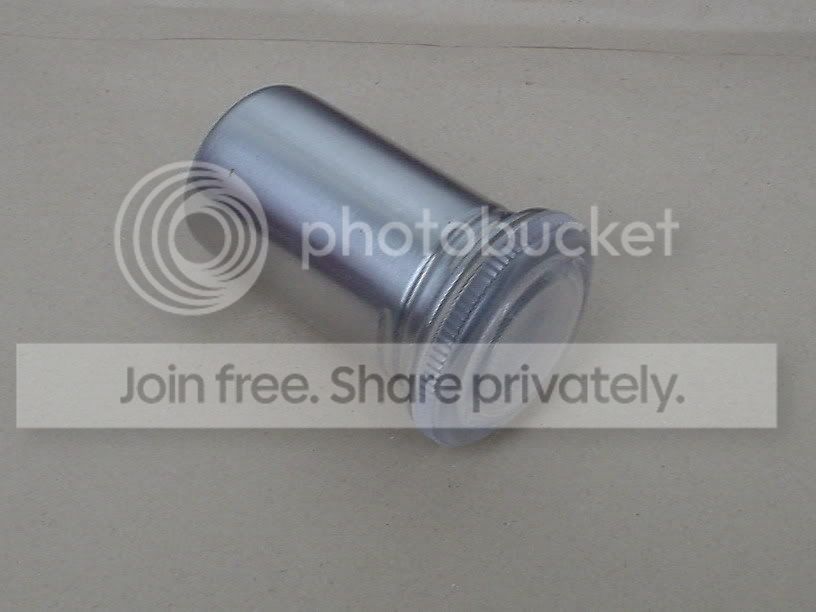

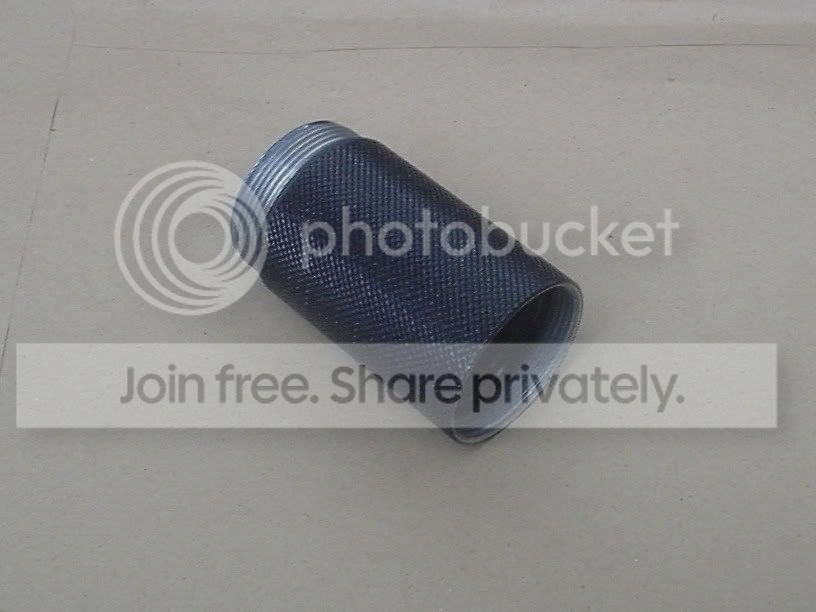

    D cell extension tube from Maglite copy.


    Length of black waste pipe which is an exact fit on the ballast.


    A trip to Maplin yielded:
    Last edited by Unknown Cyclist; 02-21-09 at 11:02 AM.
    Making a Pilom Triple LED Headlight ? I have parts available :)
    Bell R2 Conversion
    HID Project
    Dynohub R2 Project & Custom Helmet Lighting
    Aurora P7 Review

  6. #6
    Senior Member
    Join Date
    Jul 2008
    Location
    UK
    Posts
    1,753
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by joshandlauri View Post
    cool...beamshots please.

    what was the total cost on this?
    Cost so far:

    Ballast & HID bulb 31

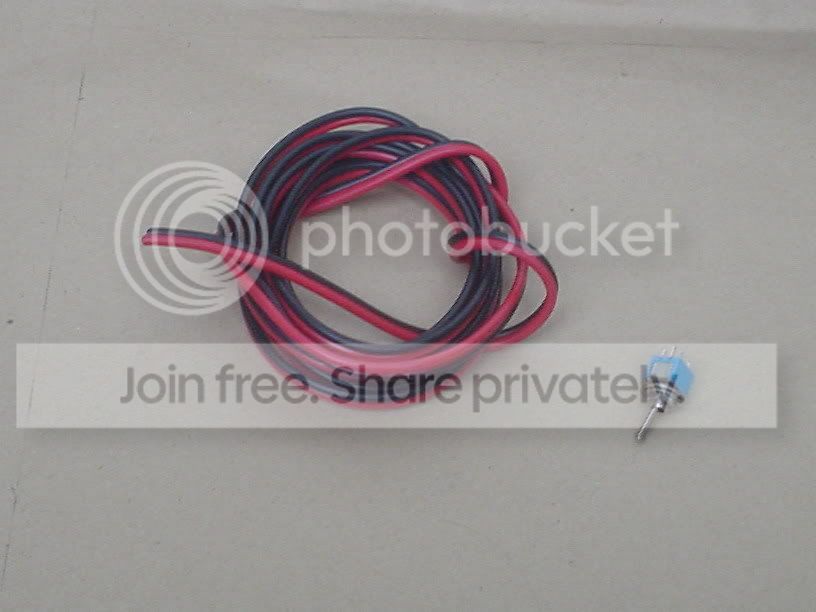

    Switch 1.99
    6A Figure 8 cable 1.09
    Deal Extreme Handlebar Mount (sku15342) $3.98

    I was given the black silicon, black plastic pipe, spice jar and D cell extension tube.

    The batteries I already have and originally cost about 20 each.
    Making a Pilom Triple LED Headlight ? I have parts available :)
    Bell R2 Conversion
    HID Project
    Dynohub R2 Project & Custom Helmet Lighting
    Aurora P7 Review

  7. #7
    Senior Member
    Join Date
    Jul 2008
    Location
    UK
    Posts
    1,753
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    More items for the HID build.

    Black heavy duty silicon:


    Likely candidates for powering the HID:
    NIMH 8 cell 3700 mAh 2 hrs 30 mins (continuous) runtime 515g
    Lipo 3S 2200 mAh 1 hr 35 mins (continuous) runtime 176g


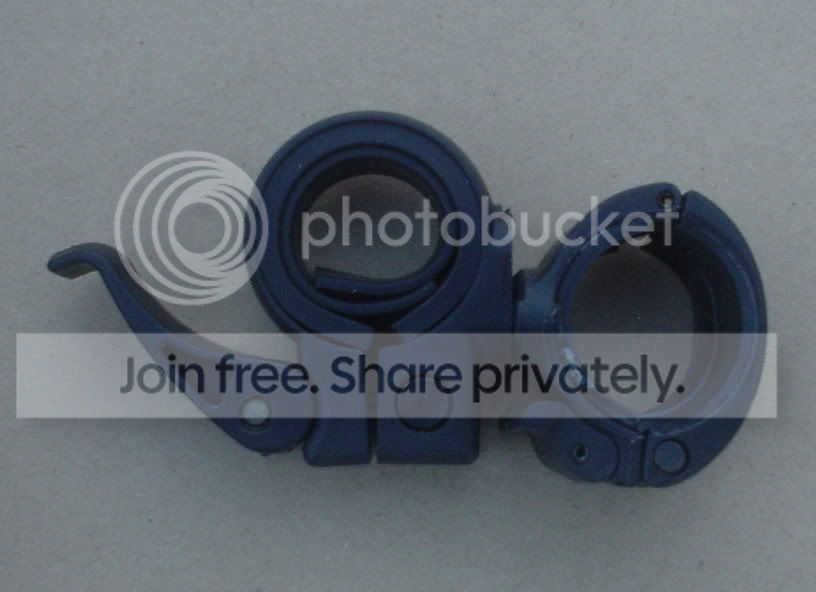

    Doner handlebar bracket from DX:




    Last edited by Unknown Cyclist; 02-21-09 at 11:03 AM.
    Making a Pilom Triple LED Headlight ? I have parts available :)
    Bell R2 Conversion
    HID Project
    Dynohub R2 Project & Custom Helmet Lighting
    Aurora P7 Review

  8. #8
    Senior Member
    Join Date
    Jul 2008
    Location
    UK
    Posts
    1,753
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

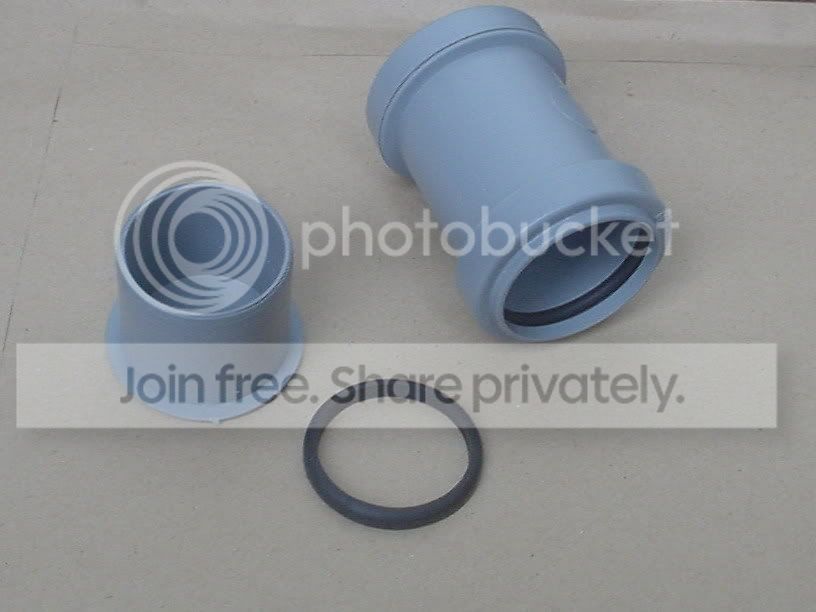

    I visited Plumbase to see if they have anything about the size of the HID ballast:



    40mm polypipe straight coupler
    40 mm polypipe socket plug
    Syphon washer
    = 2.68
    Last edited by Unknown Cyclist; 02-21-09 at 11:04 AM.
    Making a Pilom Triple LED Headlight ? I have parts available :)
    Bell R2 Conversion
    HID Project
    Dynohub R2 Project & Custom Helmet Lighting
    Aurora P7 Review

  9. #9
    rhm
    rhm is offline
    multimodal commuter rhm's Avatar
    Join Date
    Nov 2006
    Location
    NJ, NYC, LI
    My Bikes
    1945? Fothergill, 1948 Raleigh Record Ace, 1954 Drysdale, 1963? Claud Butler Olympic Sprint, Lambert 'Clubman', 1972 Fuji Finest, 1983 Trek 720, 1984 Counterpoint Opus II, 1993 Basso Gap, 2010 Downtube 8h, and...
    Posts
    12,374
    Mentioned
    32 Post(s)
    Tagged
    1 Thread(s)
    Quote Originally Posted by Unknown Cyclist View Post
    Doner handlebar bracket from DX:
    Now that looks like it has some potential! What is it made of? How flexible is it?

  10. #10
    Senior Member
    Join Date
    Jul 2008
    Location
    UK
    Posts
    1,753
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Mount bolted on & syphon washer siliconed in place:


    Switch and cable out fitted in tailcap:


    Assembled body:


    Completed lamp:


    Fitted to bars:


    Last edited by Unknown Cyclist; 02-21-09 at 11:05 AM.
