Best option for a weatherproof "open" dynamo connection?

So I'm wanting to set up my dynamo hub with lights and an additional plug to setup a usb charger for touring/camping/etc. Basically, outside of the very expensive "the plug" by Supernova, I can't find a system hidden or sleek enough for my tastes to leave on year round.

I'd like to go ahead and maybe run a second wire on the inside of the fork and leave an open connector to plug into when I want to use the charger. But I'm worried about that open connector getting wet and causing issues. Any favorite connectors people are using? Options to plug up an automotive style connector? Anything? My google fu isn't working well this time around.
WalksOn2Wheels is offline   Reply With Quote
Old 12-30-13, 12:28 PM   #2
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 7
Posts: 22,093
Mentioned: 17 Post(s)
Tagged: 0 Thread(s)
Quoted: 1113 Post(s)
Luxos headlight has all the conversion electronics in it, the cable up to the bars will be convenient +
it is a light mode switch as well as the USB plug-in


http://www.bumm.de/produkte/dynamo-s...iq2-luxos.html
fietsbob is offline   Reply With Quote
Old 12-30-13, 06:42 PM   #3
zebede
Hello

zebede's Avatar

Join Date: Aug 2007
Location: Suncoast, Florida
Bikes: BF Tikit, Dahon Speed TR, Mezzo I4, Miyata 610,Dahon Espresso, Ciao i8, Helios XL I7, many older Dahons and Raleigh Twenty re-builds.
Posts: 631
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)
I use this system: ($30)

http://www.thinkbiologic.com/product...icro-usb-cable




Note: I bought an older version of this unit that came with DC style plug, I cut off the plug and soldered on a standard USB female. (heat shrink tube on connector) The output is 0.5 amps.

With the appropriate patch cord (micro USB now included in kit!) I can charge a 4x18560 battery pack (7$) or my smart phone.

My weather protection is minimal, It hangs behind a handlebar bag with an dummy USB plugged into it. I think I could put a slice of inner tube around it to keep it dry but have not done so yet.

The female USB was around $1 from fleabay. The bioloigic recharge was $25 at the time.

I run it parallel with my light. The positives are twisted togehter and the negatives twisted together and then plugged into dynamo hub. When light is on they share the output. When the light is off Biologic unit receives all power.

This is on my daily, all weather commuter bike, and I have not really used it that much. Mostly done for an anticipated tour.

If funds were available, I would have liked to try this unit.

http://www.amazon.com/LightCharge-Bi...rds=dynamo+usb

rather than hack my own. It does not put out any more power but has its own off/on switch and a rubber boot for the connector.
Attached Images
File Type: jpg IMG_20131230_191107.jpg (94.8 KB, 12 views)
File Type: jpg biologic on fork.jpg (97.8 KB, 11 views)

Last edited by zebede; 12-30-13 at 06:50 PM. Reason: Added wish list
zebede is offline   Reply With Quote
Old 12-30-13, 09:20 PM   #4
WalksOn2Wheels
Vain, But Lacking Talent
Thread Starter

WalksOn2Wheels's Avatar

Join Date: Aug 2009
Location: Denton, TX
Bikes: Trek Domane 5.9 DA 9000, Trek Crockett Pink Frosting w/105 5700
Posts: 4,332
Mentioned: 15 Post(s)
Tagged: 0 Thread(s)
Quoted: 515 Post(s)
I guess I really wasn't clear. I don't want anything on my handlebars, at all. Part of the joy of going to a dynamo light is mounting it on the fork crown and cleaning up my handlebar. What I'm looking to do is add an open connection inside the fork leg that I can plug a charger into (similar to the unit zebede posted) and then throw that in a small gas tank style bag behind the stem. I also saw a cheapie from China that included an awful cell phone holder that I would give away immediately. It was about 30 bucks, though. I'm a $1.50 part and some wirnig away from a DIY one, though. So I'll probably move forward with that one.

If I could afford it, I'd do the top cap system, but yeah, that's pricey. I saw a DIY one that fit into your handlebar, but I'd end up having to run lots of wiring up and down the handlebar and I'm not sure I'd like that underneath my bar wrap.

I'm thinking maybe some 2-wire weatherproof connector that I can leave a female plug behind the fork and then some epoxy on the back end of a male connector and just pop that in as a place holder. But if anyone has any other ideas, or maybe a suggestion of a good connector, I'd love to hear it.
WalksOn2Wheels is offline   Reply With Quote
Old 12-31-13, 03:23 PM   #5
noglider
aka Tom Reingold

noglider's Avatar

Join Date: Jan 2009
Location: West Village, New York City
Bikes: too many
Posts: 28,011
Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 708 Post(s)

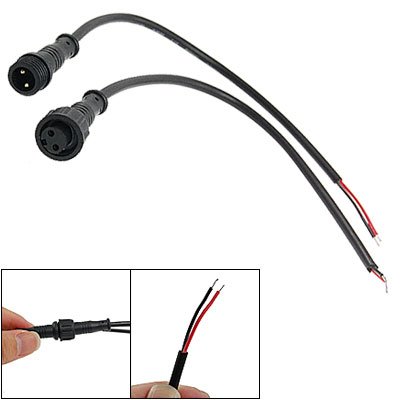

I have these connectors for my dynamo hub wheel. They seem pretty waterproof.

__________________
Tom Reingold, noglider@pobox.com
New York City and High Falls, NY
Blogs: The Experienced Cyclist; noglider's ride blog

Please email me rather than PM'ing me. Thanks.
noglider is offline   Reply With Quote
Old 12-31-13, 04:58 PM   #6
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Bikes:
Posts: 14,850
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
there are spade lug splitters in various sizes. You could install a spade lug and then use the splitter only when you want to use the charging device. I couldn't find a splitter right off the bat, but I've seen them. you could make one out of 2 male and 1 female
