Old 11-13-11, 05:54 PM   #1
fwd-bwd
Senior Member
Thread Starter

Join Date: Feb 2009
Bikes:
Posts: 218
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
TSR 2 --> TSR 5 mod

I recently moved from NYC to SF and soon came to the (literally) painful realization that my TSR 2's gear range was inadequate for the hilly terrain. What's more, the S2C hub had become increasingly unreliable. After some research I decided to replace it with a SRAM P5. It's the only gear hub that offers more than 3 gears, includes a coaster brake, and still fits into a 120mm dropout.

Since there is no cable guide/stop on TSR 2 (S2C needs no shifter cable), this isn't a straightforward hub swap. Therefore I contacted the Moulton expert Mr. Metras and he graciously agreed to do the mod for me. It took him only a few days to build the wheel and install everything, and the result totally blew me away. I'll let the pictures do the talking (from front to back):

Shifter


Cable stop 1 (secured with the front rack; if you don't have one, a bolt is just as good)


Cable splitter (only needed for separable frame)

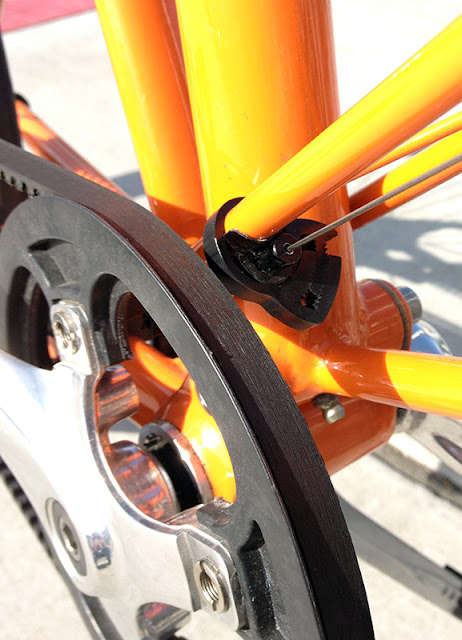

Cable stop 2 (secured with a Herbie Clip)

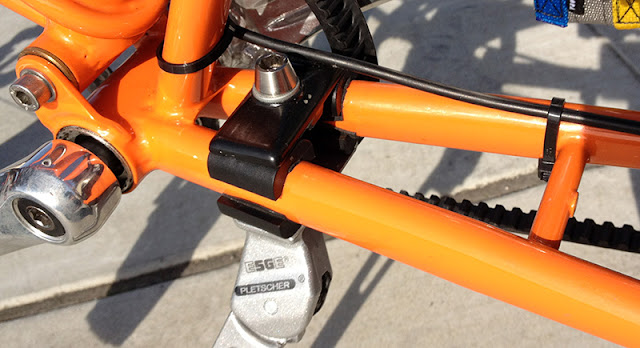

2 cable ties


Click box and hub (dust cap not installed—space too tight)


Ta-da!


The gear range is now 251% (32, 40, 51, 65, 81), much better suited for the city's famed hills than S2C's 138% (51, 70). The clicking sound P5 makes is more muted and pleasant. The braking "feels" much nicer as well. While the new hub is heavier, the lighter Velocity rim that Bruce used to build the wheel cancels it out. All is all, this is very nice upgrade. I highly recommend anyone who wants to give his or her TSR 2 a boost contact Bruce for a quote.
fwd-bwd is offline   Reply With Quote
Old 11-13-11, 06:58 PM   #2
fwd-bwd
Senior Member
Thread Starter

Join Date: Feb 2009
Bikes:
Posts: 218
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
One thing I forgot to mention: P5's axle diameter is thicker than S2C. Thus, the axle hole on the pulley guide (snubber arm) needs to be drilled larger.
fwd-bwd is offline   Reply With Quote
Old 11-13-11, 06:59 PM   #3
michaelnel
Macaws Rock!

michaelnel's Avatar

Join Date: May 2005
Location: San Francisco, CA
Bikes: 2005 Soma Doublecross
Posts: 1,513
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Bravo, nicely done, and very cool bike!

(from another SF folder guy)
__________________
---

San Francisco, California
michaelnel is offline   Reply With Quote
Old 11-13-11, 10:03 PM   #4
Transformer
Fair Weather Cyclist

Transformer's Avatar

Join Date: Aug 2011
Location: SF Bay Area
Bikes: R&M Frog, Moulton TSR
Posts: 147
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Very sweet!

(from yet another SF folder fan and Moultoneer)
Transformer is offline   Reply With Quote
Old 11-14-11, 12:14 AM   #5
SesameCrunch
Eschew Obfuscation

SesameCrunch's Avatar

Join Date: Aug 2005
Location: San Francisco Bay Area
Bikes: 2005 Fuji Professional, 2002 Lemond Zurich, Folders - Strida, Merc, Dahon, Downtube, Recumbent folder
Posts: 3,850
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Very hip San Francisco city bike!

Bruce is the Maestro of Moulton. You couldn't have found a better guy to work on your bike.
__________________
SesameCrunch is offline   Reply With Quote
Old 11-14-11, 01:25 AM   #6
jur
Senior Member

Join Date: May 2005
Bikes:
Posts: 6,857
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 48 Post(s)
Bruce has just a few major flaws.




One, he has no ugly bikes.


Two, he does not live in Melbourne.


But he's still a maestro.
jur is offline   Reply With Quote
Old 11-14-11, 08:04 AM   #7
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts unknown
Bikes:
Posts: 4,705
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
SRAM announced almost a year ago that the wonderful P5 hub would be going out of production. It might already have. They've certainly quit marketing it.

I should think the Sturmey's XRC5(W) five speed coaster brake hub could be made to work in a 120mm OLD steel frame.
tcs is offline   Reply With Quote
Old 11-14-11, 09:19 AM   #8
BruceMetras
Senior Member

Join Date: Aug 2005
Location: San Rafael, California
Bikes:
Posts: 1,888
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Quote:
Originally Posted by tcs View Post
SRAM announced almost a year ago that the wonderful P5 hub would be going out of production. It might already have. They've certainly quit marketing it.
I posed a question along the same lines to the SRAM buyer of a major US wholesale supply house .. the freewheel and drum brake versions of the P5 were discontinued over 2 years ago.. he continues to order the P5 Coaster, which is still being supplied... I hope the new SRAM IGH facility in Taiwan will produce a suitable replacement for P5 .. it is such a nice hub.

Quote:
Originally Posted by tcs View Post
I should think the Sturmey's XRC5(W) five speed coaster brake hub could be made to work in a 120mm OLD steel frame.
The XRC5 could be made to work .. just not as elegantly, with the SA OLN at 127mm and the P5 Coaster at 120mm .. so frame spreading or nut whacking .. also, the Sturmey is heavier .. a larger issue, the major SA suppliers in the US either don't list or stock the XRC5(W) .. I may buy a few more P5s to put on the shelf
BruceMetras is offline   Reply With Quote
Old 11-14-11, 09:26 AM   #9
BruceMetras
Senior Member

Join Date: Aug 2005
Location: San Rafael, California
Bikes:
Posts: 1,888
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Quote:
Originally Posted by jur View Post
Bruce has just a few major flaws.
I appreciate that..

Quote:
Originally Posted by jur View Post
One, he has no ugly bikes.
Wait until you see my new TSR-8 build...

Quote:
Originally Posted by jur View Post
Two, he does not live in Melbourne.
I'd love to visit though.. please provide air fare...

Quote:
Originally Posted by jur View Post
But he's still a maestro.
Thanks, but I just hobby around like you do.. somethings come out great .. others, not so much..

Bruce
BruceMetras is offline   Reply With Quote
Old 11-14-11, 09:31 AM   #10
fwd-bwd
Senior Member
Thread Starter

Join Date: Feb 2009
Bikes:
Posts: 218
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Yes, it's sad news that SRAM is phasing out the old trusties (T3, P5, and S7). I don't know if they will introduce new 5 or 7 speed hubs; but even if they do, the new version probably wouldn't work for 120mm OLD. The i3, which replaces T3, is of 130mm OLD, and i9 135mm. So it looks like SRAM is abandoning the 120mm standard.
fwd-bwd is offline   Reply With Quote
Old 11-14-11, 09:34 AM   #11
BruceMetras
Senior Member

Join Date: Aug 2005
Location: San Rafael, California
Bikes:
Posts: 1,888
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Quote:
Originally Posted by fwd-bwd View Post
I recently moved from NYC to SF and soon came to the (literally) painful realization that my TSR 2's gear range was inadequate for the hilly terrain. What's more, the S2C hub had become increasingly unreliable. After some research I decided to replace it with a SRAM P5. It's the only gear hub that offers more than 3 gears, includes a coaster brake, and still fits into a 120mm dropout.

Since there is no cable guide/stop on TSR 2 (S2C needs no shifter cable), this isn't a straightforward hub swap. Therefore I contacted the Moulton expert Mr. Metras and he graciously agreed to do the mod for me. It took him only a few days to build the wheel and install everything, and the result totally blew me away. I'll let the pictures do the talking (from front to back):

It was a pleasure working with you and your bike (absolutely spotless machine with careful attention to detail).. glad you like it ... I loved the 30 miles I put on it during testing .. so much so, that another one is in the works..

Bruce
BruceMetras is offline   Reply With Quote
Old 11-14-11, 09:38 AM   #12
fwd-bwd
Senior Member
Thread Starter

Join Date: Feb 2009
Bikes:
Posts: 218
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
There were lots of things that worried me before embarking on the crass-country move. One thing I surely wasn't stressed over was the maintenance of my TSR. I knew it would be in good hands. Bruce is da man.
fwd-bwd is offline   Reply With Quote
Old 11-14-11, 09:39 AM   #13
BruceMetras
Senior Member

Join Date: Aug 2005
Location: San Rafael, California
Bikes:
Posts: 1,888
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Quote:
Originally Posted by Transformer View Post
Very sweet!

(from yet another SF folder fan and Moultoneer)
Transformer! time for that Moulton review of your new steed ..

Quote:
Originally Posted by SesameCrunch View Post
Very hip San Francisco city bike!

Bruce is the Maestro of Moulton. You couldn't have found a better guy to work on your bike.
S/C !! looks like a lot of new folder interest in the SF Bay area.. maybe time for another of your highly successful SF Folder Fests!!
BruceMetras is offline   Reply With Quote
Old 11-14-11, 12:17 PM   #14
tcs
Palmer

tcs's Avatar

Join Date: Mar 2007
Location: Parts unknown
Bikes:
Posts: 4,705
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 20 Post(s)
Quote:
Originally Posted by BruceMetras View Post
a larger issue, the major SA suppliers in the US either don't list or stock the XRC5(W)
biketoolsetc lists the XRC5(W) and has had them in stock in the past.
tcs is offline   Reply With Quote
Old 11-14-11, 12:33 PM   #15
SesameCrunch
Eschew Obfuscation

SesameCrunch's Avatar

Join Date: Aug 2005
Location: San Francisco Bay Area
Bikes: 2005 Fuji Professional, 2002 Lemond Zurich, Folders - Strida, Merc, Dahon, Downtube, Recumbent folder
Posts: 3,850
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by BruceMetras View Post
Transformer! time for that Moulton review of your new steed ..



S/C !! looks like a lot of new folder interest in the SF Bay area.. maybe time for another of your highly successful SF Folder Fests!!
Duly noted for Spring '12.

Too cold now. Heck, it's in the 50's in the daytime here.


__________________

Last edited by SesameCrunch; 11-14-11 at 04:03 PM. Reason: Corrected year
SesameCrunch is offline   Reply With Quote
Old 11-14-11, 02:31 PM   #16
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 7
Posts: 20,412
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 650 Post(s)
Seen others add a schlumpf 2 speed crank,
2.5 reduction gear or 1.6 or 2.5 overdrive
so still not needing any cables with kick back shift 2 speed coaster hub.


read SRAM has began the final closure of the last of the German Sachs
manufacturing facilities , and shipping the machinery overseas.
making some products just will not be restarted in Taiwan.

Last edited by fietsbob; 11-14-11 at 02:36 PM.
fietsbob is online now   Reply With Quote
Old 11-14-11, 02:41 PM   #17
BruceMetras
Senior Member

Join Date: Aug 2005
Location: San Rafael, California
Bikes:
Posts: 1,888
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 21 Post(s)
Quote:
Originally Posted by fietsbob View Post
Seen others add a schlumpf 2 speed crank,
2.5 reduction gear or 1.6 or 2.5 overdrive
so still not needing any cables with kick back shift 2 speed coaster hub.
In Moulton parlance, it was the Model 50

On this board, Jur has 'been there done that' ... as well as myself..
BruceMetras is offline   Reply With Quote
Old 11-14-11, 03:45 PM   #18
Transformer
Fair Weather Cyclist

Transformer's Avatar

Join Date: Aug 2011
Location: SF Bay Area
Bikes: R&M Frog, Moulton TSR
Posts: 147
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I "am there, doing that," with a genuine Moulton 50. It's been a little rocky getting the Schlumpf SpeedDrive dialed in to begin with. I'm waiting to clock more positive miles before commenting at length.
Transformer is offline   Reply With Quote
Old 11-14-11, 04:02 PM   #19
michaelnel
Macaws Rock!

michaelnel's Avatar

Join Date: May 2005
Location: San Francisco, CA
Bikes: 2005 Soma Doublecross
Posts: 1,513
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by SesameCrunch View Post
Duly noted for Spring '02.

Too cold now. Heck, it's in the 50's in the daytime here.


PERFECT riding weather. No wind in the afternoons, and don't have to cart so much water along. In the spring and summer you have to contend with those afternoon NW winds. I'm weak enough when it's calm!

PS: Spring '02 is long gone. ;-)
__________________
---

San Francisco, California
michaelnel is offline   Reply With Quote
Old 11-14-11, 04:03 PM   #20
SesameCrunch
Eschew Obfuscation

SesameCrunch's Avatar

Join Date: Aug 2005
Location: San Francisco Bay Area
Bikes: 2005 Fuji Professional, 2002 Lemond Zurich, Folders - Strida, Merc, Dahon, Downtube, Recumbent folder
Posts: 3,850
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by fietsbob View Post
Seen others add a schlumpf 2 speed crank,
2.5 reduction gear or 1.6 or 2.5 overdrive
so still not needing any cables with kick back shift 2 speed coaster hub.
Only problem is the cumbersome shifting with this arrangement....
__________________
SesameCrunch is offline   Reply With Quote
Old 11-14-11, 04:04 PM   #21
SesameCrunch
Eschew Obfuscation

SesameCrunch's Avatar

Join Date: Aug 2005
Location: San Francisco Bay Area
Bikes: 2005 Fuji Professional, 2002 Lemond Zurich, Folders - Strida, Merc, Dahon, Downtube, Recumbent folder
Posts: 3,850
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by michaelnel View Post

PS: Spring '02 is long gone. ;-)
Oops, corrected.
__________________
SesameCrunch is offline   Reply With Quote
Old 11-14-11, 07:05 PM   #22
fwd-bwd
Senior Member
Thread Starter

Join Date: Feb 2009
Bikes:
Posts: 218
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I have an after-market Schlumpf Speed Drive fitted to my Strida and logged quite some miles on it. While I don't have experience using geared BB and kick-shift hub on the same bike, I can't imagine it being an easy setup to shift quickly and smoothly. But it can just my lack of imagination.
fwd-bwd is offline   Reply With Quote
Old 11-15-11, 10:47 AM   #23
fietsbob
coprolite

fietsbob's Avatar

Join Date: Jun 2010
Location: NW,Oregon Coast
Bikes: 7
Posts: 20,412
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 650 Post(s)
Put the mountain drive and AW 3 speed together, 3to4 is 1-2 step,
but both are planetaries so take place at any speed, even at a halt.
a little more time than 7to8 in a R'off, but not really an issue,
for a JRA pace rider ...
fietsbob is online now   Reply With Quote
Old 11-16-11, 01:39 AM   #24
vmaniqui
Senior Member

Join Date: Jan 2009
Location: Bay Area, SF California
Bikes: Citizen Tokyo, A-Bike, Dahon Boardwalk D6, Dahon Boardwalk D7, Dahon Curve D3, Dahon Mu XL, BF Tikit2, Dahon Speed TR, Dahon Curve SL.
Posts: 1,504
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
nice bike...moulton on moulton street....
vmaniqui is offline   Reply With Quote
Old 11-16-11, 05:27 AM   #25
michaelnel
Macaws Rock!

michaelnel's Avatar

Join Date: May 2005
Location: San Francisco, CA
Bikes: 2005 Soma Doublecross
Posts: 1,513
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Unfortunately, there is no Dahon St. in San Francisco.
__________________
---

San Francisco, California
michaelnel is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -6. The time now is 03:48 PM.
