Old 03-24-08, 10:01 AM   #51
thomson
Senior Member

thomson's Avatar

Join Date: Dec 2003
Bikes:
Posts: 3,332
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Looks quite nice Steve. Something that may escape us is this isn't just a bending/brazing project. You end up with a finely tuned frame/fork that you actually have confidence to take up to a pretty high speed. I know if I were ever able to build a frame, I wouldn't want anyone riding it.
__________________
thomson is offline   Reply With Quote
Old 03-24-08, 10:20 AM   #52
big john
Senior Member

big john's Avatar

Join Date: Sep 2005
Location: In the foothills of Los Angeles County
Bikes:
Posts: 11,578
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 39 Post(s)
Do you heat the fork tubes when you bend them? How do you decide how much to bend them and pick the rake, etc.?
big john is offline   Reply With Quote
Old 03-24-08, 10:35 AM   #53
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,582
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by big john View Post
Do you heat the fork tubes when you bend them? How do you decide how much to bend them and pick the rake, etc.?
No heat. Heat is evil, the less the better.

The blades are bent cold and need to be overbent to set at the correct rake.
The blade actually bends down to the aluminum form on the bending tool so you
can see how much spring back there is.

The rake is determined by the desired trail dimension. The headtube angle on this
bike is 73 deg. and I want about 58mm of trail. So with a 700C wheel that works out to
44mm of rake.
Cassave is offline   Reply With Quote
Old 03-25-08, 05:51 AM   #54
rm -rf
don't try this at home.

rm -rf's Avatar

Join Date: Jan 2006
Location: N. KY
Bikes:
Posts: 3,856
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
The pictures are great. I like to see all the details, more than just the frame triangle being assembled.

You mentioned filing the lugs before brazing. Can you explain that some more?
rm -rf is offline   Reply With Quote
Old 03-25-08, 09:05 AM   #55
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,582
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by rm -rf View Post
The pictures are great. I like to see all the details, more than just the frame triangle being assembled.

You mentioned filing the lugs before brazing. Can you explain that some more?
Filing the lugs just involves squareing up the edges, smoothing the surface a little (these are investment
castings so they have a fine matte texture) or actually changing the shape of the lug somewhat.
I've modified these just a little.
Cassave is offline   Reply With Quote
Old 03-25-08, 09:31 AM   #56
zzzwillzzz
shut up and ride

Join Date: Nov 2005
Location: noho
Bikes: supersix hi-mod,burley duet tandem,woodrup track,cannondale cross,specialized road
Posts: 1,947
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
steve, do they make different lug angles for the down tube/head tube junction and also for the bottom bracket shell? those lugs would have the most change in angle depending on the size and length of the top tube. or is there some play built into them?
zzzwillzzz is offline   Reply With Quote
Old 03-25-08, 09:40 AM   #57
roadfix
hello

roadfix's Avatar

Join Date: May 2003
Location: Los Angeles
Bikes:
Posts: 18,589
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
^^^ Good question Wil, I was wondering that myself.
roadfix is offline   Reply With Quote
Old 03-25-08, 11:00 AM   #58
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,582
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by zzzwillzzz View Post
steve, do they make different lug angles for the down tube/head tube junction and also for the bottom bracket shell? those lugs would have the most change in angle depending on the size and length of the top tube. or is there some play built into them?
Some makers do. A "standard" angle from seat tube to downtube is 60 deg. You have some play in
the crankshell sockets (and you can cold set) to adjust that open or closed by a few degrees.

DT / HT angle is also basically 60 + / - 1 deg. Some lower head lugs can be gotten
in 59 and 61 degrees. Uppers are available as 73 and 74. Again, some room for adjustment
by bending the lug a bit.

These are investment cast lugs (most are now) and run very tight. The old stamped and formed
steel lugs could be twisted all over the place giving lots of adjustment.
Cassave is offline   Reply With Quote
Old 03-25-08, 11:55 AM   #59
thomson
Senior Member

thomson's Avatar

Join Date: Dec 2003
Bikes:
Posts: 3,332
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
So, Steve, what is the difference between a 53 and a 58 ? Is it just shorter tubes or would you need a different set of lugs too?
__________________
thomson is offline   Reply With Quote
Old 03-25-08, 12:24 PM   #60
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,582
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by thomson View Post
So, Steve, what is the difference between a 53 and a 58 ? Is it just shorter tubes or would you need a different set of lugs too?
All else being equal, just a lower toptube. It would just slide down the seat and head tubes
5cm from the 58cm position.

But it's likely that the toptube would need to be shorter for the 53. That would require
opening the ST/DT angle a bit to keep the lower headlug at the same elevation.

For really radical geometries you need to either cut and weld existing lugs, fillet braze
or weld the tubes.
Cassave is offline   Reply With Quote
Old 03-25-08, 06:30 PM   #61
Seamus
Senior Member

Join Date: Jan 2007
Bikes:
Posts: 345
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Very very cool. I love lugged steel frames (have two). Would love to try building one sometime. I'm thinking I need a vacation to the UBI framebuilding course one of these years...

Jim
Seamus is offline   Reply With Quote
Old 03-25-08, 06:45 PM   #62
thomson
Senior Member

thomson's Avatar

Join Date: Dec 2003
Bikes:
Posts: 3,332
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I get it. Very nice.
__________________
thomson is offline   Reply With Quote
Old 03-26-08, 05:59 AM   #63
pv0463
FSU Bulldogs Red Wave

pv0463's Avatar

Join Date: Mar 2005
Location: SoCal
Bikes: Bottecchia, Rocky Mountain, TREK, Bridgestone
Posts: 68
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Bravo! this is how an artisan with an engineering mind would build a bike. Sort of how things were done prior to Business Majors taking over (no hate, just facts)...
A beautiful piece of work, would love to see the finished product.
pv0463 is offline   Reply With Quote
Old 03-26-08, 09:57 AM   #64
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,582
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by pv0463 View Post
Bravo! this is how an artisan with an engineering mind would build a bike. Sort of how things were done prior to Business Majors taking over (no hate, just facts)...
A beautiful piece of work, would love to see the finished product.
Well, thanks.

You will see updates all the way through to finished paint, at least.
Cassave is offline   Reply With Quote
Old 03-31-08, 11:47 AM   #65
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,582
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Next installment.

I finished the fork and did a little more work on the main triangle.

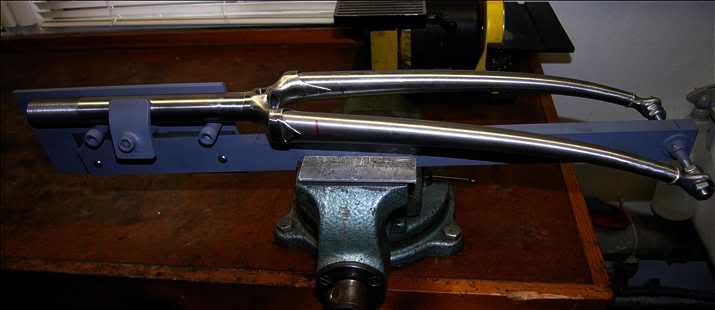

The fork with tips brazed to the blades fitted up in the jig.
Set for 42mm of rake.

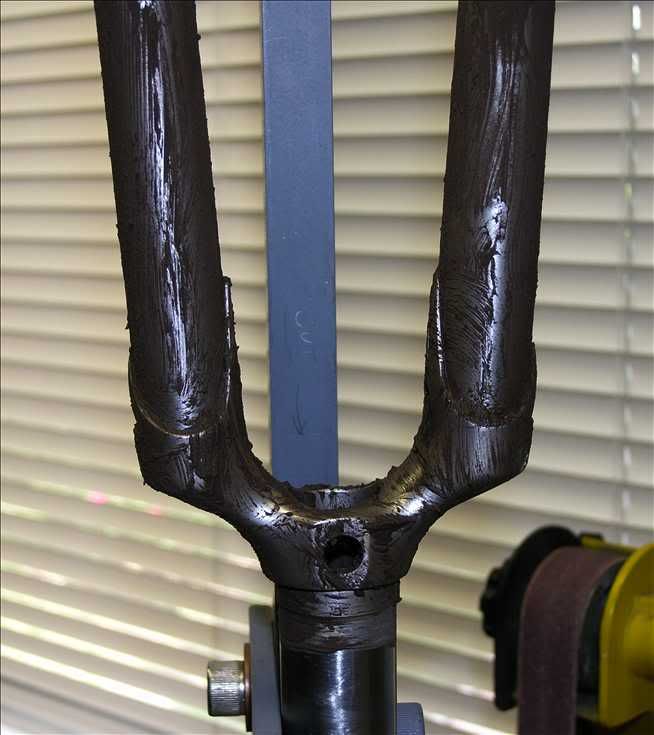

Fluxed and ready to braze.....

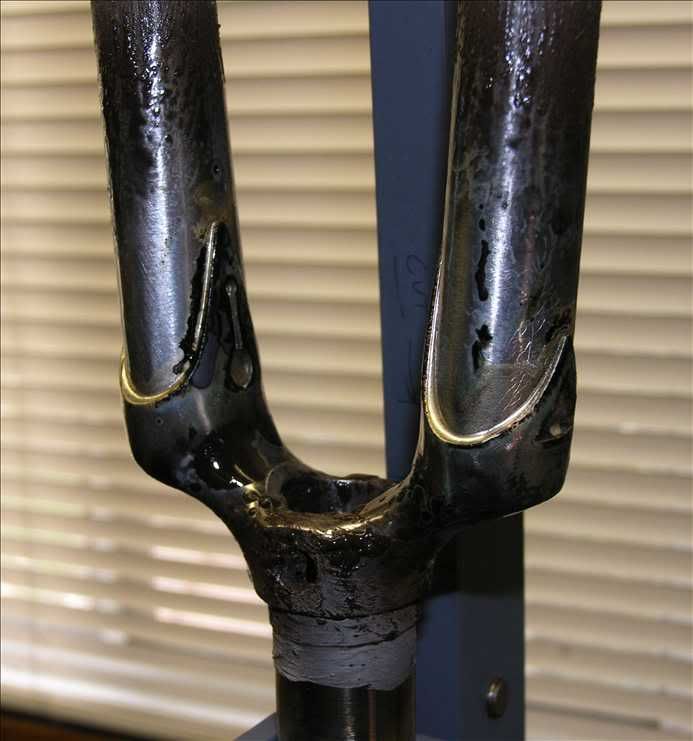

Brazed and cooling in the fixture.....

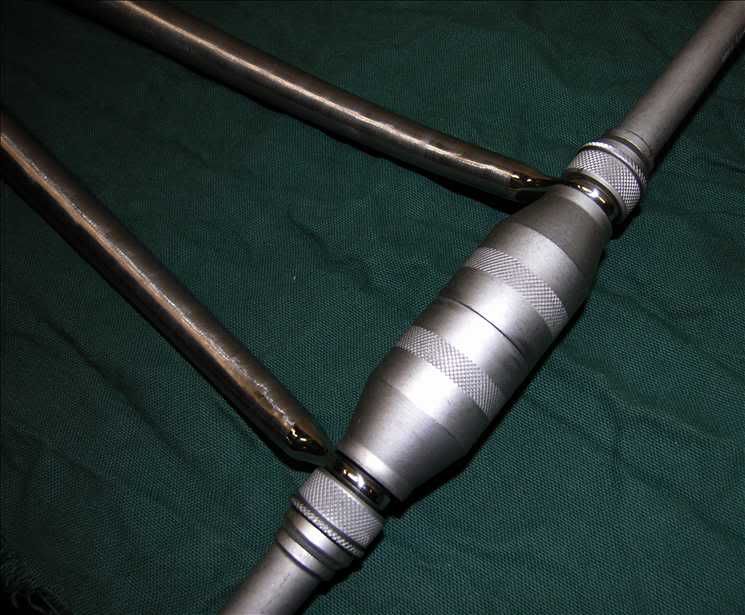

Checking alignment with the Campy "bells". Came out of the fixture
needing no coldsetting. Nice....

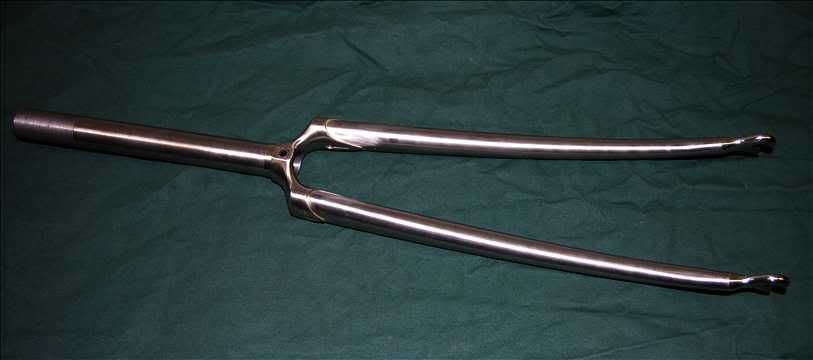

Finished expect for polishing the crown and paint.

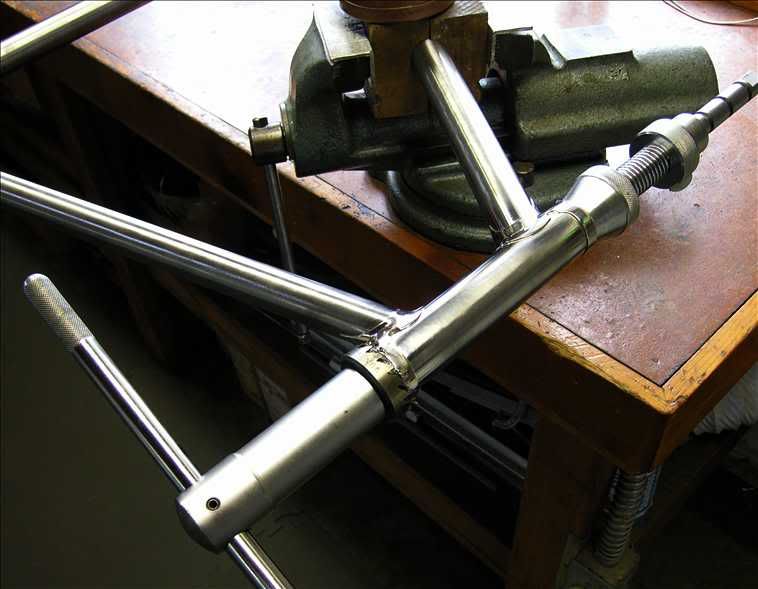

I also face milled the headtube. I'll ream the tube for the headset cups
when all the brazing is done....

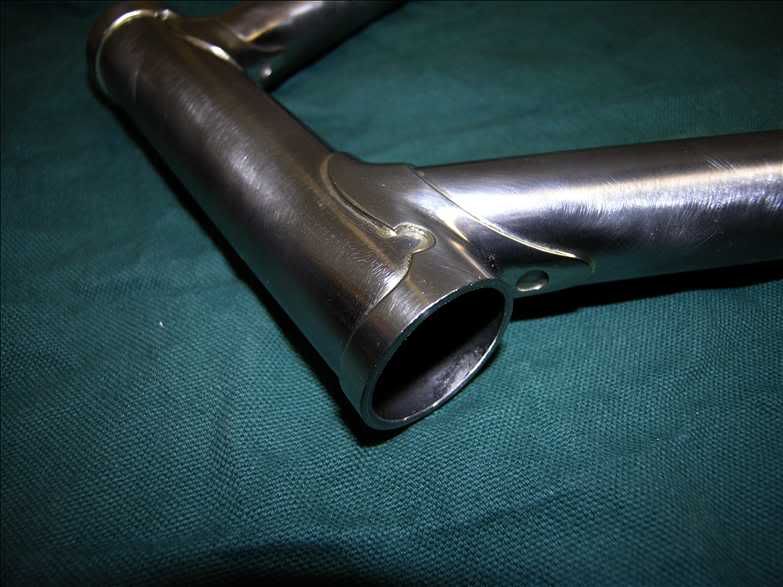

Nice and square...Now on to the rear triangle, chainstays first.

Last edited by Cassave; 06-22-15 at 12:40 PM.
Cassave is offline   Reply With Quote
Old 03-31-08, 11:48 AM   #66
merider1
no more nellie

Join Date: Feb 2006
Bikes:
Posts: 17,369
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Awesome, Clint!!! Now that I know a little more about how to even maintain a bike, I'm in awe that you build your own. Great pics.
merider1 is offline   Reply With Quote
Old 04-01-08, 09:14 AM   #67
Indolent58
Queen of France

Indolent58's Avatar

Join Date: Sep 2004
Location: San Diego, CA
Bikes: Look 565, Trek 2120
Posts: 3,799
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Extremely cool pics. Thanks. If I could fit anymore things in my garage I would be tempted to buy more tools and give it a try.
Indolent58 is offline   Reply With Quote
Old 04-04-08, 09:31 AM   #68
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,582
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
A little more progress..

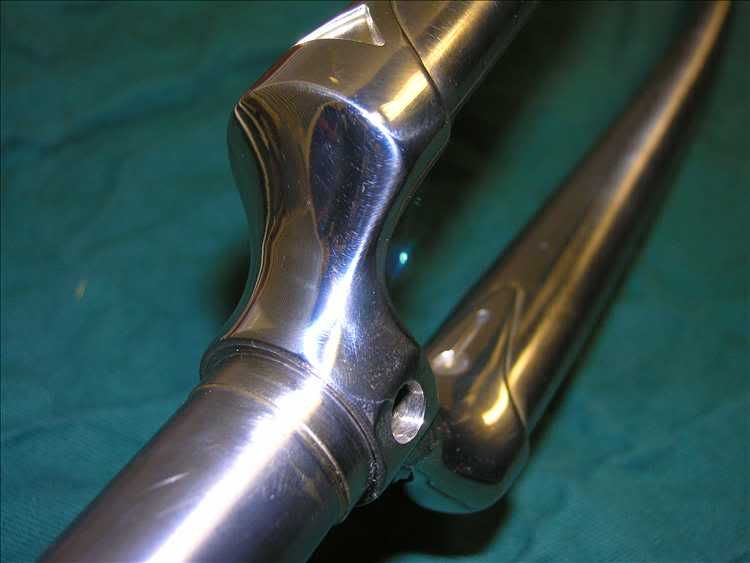

The stainless fork crown polished. Only the fork blades will be painted.

Started work on the rear triangle...

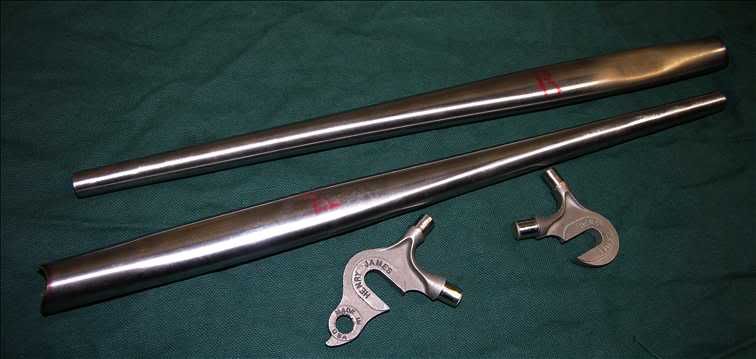

The chainstays and stainless dropouts.....


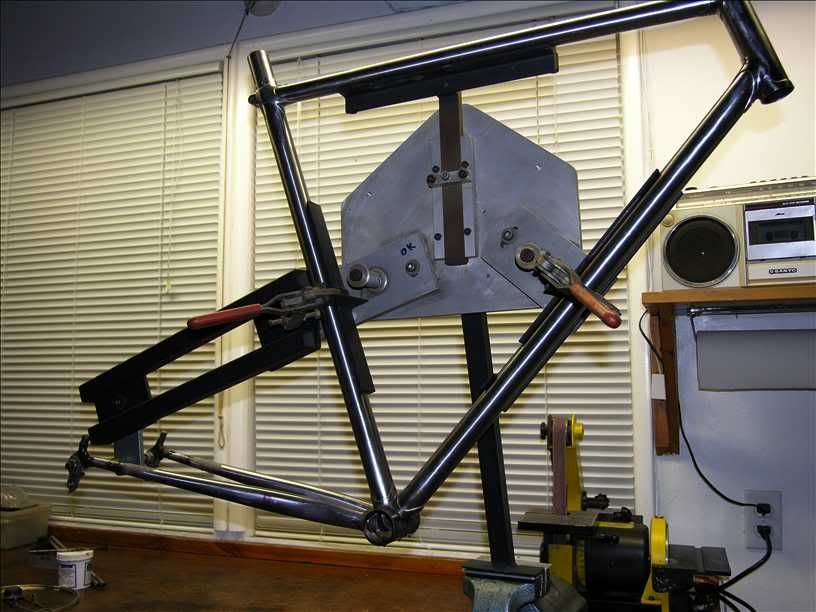

Fitted up in the jig with the proper length and bottom bracket drop.
These are set at 425mm length with a 70mm drop.

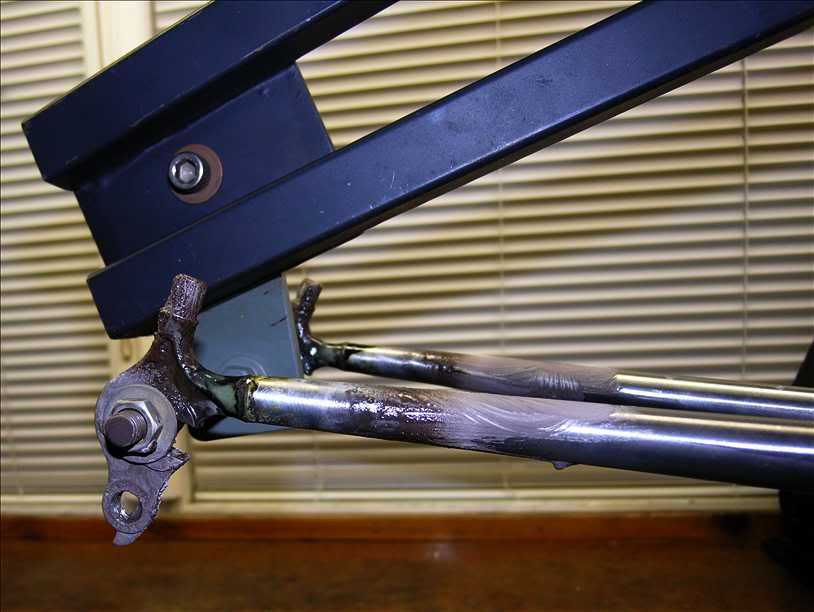

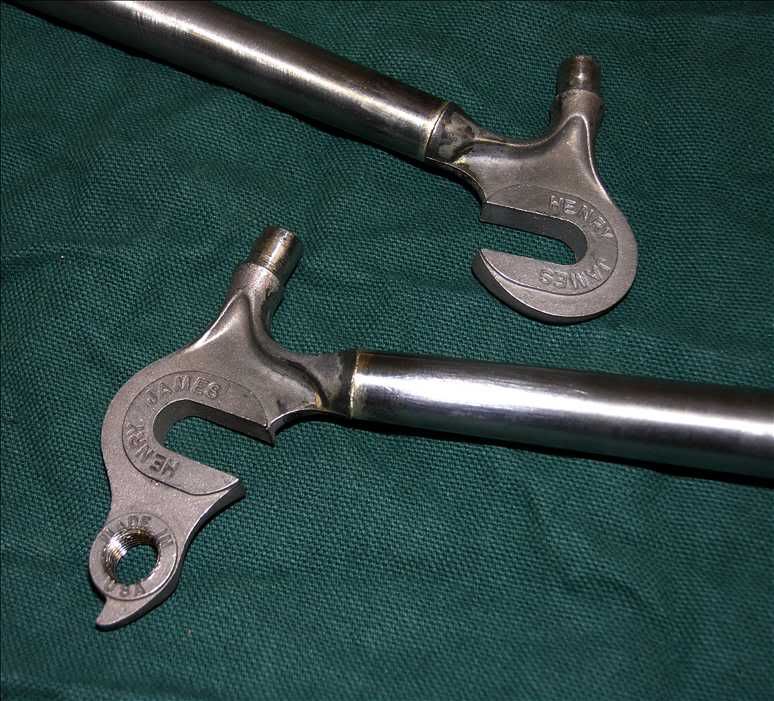

The drops brazed in place. This guarantees the correct rotation of the blades....


Ready for filing and polishing. After that it's brazing the chainstays into
the crankshell.

Last edited by Cassave; 06-22-15 at 12:36 PM.
Cassave is offline   Reply With Quote
Old 04-04-08, 10:05 AM   #69
Dunwood
Senior Member

Join Date: Jun 2005
Location: SO CA
Bikes: '79 Univega Sport Tour (not stock). Mid 80's Benotto, bring back to life. Mid 80's Univega Alpina Ultima (needs TLC, still built strong). Trek 400. Specialized Globe. DS Expert Ironman. Schwinn World Sport (soon to be a SS).
Posts: 189
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Clint,
I know you are doing this from a hobby level (rather than a full time gig), but have you tried any lugs from Pacenti or Sachs?

I know its easier to "one stop shop" with Henry James. I don't think Kirk sells tubes and I know RS doesn't sell tubes (unless its an odd ball dimension laying around).
Dunwood is offline   Reply With Quote
Old 04-04-08, 10:06 AM   #70
roadfix
hello

roadfix's Avatar

Join Date: May 2003
Location: Los Angeles
Bikes:
Posts: 18,589
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 27 Post(s)
Nice progress! I love the polished fork crown.
Did you create the chainring clearance dimple on the chain stay or did it come like that?
roadfix is offline   Reply With Quote
Old 04-04-08, 10:08 AM   #71
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,582
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by roadfix View Post
Nice progress! I love the polished fork crown.
Did you create the chainring clearance dimple on the chain stay or did it come like that?
I form the dimple in using a 4" diameter slug of steel bar. Only takes a second.

This coming week I'll have more time to work on the thing.
Cassave is offline   Reply With Quote
Old 04-04-08, 10:11 AM   #72
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,582
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by Dunwood View Post
Clint,
I know you are doing this from a hobby level (rather than a full time gig), but have you tried any lugs from Pacenti or Sachs?

I know its easier to "one stop shop" with Henry James. I don't think Kirk sells tubes and I know RS doesn't sell tubes (unless its an odd ball dimension laying around).
I've had these stainless HJ lugs sitting around for years and thought I'd use them.
The tubes came from Nova along with the crankshell and crown.

I haven't used Pacenti lugs but a friend builds with RS lugs and they are VERY NICE.
Cassave is offline   Reply With Quote
Old 04-04-08, 11:39 AM   #73
buck65
cherish the day

buck65's Avatar

Join Date: Jun 2006
Location: South Pasadena, CA
Bikes: Rivendel Sam Hillborne, SOMA San Marcos
Posts: 364
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Steve...just wanted to say that this thread is amazing! Keep up the great work; I'm just loving the progress that you've been sharing. Great, great pictures.
buck65 is offline   Reply With Quote
Old 04-04-08, 11:44 AM   #74
magicant
oo..O.O.o..OO...o

magicant's Avatar

Join Date: Dec 2006
Location: Glendale, CA
Bikes: Synapse
Posts: 1,902
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Beautiful pics, Steve.

The text however =
__________________
If ignorance is bliss, shouldn't you be happy?
magicant is offline   Reply With Quote
Old 04-04-08, 12:14 PM   #75
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,582
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by buck65 View Post
Steve...just wanted to say that this thread is amazing! Keep up the great work; I'm just loving the progress that you've been sharing. Great, great pictures.
Thanks. Glad you like it.
I'll document construction through to finished paint.
Cassave is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -6. The time now is 02:48 AM.
