Here's a couple questions.

1. Any reason for using paste flux instead of the in-gas flux?
2. You seem to be using brass instead of silver solder, any reason?
3. Your seat stay work is quite a bit more involved then using caps or plugs, is this just for the visual or is there a structural reason?
4. How did you arrive at your choice of tubeset?

And, by the way, beautiful work.
Fat Boy is offline   Reply With Quote
Old 04-17-08, 08:48 AM   #103
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,579
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by Fat Boy View Post
Here's a couple questions.

1. Any reason for using paste flux instead of the in-gas flux?
2. You seem to be using brass instead of silver solder, any reason?
3. Your seat stay work is quite a bit more involved then using caps or plugs, is this just for the visual or is there a structural reason?
4. How did you arrive at your choice of tubeset?

And, by the way, beautiful work.
To answer your questions;

1. I don't own a gas-flux unit and can't justify buying one.
2. No, it's silver, 56% AWS Bag7.
3. Visual, it's tougher to do than caps but it stiff and very light.
4. It's cheap, standard sized (I already had lugs I wanted to use) and available.

And thanks.
Cassave is offline   Reply With Quote
Old 04-17-08, 08:49 AM   #104
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,579
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by voltman View Post
Is it wrong that I'm almost as equally impressed that you're making your own cages as I am about the frame itself?
Don't be impressed.
The cages are easy to build, frames are a bit more involved.
Cassave is offline   Reply With Quote
Old 04-17-08, 03:08 PM   #105
Mo'Phat
Scum, Freezebag!

Mo'Phat's Avatar

Join Date: Dec 2005
Location: Poway, CA
Bikes: 2007 Leader 796R w/ 10sp DA and 2005 Jamis Dakar XLT FS MTB
Posts: 4,546
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
: popcorn :

Fascinating! Only thing I ever built was a Team Associated RC-10 back in middle school. That ended badly.


Which is why I will never trust myself on a homemade bike.
Mo'Phat is offline   Reply With Quote
Old 04-17-08, 04:03 PM   #106
chimivee
powerfully luxurious

chimivee's Avatar

Join Date: Jul 2004
Location: Orange, CA
Bikes:
Posts: 2,419
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Mo'Phat View Post
Only thing I ever built was a Team Associated RC-10 back in middle school. That ended badly.
I built two of those back in middle school. But I think mine ended quite nicely.
__________________
- James
chimivee is offline   Reply With Quote
Old 04-17-08, 04:10 PM   #107
voltman
It is fantastic.

voltman's Avatar

Join Date: Aug 2005
Location: The OC
Bikes: 05 Specialized Allez Elite; 06 Fuji Team Pro
Posts: 7,977
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Mo'Phat View Post
: popcorn :

Fascinating! Only thing I ever built was a Team Associated RC-10 back in middle school. That ended badly.


Which is why I will never trust myself on a homemade bike.
Which part ended badly, the build or the car smacking the side of the cafeteria?
voltman is offline   Reply With Quote
Old 04-17-08, 04:11 PM   #108
voltman
It is fantastic.

voltman's Avatar

Join Date: Aug 2005
Location: The OC
Bikes: 05 Specialized Allez Elite; 06 Fuji Team Pro
Posts: 7,977
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by chimivee View Post
I built two of those back in middle school. But I think mine ended quite nicely.
We should build some more.
voltman is offline   Reply With Quote
Old 04-17-08, 09:47 PM   #109
Fat Boy
Wheelsuck

Fat Boy's Avatar

Join Date: Jun 2007
Bikes:
Posts: 6,158
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
So I think lugged steel frames are great, but for the money it takes to get one custom made, I think one of these days I'll just have to build one.

I have the Paterek book. It has a lot of good info. Henry James seems like a good resource. It'll be 100 years before I actually get to that point, but if I could build something like the piece of art you've produced I would turn backflips.

Anyway, what geometry did you choose, and how did you go about deciding on that geometry? I've built car frames, and there are very specific reasons and justifications for building things in a certain way. There seems to be very little information on bicycle vehicle dynamics and the geometries seem to be chosen in a very touchy-feely way. I think that some of the motorcycle information would transfer, but I don't really know how much is applicable.

If you've build scores of frames, I'm sure you have your pet theories, but I'm very curious how you approach the problem.
Fat Boy is offline   Reply With Quote
Old 04-18-08, 09:39 AM   #110
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,579
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by Fat Boy View Post
So I think lugged steel frames are great, but for the money it takes to get one custom made, I think one of these days I'll just have to build one.

I have the Paterek book. It has a lot of good info. Henry James seems like a good resource. It'll be 100 years before I actually get to that point, but if I could build something like the piece of art you've produced I would turn backflips.

Anyway, what geometry did you choose, and how did you go about deciding on that geometry? I've built car frames, and there are very specific reasons and justifications for building things in a certain way. There seems to be very little information on bicycle vehicle dynamics and the geometries seem to be chosen in a very touchy-feely way. I think that some of the motorcycle information would transfer, but I don't really know how much is applicable.

If you've build scores of frames, I'm sure you have your pet theories, but I'm very curious how you approach the problem.
Regarding the frame dimensions and geometry;

Dimensions fall into two groups; sizes and dimensions needed to accomodate the components (wheels, brake and tire clearances etc.) and the lengths and angles related to rider size (toptube and seat tube etc.)
Steering and stabilty is most affected by the trail dimension established by steerer angle and fork rake.
For a lightly loaded road bike I prefer about 58 to 60 mm of trail. That results in a quick steering feel at low speed and very high stability. For heavily loaded (touring, porteur) bikes much less trail is used to
produce lighter steering under the load. A well designed touring bike handles better loaded than unloaded.
Bottom bracket drop has an effect on the perceived stability of the bike, specially when pedaling out of the saddle. 70mm is pretty standard for "sport" road frames. Tourers usually have more drop.

I have built a fair number of frames and several for myself. Over the years I've settled on a design with short front center (BB to front axle), a slightly long chainstay and as I said, about 60mm of trail.
This bike is 58 cm C to T, 57 cm TT length, parallel 73 degree head and seat tubes and 42.5 cm chainstays. 42mm of fork rake gives me just less than 60mm of trail. It sits on a 101 cm wheelbase.
Cassave is offline   Reply With Quote
Old 04-21-08, 09:45 AM   #111
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,579
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Just about done with this thing.......
I added the shifter cable bosses and a set of rack bosses.


Only the studs are stainless, the reinforcement is carbon steel and will be painted.


Another view...


The stainless rack bosses. One boss is extended to double as a chain hanger peg.


Seen here installed on the fixturing to keep them in perfect alignment when I
braze them.


Brazing the uppers onto the seat stays.



There, seen in-place and polished.


All the brazing is done. Next thing is some additional polishing on the stainless
bits, clean it and get it ready for primer and paint.

Tonight I'll make a simple bending guide and start the water bottle cages and
with any luck I'll shoot the primer on the frame on the weekend.
Still gotta figure out a color scheme....

Last edited by Cassave; 02-20-12 at 11:33 AM.
Cassave is offline   Reply With Quote
Old 04-23-08, 10:36 AM   #112
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,579
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Bottle cages.............

I made three, two for this new frame and one to try out on my commuter.
Made of 3/32" diameter 302 stainless rod. They weigh what seems like nothing and
look pretty nice.


The cages brazed......


Adding the mounting tabs....


One finished and polished, mounted on my commuter.
I like it!

Last edited by Cassave; 02-20-12 at 11:36 AM.
Cassave is offline   Reply With Quote
Old 04-23-08, 10:50 AM   #113
roadfix
hello

roadfix's Avatar

Join Date: May 2003
Location: Los Angeles
Bikes:
Posts: 18,565
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
The bottle cages look just like the Nittos, except better, since you made them!
roadfix is offline   Reply With Quote
Old 04-23-08, 11:05 AM   #114
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,579
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by roadfix View Post
The bottle cages look just like the Nittos, except better, since you made them!
They're a blatant ripoff of the Nittos.
I don't know about better, but they were certainly a lot cheaper
Cassave is offline   Reply With Quote
Old 04-23-08, 12:46 PM   #115
MTBMaven
This is Shangri La

MTBMaven's Avatar

Join Date: Oct 2006
Location: Pasadena, CA
Bikes:
Posts: 722
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Stunning. I can't wait to see what you cook up for the paint scheme.
MTBMaven is offline   Reply With Quote
Old 04-28-08, 10:37 AM   #116
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,579
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Ok, almost done;

Finally got it painted! But first, the last mechanical operations;


Facing the BB shell to 68mm.


Reaming the headtube for the headset cup and upper race.


Primered with a 2 part epoxy primer by PPG. The masked areas
are either stainless of already painted white.


Now in color and de-masked. Lug edges need smoothing then
ready for clear coat....


Now decalled and ready for clearcoat.....


Now spayed with the Limco acrylic urethane clearcoat.

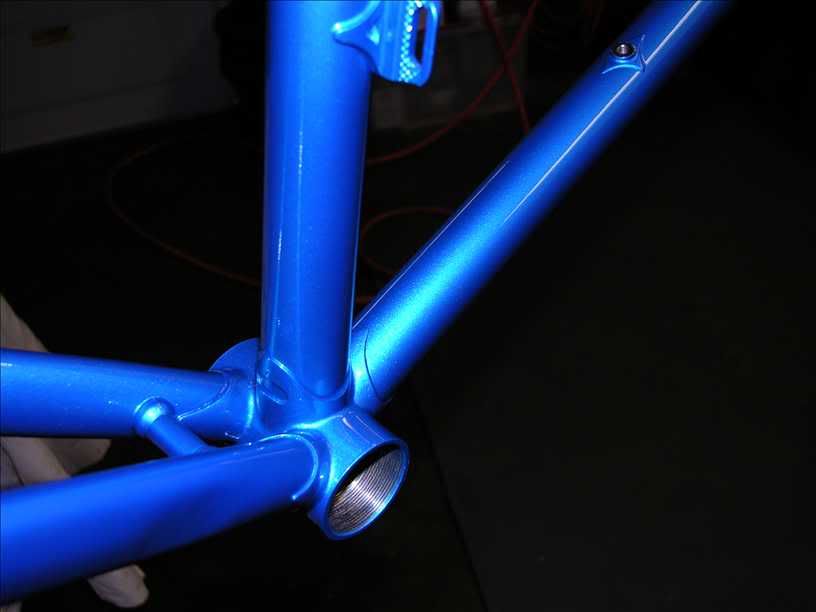

bottom bracket area.....

So next thing is to be patient while the clear hardens for a few days
then I'll install the headset and bottom bracket, in the meantime
I have wheels to build.

Last edited by Cassave; 02-20-12 at 11:39 AM.
Cassave is offline   Reply With Quote
Old 04-28-08, 10:41 AM   #117
Fat Boy
Wheelsuck

Fat Boy's Avatar

Join Date: Jun 2007
Bikes:
Posts: 6,158
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I'd comment here, but I'm pretty much speechless.
Fat Boy is offline   Reply With Quote
Old 04-28-08, 10:43 AM   #118
roadfix
hello

roadfix's Avatar

Join Date: May 2003
Location: Los Angeles
Bikes:
Posts: 18,565
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
Beautiful work! Nice color too......that blue reminds me of my old Univega Gran Premio.
roadfix is offline   Reply With Quote
Old 04-28-08, 01:59 PM   #119
big john
Senior Member

big john's Avatar

Join Date: Sep 2005
Location: In the foothills of Los Angeles County
Bikes:
Posts: 11,522
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 13 Post(s)
Looking forward to seeing it on the road.
big john is offline   Reply With Quote
Old 04-28-08, 02:42 PM   #120
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,579
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by big john View Post
Looking forward to seeing it on the road.
With any luck that'll be the short ride on Sunday.
Cassave is offline   Reply With Quote
Old 04-28-08, 10:58 PM   #121
Tiffanie
...

Tiffanie's Avatar

Join Date: May 2006
Location: Huntington Beach, CA
Bikes: Bianchi San Mateo
Posts: 3,513
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
What a fantastic thread. Beautiful pics, beautiful bike! :thumbsup:
__________________
Tiffanie is offline   Reply With Quote
Old 04-28-08, 11:33 PM   #122
Indolent58
Queen of France

Indolent58's Avatar

Join Date: Sep 2004
Location: San Diego, CA
Bikes: Look 565, Trek 2120
Posts: 3,799
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Wow. Excellent work.
Indolent58 is offline   Reply With Quote
Old 04-29-08, 02:22 AM   #123
Pepper Grinder
Senior Member

Join Date: Aug 2007
Bikes:
Posts: 470
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
That is a superb paint and lug job. The stainless lugs are sweet! What kind of bling-blingin' wheelset do you plan on throwing on that thing?

Needs a serious headbadge. I can't wait to see pics of this build completed.

Wow. If that was my bicycle, I would be so sad if I dinged it. Ever.

Last edited by Pepper Grinder; 04-29-08 at 03:33 AM.
Pepper Grinder is offline   Reply With Quote
Old 04-29-08, 08:55 AM   #124
Cassave
Senior Member
Thread Starter

Cassave's Avatar

Join Date: Jul 2005
Location: Woodland Hills, Calif.
Bikes:
Posts: 1,579
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Quote:
Originally Posted by Pepper Grinder View Post
That is a superb paint and lug job. The stainless lugs are sweet! What kind of bling-blingin' wheelset do you plan on throwing on that thing?

Needs a serious headbadge. I can't wait to see pics of this build completed.

Wow. If that was my bicycle, I would be so sad if I dinged it. Ever.
Thanks.

Wheels;
I'm building them this evening. Nothing special, Record hubset, Mavic Opens, cross 3 using DT spokes.
They'll last forever.
Cassave is offline   Reply With Quote
Old 04-29-08, 02:58 PM   #125
Seamus
Senior Member

Join Date: Jan 2007
Bikes:
Posts: 345
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Wow. Just wow. And of course you build your own wheels too.

Did you work at Colnago or Bianchi in a previous life?

Jim
Seamus is offline   Reply With Quote
Reply


Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off



All times are GMT -6. The time now is 12:01 PM.
