Drilling holes in a frame

Hi, lately I've been looking into converting my single speed dirt jumper into an 8 speed dirt jumper, and when i was looking at the frame I noticed there was no 5mm hole for the derailleur to be installed. So I was wondering if drilling a 5mm hole into the frame(so I can install the derailleur) would be a good idea. And if not, what would be the best way to attach the derailleur.

Thanks for your time,
xXSEYCOMXx is offline   Reply With Quote
Old 06-30-11, 10:31 AM   #2
Eric Estlund
Member

Join Date: Oct 2009
Bikes: Winter Bicycles
Posts: 45
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Rear derailleurs are not held on with 5mm bolts. Rear derailleur hangers are threaded M10x1- but you still need a hanger.

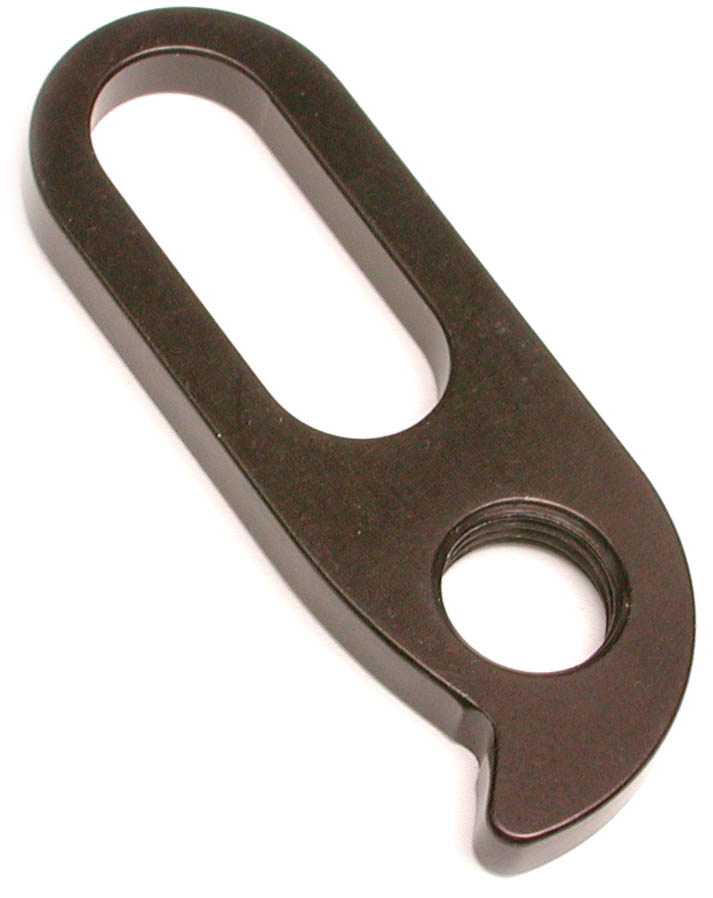

Depending on your drop outs you may be able to use something like one of these:




Knowing what frame you have would make it easier- but in either case this is most likely not a permanent frame building fix so much as a mechanical addition.
__________________
--
Eric Estlund
Winter Bicycles
Eric Estlund is offline   Reply With Quote
Old 06-30-11, 11:53 AM   #3
xXSEYCOMXx
Junior Member
Thread Starter

Join Date: Jun 2011
Bikes:
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
The frame is from a KHS SJ-100. If that helps...
xXSEYCOMXx is offline   Reply With Quote
Old 06-30-11, 03:46 PM   #4
3v1lD4v3
Senior Member

Join Date: Jul 2009
Bikes:
Posts: 90
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by xXSEYCOMXx View Post
The frame is from a KHS SJ-100. If that helps...
What year? Looking at the website, the 2008 clearly shows a derailleur hanger. The 2011 may not. The frame color is throwing me off.
3v1lD4v3 is offline   Reply With Quote
Old 06-30-11, 10:00 PM   #5
xXSEYCOMXx
Junior Member
Thread Starter

Join Date: Jun 2011
Bikes:
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I believe it's a 2008. It is a white frame(if that helps). But there's nowhere to hang a derailleur. I think I might go with what Eric Estlund suggested. What are those pieces called(the ones in the pictures above)?
xXSEYCOMXx is offline   Reply With Quote
Old 07-01-11, 06:45 AM   #6
Italuminium
Cisalpinist

Italuminium's Avatar

Join Date: Jan 2011
Location: Holland
Bikes: blue ones.
Posts: 5,557
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
derailler hangers or derailler claws.
Italuminium is offline   Reply With Quote
Old 07-01-11, 08:09 AM   #7
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: San Francisco California
Bikes: Waterford 953 RS-22
Posts: 10,216
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
Quoted: 99 Post(s)
http://store.khsbicycles.com/derail-hanger.html

http://www.khsbicycles.com/StoreFiles/derhanger.pdf
