Frame Jig

How easy or hard is it to make a frame jig? What are the major components?
Photos or Websites welcome.
I have plenty of wood/lumbar and a machine shop at my disposal.

Thanks
fixedgear80 is offline   Reply With Quote
Old 07-16-11, 07:27 AM   #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Bikes:
Posts: 14,534
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
the best source of reasonably affordable frame jigs is instructables.com

There are other designs by the same person that designed the jig in the link
unterhausen is offline   Reply With Quote
Old 07-17-11, 09:22 PM   #3
mudboy
Senior Member

mudboy's Avatar

Join Date: Sep 2008
Location: Collegeville, PA
Bikes: Ruckelshaus Randonneur, Specialized Allez (early 90's, steel), Ruckelshaus Path Bomber currently being built
Posts: 1,354
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Anyone know if it's possible (or advisable) to use something like the Bringheli frame alignment table for tacking up the main triangle? I feel like it would allow me to tack the downtube properly aligned, then tack the seat tube, and from there I could extrapolate a properly aligned head and top tube? At $800 it's less expensive than all of the other commercial options I've seen...

Pete
mudboy is offline   Reply With Quote
Old 07-17-11, 10:29 PM   #4
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Bikes:
Posts: 14,534
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
yes, people use alignment tables to tack the frame together. You would need some fixturing. Alex Meade makes some frame blocks that would work
unterhausen is offline   Reply With Quote
Old 07-18-11, 08:15 AM   #5
ultraman6970
Senior Member

Join Date: Dec 2005
Bikes:
Posts: 7,860
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
My old frame builder doesnt use a jig but what he did was put the frame in the table and start aligning the frame before and after brazing.

With the fork the same thing.
ultraman6970 is offline   Reply With Quote
Old 07-18-11, 11:13 AM   #6
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: San Francisco California
Bikes: Waterford 953 RS-22
Posts: 10,126
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 19 Post(s)

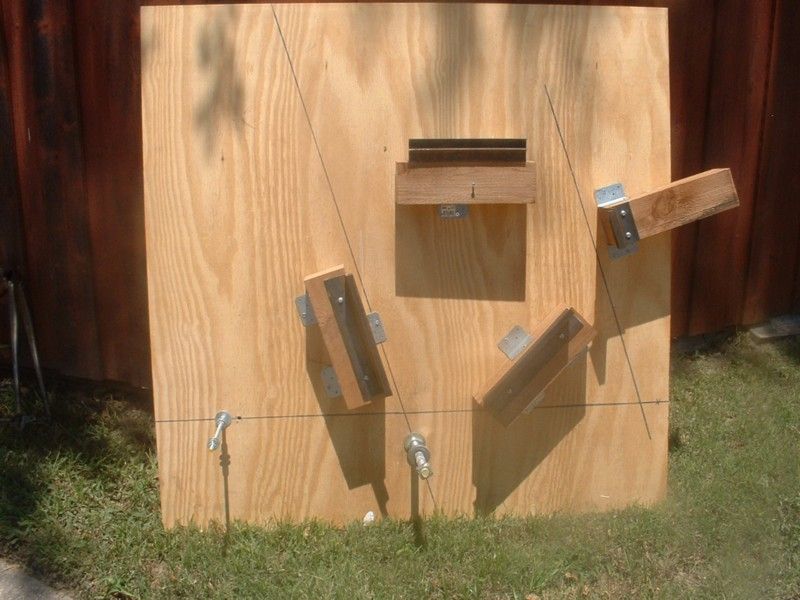

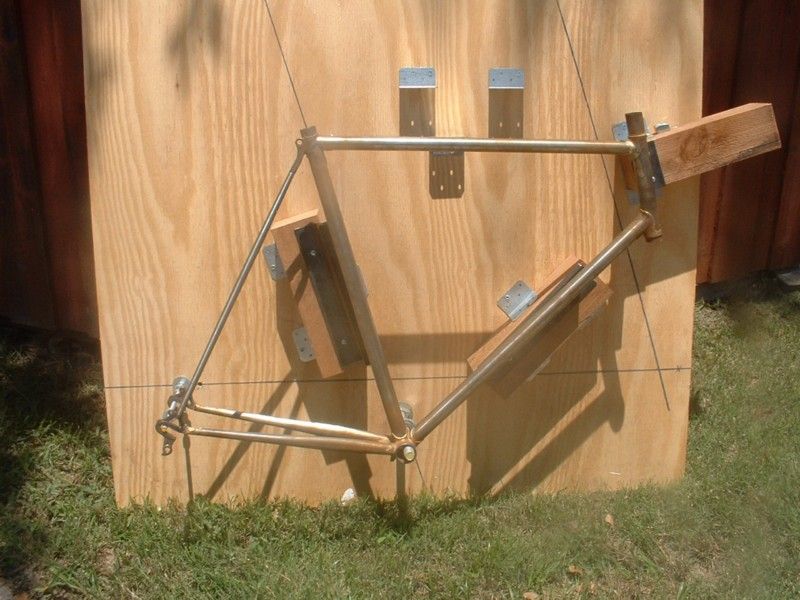

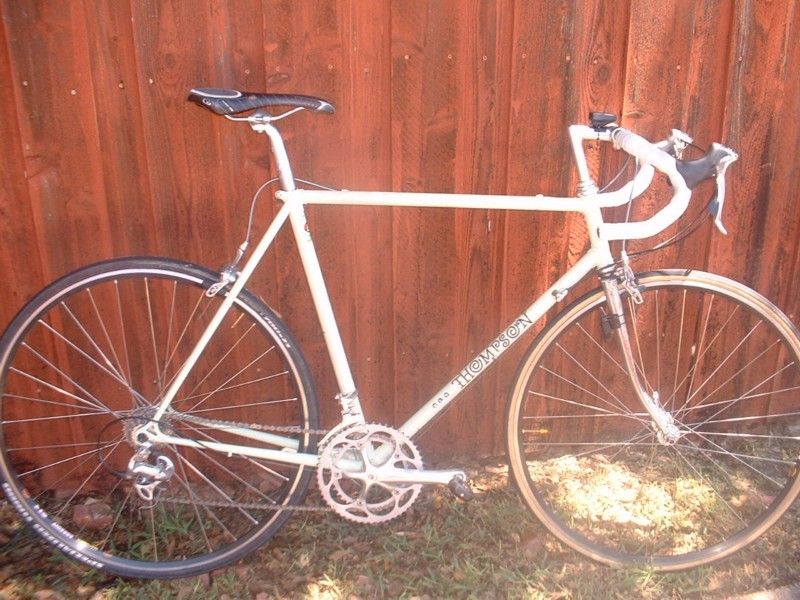

If the frame is a one-off, an inexpensive jig can be made of 3/4" plywood and V blocks. I believe this jig was originally posted by Glenn Thompson of Daltex Custom Bicycles in Dallas years before he became a professional framebuilder. I saved the photos years ago from a post of his thinking I might try using something like this (long before buying my Bringheli jig). You have to be careful with the torch; plywood burns.





__________________
- Stan
I'm with her.

Last edited by Scooper; 07-18-11 at 11:19 AM.
