What tool is this?

Hi All,

Does anyone know what tool Tom Oswald use to measure the angle between the head and toptube in this youtube video http://www.youtube.com/watch?v=KIxCdTRkRHo (skip to 3.22 min)?


thx,

Clemens
clemens is offline   Reply With Quote
Old 08-23-12, 10:41 AM   #2
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Bikes:
Posts: 14,531
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
that's an adjustable drafting triangle. I have one of those from my drafting days

I'm going to have to take care of it, the one I have goes for over $20 nowadays. There are probably better protractors out there for framebuilding, although a good machinists protractor starts to run into $$

Last edited by unterhausen; 08-23-12 at 10:46 AM.
unterhausen is offline   Reply With Quote
Old 08-23-12, 11:39 AM   #3
clemens
Newbie
Thread Starter

Join Date: Jul 2012
Bikes:
Posts: 4
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Is this the same kind of tool? http://www.hogetex.com/hoekmeter-met-klok.html
clemens is offline   Reply With Quote
Old 08-23-12, 11:48 AM   #4
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: San Francisco California
Bikes: Waterford 953 RS-22
Posts: 10,121
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)

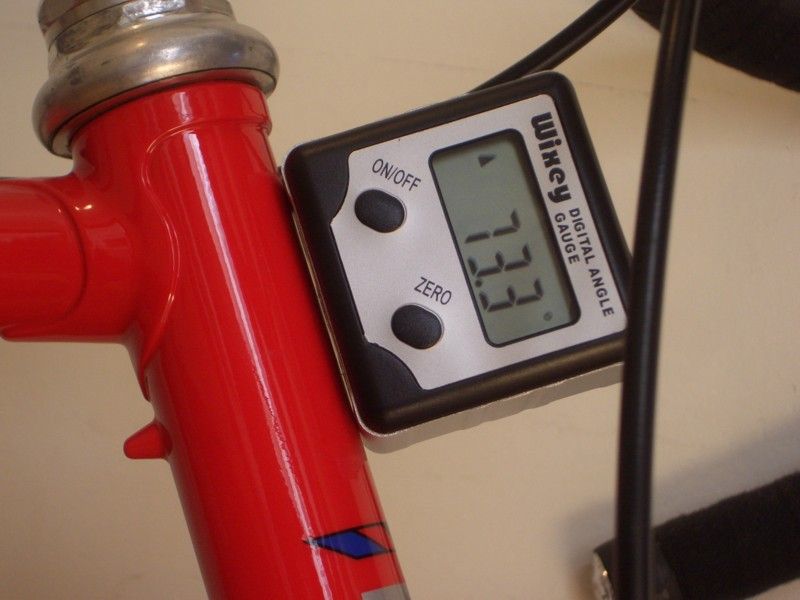

I use a Wixey WR300. It's inexpensive and accurate. "Zero" it on one tube, then move it to the intersecting tube to read the angle. Accuracy is ±0.05°

__________________
- Stan
I'm with her.

Last edited by Scooper; 08-23-12 at 12:43 PM. Reason: spelling Wixey
Scooper is offline   Reply With Quote
Old 08-23-12, 12:10 PM   #5
tuz
Senior Member

Join Date: Dec 2006
Location: Toronto/Montréal
Bikes: Homemade mixte, track, commuter and road, Ryffranck road
Posts: 1,180
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Clemens, yes that is a similar tool and it is probably more accurate and less flexible.

I also use a magnetic level like Scooper, it's very practical. Are you sure the accuracy is 0.05 deg? The resolution is 0.1... Mine (a Fowler) has a resolution of 0.05 but the manual indicates an accuracy of +/- 0.2 deg in "zero-ed" mode.
tuz is offline   Reply With Quote
Old 08-23-12, 12:48 PM   #6
Scooper
Decrepit Member

Scooper's Avatar

Join Date: Aug 2005
Location: San Francisco California
Bikes: Waterford 953 RS-22
Posts: 10,121
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 18 Post(s)
Quote:
Originally Posted by tuz View Post
Clemens, yes that is a similar tool and it is probably more accurate and less flexible.

I also use a magnetic level like Scooper, it's very practical. Are you sure the accuracy is 0.05 deg? The resolution is 0.1... Mine (a Fowler) has a resolution of 0.05 but the manual indicates an accuracy of +/- 0.2 deg in "zero-ed" mode.
Oops.

The retailer I bought it from had a data sheet that said accuracy is ±0.05°, but the Wixey website says ±0.1°. That could be interpreted to mean an accuracy to within 0.2°.

__________________
- Stan
I'm with her.

Last edited by Scooper; 08-23-12 at 01:27 PM.
Scooper is offline   Reply With Quote
Old 08-23-12, 01:48 PM   #7
unterhausen
Randomhead

Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Bikes:
Posts: 14,531
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Quote:
Originally Posted by clemens View Post
Is this the same kind of tool? http://www.hogetex.com/hoekmeter-met-klok.html
that is a machinist's protractor. I am not sure a 49 euro one will work that well for you, but it's a start. You probably want one with a vernier scale

I have a Wixey, you have to be careful with it. They have 2 versions for sale right now. The older one has a reputation for eating batteries.
unterhausen is offline   Reply With Quote
Old 08-23-12, 05:35 PM   #8
Andrew R Stewart
Andrew R Stewart

Andrew R Stewart's Avatar

Join Date: Feb 2012
Location: Rochester, NY
Bikes: Stewart S&S coupled sport tourer, Stewart Sunday light, Stewart Commuting, Stewart Touring, Co Motion Tandem, Stewart 3-Spd, Stewart Track, Fuji Finest, Raleigh Pro, Trek Cycle Cross, Mongoose tomac ATB, GT Bravado ATB, JCP Folder
Posts: 6,612
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 10 Post(s)
The problem using a protractor (reguardless of construction) is that the tubes themselves are not straight. I started to use a vernier protractor (machinest's tool, able to measure down to some number of seconds af a degree) a long time ago. But with some tubes the bowing (of the tube) would place the other end 4,5,6+ mms off the c-c point of the other tube. (that's with placing the bow in line with the frame's centerline, as is the usual practice). For mitering the protractor was neat but for setting up the actual tubes not so much. Using the center to center dimensions was a far more accurate method. Yes, this means that the protractor done miter would be ever so slightly off. This is one of the advantages of a jig. The tubes are held so their average centerlines are to spec and the tubes can be mitered to fit. But all this detail won't make the frame any more rideable if all the other work is done well. Andy.
Andrew R Stewart is offline   Reply With Quote
Old 08-23-12, 06:46 PM   #9
Craig Ryan
Senior Member

Join Date: Apr 2011
Bikes:
Posts: 73
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I'll second what Andrew says above. Those little square digital Wixey's etc. will get you in the ballpark, but you'll commonly see variances of several tenths to a half degree across the length of tubes. Paint and decals also get into the mix if you put it on a finished frame. It's great as an aid, but I would never say a frame has a 72.6° head tube because the little cube told me. Customers really like to see drawings with angles to the tenth though.
__________________
cforestryan.com
Craig Ryan is offline   Reply With Quote
