Can a frame-builder replace a 1 inch threadless steerer with a threaded steerer?
11-09-13, 05:12 PM
#1
Have bike, will travel
Thread Starter
Join Date: Feb 2006
Location: Lake Geneva, WI
Posts: 12,284
Bikes: Ridley Helium SLX, Canyon Endurance SL, De Rosa Professional, Eddy Merckx Corsa Extra, Schwinn Paramount (1 painted, 1 chrome), Peugeot PX10, Serotta Nova X, Simoncini Cyclocross Special, Raleigh Roker, Pedal Force CG2 and CX2
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
Liked 288 Times
in
158 Posts
Can a frame-builder replace a 1 inch threadless steerer with a threaded steerer?
I need to replace a vintage cyclocross fork. I want to retain the lugged crown and threaded steerer of the original while having fender mounts and 80mm canti-stud centers. I have found a new fork that is close to ideal, except it is only sold with a threadless steerer (both 1 inch and 1 1/8 inch are sold). I already know that you can't just thread a threadless fork due to the thinner wall thickness of the steerer.
Can an experienced framebuilder replace or section-in a threaded steerer?
Can an experienced framebuilder replace or section-in a threaded steerer?
__________________
When I ride my bike I feel free and happy and strong. I'm liberated from the usual nonsense of day to day life. Solid, dependable, silent, my bike is my horse, my fighter jet, my island, my friend. Together we will conquer that hill and thereafter the world.
When I ride my bike I feel free and happy and strong. I'm liberated from the usual nonsense of day to day life. Solid, dependable, silent, my bike is my horse, my fighter jet, my island, my friend. Together we will conquer that hill and thereafter the world.
Last edited by Barrettscv; 11-09-13 at 06:37 PM.
11-10-13, 09:36 AM
#3
Have bike, will travel
Thread Starter
Join Date: Feb 2006
Location: Lake Geneva, WI
Posts: 12,284
Bikes: Ridley Helium SLX, Canyon Endurance SL, De Rosa Professional, Eddy Merckx Corsa Extra, Schwinn Paramount (1 painted, 1 chrome), Peugeot PX10, Serotta Nova X, Simoncini Cyclocross Special, Raleigh Roker, Pedal Force CG2 and CX2
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
Liked 288 Times
in
158 Posts
As nice as the bike is, investing an additional $400 on a custom fork would not be a sound decision.
__________________
When I ride my bike I feel free and happy and strong. I'm liberated from the usual nonsense of day to day life. Solid, dependable, silent, my bike is my horse, my fighter jet, my island, my friend. Together we will conquer that hill and thereafter the world.
When I ride my bike I feel free and happy and strong. I'm liberated from the usual nonsense of day to day life. Solid, dependable, silent, my bike is my horse, my fighter jet, my island, my friend. Together we will conquer that hill and thereafter the world.
11-10-13, 01:32 PM
#4
Decrepit Member
Here's my take FWIW.
If the steerer is brazed into the fork crown with brass filler, removing the steerer using heat is likely to compromise the structural integrity of the crown. If it was silver brazed, there's less of a risk. So, depending on how it was brazed will determine how to proceed.
If brass filler was used, the old steerer can be cut off flush with the top of the crown and the crown hole precisely line bored in a well equipped machine shop to remove the remnants of the old steerer without using heat. A new steerer can then be brazed into the bored hole in the crown.

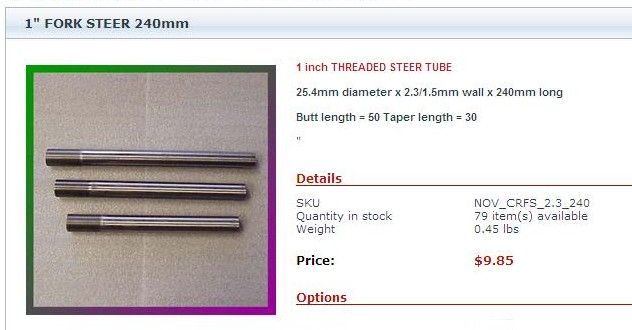

New threaded 1" steel steerer tubes of various lengths are readily available from Nova and other suppliers at low cost (~$20), but whether this is economically feasible is a big question considering the machine shop costs and the cost to repaint the fork.
My guess is that not many framebuilders or machinists would want to tackle this because of liability issues.
If the steerer is brazed into the fork crown with brass filler, removing the steerer using heat is likely to compromise the structural integrity of the crown. If it was silver brazed, there's less of a risk. So, depending on how it was brazed will determine how to proceed.
If brass filler was used, the old steerer can be cut off flush with the top of the crown and the crown hole precisely line bored in a well equipped machine shop to remove the remnants of the old steerer without using heat. A new steerer can then be brazed into the bored hole in the crown.
New threaded 1" steel steerer tubes of various lengths are readily available from Nova and other suppliers at low cost (~$20), but whether this is economically feasible is a big question considering the machine shop costs and the cost to repaint the fork.
My guess is that not many framebuilders or machinists would want to tackle this because of liability issues.
11-10-13, 02:13 PM
#5
Have bike, will travel
Thread Starter
Join Date: Feb 2006
Location: Lake Geneva, WI
Posts: 12,284
Bikes: Ridley Helium SLX, Canyon Endurance SL, De Rosa Professional, Eddy Merckx Corsa Extra, Schwinn Paramount (1 painted, 1 chrome), Peugeot PX10, Serotta Nova X, Simoncini Cyclocross Special, Raleigh Roker, Pedal Force CG2 and CX2
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
Liked 288 Times
in
158 Posts
I've heard of steerers being lengthed by cutting the steerer in the middle and welding a longer threaded section using an inner sleeve to strengthen and align the new section. This reduces the risk of failing at the crown and also means no repainting.
__________________
When I ride my bike I feel free and happy and strong. I'm liberated from the usual nonsense of day to day life. Solid, dependable, silent, my bike is my horse, my fighter jet, my island, my friend. Together we will conquer that hill and thereafter the world.
When I ride my bike I feel free and happy and strong. I'm liberated from the usual nonsense of day to day life. Solid, dependable, silent, my bike is my horse, my fighter jet, my island, my friend. Together we will conquer that hill and thereafter the world.
11-10-13, 02:18 PM
#6
Bicycle Repair Man !!!
11-10-13, 08:46 PM
#7
Decrepit Member
11-11-13, 08:09 AM
#8
Senior Member
I remember a thread on one of these builder forums complaining that modern threadless steerers are overbuilt and their wall thicknesses haven't changed from the threaded steerer days. So I measured the thin section of a Columbus 1 inch from the 80s and compared it to a Nova 1 1/8 that I just put together. They were both 1.5 mm thick. If you have a way to find the thickness before you buy, you might be able to get it threaded yourself. Also, on Nova's site, the butt profiles of the threaded and non threaded are the same.
Last edited by busdriver1959; 11-11-13 at 08:18 AM.
11-11-13, 09:14 AM
#9
Decrepit Member
I remember a thread on one of these builder forums complaining that modern threadless steerers are overbuilt and their wall thicknesses haven't changed from the threaded steerer days. So I measured the thin section of a Columbus 1 inch from the 80s and compared it to a Nova 1 1/8 that I just put together. They were both 1.5 mm thick. If you have a way to find the thickness before you buy, you might be able to get it threaded yourself. Also, on Nova's site, the butt profiles of the threaded and non threaded are the same.
Originally Posted by surlybikes.com
Q. Can I thread a threadless Surly fork?
A. No! Don't do it. Really, just don't; It's unsafe. The wall thickness of our forks' steer tubes is too thin to thread safely, and as well as the inside diameter won't be right for your quill stem.
A. No! Don't do it. Really, just don't; It's unsafe. The wall thickness of our forks' steer tubes is too thin to thread safely, and as well as the inside diameter won't be right for your quill stem.
11-11-13, 10:05 AM
#10
Have bike, will travel
Thread Starter
Join Date: Feb 2006
Location: Lake Geneva, WI
Posts: 12,284
Bikes: Ridley Helium SLX, Canyon Endurance SL, De Rosa Professional, Eddy Merckx Corsa Extra, Schwinn Paramount (1 painted, 1 chrome), Peugeot PX10, Serotta Nova X, Simoncini Cyclocross Special, Raleigh Roker, Pedal Force CG2 and CX2
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
Liked 288 Times
in
158 Posts
Actually the fork I'm considering is the Soma Classic Curve, but the same applies. I emailed Soma asking if their fork could be threaded and a firm "NO" answer came back with the same reason found on the Surly website.
__________________
When I ride my bike I feel free and happy and strong. I'm liberated from the usual nonsense of day to day life. Solid, dependable, silent, my bike is my horse, my fighter jet, my island, my friend. Together we will conquer that hill and thereafter the world.
When I ride my bike I feel free and happy and strong. I'm liberated from the usual nonsense of day to day life. Solid, dependable, silent, my bike is my horse, my fighter jet, my island, my friend. Together we will conquer that hill and thereafter the world.
Last edited by Barrettscv; 11-11-13 at 10:38 AM.
11-11-13, 05:32 PM
#11
Randomhead
Join Date: Aug 2008
Location: Happy Valley, Pennsylvania
Posts: 24,383
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 4 Post(s)
Liked 3,684 Times
in
2,508 Posts
I'm not sure that there is much of a technical issue with replacing a steerer, but the trick is to find a knowledgeable framebuilder that would do such a repair. I can think of 3 possibilities. Yellow Jersey, Franklin Frames, and Bilenky. Rody at Groovy has the steerer splicing video on his blog, but I'm not sure he would sign up for this particular task. You could ask.
11-11-13, 09:26 PM
#12
working on my sandal tan
Join Date: Aug 2011
Location: CID
Posts: 22,626
Bikes: 1991 Bianchi Eros, 1964 Armstrong, 1988 Diamondback Ascent, 1988 Bianchi Premio, 1987 Bianchi Sport SX, 1980s Raleigh mixte (hers), All-City Space Horse (hers)
Mentioned: 98 Post(s)
Tagged: 0 Thread(s)
Quoted: 3870 Post(s)
Liked 2,563 Times
in
1,577 Posts
I think Bianchigirll had this done. You might PM her about it.
11-12-13, 12:09 PM
#13
Banned
Need someone to Machine out the old steerer from the fork crown so its still straight when done
with a 1.0" drill bit , set up on probably a Big Drill press ,
or possibly chucking up the drill in the lathe and bringing the cut down fork into it.
to remove just the old steerer tube without the crown race being disturbed
takes a bit more heat to remelt brazing material, in a finished heavy part like fork crowns and Butted steerers
than it was to reach it's melting point in the 1st place..
with a 1.0" drill bit , set up on probably a Big Drill press ,
or possibly chucking up the drill in the lathe and bringing the cut down fork into it.
to remove just the old steerer tube without the crown race being disturbed
takes a bit more heat to remelt brazing material, in a finished heavy part like fork crowns and Butted steerers
than it was to reach it's melting point in the 1st place..
11-13-13, 09:54 AM
#14
Senior Member
Just to check, I would try to slip a stem in the Soma steerer (if you can get your hand on one at the LBS). If it fits *correctly* it could be tapped with a piloted tool (as JD Thompson showed in your other thread).
Otherwise, yes it's possible. If your headtube is long enough the simplest would be to splice the steerer. Welding as Groovy Cycles does is probably the way to go but you could braze the inner sleeve too. To remove the entire steerer, a good way is to cut it above the crown race, then slice through to the brass line in a few sections and then heat them individually to peel them off. That would minimize the heat input. But that seems time consuming and will likely be costly... I would call some framebuilders to check. I suspect drilling it out would leave an oversized hole.
Otherwise, yes it's possible. If your headtube is long enough the simplest would be to splice the steerer. Welding as Groovy Cycles does is probably the way to go but you could braze the inner sleeve too. To remove the entire steerer, a good way is to cut it above the crown race, then slice through to the brass line in a few sections and then heat them individually to peel them off. That would minimize the heat input. But that seems time consuming and will likely be costly... I would call some framebuilders to check. I suspect drilling it out would leave an oversized hole.
Last edited by tuz; 11-13-13 at 12:41 PM.
11-15-13, 07:47 PM
#16
Decrepit Member
The steerer tube O.D. is already 1 inch. The problem is that this threadless steerer tube has a wall thickness too thin to safely thread.
11-15-13, 08:04 PM
#17
Bicycle Repair Man !!!
If it was me I'd just build a new fork.
Seems that the original was built to a lighter road / race specification, is a tad bit narrow in it's brake spacing, and lacks mounts for fenders and a crown mounted canti hanger.
Buying and retrofitting a fork is a lot more work than it's worth.
Seems that the original was built to a lighter road / race specification, is a tad bit narrow in it's brake spacing, and lacks mounts for fenders and a crown mounted canti hanger.
Buying and retrofitting a fork is a lot more work than it's worth.
11-16-13, 09:42 AM
#18
Senior Member
Join Date: Jan 2012
Location: Ithaca, NY
Posts: 4,852
Bikes: Click on the #YOLO
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 12 Times
in
12 Posts
If it was me, I'd buy a threadless headset and a 1" -> 1.125" stem shim to open up the universe of 1 1/8" threadless stems to you, and just run the thing threadless.
Seems like a lot of work for an aesthetic decision. In a lot of ways I prefer a threadless setup- you can fix a loose headset with a 5mm allen key.
Seems like a lot of work for an aesthetic decision. In a lot of ways I prefer a threadless setup- you can fix a loose headset with a 5mm allen key.
__________________
Shimano : Click :: Campy : Snap :: SRAM : Bang
Shimano : Click :: Campy : Snap :: SRAM : Bang
11-16-13, 11:08 AM
#19
Have bike, will travel
Thread Starter
Join Date: Feb 2006
Location: Lake Geneva, WI
Posts: 12,284
Bikes: Ridley Helium SLX, Canyon Endurance SL, De Rosa Professional, Eddy Merckx Corsa Extra, Schwinn Paramount (1 painted, 1 chrome), Peugeot PX10, Serotta Nova X, Simoncini Cyclocross Special, Raleigh Roker, Pedal Force CG2 and CX2
Mentioned: 46 Post(s)
Tagged: 0 Thread(s)
Quoted: 910 Post(s)
Liked 288 Times
in
158 Posts
If it was me I'd just build a new fork.
Seems that the original was built to a lighter road / race specification, is a tad bit narrow in it's brake spacing, and lacks mounts for fenders and a crown mounted canti hanger.
Buying and retrofitting a fork is a lot more work than it's worth.
Seems that the original was built to a lighter road / race specification, is a tad bit narrow in it's brake spacing, and lacks mounts for fenders and a crown mounted canti hanger.
Buying and retrofitting a fork is a lot more work than it's worth.
__________________
When I ride my bike I feel free and happy and strong. I'm liberated from the usual nonsense of day to day life. Solid, dependable, silent, my bike is my horse, my fighter jet, my island, my friend. Together we will conquer that hill and thereafter the world.
When I ride my bike I feel free and happy and strong. I'm liberated from the usual nonsense of day to day life. Solid, dependable, silent, my bike is my horse, my fighter jet, my island, my friend. Together we will conquer that hill and thereafter the world.
11-17-13, 12:34 PM
#20
Senior Member
Join Date: Apr 2005
Location: Ann Arbor, MI
Posts: 16,863
Bikes: 1980 Masi, 1984 Mondonico, 1984 Trek 610, 1980 Woodrup Giro, 2005 Mondonico Futura Leggera ELOS, 1967 PX10E, 1971 Peugeot UO-8
Mentioned: 49 Post(s)
Tagged: 0 Thread(s)
Quoted: 1853 Post(s)
Liked 659 Times
in
502 Posts
He might be willing to do the cutting/boring method suggested by Scooper, as well.
But there are a lot of good choices out there.
11-18-13, 07:22 PM
#21
Member
Join Date: Jan 2009
Posts: 33
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times
in
0 Posts
Have you looked at the forks available from rivendell? they used to list them on their website, but it looks like they are hidden now for some reason. I would call or email them and see if they have any off the shelf ones. They will be more expensive than the Soma parts, but are better quality.
11-18-13, 08:48 PM
#22
Banned
There was another Sheldon fix.. headset , threadless,... tall steerer tube-spacers, just the last bit threaded .
a through threaded nut and the top locknut .. secures the adjustment ..
and then a quill stem is still usable..
a through threaded nut and the top locknut .. secures the adjustment ..
and then a quill stem is still usable..
11-19-13, 06:46 PM
#23
Decrepit Member
I'm not sure how a 22.2mm quill stem designed for a 25.4mm O.D. steerer with 1.5mm walls would work with a threadless steerer having significantly thinner wall thickness. Would the stem ever expand enough in the larger diameter I.D. steerer to be secure?
11-19-13, 07:02 PM
#24
Senior Member
Join Date: Jan 2012
Location: Ithaca, NY
Posts: 4,852
Bikes: Click on the #YOLO
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 26 Post(s)
Likes: 0
Liked 12 Times
in
12 Posts
Code:
25.4 - (1.5 + 1.5) = 22.4. OD - (wall + wall) = ID
I'd imagine a quill stem could make up .2 of a mm handily. For those thinking in inches, this is less than .008. FWIW, the tolerance for copper plumbing fittings is .005", so it'd be a little loose of a fit, but completely possible to make work.
__________________
Shimano : Click :: Campy : Snap :: SRAM : Bang
Shimano : Click :: Campy : Snap :: SRAM : Bang
11-19-13, 07:57 PM
#25
Decrepit Member
Code:
25.4 - (1.5 + 1.5) = 22.4. OD - (wall + wall) = ID
I'd imagine a quill stem could make up .2 of a mm handily. For those thinking in inches, this is less than .008. FWIW, the tolerance for copper plumbing fittings is .005", so it'd be a little loose of a fit, but completely possible to make work.
What I'm suggesting is that if the threadless steerer has 1.0mm walls (as many threadless steerers do) instead of 1.5mm walls, 25.4 - (1.0 + 1.0) = 23.4mm. A 22.2mm quill stem would have to expand 1.2mm and that may be too much space for it to cinch the walls securely.
