Mixing calipers and rotors (disks) brands ok?

Can you change out rotors (disks) from different brands like using a Hays disk with an Avid caliper?

CE
CrimsonEclipse is offline   Reply With Quote
Old 02-15-07, 08:19 PM   #2
Dannihilator
User Title

Dannihilator's Avatar

Join Date: Oct 2002
Location: Annandale, New Jersey
Bikes: 2014 Surly Steamroller, 1989 Nishiki Altron
Posts: 19,422
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 6 Post(s)
It's possible. I just don't like doing that. For me, I tend to like using the rotors that come with the calipers.
__________________
Signature.
Dannihilator is offline   Reply With Quote
Old 02-15-07, 08:52 PM   #3
mx_599
Lost in the Black Hills

mx_599's Avatar

Join Date: May 2005
Bikes:
Posts: 5,725
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
similar to Mr Smashy's comment, many people do it. for the most part, just make sure nothing is hitting funny and it will be fine. just measure before you buy, but most of the rotors are the same size.
mx_599 is offline   Reply With Quote
Old 02-15-07, 08:54 PM   #4
MattP.
Obeying Gravity

Join Date: Oct 2004
Location: Bellingham, WA
Bikes:
Posts: 2,962
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Depends. Some brakes have a thinner brake track, so matching that with a brake that has a thicker one, will unevenly wear the pads.
MattP. is offline   Reply With Quote
Old 02-15-07, 10:23 PM   #5
ghettocruiser
Former Member

Join Date: Feb 2005
Location: dropmachine.com
Bikes:
Posts: 4,062
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I've never noticed any ill effects. Some brakes have even seemed to work better with someone else's rotors.

Some though, particularly in the DH set, don't think mixing parts not designed for each other is a great idea.
ghettocruiser is offline   Reply With Quote
Old 02-15-07, 10:39 PM   #6
nmn25
Senior Member

nmn25's Avatar

Join Date: Jul 2005
Bikes: Faith 2, Completeley custom Kona Scrap (1600 worth)
Posts: 238
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Most (all common brand) disk rotors are 2mm thick steel, so as long as the diameter is matching the rotor, you are golden. On my dj bike, I run avid wave rotors w/ avid adapters and hayes 9 calipers/levers. On my DH bike, I run juicy 7 calippers/adapters and hayes v8 rotors (I find them better than the avid rotors because you dont get the squealing or the pulsing effect, thas why the changed to the g2 cs rotor in 07).

Go wild (worst case scenario, you change back rotors).
nmn25 is offline   Reply With Quote
Old 02-16-07, 04:25 PM   #7
MattP.
Obeying Gravity

Join Date: Oct 2004
Location: Bellingham, WA
Bikes:
Posts: 2,962
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by nmn25
Most (all common brand) disk rotors are 2mm thick steel, so as long as the diameter is matching the rotor, you are golden.
I don't know where you get your information from but that is complete bull ****. Just cause the rotor diameter is the same, doesn't mean you can swap the rotors. You have to look at how wide the brake track (blade) is. For example if you tried to run BB7's on the new XTR rotors, the pad will sweep across the arms. So unless you want to bevel each pad you run, you can't do it. Also, you can't run Juicy Ultiamtes w/ XTR rotors. Also, you can't run Ultimates w/ Hope floating rotors. It's possible but it involves grinding away some of the pad and possible the caliper.
MattP. is offline   Reply With Quote
Old 02-16-07, 04:41 PM   #8
free_pizza
later

free_pizza's Avatar

Join Date: Sep 2004
Bikes:
Posts: 2,471
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by MattP.
I don't know where you get your information from but that is complete bull ****.
huh? if the rotor is the same diameter and the same thickness, then why is that complete bull#$#%?
free_pizza is offline   Reply With Quote
Old 02-16-07, 04:58 PM   #9
Flak
Flatland hack

Flak's Avatar

Join Date: Nov 2005
Location: Nowhere near the mountains :/
Bikes:
Posts: 3,228
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I dont understand either.

If its 2mm, it's 2mm. I dont understand how it could not work?
__________________
My shop - www.spinbikeshop.com
My team - www.teampanther.com
Flak is offline   Reply With Quote
Old 02-16-07, 04:59 PM   #10
MattP.
Obeying Gravity

Join Date: Oct 2004
Location: Bellingham, WA
Bikes:
Posts: 2,962
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by free_pizza
huh? if the rotor is the same diameter and the same thickness, then why is that complete bull#$#%?
Maybe you learn better w/ pictures.


See that little circluar "nut"? That combines the alu carrier w/ the steel braking track? If you were to put, say a BB7 caliper w/ this rotor, everytime the "nut" passed the pad, it would hit it. Avids use a wider (not thicker, still 2mm) braking track than Hope does. So you could grind away part of the pads and possibly the rotor body so it wouldn't come in contact with the "nut". Same goes w/ the new XTR rotors; some caliper hit the spider arms.

Understand yet?
MattP. is offline   Reply With Quote
Old 02-16-07, 05:01 PM   #11
Flak
Flatland hack

Flak's Avatar

Join Date: Nov 2005
Location: Nowhere near the mountains :/
Bikes:
Posts: 3,228
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Ahh i see your point now. You didn't have to be an incredible dick about it though.
__________________
My shop - www.spinbikeshop.com
My team - www.teampanther.com
Flak is offline   Reply With Quote
Old 02-16-07, 05:02 PM   #12
MattP.
Obeying Gravity

Join Date: Oct 2004
Location: Bellingham, WA
Bikes:
Posts: 2,962
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)

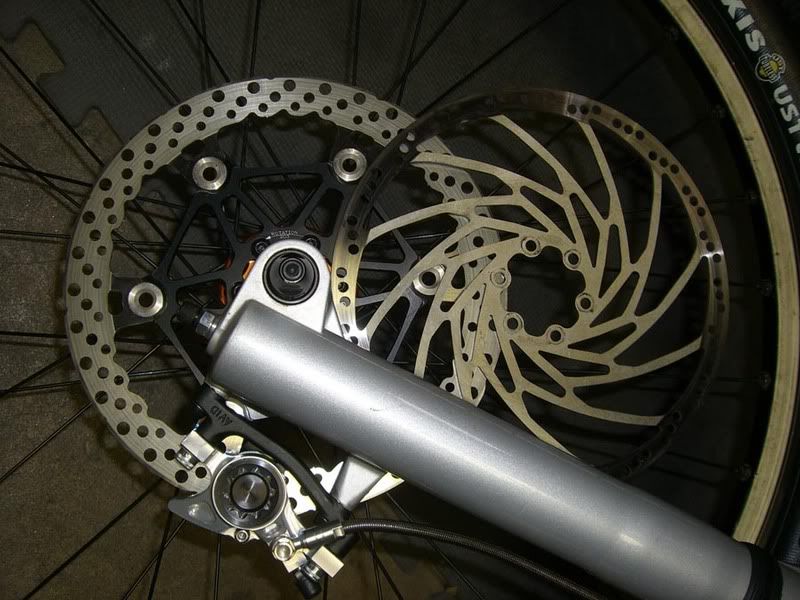

To illustrate my point further. Photo from Aquaholic @ mtbr.com

Notice how the brake tracks are different widths?
MattP. is offline   Reply With Quote
Old 02-16-07, 06:28 PM   #13
mx_599
Lost in the Black Hills

mx_599's Avatar

Join Date: May 2005
Bikes:
Posts: 5,725
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Flak
Ahh i see your point now. You didn't have to be an incredible dick about it though.
errmmm....

but i think most of the time you can get away with it. especially if the pad edge is not hitting the other part of the rotor at 90 degrees. since the example above is angled, it will "ease" into the interpad gap.

Last edited by mx_599; 02-16-07 at 06:37 PM.
mx_599 is offline   Reply With Quote
Old 02-16-07, 06:48 PM   #14
cryptid01
one less horse

cryptid01's Avatar

Join Date: Aug 2003
Location: East Jesus NY
Bikes: are better than yours
Posts: 5,600
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by mx_599
You have the weirdest smileys - this one looks like he's picking his bellybutton.

MattP, if I undersand you correctly, a more common term for what you're referring to is the "swept area" of the rotor.
cryptid01 is offline   Reply With Quote
Old 02-16-07, 07:14 PM   #15
LowCel
Throw the stick!!!!

LowCel's Avatar

Join Date: Apr 2003
Location: Charleston, WV
Bikes: GMC Denali
Posts: 17,588
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I've gotten pretty lucky so far. I use Magura Martas (and marta sl's) with magura rotors, avid rotors, and I just ordered some formula rotors. So far so good.....
__________________
I may be fat but I'm slow enough to make up for it.
LowCel is offline   Reply With Quote
Old 02-16-07, 07:29 PM   #16
AfterThisNap
Taking "s" outta "Fast"

AfterThisNap's Avatar

Join Date: Dec 2005
Location: Zoo York City
Bikes:
Posts: 1,989
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by LowCel
I've gotten pretty lucky so far. I use Magura Martas (and marta sl's) with magura rotors, avid rotors, and I just ordered some formula rotors. So far so good.....
No raceday aluminum rotors?


59 grams each. Roughly a 1/4 lb weight saved, and most importantly, it can by dyed blingy colors I'd never do it, but the reviews seem to be positive.
http://archive.mtbr.com/16/0EF87415.php

Last edited by AfterThisNap; 02-16-07 at 07:36 PM.
AfterThisNap is offline   Reply With Quote
Old 02-16-07, 07:43 PM   #17
LowCel
Throw the stick!!!!

LowCel's Avatar

Join Date: Apr 2003
Location: Charleston, WV
Bikes: GMC Denali
Posts: 17,588
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Nope, I have to many wheelsets. If I were just going to buy them for my race wheelsets I would have to buy six rotors. Plus, I'm not sure if they problem has been taken care of yet or not but there was a problem with overheating on long downhills. We have a lot of those in WV.
__________________
I may be fat but I'm slow enough to make up for it.
LowCel is offline   Reply With Quote
Old 02-16-07, 07:47 PM   #18
AfterThisNap
Taking "s" outta "Fast"

AfterThisNap's Avatar

Join Date: Dec 2005
Location: Zoo York City
Bikes:
Posts: 1,989
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I remember reading that alu-rotors coated with titanium nitride were OK for longer (XCish) downhills, and prevented the galling found in aniodized or uncoated rotors. I'm sure the effect was minimal after wearing in though.

I've handled the 07 XTR rotors. Not quite as light but pretty feathery for a disk. Steel contact surface too.
AfterThisNap is offline   Reply With Quote
Old 02-16-07, 07:49 PM   #19
LowCel
Throw the stick!!!!

LowCel's Avatar

Join Date: Apr 2003
Location: Charleston, WV
Bikes: GMC Denali
Posts: 17,588
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by AfterThisNap
I remember reading that alu-rotors coated with titanium nitride were OK for longer (XCish) downhills, and prevented the galling found in aniodized or uncoated rotors. I'm sure the effect was minimal after wearing in though.

I've handled the 07 XTR rotors. Not quite as light but pretty feathery for a disk. Steel contact surface too.
Hope their rotors are better than the 07 brakes. I know two people who ride / race the 07 xtr group. They love the shifting but absolutely hate the brakes.
__________________
I may be fat but I'm slow enough to make up for it.
LowCel is offline   Reply With Quote
Old 02-16-07, 08:10 PM   #20
MattP.
Obeying Gravity

Join Date: Oct 2004
Location: Bellingham, WA
Bikes:
Posts: 2,962
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by gastro
MattP, if I undersand you correctly, a more common term for what you're referring to is the "swept area" of the rotor.
Yes! That would be it
MattP. is offline   Reply With Quote
Old 02-16-07, 08:32 PM   #21
nmn25
Senior Member

nmn25's Avatar

Join Date: Jul 2005
Bikes: Faith 2, Completeley custom Kona Scrap (1600 worth)
Posts: 238
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
It is definately not complete bs. As said before, I run v8 rotors and juicy calipers, and polygone rotors w/ nine calipers (which relates back to what he was saying, not about hope/xtr...). Also, I said the MAJOR ones. I think we can agree that 7s and nines are more common than hope 6s and xtrs. Lastly, even if the swept area doesn't match, it will still work, it just affects the pad wear area. I ran hope mono m4 rotors on juicy calipers and it worked fine. The rivets clear the caliper and there was only a little corner of my pad that did not recieve any wear. Everything was fine.

All this being said, I am in no way claiming to know more than anybody else and am up for learning new things. I was going on personal experience. Just try and pad those comment ok?
