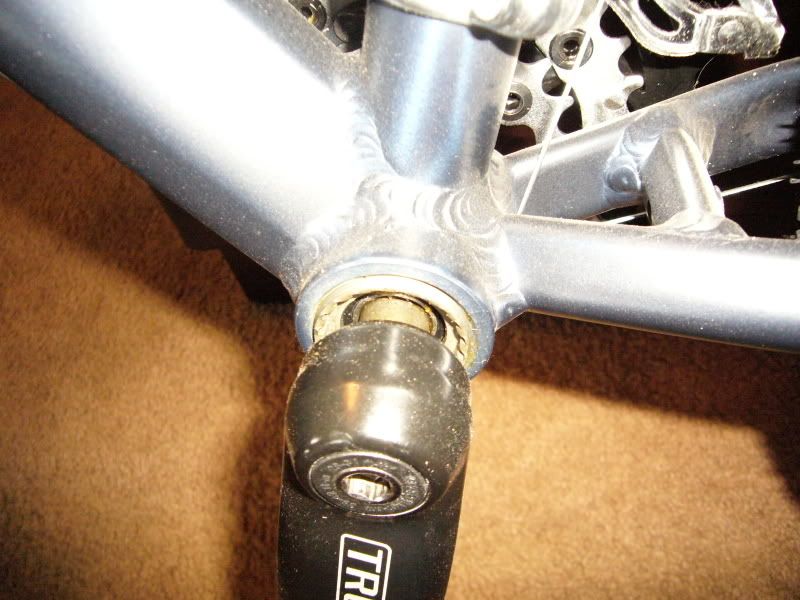

This looks weird...is it right?

I have a Marin Hawk Hill 15" that I've been having for almost a year. A friend of mine completed assembly on it for me(shipped 90% assembled). Unfortunately I still haven't ridden it yet(work and life keeps getting in the way), but I plan on having more free time this summer so I've been messing around with the bike(installed new grips, bar ends, etc.).

While just giving it the once over, I noticed the left pedal and the crank seemed strange to me. I could see the threads and the pedal didn't look like it was installed all the way or properly. (Pics of this below) Sorry that they're not clearer. It just seems like the top of the crank arm should be flush with the frame(or whatever...not too sure with terminology). The way it is now seems like when I do go riding, dirt, dust etc. will get all up in there.




Does this look right to you? If not, is it an easy adjustment? I'm not too mechanically inclined, but I may be able to do it myself, or should I bring it to a LBS?
Thanks!
globe9 is offline   Reply With Quote
Old 05-16-07, 10:41 AM   #2
jm01
Banned

Join Date: Jul 2005
Location: Toronto & Wasaga Beach, Ontario, Canada
Bikes: Ellsworth Id
Posts: 964
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
unless you know what you're doing and have the tools, take it to a lbs

You're right, there's something odd here
jm01 is offline   Reply With Quote
Old 05-16-07, 10:46 AM   #3
dminor
Moar cowbell

dminor's Avatar

Join Date: Oct 2004
Location: The 509
Bikes: are awesome.
Posts: 12,427
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Looks correct. If you measure from the center of the frame to the center of each crank arm, you will probably see that the distance is equal or nearly so.
__________________

Quote:
Originally Posted by Mark Twain
"Don't argue with stupid people; they will drag you down to their level and then beat you with experience."
dminor is offline   Reply With Quote
Old 05-16-07, 10:54 AM   #4
jm01
Banned

Join Date: Jul 2005
Location: Toronto & Wasaga Beach, Ontario, Canada
Bikes: Ellsworth Id
Posts: 964
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by dminor
Looks correct. If you measure from the center of the frame to the center of each crank arm, you will probably see that the distance is equal or nearly so.
that pic makes the gap look 1" wide
jm01 is offline   Reply With Quote
Old 05-16-07, 10:57 AM   #5
misterC
That's how I roll..

Join Date: Mar 2007
Bikes:
Posts: 140
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Looks fine to me.
misterC is offline   Reply With Quote
Old 05-16-07, 11:00 AM   #6
FlatFender
Senior Member

FlatFender's Avatar

Join Date: Aug 2006
Location: Raleigh NC
Bikes:
Posts: 1,007
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
yep, looks good to me.
FlatFender is offline   Reply With Quote
Old 05-16-07, 11:02 AM   #7
joeprim
Senior Member

joeprim's Avatar

Join Date: Jan 2002
Location: Northern Neck Tidewater Va.
Bikes:
Posts: 1,688
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I'd get it checked out. I've never seen a gap like that before.

Joe
joeprim is offline   Reply With Quote
Old 05-16-07, 11:17 AM   #8
kidcharlamagne
muddy

kidcharlamagne's Avatar

Join Date: May 2006
Location: biking the buffer
Bikes: Schwinn Mesa GS, Schwin World Sport, Schwinn Sierra Tandem, 3 Schwinn Homegrown HTs (frame only), Schwinn Moab III, Schwinn Sierra GSX, Specialized Crossroads (soon not to be mine)
Posts: 53
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
the gap looks fine, but I'd still have an LBS give the whole thing a once over.
kidcharlamagne is offline   Reply With Quote
Old 05-16-07, 11:37 AM   #9
brad06ag
Whatever

Join Date: Apr 2006
Bikes:
Posts: 340
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I don't necessarily see a problem. Different bottom brackets have different spindle lengths that can affect the spacing of the cranks.
brad06ag is offline   Reply With Quote
Old 05-16-07, 12:53 PM   #10
crash13
Big Ring Circus

crash13's Avatar

Join Date: Sep 2006
Location: NorCal
Bikes: Tarmac Expert
Posts: 218
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I'd have an LBS look the bike over and snug/torque any bolts and adjust the brakes/derailleurs....for your safety!
crash13 is offline   Reply With Quote
Old 05-16-07, 01:50 PM   #11
jm01
Banned

Join Date: Jul 2005
Location: Toronto & Wasaga Beach, Ontario, Canada
Bikes: Ellsworth Id
Posts: 964
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by brad06ag
I don't necessarily see a problem. Different bottom brackets have different spindle lengths that can affect the spacing of the cranks.
that's why its difficult to tell from the pic...did they use the right BB?, or are they using a longer spindle because they're using the wrong peddles and need that length to clear the chain stays?

best that someone who can see what's going on here take a look at this
jm01 is offline   Reply With Quote
Old 05-16-07, 02:12 PM   #12
Portis
Banned.

Join Date: Sep 2003
Location: Home alone
Bikes: Trek 4300 X 2. Trek 1000, Trek 6000
Posts: 6,019
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
There is no way that somebody can look at this picture and say there is something wrong. I see absolutely NOTHING wrong. But I can't tell if your bolts are tight. If you are concerned recheck them. There is a 10 mm head holding that crank on.

Portis is offline   Reply With Quote
Old 05-16-07, 02:15 PM   #13
C Law
Too Much Crazy

Join Date: Feb 2005
Location: NY
Bikes: A bunch
Posts: 3,633
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Quote:
Originally Posted by jm01
You're right, there's something odd here

What is odd?
C Law is offline   Reply With Quote
Old 05-16-07, 02:37 PM   #14
jm01
Banned

Join Date: Jul 2005
Location: Toronto & Wasaga Beach, Ontario, Canada
Bikes: Ellsworth Id
Posts: 964
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Curt Kurt
What is odd?
from the pic it looks like you can get a finger betwen the crank and the BB, perhaps in canada we build them different, but I doubt it.

I've yet to see a bike with what looks to be a one inch gap, my only thought is that they've used a longer spindle to give the crank enough room to clear the chain stays

what you think?
jm01 is offline   Reply With Quote
Old 05-16-07, 02:45 PM   #15
Flak
Flatland hack

Flak's Avatar

Join Date: Nov 2005
Location: Nowhere near the mountains :/
Bikes:
Posts: 3,228
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Why do people insist on repling when they have no idea what they're on about?
__________________
My shop - www.spinbikeshop.com
My team - www.teampanther.com
Flak is offline   Reply With Quote
Old 05-16-07, 02:46 PM   #16
C Law
Too Much Crazy

Join Date: Feb 2005
Location: NY
Bikes: A bunch
Posts: 3,633
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 7 Post(s)
Quote:
Originally Posted by jm01
what you think?
I think it looks fine. a bit on the long side maybe, but you are never going to get it so short that debris won't fly in there.

Spindle length should be determined by the drive side chainrings and the crankset.

Quote:
Originally Posted by jm01
that's why its difficult to tell from the pic...did they use the right BB?, or are they using a longer spindle because they're using the wrong peddles and need that length to clear the chain stays?
How does the type of pedal have any bearing on the bb spindle length? the pedal is 2cm ( or more)removed from the inboard side of the crank. If the crank has clearance, you are not going to find a pedal that will give you an issue.

The Q factor might be on the high side, but again it looks fine, as long as everything is tight
C Law is offline   Reply With Quote
Old 05-16-07, 02:49 PM   #17
Portis
Banned.

Join Date: Sep 2003
Location: Home alone
Bikes: Trek 4300 X 2. Trek 1000, Trek 6000
Posts: 6,019
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by jm01
from the pic it looks like you can get a finger betwen the crank and the BB, perhaps in canada we build them different, but I doubt it.

I've yet to see a bike with what looks to be a one inch gap, my only thought is that they've used a longer spindle to give the crank enough room to clear the chain stays

what you think?
I can tell you from experience that these posted pics online distort sizes severely at times. I seriously doubt there is an inch gap. And you can get a finger between the crank and bb on the bike that is sitting here in front of me. It is only my pinkie finger but that is still a finger.

Again, you can find NOTHING wrong by looking at the picture. Even if you were right that the spindle was too long, the problem would manifest on the other side of the frame. And even then we are not looking at a safety issue rather an issue of performance.
Portis is offline   Reply With Quote
Old 05-16-07, 03:11 PM   #18
kcham16
Senior Member

Join Date: Sep 2006
Bikes:
Posts: 138
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by joeprim
I'd get it checked out. I've never seen a gap like that before.

Joe

that's what she said (i love when i get to use that)
kcham16 is offline   Reply With Quote
Old 05-16-07, 05:03 PM   #19
taylor p
Senior Member

taylor p's Avatar

Join Date: Jul 2006
Location: Brainerd MN
Bikes:
Posts: 999
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Pete Fagerlin
There's obviously a problem there that is caused by too little air pressure. Thanks for the tip jm01.

BTW, does my chain look weird...I think it might be too big for my bike.

yup id say you need a smaller chain
taylor p is offline   Reply With Quote
Old 05-16-07, 05:05 PM   #20
mtnbiker66
Old School Rad

mtnbiker66's Avatar

Join Date: Sep 2004
Location: The old Mountains
Bikes: Blur LT
Posts: 8,212
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Flak
Why do people insist on repling when they have no idea what they're on about?
Well you replied........
__________________
Like a circus monkey on a stolen Harley......
mtnbiker66 is offline   Reply With Quote
Old 05-16-07, 05:05 PM   #21
J4$0N
Senior Member

Join Date: Aug 2006
Bikes:
Posts: 54
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
definately get it checked out and i wouldn't suggest riding it till you do, same thing happened to me and the teeth of the center part of the crank got worn down and now i'm paying 200 for a part for a $1100 bike i got a week ago
J4$0N is offline   Reply With Quote
Old 05-16-07, 05:11 PM   #22
Raiyn
I drink your MILKSHAKE

Raiyn's Avatar

Join Date: Jul 2002
Location: St. Petersburg, FL
Bikes: 2003 Specialized Rockhopper FSR Comp, 1999 Specialized Hardrock Comp FS, 1971 Schwinn Varsity
Posts: 15,061
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Portis
There is a 10 mm head holding that crank on.
Actually, it's an 8mm.

Does the crank arm feel loose at all? Any wobble? If not then it's fine. The angle of the picture and the flash make the gap look bigger than it is.


Quote:
Originally Posted by jm01
are they using a longer spindle because they're using the wrong peddles and need that length to clear the chain stays?
If your pedals are on the inside of your cranks I don't think you need to give others advice
__________________

Last edited by Raiyn; 05-16-07 at 07:16 PM.
Raiyn is offline   Reply With Quote
Old 05-16-07, 07:14 PM   #23
Flak
Flatland hack

Flak's Avatar

Join Date: Nov 2005
Location: Nowhere near the mountains :/
Bikes:
Posts: 3,228
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by mtnbiker66
Well you replied........
I was commenting on the general dumbarsery in the thread not the spindle length, and im an expert in dumbarsery (yes ive petitioned Websters to have it included). You should know, you've met me
__________________
My shop - www.spinbikeshop.com
My team - www.teampanther.com
Flak is offline   Reply With Quote
Old 05-16-07, 07:18 PM   #24
mtnbiker66
Old School Rad

mtnbiker66's Avatar

Join Date: Sep 2004
Location: The old Mountains
Bikes: Blur LT
Posts: 8,212
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Flak
I was commenting on the general dumbarsery in the thread not the spindle length, and im an expert in dumbarsery (yes ive petitioned Websters to have it included). You should know, you've met me
__________________
Like a circus monkey on a stolen Harley......
mtnbiker66 is offline   Reply With Quote
Old 05-16-07, 08:02 PM   #25
Portis
Banned.

Join Date: Sep 2003
Location: Home alone
Bikes: Trek 4300 X 2. Trek 1000, Trek 6000
Posts: 6,019
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Raiyn
Actually, it's an 8mm.

Whoops. My bad. Obviously I don't remove my cranks every day.
Portis is offline   Reply With Quote
