    upgrade to disc brakes - possible?

    i have a 2002 spec. hardrock that ive been taking out to trails and the mountains more lately and was wondering if its a possibility to upgrade its standard brakes to disc brakes? it seems as if the fork and the seatstay in the back have each two holes for something...

    if possible what am i looking at here to get/spend?

  2. #2
    Senior Member yellowjeep's Avatar
    Join Date
    Aug 2005
    Location
    Lawrence
    Posts
    3,267
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    You would need new wheels also.

    Avid BB7s run about 130 bucks for the front and rear levers and cables. Wheels are about the same for the most basic disc wheels all the way up to what ever you want to spend.

    You might want to look at Avid Single Digit 7 V brakes. That would be a huge upgrade from what I would assume is on there now and you wouldn't have to replace the wheels. They run about 40 bucks for the brakes and another 20 for the levers.
    When in doubt, style it out.

    How to post full size pictures

  3. #3
    Senior Member
    Join Date
    Dec 2008
    Posts
    204
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by yellowjeep View Post



    You might want to look at Avid Single Digit 7 V brakes.

  4. #4
    Map maker cbchess's Avatar
    Join Date
    Feb 2008
    Location
    Richmond,VA
    My Bikes
    Ventana El Ciclon, Walt Works 29er, Specialized Enduro (fixed up for my son).
    Posts
    728
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    you could get a front disc wheel and just upgrade the front brake to BB7. This will help you the most and is the cheapest way to go.
    Look on eBay too -all kinds of cheap BB7 brakes on there.

  5. #5
    Senior Member
    Join Date
    May 2008
    Location
    NORCAL
    Posts
    102
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    hmm. wow dang it, i didnt really wanna do wheels (any decent wheels you guys recommend? i currently have a cheapo $60 mavic something up front after i crashed my stock alex front wheel).

    does disc brakes mean i need a new brake lever too that is hydraulically compatible?

  6. #6
    Senior Member surreal's Avatar
    Join Date
    Mar 2002
    Location
    NJ
    Posts
    2,888
    Mentioned
    6 Post(s)
    Tagged
    0 Thread(s)
    Before you bug out, look at your hubs. if they ain't original, they might be disc-ready. Most common is the 6bolt design, which'll appear as 6 holes in the non-drive side of your hubs. Shimano makes a center-lock version; if there's a weird lockring doodad on the non-drive side, then they're disc-ready. There are soooo many disc-wheels on the market; if you tell us how you ride and what your budget is like, we can steer you in the right direction.

    If you don't have a lot of cash to spend, you'll wanna do what they recommended above and get some SD7 rim brakes. You don't wanna skimp on wheels, as you won't save an $$ in the long run.

    -rob

  7. #7
    Senior Member
    Join Date
    May 2008
    Location
    NORCAL
    Posts
    102
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    nope mine are pure stock mavics (is that what you mean by originals? the front wheel at least isnt stock when i bought the bike since i crashed the stock ones). ill take a pic later...kinda shooting in the wind right now haha.

    i understand better wheels are better for the long run. im more of a road biker and have expensive wheels on those haha. but since i dont mtb alot, i want decent stuff at least.

    nashbar has some good discounts right now and if can figure out what to get today then that be great.
    the BB7 (i dont think they come with the disc do they)
    http://www.nashbar.com/bikes/Product...00_10000_17005

    do i need a new front brake lever? for both a sd7 and bb7? if i upgrade?
    i guess im a little skeptical of doing the SD7 upgrade as i think the stock brakes on my hardrock are really good (i could flip myself over the handbar if i wanted to)...how good could another pair of rim brakes be?
    Last edited by kaitanium; 05-08-09 at 12:36 PM.

  8. #8
    Senior Member
    Join Date
    May 2008
    Location
    NORCAL
    Posts
    102
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    lol ok the more i think of it the more i should just do the disc brake front upgrade to BB7s and maybe swap my back brakes out for SD7s. question now is:

    1. what wheel to get (i am assuming mine isnt compatible with a disc as i dont think i saw any holes other than where the spokes go in, ill upload pics later)
    2. do i need a new brake lever for the BB7 or even the SD7? or should i do juicy discs?
    Last edited by kaitanium; 05-08-09 at 01:20 PM.

  9. #9
    Senior Member mzeffex's Avatar
    Join Date
    Mar 2009
    Location
    Fort Collins, CO
    My Bikes
    2011 S-works Tarmac SL3 Red, 2009 Fuji SLM 2.0 XT, 1986 Lotus Grand Prix Luxe single speed, 2012 Blue Norcross, Torelli Tipo Uno
    Posts
    8,029
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Make sure the holes on the back of the frame are not the holes right above the drop outs. They should be a couple inches above the drop outs, on the seat stay, NOT on top of the drop out. The ones on the drop out are for a rack or whatever.

  10. #10
    Senior Member yellowjeep's Avatar
    Join Date
    Aug 2005
    Location
    Lawrence
    Posts
    3,267
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Somebody has upgradeitis
    When in doubt, style it out.

    How to post full size pictures

  11. #11
    Senior Member
    Join Date
    May 2008
    Location
    NORCAL
    Posts
    102
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    i dont think these holes are for racks and stuff because its only on one side. i know this year (2002) of the spec hardrock was i think the first year they had the disc version too so they probably used the same frame on the lower model (aka my model, the A1 FS comp).

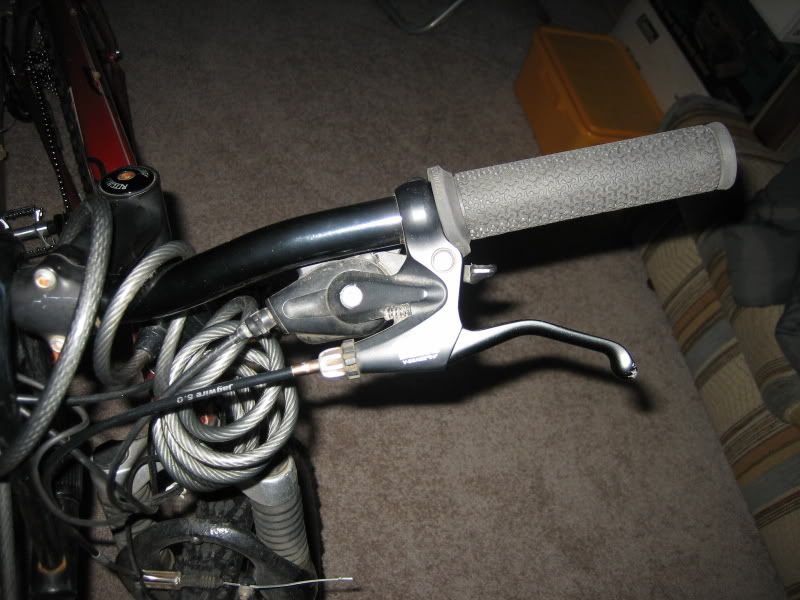

    do i need to get new levers for the BB7 front brake? because if so, i cant because my current shimano alivio setup has its levers attached to the gear shifter as one piece. if i remove the lever part, nothing can hold the shifter to the bar

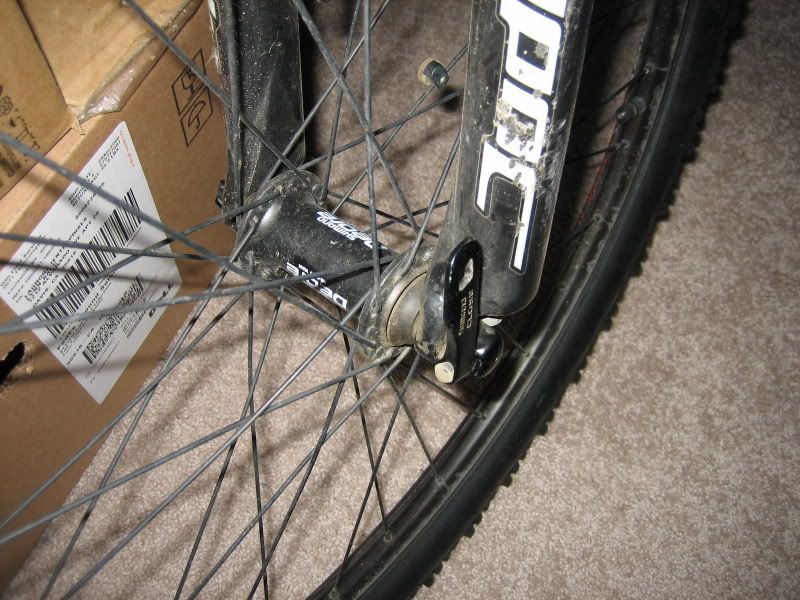

    picture of my front hub

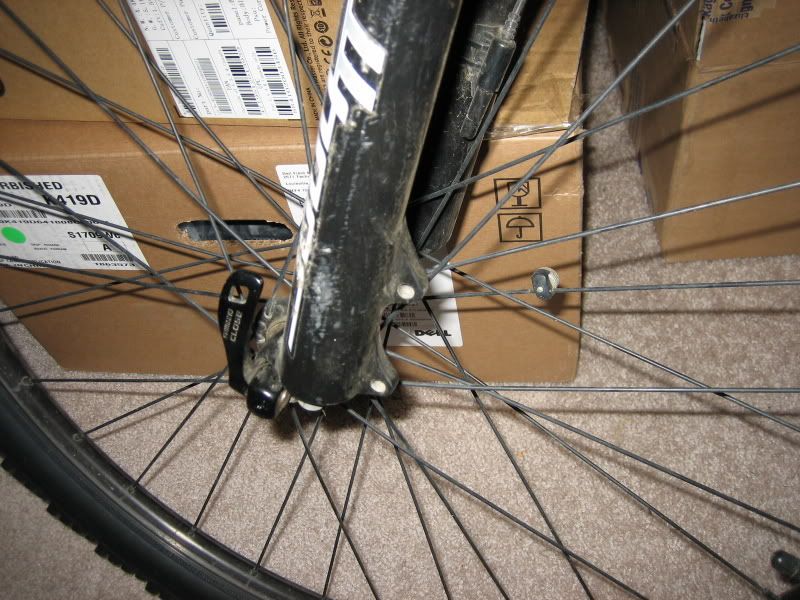

    picture of the fork with the two holes im talking about

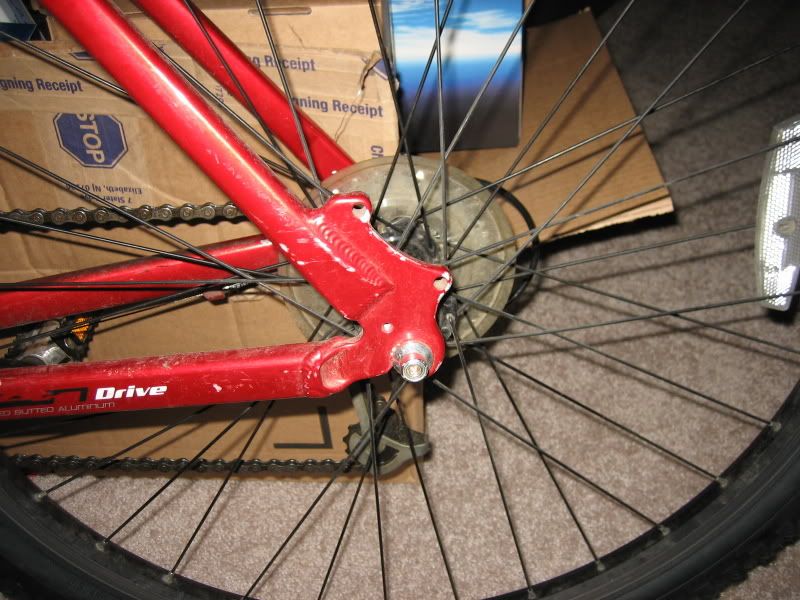

    picture of the seatstay with the two holes too

  12. #12
    Senior Member mzeffex's Avatar
    Join Date
    Mar 2009
    Location
    Fort Collins, CO
    My Bikes
    2011 S-works Tarmac SL3 Red, 2009 Fuji SLM 2.0 XT, 1986 Lotus Grand Prix Luxe single speed, 2012 Blue Norcross, Torelli Tipo Uno
    Posts
    8,029
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Ok. Good news and bad news.

    Is your frame disc compatible? Yes. You're set.
    Is your fork disc compatible? Yes. You're set.
    Are your wheels disc compatible? No. New wheels, eh, well, if you want the brakes, gotta do it. I reccomend www.jensonusa.com for good deals.
    As for the levers.. I'm not positive, but I think so. If not you can get a brake set that includes levers, then just buy new shifters. Cheap, say, $20 for the set.

  13. #13
    worship satan. johnnytheboy's Avatar
    Join Date
    Feb 2008
    Location
    USA! USA! USA!!
    My Bikes
    all of them.
    Posts
    2,330
    Mentioned
    10 Post(s)
    Tagged
    0 Thread(s)
    Avid fr5 levers should run you $15 or so...good levers.
    I upgraded from the stock shifters/brake lever combo and tektro disc brakes to sd7 levers and bb7 discs.....didn't think I'd really notice, but its like night and day.
    Go for the discs, and get good ones.
    The tektro's were a pita to adjust, and the bb7's have on-the-trail-no-tools-needed-adjustment.
    Totally rad.
    http://www.pedalroom.com/members/johnnytheboy
    ^pedalroom.

  14. #14
    use your best eye kenhill3's Avatar
    Join Date
    Mar 2006
    Location
    Olympia, Washington
    My Bikes
    '75 Bertin, '93 Parkpre Team 925, '04 Kona King Kikapu, '05 Bianchi Vigorelli
    Posts
    3,054
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Your present levers will work just fine with BB7's, as will ANY V-brake lever.

    Here's your wheels, Shimano Deore/Sun Rynolite disc wheelset. This is a standard commodity in good budget disc wheels. Can't beat it for under a c-note.

    http://www.jensonusa.com/store/produ...+Wheelset.aspx
    "I tell you, We are here on earth to fart around, and don't let anybody tell you any different." - Kurt Vonnegut jr.

  15. #15
    Senior Member
    Join Date
    May 2008
    Location
    NORCAL
    Posts
    102
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    this is so awesome guys. thanks for all the help. so im gonna dive in and get:

    1. BB7 set for the front
    2. the suggested shimano deore/sun rhino wheelset
    3. SD7 upgrade for the rear

    i dont want to upgrade both wheels to disc as it will cost a tad more than i want to spend rightnow. just want to hang around $100ish...

    and since you said my current shimano alivio stock levers will work for the brakes...then im not gonna worry about "upgrading" those.
    Last edited by kaitanium; 05-09-09 at 03:44 AM.

  16. #16
    Senior Member
    Join Date
    May 2008
    Location
    NORCAL
    Posts
    102
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    also it seems as if the front brake line is only long enough to reach the current calipers...is that gonna be a problem for the disc brake since its set lower down the fork?

    and 160mm i suppose is a good size for the disc? do i need 185mm?

    almost ready to pull the trigger! too bad jenson has tax!!!
    Last edited by kaitanium; 05-09-09 at 03:51 AM.

  17. #17
    Older than dirt CCrew's Avatar
    Join Date
    May 2008
    Location
    Winchester, VA
    My Bikes
    Too darn many.. latest count is 11
    Posts
    5,345
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by kaitanium View Post
    also it seems as if the front brake line is only long enough to reach the current calipers...is that gonna be a problem for the disc brake since its set lower down the fork?

    and 160mm i suppose is a good size for the disc? do i need 185mm?

    almost ready to pull the trigger! too bad jenson has tax!!!
    You'll need a front brake cable.
    160 is fine. 185 is overkill.

  18. #18
    use your best eye kenhill3's Avatar
    Join Date
    Mar 2006
    Location
    Olympia, Washington
    My Bikes
    '75 Bertin, '93 Parkpre Team 925, '04 Kona King Kikapu, '05 Bianchi Vigorelli
    Posts
    3,054
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by CCrew View Post
    You'll need a front brake cable.
    160 is fine. 185 is overkill.
    And you'll need some housing for the front (another forgotten bit). Hope that doesn't put you over the top.
    "I tell you, We are here on earth to fart around, and don't let anybody tell you any different." - Kurt Vonnegut jr.

  19. #19
    Senior Member
    Join Date
    May 2008
    Location
    NORCAL
    Posts
    102
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    housing? LOL. ok. its pushing the $$$ higher!!

    what do i really need? so the list so far:

    1. BB7 set for the front
    2. the suggested shimano deore/sun rhino wheelset
    3. SD7 upgrade for the rear
    4. front brake cable <---any suggestions?
    5. housing <----??? what is this

  20. #20
    Senior Member mzeffex's Avatar
    Join Date
    Mar 2009
    Location
    Fort Collins, CO
    My Bikes
    2011 S-works Tarmac SL3 Red, 2009 Fuji SLM 2.0 XT, 1986 Lotus Grand Prix Luxe single speed, 2012 Blue Norcross, Torelli Tipo Uno
    Posts
    8,029
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Housing is the black plastic cover for the outside. Make sure you get brake housing not shift cable, not the same stuff. Front brake cable = whatever is cheapest. $3 cables fine, keep in mind the length you need as people said.

    Also, what are SD7s? That you are getting for the rear.
    Quote Originally Posted by rjones28 View Post
    Are they talking about spectators feeding the cyclists? You know, like don't feed the bears?

  21. #21
    Senior Member yellowjeep's Avatar
    Join Date
    Aug 2005
    Location
    Lawrence
    Posts
    3,267
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Single digit 7 V brakes
    When in doubt, style it out.

    How to post full size pictures

  22. #22
    Senior Member
    Join Date
    May 2008
    Location
    NORCAL
    Posts
    102
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    ohhhhh, i though when you guys stated "housing" you meant for the brakes themselves....for the brake line makes sense.

    i have decided to do a full BB7 upgrade, after todays mountain ride for me...i think its called for to have better brakes.

  23. #23
    Senior Member
    Join Date
    May 2008
    Location
    NORCAL
    Posts
    102
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    will this housing kit be good? do i need two of these (one for front and back)
    http://www.jensonusa.com/store/produ...sing+Kits.aspx

    im trying to get everything from jenson as most of the stuff i want is pretty decent in deals (thanks for the recommendation!!)
    Last edited by kaitanium; 05-10-09 at 01:52 PM.

  24. #24
    Shop Wench
    Join Date
    Mar 2009
    Location
    California
    Posts
    284
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    In case you ever decide to change your shifters: Your current Alivio combination shift/brake levers look to be Shimano ST-MC20. The SL-MC20 is the shifters only version.

  25. #25
    Senior Member
    Join Date
    May 2008
    Location
    NORCAL
    Posts
    102
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    good call. thx!
