Replacing Cog

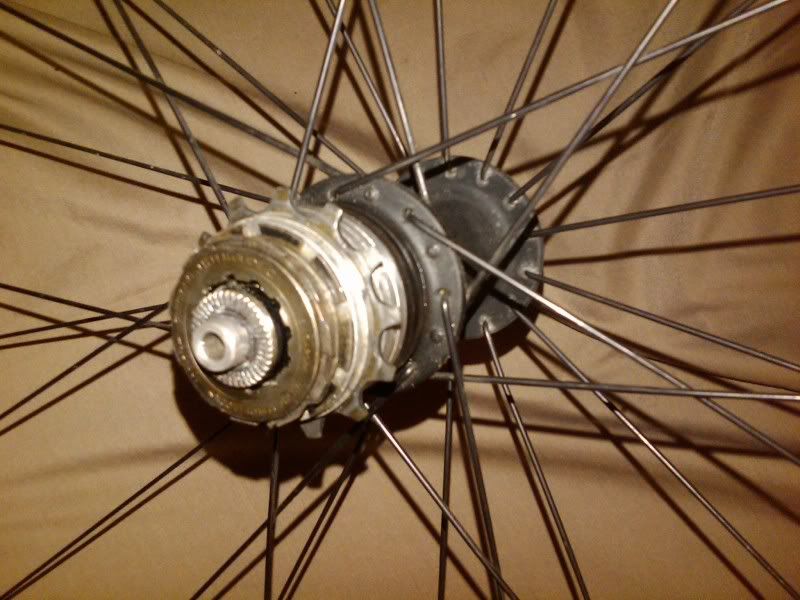

So, I have a singlespeed and when i bought it, the person gave me an extra 14t cog. I want to replace it w/ the one i have on the bike currently (which is also a 14t) b/c its looking worn and it's giving me problems... I've been searching on here and google but cant find what i'm looking for. Any help would be awesome. I can't figure out how to get the old one off. All i've succedded at is taking the wheel off the bike and getting the bolt out. [/IMG]

lol. that's as far as i've gotten. sorry, i'm at newb at this!
FSU Matt is offline   Reply With Quote
Old 07-21-09, 05:29 PM   #2
tgscordv6
Senior Member

Join Date: Jun 2008
Location: Chicago, IL
Bikes:
Posts: 515
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Use lockring spanner and turn clockwise to take off lockring.
Use chainwhip and turn counterclockwise to take off cog.

Cog and lockring goes on the opposite direction.
tgscordv6 is offline   Reply With Quote
Old 07-21-09, 05:32 PM   #3
ianjk
:)

Join Date: Nov 2006
Location: duluth
Bikes: '07 Pista, '09 Fantom Cross Uno, '8? Miyata, '67 Stingray, '0? Zoo mod trials, Tallbike, Chopper, '73 Schwinn Collegiate, '67 Triumph Chopper, '69 CB350, '58 BSA Spitfire, '73 CB450
Posts: 3,392
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by tgscordv6 View Post
Use lockring spanner and turn clockwise to take off lockring.
Use chainwhip and turn counterclockwise to take off cog.

Cog and lockring goes on the opposite direction.
nope...


http://www.parktool.com/repair/readhowto.asp?id=45

freehub is different.
ianjk is offline   Reply With Quote
Old 07-21-09, 05:44 PM   #4
ianjk
:)

Join Date: Nov 2006
Location: duluth
Bikes: '07 Pista, '09 Fantom Cross Uno, '8? Miyata, '67 Stingray, '0? Zoo mod trials, Tallbike, Chopper, '73 Schwinn Collegiate, '67 Triumph Chopper, '69 CB350, '58 BSA Spitfire, '73 CB450
Posts: 3,392
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Identify hub then use proper tool: http://www.parktool.com/products/category.asp?cat=4

or go to LBS and have them do it for a couple dollars.
ianjk is offline   Reply With Quote
Old 07-21-09, 05:44 PM   #5
FSU Matt
Junior Member
Thread Starter

Join Date: Feb 2008
Bikes:
Posts: 16
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
cool thanks.... if i dont have either of those tools am I SOL? Can i do this if i dont have a chain whip? http://204.73.203.34/fisso/eng/schpignone.htm

has anyone heard of this hub before? good/bad/just whatever?


TIA
- Matt
FSU Matt is offline   Reply With Quote
Old 07-21-09, 06:00 PM   #6
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Bikes: 2013 Kona Jake, 2015 Kona Jake the Snake, 2008 Kona Major Jake, 2013 Kona Jake the Snake, 2006 Kona Kula, 2012 Ridley Excalibur, 2008 Surly Long Haul Trucker, 2001 LeMond Buenos Aires, 1984 Pinarello Gran Turismo, 1982 Trek 614, 1979 Austro-Daimler
Posts: 8,529
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Quote:
Originally Posted by ianjk View Post
Identify hub then use proper tool: http://www.parktool.com/products/category.asp?cat=4

or go to LBS and have them do it for a couple dollars.
This is what you need to do. If you had the tools, it would take you about five minutes to do. The LBS probably won't charge you much, but you could probably buy the tools for about $20.

This is also a good time to check your chainline if you're having trouble. If it's off, you could fix it by moving a spacer or two while you have the lockring off.
Andy_K is offline   Reply With Quote
Old 07-21-09, 06:07 PM   #7
FSU Matt
Junior Member
Thread Starter

Join Date: Feb 2008
Bikes:
Posts: 16
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
the prob i have (i think is due to the cog) is when i go to pedal hard, sometimes the chain likes to pop off, which obv is dangerous.... lol.
FSU Matt is offline   Reply With Quote
Old 07-21-09, 06:18 PM   #8
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Bikes: 2013 Kona Jake, 2015 Kona Jake the Snake, 2008 Kona Major Jake, 2013 Kona Jake the Snake, 2006 Kona Kula, 2012 Ridley Excalibur, 2008 Surly Long Haul Trucker, 2001 LeMond Buenos Aires, 1984 Pinarello Gran Turismo, 1982 Trek 614, 1979 Austro-Daimler
Posts: 8,529
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Quote:
Originally Posted by FSU Matt View Post
Can i do this if i dont have a chain whip? http://204.73.203.34/fisso/eng/schpignone.htm
Those instructions are for removing a track cog. What you have is a freehub with a splined cog and spacers. Incidentally, it looks from the picture like you're a spacer short. Does your cog slide back and forth a little?

My guess is that the hub is shimano splined, which would mean you need to FR-5 tool from Park and a chain whip to get the lockring off. You can make the chainwhip yourself if you have a chain tool and an old chain that you don't mind breaking apart.


Quote:
Originally Posted by FSU Matt View Post
has anyone heard of this hub before? good/bad/just whatever?
I don't know anything about it. Google "Coda expert hub" and you'll find a few mentions of it.
Andy_K is offline   Reply With Quote
Old 07-21-09, 06:19 PM   #9
Andy_K
Senior Member

Andy_K's Avatar

Join Date: Jan 2008
Location: Beaverton, OR
Bikes: 2013 Kona Jake, 2015 Kona Jake the Snake, 2008 Kona Major Jake, 2013 Kona Jake the Snake, 2006 Kona Kula, 2012 Ridley Excalibur, 2008 Surly Long Haul Trucker, 2001 LeMond Buenos Aires, 1984 Pinarello Gran Turismo, 1982 Trek 614, 1979 Austro-Daimler
Posts: 8,529
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 51 Post(s)
Quote:
Originally Posted by FSU Matt View Post
the prob i have (i think is due to the cog) is when i go to pedal hard, sometimes the chain likes to pop off, which obv is dangerous.... lol.
That could be from a worn cog, but it could also be insufficient chain tension or bad chainline.
Andy_K is offline   Reply With Quote
Old 07-21-09, 06:27 PM   #10
Bacchusbill
Senior Member

Bacchusbill's Avatar

Join Date: Jun 2006
Location: NOLA
Bikes: '00 Bruce Gordon Rock and Road Tour, '01 Breezer Venturi, '97 Specialized Stumpjumper M2 Pro, '87 GT Timberland, '82 Benotto single speed, '48 Schwinn Phantom, '71 Schwinn Pea Picker, '07 BFSSFGIRO
Posts: 173
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by FSU Matt View Post
cool thanks....

has anyone heard of this hub before? good/bad/just whatever?

TIA
- Matt
Coda was the house brand from cannondale.
__________________
"Get a bicycle. You will not regret it if you live." ~Mark Twain
Bacchusbill is offline   Reply With Quote
Old 07-21-09, 06:34 PM   #11
FSU Matt
Junior Member
Thread Starter

Join Date: Feb 2008
Bikes:
Posts: 16
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Yeah, it is a shimano hyperglide c. i think i'll go to the LBS and get the tools but ask them to do it so i can see how it's done. but thanks for all the help!
Yeah, now that i think of it, the guy did mention they were from a cannondale.
