different locknut on threaded 1inch headset...

Hi!
so here is your traditional threaded headset:


the locknut and threaded top race have flats for using a wrench to tighten/loosen.

HOWEVER, over hauling a friend's trashed old road bike (which i believe is japanese. no clue as to make), the locknut and threaded top race DO NOT have the hexagonal flats im used to seeing, BUT they are perfectly round with the exception of 3 notches with which im assuming you need a special 3 pronged tool.

any info on this type of threaded headset?
how to remove/loosen/and/or tighten?
do i need a special tool? or?

thanks!
illdthedj is offline   Reply With Quote
Old 10-28-10, 05:13 PM   #2
Squirrelli
GONE~

Join Date: Apr 2010
Bikes:
Posts: 6,757
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I think your friend is missing a locknut, that thing with the 3 notches is a spacer. I actually have one right now, you can use your lockring tool to unscrew that spacer or you could use a hammer and a flathead.
Squirrelli is offline   Reply With Quote
Old 10-28-10, 05:16 PM   #3
illdthedj
Senior Member
Thread Starter

illdthedj's Avatar

Join Date: Mar 2010
Location: Modesto, Ca
Bikes: klein quantum, litespeed tuscany, bianchi pista concept, centurion comp ta, centurion super le mans, traitor ringleader
Posts: 2,280
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
i dont think it is, the threaded crown race has the same exact thing going on. i tried the lockring tool but its too big.
illdthedj is offline   Reply With Quote
Old 10-28-10, 05:22 PM   #4
Squirrelli
GONE~

Join Date: Apr 2010
Bikes:
Posts: 6,757
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
There's always the hammer + flathead as your last resort...
Squirrelli is offline   Reply With Quote
Old 10-28-10, 05:23 PM   #5
nimbuscrenel
Senior Member

nimbuscrenel's Avatar

Join Date: Mar 2007
Location: Boise, ID
Bikes:
Posts: 185
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Pretty sure you are missing the top nut- my old Raleigh Rampar has the notched nuts(they're not spacers) and still has the top nut.
nimbuscrenel is offline   Reply With Quote
Old 10-28-10, 05:29 PM   #6
illdthedj
Senior Member
Thread Starter

illdthedj's Avatar

Join Date: Mar 2010
Location: Modesto, Ca
Bikes: klein quantum, litespeed tuscany, bianchi pista concept, centurion comp ta, centurion super le mans, traitor ringleader
Posts: 2,280
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
no, im pretty sure the top nut is notched.
there is the 3 notch top nut, 2 spacers, and 3 notch threaded top race.

the top nut on this headset has the same curved top like in the above pic, but instead of flats its the 3 notches.

however i could be wrong....
illdthedj is offline   Reply With Quote
Old 10-28-10, 05:39 PM   #7
illdthedj
Senior Member
Thread Starter

illdthedj's Avatar

Join Date: Mar 2010
Location: Modesto, Ca
Bikes: klein quantum, litespeed tuscany, bianchi pista concept, centurion comp ta, centurion super le mans, traitor ringleader
Posts: 2,280
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
oh btw thanks for the input guys,
dont mean to come off as "hey whats your opinion on this?" ...*answer* "NO UR WRONG" lol

i guess if more people chime in and concur, then ill defintely believe it...

BUT vixtor says the 3 notch things are spacers, but there are two spacers in between the two 3 notch pieces, and they dont have notches....
and i think the thing on top is a top lock nut, because it has the same rounded top, but instead of hexagonal flats it has 3 notches.


anyway i was going to take everything off, clean and grease, then reinstall.....but the headset seems to rotate smoothly already, it just seems loose. so i might just hammer it tighter with a flat head screwdriver.
illdthedj is offline   Reply With Quote
Old 10-28-10, 06:05 PM   #8
Squirrelli
GONE~

Join Date: Apr 2010
Bikes:
Posts: 6,757
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)


I actually am not certain if it is a spacer, I've seen one of the 3 notched rings in between locknut and top race before at the co-op. I have one right now that I didn't use, so I don't know.
Squirrelli is offline   Reply With Quote
Old 10-28-10, 06:21 PM   #9
TejanoTrackie
Veteran Racer

TejanoTrackie's Avatar

Join Date: Jul 2009
Location: Ciudad de Vacas, Tejas
Bikes: 29 frames + 73 wheels
Posts: 10,262
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 89 Post(s)
I'd try posting in C&V. Those guys have seen all kinds of old wierd stuff. If you don't care about the finish on the headset parts, you could try using a channelock wrench and / or Visegrips.
__________________
What, Me Worry? - Alfred E. Neuman

Quote:
Originally Posted by Dcv View Post
I'd like to think i have as much money as brains.
I see the light at the end of the tunnel, but the tunnel keeps getting longer - me
TejanoTrackie is offline   Reply With Quote
Old 10-28-10, 07:01 PM   #10
cc700
Ths Hipstr Kills Masheenz

cc700's Avatar

Join Date: Oct 2006
Location: seattle
Bikes: tirove
Posts: 8,551
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by TejanoTrackie View Post
I'd try posting in C&V. Those guys have seen all kinds of old wierd stuff. If you don't care about the finish on the headset parts, you could try using a channelock wrench and / or Visegrips.
i care about the finish and i still used a visegrip. my wrenches were just a mil too small.

visegrips = gods gift to man
cc700 is offline   Reply With Quote
Old 10-28-10, 08:12 PM   #11
Scrodzilla
There goes Tokyo

Scrodzilla's Avatar

Join Date: May 2009
Location: San Diego, CA
Bikes: EAI Bare Knuckle, 1975 Raleigh Pro Track
Posts: 26,629
Mentioned: 6 Post(s)
Tagged: 0 Thread(s)
Quoted: 140 Post(s)

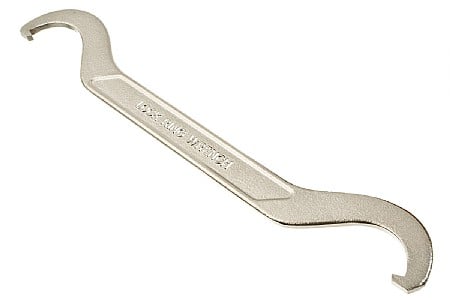

I've seen funky old headsets that look exactly as you're describing. We've got what looks like a BB lockring wrench at the shop that fits them. Your LBS may have one as well.
__________________
Scrodzilla is offline   Reply With Quote
Old 10-28-10, 09:17 PM   #12
JohnDThompson
Old fart

JohnDThompson's Avatar

Join Date: Nov 2004
Location: Appleton WI
Bikes: Several, mostly not name brands.
Posts: 16,526
Mentioned: 4 Post(s)
Tagged: 0 Thread(s)
Quoted: 125 Post(s)
JohnDThompson is offline   Reply With Quote
Old 10-28-10, 09:45 PM   #13
cc700
Ths Hipstr Kills Masheenz

cc700's Avatar

Join Date: Oct 2006
Location: seattle
Bikes: tirove
Posts: 8,551
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
i need a 32mm hs wrench but i am not about to pay for one. i really need a house so i can buy a whole tool set.
cc700 is offline   Reply With Quote
Old 10-29-10, 01:14 AM   #14
cnnrmccloskey
Senior Member

cnnrmccloskey's Avatar

Join Date: May 2009
Location: Portland Oregon
Bikes: '82 Giante super challange, 70 Gitane Tour de France, GT Gutterball
Posts: 744
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Scrodzilla View Post
I've seen funky old headsets that look exactly as you're describing. We've got what looks like a BB lockring wrench at the shop that fits them. Your LBS may have one as well.
+1
cnnrmccloskey is offline   Reply With Quote
Old 10-29-10, 02:11 AM   #15
Squirrelli
GONE~

Join Date: Apr 2010
Bikes:
Posts: 6,757
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Quote:
Originally Posted by Scrodzilla View Post
I've seen funky old headsets that look exactly as you're describing. We've got what looks like a BB lockring wrench at the shop that fits them. Your LBS may have one as well.
Funny...I tried to use my bb lockring wrench to unscrew it but it was too large and the prongs could not catch onto the notches. I used the Hozan lockring wrench to loosen it.
Squirrelli is offline   Reply With Quote
Old 10-29-10, 03:54 PM   #16
nimbuscrenel
Senior Member

nimbuscrenel's Avatar

Join Date: Mar 2007
Location: Boise, ID
Bikes:
Posts: 185
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I'd really like to see a picture of this headset...
