    Custom TI Touring Bike Build Thread WITH PICTS

    I am building a new touring bike for a tour of Yunnan Province, China next spring.

    Black Sheep, of Fort Collins Colorado made this TI frame and fork to my specs. These folks have been just great throughout the entire process.

    Here are the specs:

    Top Tube 55
    Seat tube angle 73.25
    Headtube angle 72.5
    Headtube Height 150
    Chain Stays 43.5
    Spacing 135
    Braking Avid Road BB7 disc
    water bottle mounts 3
    Extras: Pump peg/ low rider eyelets, rear rack eyelets, fender eyelets, TI S&S couplers, Rear Disk Brake mount on chainstay for better rear rack clearance, Titanium Racks (have not yet arrived from fame builder, removable Canti brake tabs AND disk brake mounts for future flexability.

    Components
    Chris king hubs, stainless drive shell,
    Chris King headset
    and Shimano XTR crank and deraileurs
    Shimano Ultegra bar end shifters
    salsa 44-36-22
    SRAM 11-34 cassette
    Salsa Delgado Cross rims
    DT stainless straight spokes
    Brooks B17 narrow saddle

    Pictures posted soon. The build Process starts Monday Jan 19, so stay tuned!
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  2. #2
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

    Picts of frame - 1-15-09

    Here are the picts of the frame, just arrived From Black Sheep after being sent back for some modifications (removable canti Bosses, moved rear disc brake to chainstay)

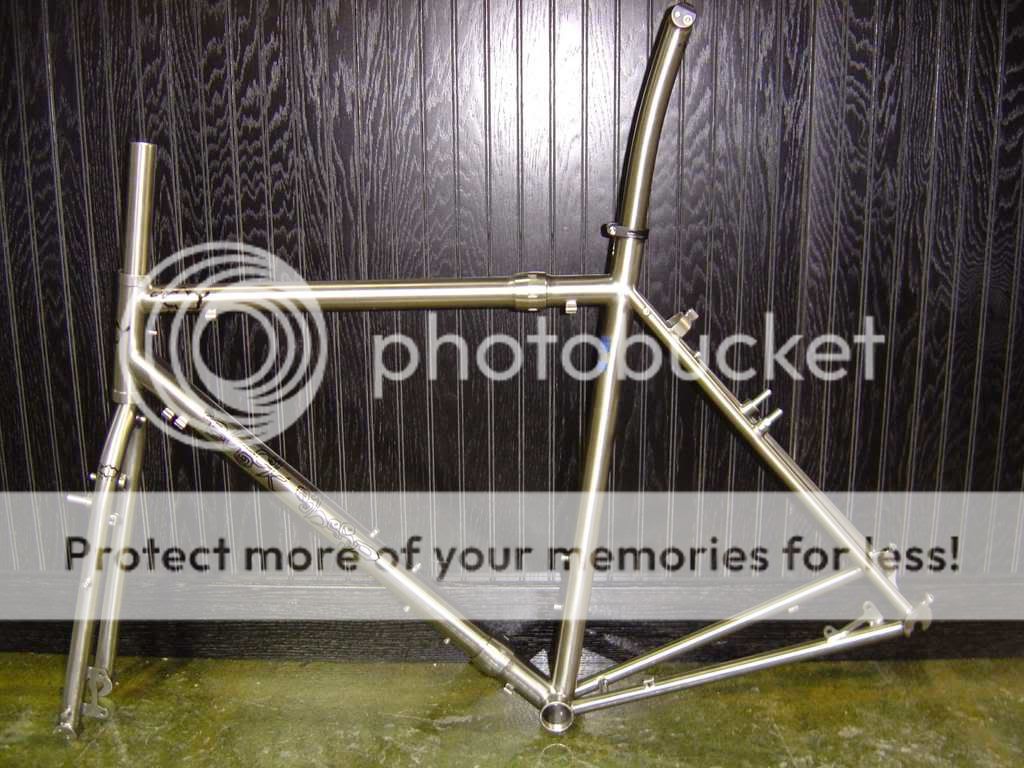

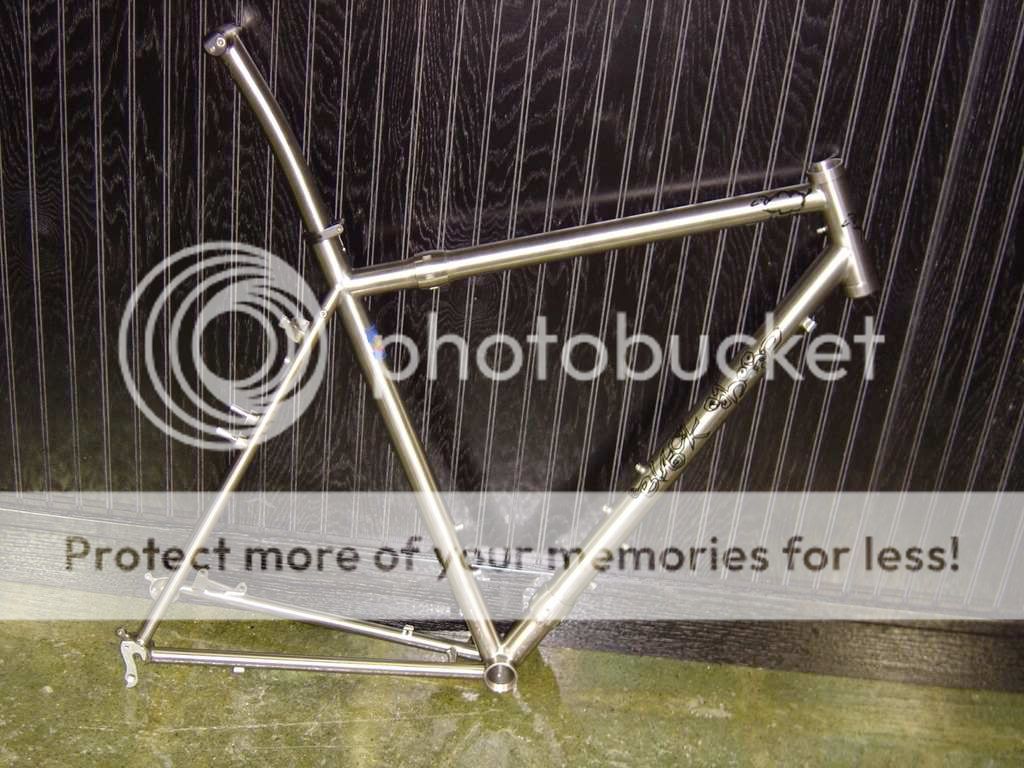

    Shot of the frame left side:


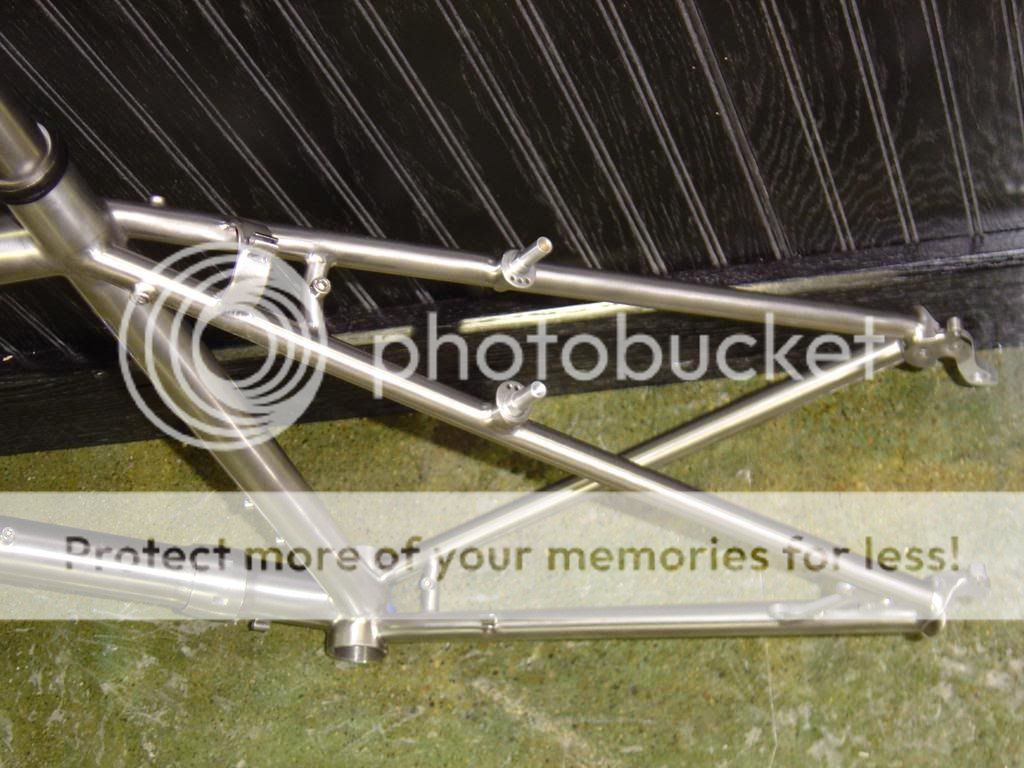

    Shot of the rear of the frame:


    Shot of the right side of frame:


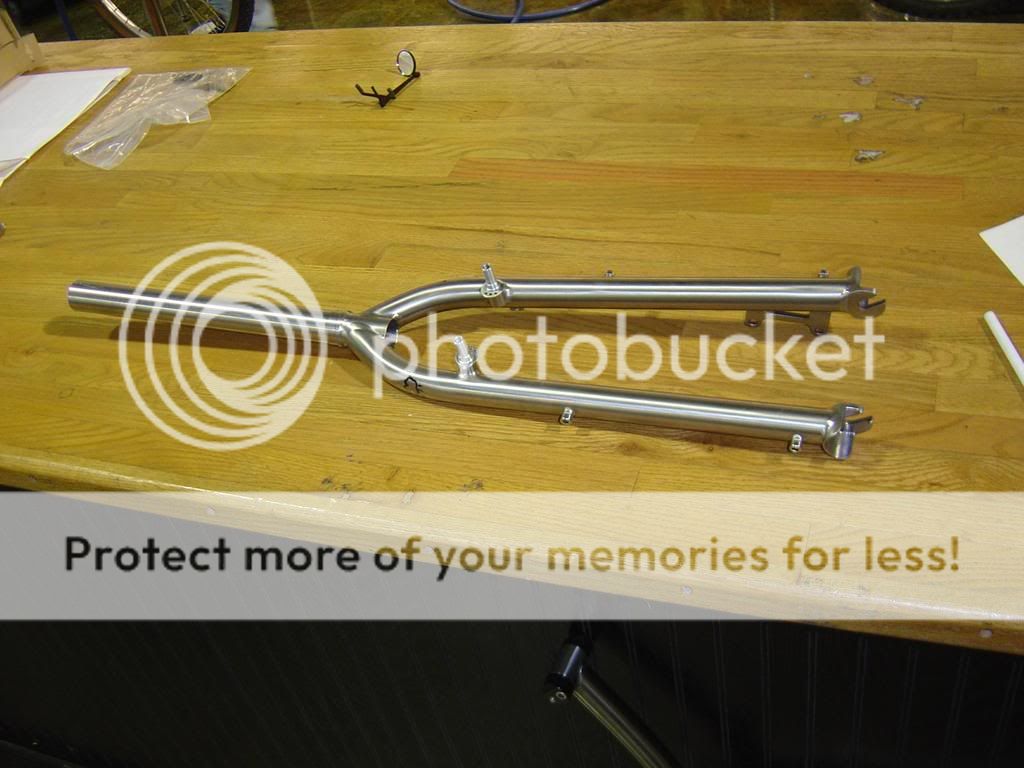

    Shot of the fork
    Last edited by jbpence; 01-21-09 at 09:08 PM.
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  3. #3
    Senior Member
    Join Date
    Apr 2008
    Location
    Iowa City, IA
    My Bikes
    2008 Surly LHT, 2008 Trek 7.2fx
    Posts
    433
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Sounds very nice. Out of curiosity, how much does something like this cost to have built? You don't have to answer, of course.
    2008 Surly Long Haul Trucker
    2008 Trek 7.2fx

  4. #4
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    the frame list price was just under 2500.00 not including the Titanium S&S couplers (800.00 list), the fork somewhat under 500.00. Compared to a Moots Mootour frame, very affordable, considering their base price and the cost of each and every customization.
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  5. #5
    Tarck Bike Dot Com bigbadwimp's Avatar
    Join Date
    Jan 2007
    Location
    Beaver Falls, PA
    Posts
    252
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    why do you have two different brake options?

  6. #6
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    like i said, for flexability. I might want to someday use canti brakes, myself. And if I sell the frame someday, the new buyer might want canti brakes instead of discs.

    and i intend to tour in some very out of the way places, where Avid road BB7s might night not be available, but canti brakes might be easily found. I like options
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  7. #7
    cyclopath vik's Avatar
    Join Date
    Apr 2006
    Location
    Victoria, BC
    My Bikes
    Surly LHT, Surly Big Dummy, Surly 1x1, Surly Pugsley, Bike Friday Tikit x 3, Bike Friday NWT, Bow Cycle 24, Santa Cruz Nomad
    Posts
    5,197
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Congrats on the new bike. Definitely post some photos when you get her built up...
    safe riding - Vik
    VikApproved

  8. #8
    sth
    sth is offline
    Senior Member sth's Avatar
    Join Date
    May 2005
    Location
    Vancouver, Wet Coast
    Posts
    305
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Mmmm, pretty frame. What is the purpose of the cups over the front drop outs? Do provide more bike porn as it comes to life.

  9. #9
    sth
    sth is offline
    Senior Member sth's Avatar
    Join Date
    May 2005
    Location
    Vancouver, Wet Coast
    Posts
    305
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    ...also, I like your choice of rear caliper mount location on the chain stay. My guy wouldn't put it there.

  10. #10
    Senior Member
    Join Date
    Feb 2007
    Posts
    2,317
    Mentioned
    1 Post(s)
    Tagged
    0 Thread(s)
    fantastic piece of work,it must be so light and super strong.do you have your groopset sorted.what other gear have you got for that beauty.as vik said please post some (lot's) pic's as soon as possible.

  11. #11
    member
    Join Date
    Feb 2008
    Location
    Ontario, Canada
    My Bikes
    Cannondale T1000
    Posts
    133
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Very nice frame and well thought out. Can't say much about their logo...:-)

  12. #12
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    crank and der's are shimano XTR - I want a 172.5mm crank and thats not available on the other shimano MTB cranks- cassette is SRAM, 44-36-22 rings are Salsa. most of the other components are in the first post.

    I'll be pulling an extrawheel voyager trailer, the 2009 model, which packs for airline travel better than the 'classic' model.

    it looks to me that the 'cups' over the front dropouts are to rim the end of the fork,note that these do not taper into the dropout -

    I'll post a frame and fork weight monday.
    Last edited by jbpence; 01-16-09 at 07:02 AM.
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  13. #13
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Just heard from Mike, at Aberdeen Bicycle in Chelsea that this fork has a breezer style dropout. The advantage of this style of dropout is mainly to the builder who is freed from having to roughly match their frame angles to the angles of the braze-in tab on a conventional dropout. It is Joe Breeze, who developed them originally, for whom they are named. The tabless design allows for almost any fork to dropout angle. for a pict of some breezer dropouts, see

    http://www.gaerlan.com/bikeparts/fra...s/dropout.html
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  14. #14
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

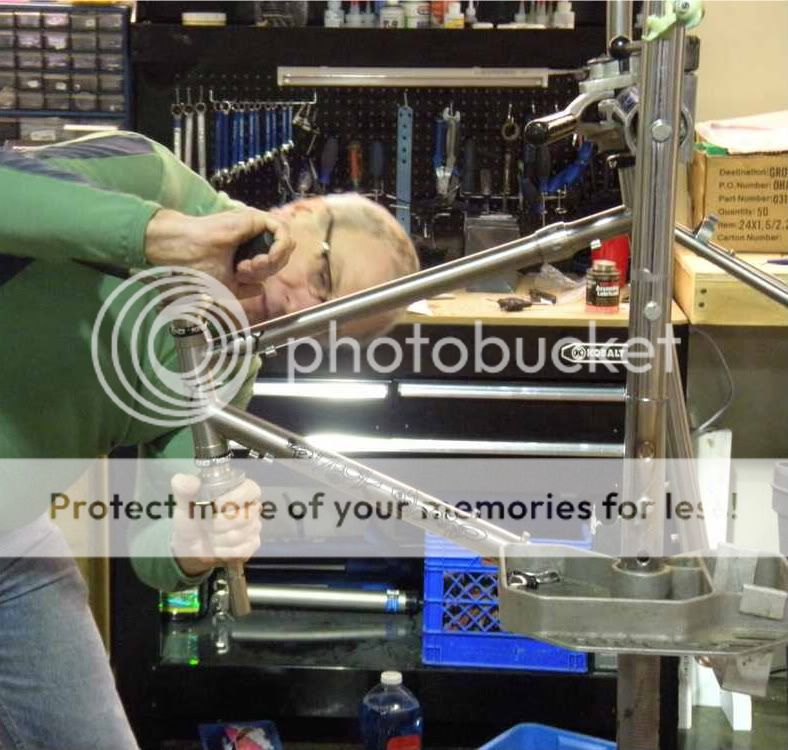

    day - part 1 - the welds LOOK GREAT



    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  15. #15
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

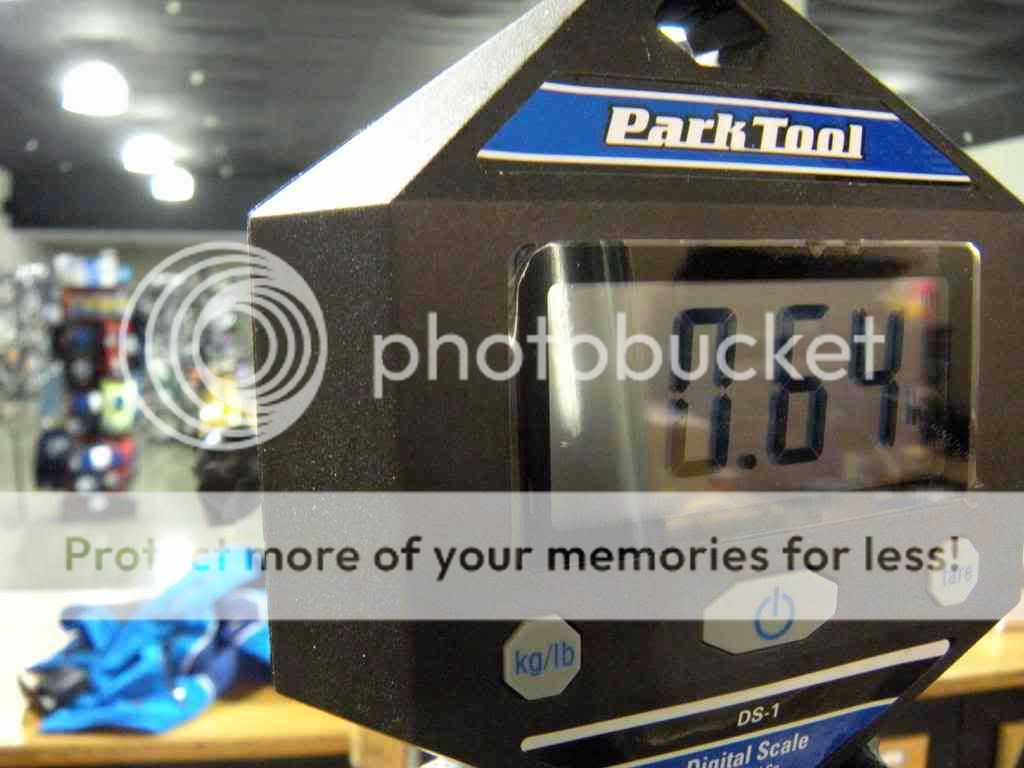

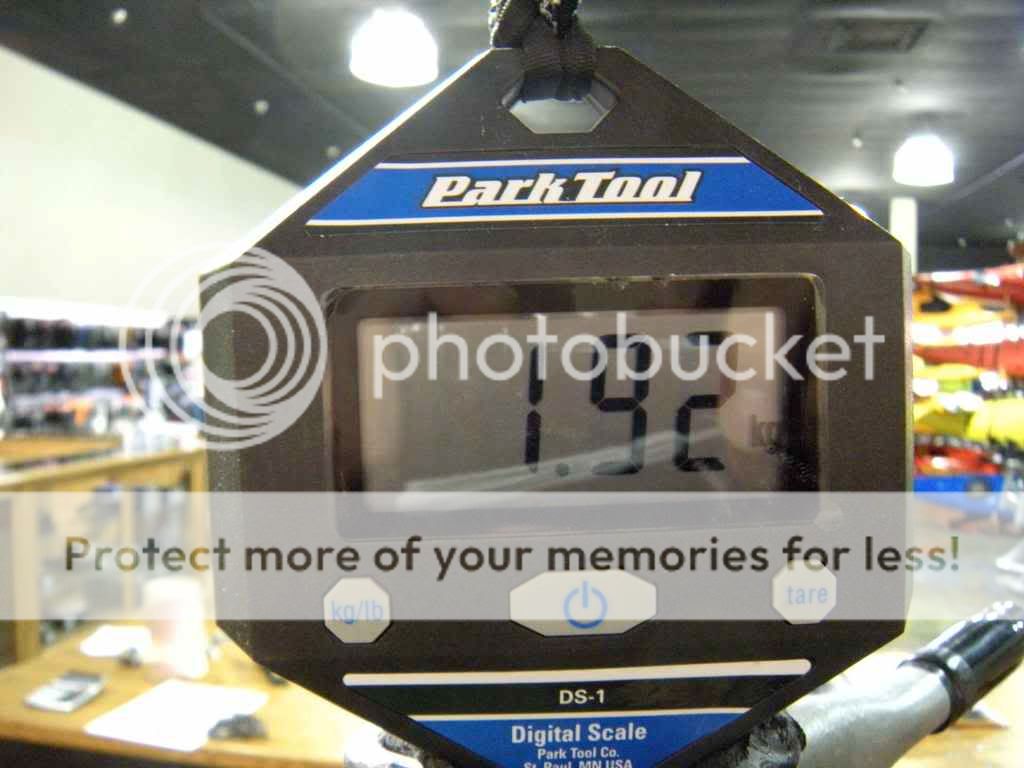

    Day one Part one - The weights are IN!



    Considering this is a fork designed for a disc brake for a bike that is a cross between a touring bike and a cycloscross bike, 640 grams seems pretty reasonable, I think.



    I am really happy about the 1920 gram TI frame... Mind you, one sees a lot of 1500-1600 gram racing frames in TI, (and some are even less, down to under 1200g). Keep in mind that this includes the weight of the Titanium S&S couplers somewhere around 260 grams for the pair. This frame is built to take some abuse, so the weight is, to me, really good.
    Last edited by jbpence; 01-20-09 at 08:34 AM.
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  16. #16
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)

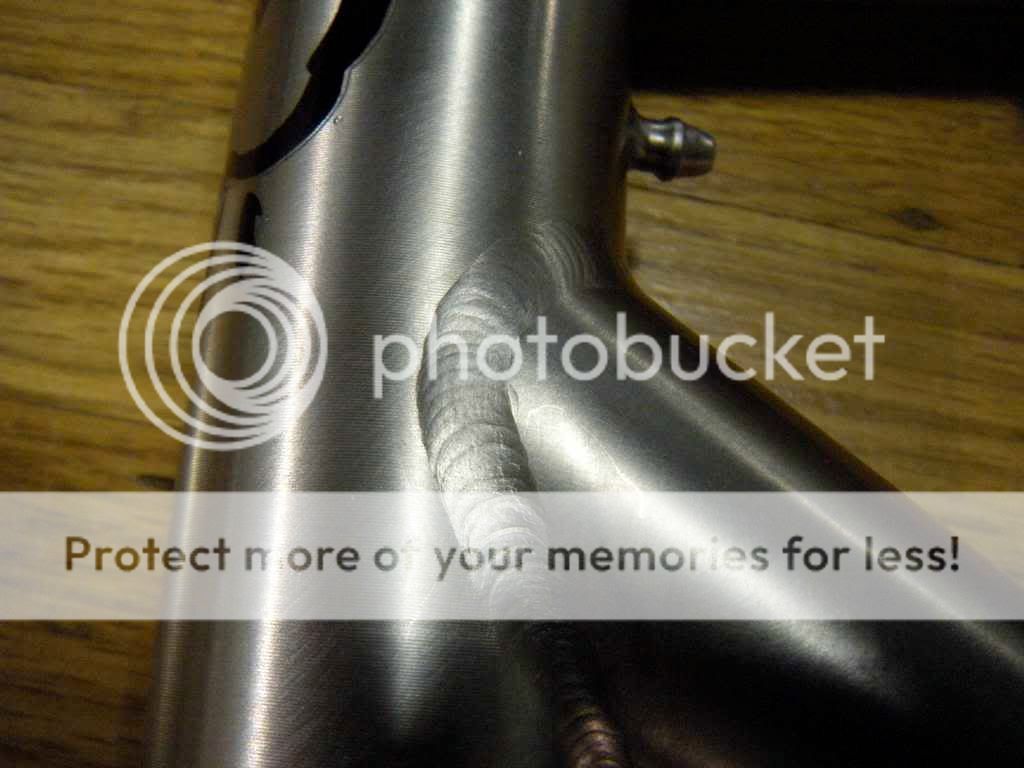

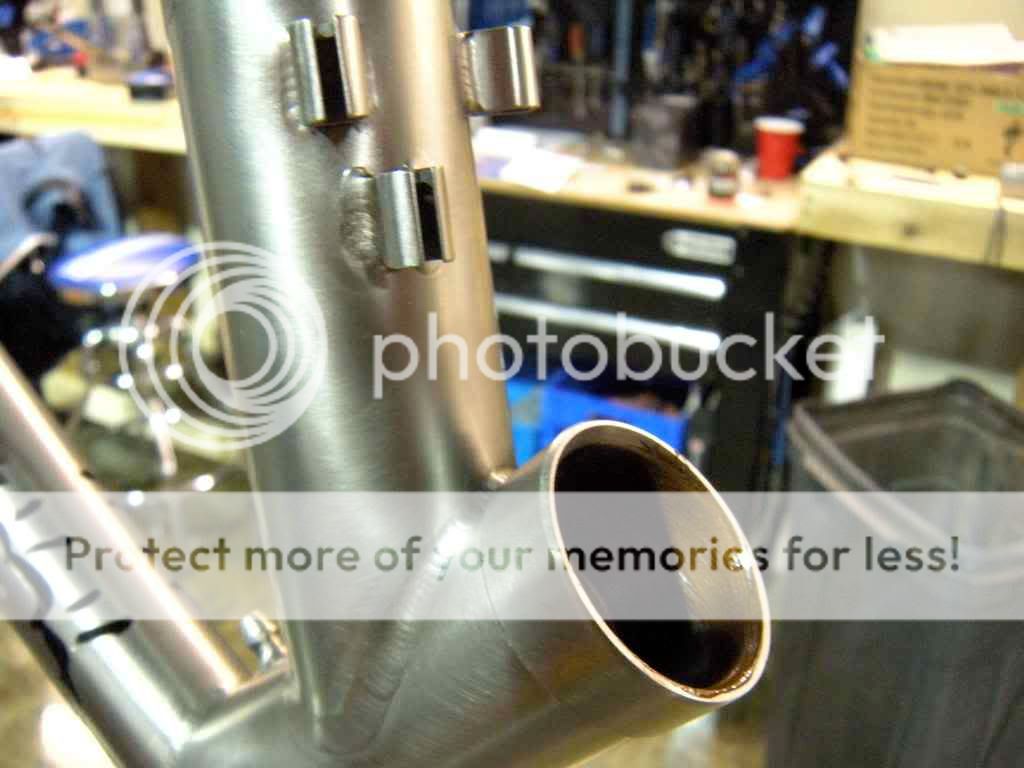

    The welds on this frame are remarkable.


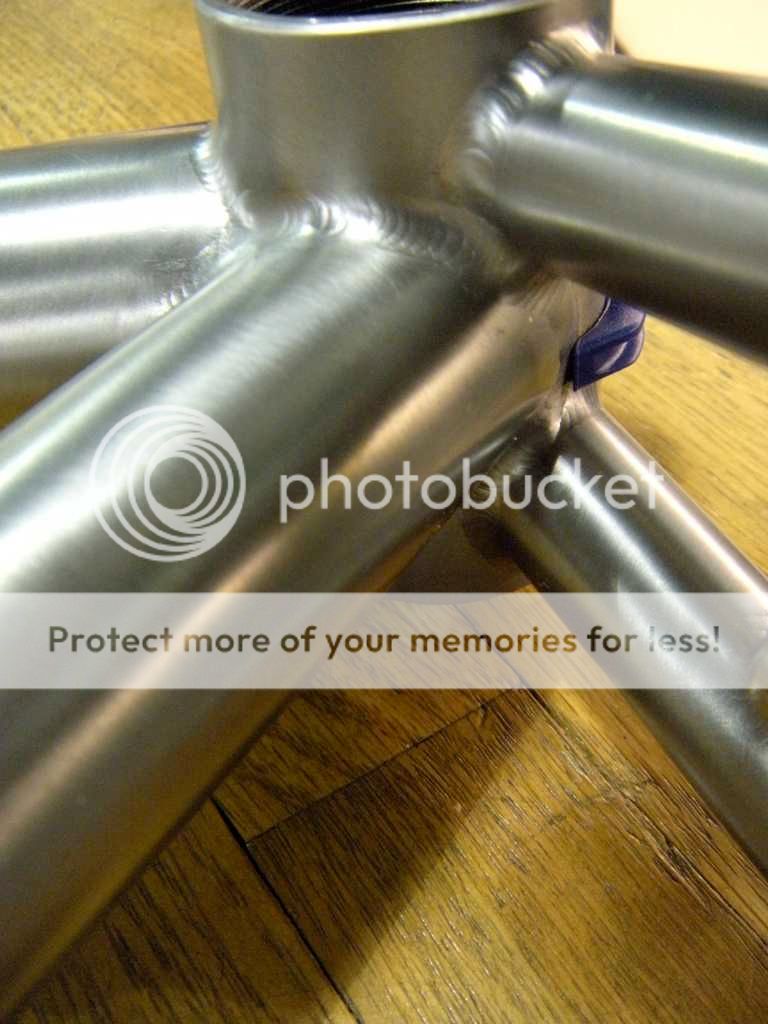

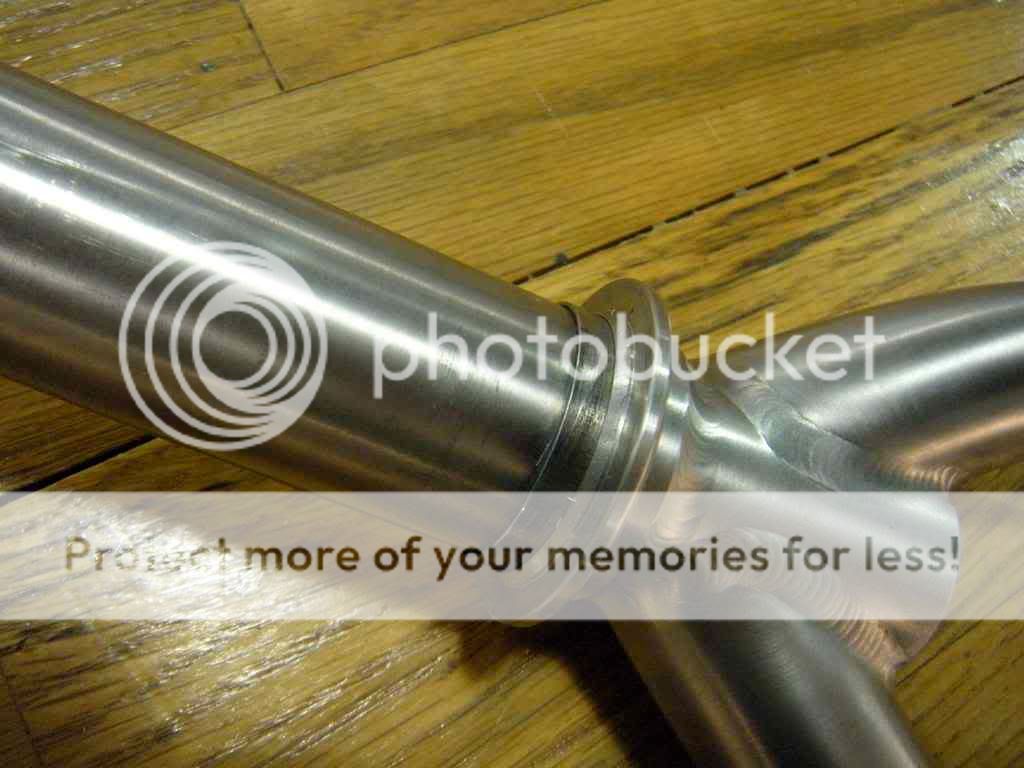

    the bottom bracket area

    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  17. #17
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Here the fork crown race is going on


    crown race installed

    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  18. #18
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Use Antiseize compound wherever metal contacts the titanium frame...


    using the headset press is harder than I thought it would be



    et voila!

    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  19. #19
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Still day one - installing a front deraileur

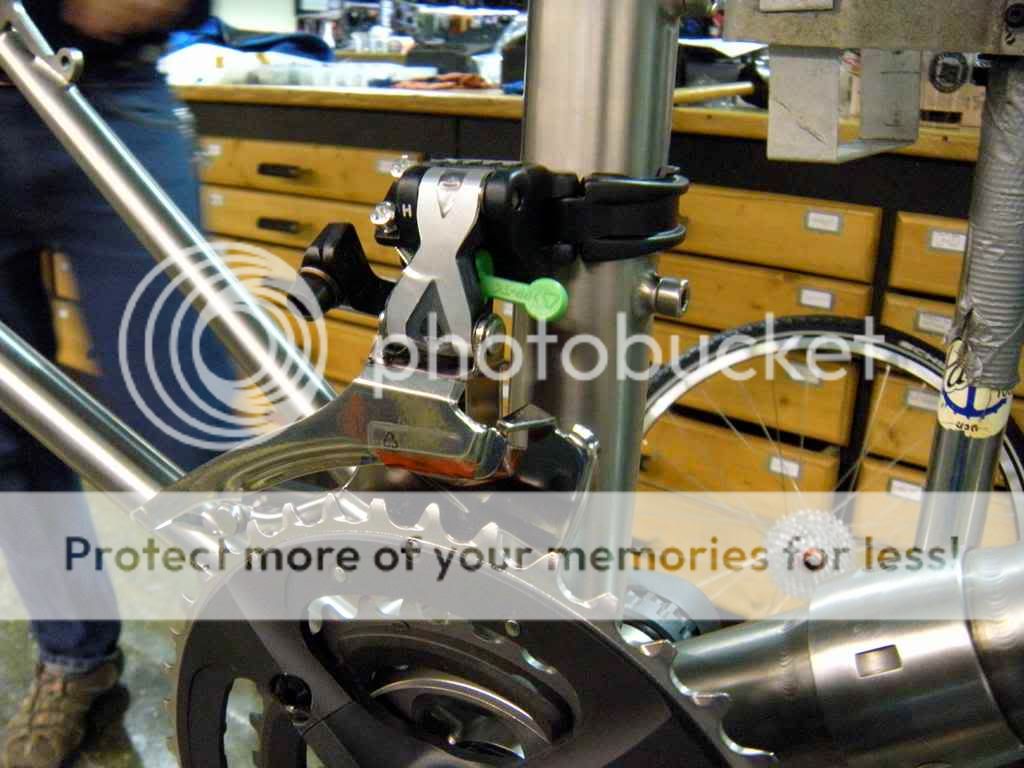

    going to need these shims for my size of seat tube



    fastening the derailleur to the tube


    this is looking pretty snazzy - I start imagining the front der efficiently selecting rings as I pedal through the mountains of China


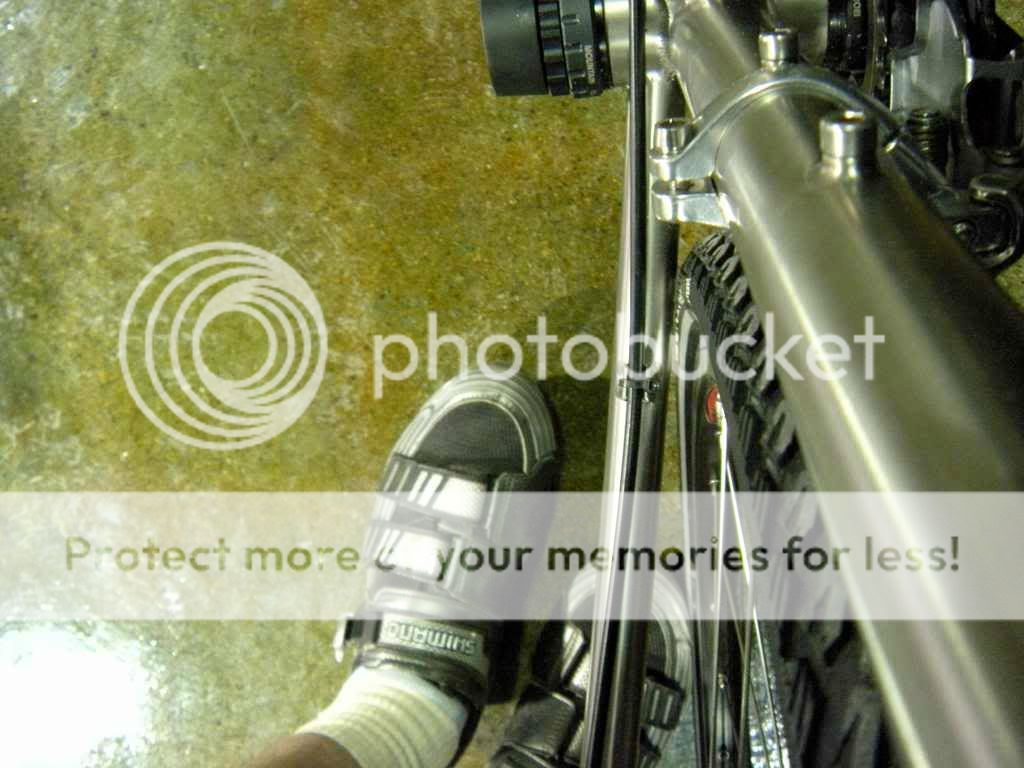

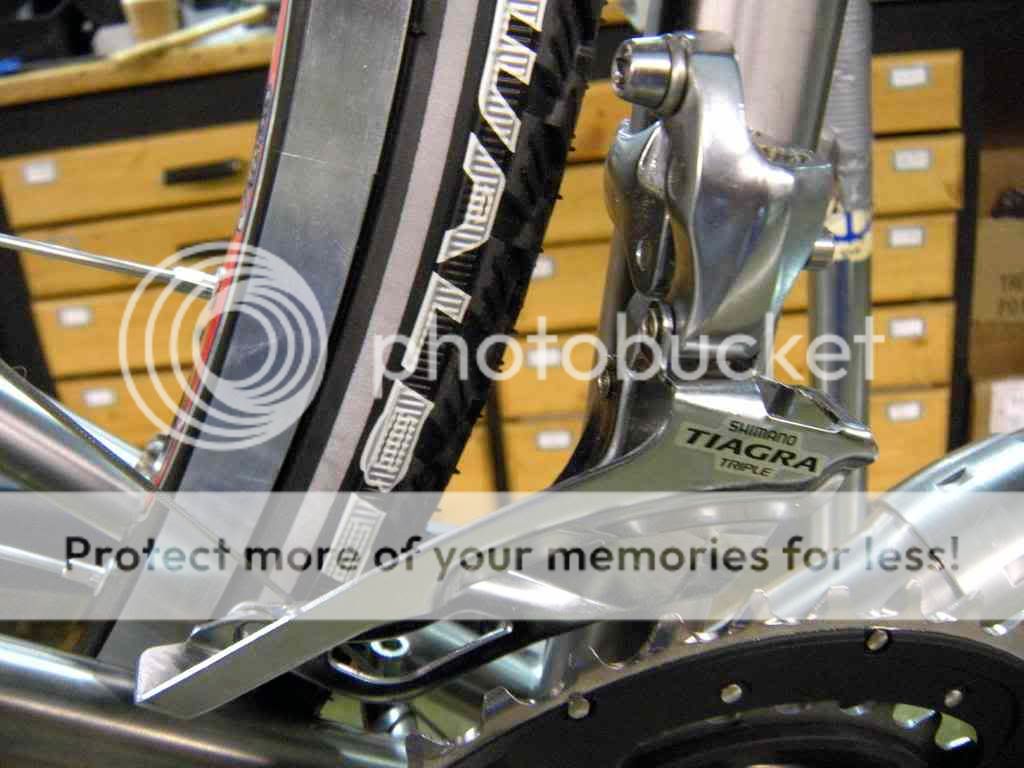

    DANGER, WILL ROBINSON. Yeeks. this clearance looks a tad tight. WAY TIGHT. Hmmmm. Not GOOD, I am thinking. No room for this deraileur let alone room for a fender. This is a A Schwalbe Marathon in a 35. Our frame spec said I would be able to get a 45 in here. Hmmmm. Need a different derailleur for sure, and even then will a fender fit in there?? and will a 45 tire?? I am starting to get hives thinking about what's up here... Only three weeks until I depart for China, and this is a... well... a surprise for sure




    Ok, so a tiagra road derailleur "sorta" fits, so an Ulltegra will too... I'd rather use the XTR derailleur, but on my trek 520 the Tiagra worked with the Deore crank (and the 22 tooth small ring) I had on it... I still don't see room for a fender, let alone a fender and a 45 tire...



    Oh, well, forget about the derallieur here is a shot looking down the at the clearance between the 35 tire and the chainstays. about 1mm. I think something needs to go back to the frame builder. Like... the frame.



    and here is a close up, looking down at the chainstays and the inside edge of the rim. The chainstays clearly have to be reformed to provide enough clearance for a 45 tire, and lengthened to provide clearance between a 45 tire and the seat tube, to allow a fender and an XTR front derailleur clamp. 3 weeks until I depart. Is this enoughh time??

    Last edited by jbpence; 01-21-09 at 08:48 AM.
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  20. #20
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Here is the bike thus far. We talked to the builder, who by the way has been VERY responsive all along, and he agrees to turn the frame around as fast as he can. There is plenty of time. We are sending the frame and ALL the components to him tomorrow, so he will have all the parts, rebuild the rear of the frame, and even build the whole bike and ship it back in time for me to finish my planning and packing for China. I have a lot of time in China, so will do the shakedown cruise in and around Kunming before I leave for any tour.

    So Tomorrow (Tuesday), Mike and I will finish enough of the bike so we can dial in the fit, the reach, the seat height, etc. Wednesday, the airline case should arrive from S&S, and we'll to a breakdown and pack exercise, then the whole shebang jets off to Colorado and the builder gets busy. I must say, despite this snaffu, I am most impressed with how the three of us (me - Mike - owner of Aberdeen Bike in Chelsea Michigan and James of Black Sheep Bikes) are pulling together as a team.

    And the bike will be fit tomorrow (Tuesday), I dont expect any surprise there, and it will probably ride like a dream, and its already a work of art too. And three whole weeks to do it. piece of cake
    Last edited by jbpence; 01-21-09 at 08:50 AM.
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  21. #21
    cyclopath vik's Avatar
    Join Date
    Apr 2006
    Location
    Victoria, BC
    My Bikes
    Surly LHT, Surly Big Dummy, Surly 1x1, Surly Pugsley, Bike Friday Tikit x 3, Bike Friday NWT, Bow Cycle 24, Santa Cruz Nomad
    Posts
    5,197
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Quote Originally Posted by jbpence View Post
    So Tomorrow (Tuesday), Mike and I will finish enough of the bike so we can dial in the fit, the reach, the seat height, etc. Wednesday, the airline case should arrive from S&S, and we'll to a breakdown and pack exercise, then the whole shebang jets off to Colorado and the builder gets busy. I must say, despite this snaffu, I am most impressed with how the three of us (me - Mike - owner of Aberdeen Bike in Chelsea Michigan and James of Black Sheep Bikes) are pulling together as a team.
    I may have missed it, but what are you sending the frame back for?
    safe riding - Vik
    VikApproved

  22. #22
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    go three posts back and looks at picts 4, 6 and 7 - in 6 and 7 there is only 1 mm clearance between the chainstays and the size 35 tire. thats too little to allow for any side wheel flex at all, and a 45 tire is supposed to fit according to our spec (and it wont fit at all), and also the in pict 4 chainstays are too short for even a 35, cant get an XTR front derailleur clamp and the rear fender (not shown since there is zero clelarance already) between the seatpost and the tire.

    so the chainstays need to be formed - bent to allow tire clearance instead of straight the way they are now, and lengthened a couple of cm. maybe 3. we'll see. our wheelbase is already pretty short, (in the rear 430cm) ok to go out.
    Last edited by jbpence; 01-21-09 at 07:44 PM.
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  23. #23
    member
    Join Date
    Feb 2008
    Location
    Ontario, Canada
    My Bikes
    Cannondale T1000
    Posts
    133
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Thanks for posting the excellent photos. The bike's looking very cool indeed! Sorry to hear about the screw up with the stays though.
    You know, while they're fixing the frame, they might be able to braze-on a fourth set of water bottle bosses just above the down tube ones. There just might be some room. Or if isn't enough, the top boss of the existing two down tube bosses could be moved down towards the BB, then becoming the lower boss. (Does that make sense?) Maybe they'd do it free of charge, since they made a goof up. If there's time before your trip, why not?
    Last edited by thecrunge; 01-21-09 at 08:35 PM.

  24. #24
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    well, it turns out that the bottle mounts are much too low already. think about uncoupling the S&S couplers for shipping in the airline legal box. I'd like to be able to un-couple the S&S couplers without removing the bottle cage (on the lower seat tube), so those mounts are moving up the tube as part of the revisions. and note that there is pump peg, so an 'old school' pump will hang below the top tube. so there is no room for an additional bottle cage on the seat tube. three water bottle are plenty, considering I can carry water plenty of other places (back of the seat, on the back rack, in the extrawheel I am taking with me, etc.

    soon, pictures will be posted from the second day - wherein we finish the bike to the point that the seat position and stem length and fork tube length can be dialed in, and we ride the bike around Mikes new store (its 20 degrees outside here in Michigan) and break the bike down and pack it for shipping back to the frame builder
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

  25. #25
    Senior Member
    Join Date
    Sep 2006
    Location
    Taos, NM
    My Bikes
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    Posts
    552
    Mentioned
    0 Post(s)
    Tagged
    0 Thread(s)
    Day 1, part two, The stem, cassette, rear derailleur, and a large stack of spacers, many of these will get removed as we dial in the fit later.


    The wheels have arrived from a wheel builder, and we have installed the cassette


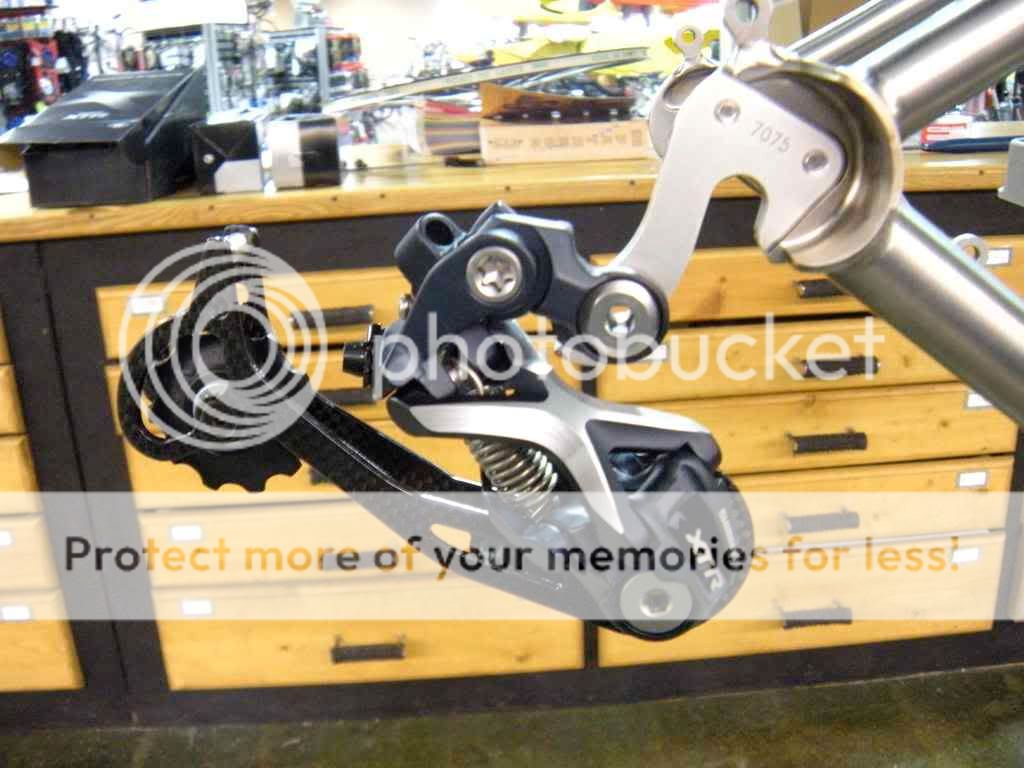

    The rear derailleur has been installed. Note the removable titanium dropout/der hanger. If it gets bent, I have spares
    2009 Custom TI Frame Road Bike, all 2007 Campy Record, Campy Euros Wheelset
    2009 Custom TI Frame touring Bike. S&S couplers, XTR Drivetrain. LOW granny.
    2009 Performance Bicycles TI (by Lynsky) road frame, 7900 DA, 7950 DA Compact Crank, Light Niobium Rim Wheels

Page 1 of 8 123 ... LastLast

Posting Permissions

  • You may not post new threads
  • You may not post replies
  • You may not post attachments
  • You may not edit your posts
  •
