Need Photos of WIRED PT installs

Old 04-19-07, 01:29 PM
  #1
bdcheung
Carpe Diem
Thread Starter

bdcheung's Avatar

Join Date: Sep 2006
Location: MABRA
Posts: 13,149

Bikes: 2007 CAAD9; 2014 CAADX; PedalForce CG1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Need Photos of WIRED PT installs

I need help finding pics of wired PowerTap installations. Trying to figure out how to run the wire from my sharkfin up to the handlebars. Right now it runs up the driveside seatstay, wraps around the rear brake cable a couple times as it travels up the top tube, then wraps around cable housing up to the stem.

Problem is, the part that wraps around the brake cable contacts the aluminum top tube on rough surfaces and makes a "pinging" sound. The sound is getting annoying.

I'm looking for alternative ways of running the wire.
__________________
"When you are chewing the bars at the business end of a 90 mile road race you really dont care what gear you have hanging from your bike so long as it works."
ΛΧΑ ΔΞ179 - 15% off your first Hammer Nutrition order!
bdcheung is offline
Old 04-19-07, 01:32 PM
  #2
zimbo
Senior Member

zimbo's Avatar

Join Date: Feb 2006
Location: North Carolina
Posts: 2,040
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Find some tape that matches the color of your frame and tape the cable to the bottom of your top tube.

--Steve
zimbo is offline
Old 04-19-07, 01:36 PM
  #3
El Diablo Rojo
Banned.

El Diablo Rojo's Avatar

Join Date: May 2006
Location: ATX, Ex So Cal
Posts: 11,058

Bikes: Ridley Noah-Scott Addict-Orbea Ordu

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I ran mine up the seat stay as you did. Then I zip tied the wire to the cable housing from the rear of the top tube to the brake. Then ran the wire under the top tube and used zip ties to secure it. I then rapped it around the rear brake cable housing from the top tube to the bars. I mounted the computer on the stem.
El Diablo Rojo is offline
Old 04-19-07, 01:38 PM
  #4
LowCel
Throw the stick!!!!

LowCel's Avatar

Join Date: Apr 2003
Location: Charleston, WV
Posts: 18,060

Bikes: GMC Denali

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
I have mine mounted on my chain stay then the wires (shark fin and cadence) go under my bottom bracket and under my downtube up to the headtube where I started looping it around one of the cables.

Not a detailed picture but you can kind of see the shark fin.

__________________
I may be fat but I'm slow enough to make up for it.
LowCel is offline
Old 04-19-07, 01:43 PM
  #5
DrPete
Dirt-riding heretic

DrPete's Avatar

Join Date: Aug 2005
Location: Gig Harbor, WA
Posts: 17,415

Bikes: Lynskey R230/Red, Blue Triad SL/Red, Cannondale Scalpel 3/X9

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
I used zip ties for the shark fin, then the clear strips of tape that came with the PT. The wire runs up the left seat stay, around the seat tube, and along the bottom left portion of the top tube, then coiled around the brake cable housing to get to the bars.

The cadence sensor is on the left chainstay, and runs up the bottom left part of the down tube, then coils around the FD shift cable housing.

The clear tape makes for a pretty slick install--having a triangular top tube where you can hide wires doesn't hurt either.

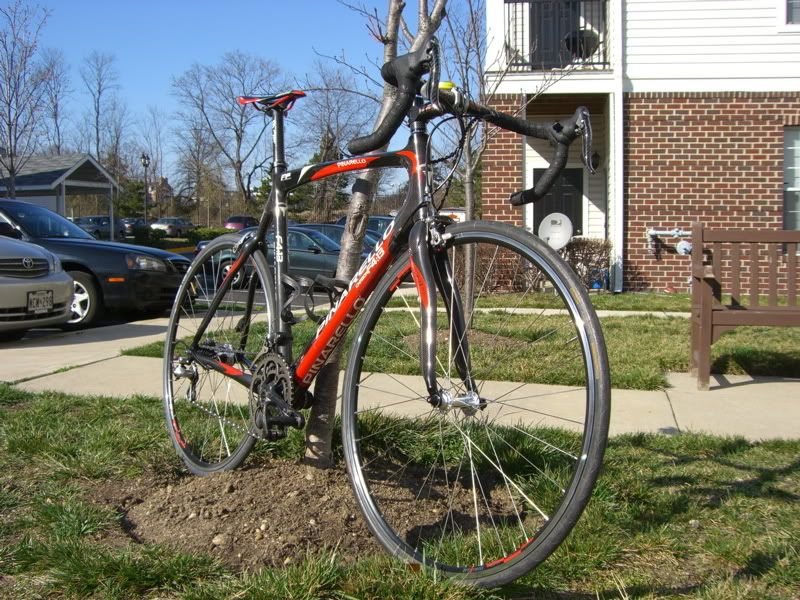

Here's a better shot for seeing the wires and which housings they're wrapped around. And you can just barely make out the cadence wire on the down tube--very important not to block that Pinarello logo.

__________________
"Unless he was racing there was no way he could match my speed."

Last edited by DrPete; 04-19-07 at 01:51 PM.
DrPete is offline
Old 04-19-07, 01:43 PM
  #6
pinky
Ink-Stained Wretch

pinky's Avatar

Join Date: Jun 2003
Location: Holyoke, MA
Posts: 1,731
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Pics are either on this forum or WW but from the stem: wrap around front brake housing, jump to the shift housing braze-on on the closer side (I run the cadence sensor to the other side) - be sure to leave little play in the wire, zip tie to the cable to the brake housing and the downtube, right before the shift housing brazes. Run the cable the length of the downtube using one or two of the clear tape bands you get and another zip tie at the base of the downtube/BB area. Run the cables loosely over the BB cable router and mount your sharkfin and then your cadence sensor (use the zip tie for the cable sensor to hold the other cable in place). Ends up being very clean.
pinky is offline
Old 04-19-07, 01:46 PM
  #7
LowCel
Throw the stick!!!!

LowCel's Avatar

Join Date: Apr 2003
Location: Charleston, WV
Posts: 18,060

Bikes: GMC Denali

Mentioned: 7 Post(s)
Tagged: 0 Thread(s)
Quoted: 90 Post(s)
The fin shows up a little better in this picture.

__________________
I may be fat but I'm slow enough to make up for it.
LowCel is offline
Old 04-19-07, 02:11 PM
  #8
bdcheung
Carpe Diem
Thread Starter

bdcheung's Avatar

Join Date: Sep 2006
Location: MABRA
Posts: 13,149

Bikes: 2007 CAAD9; 2014 CAADX; PedalForce CG1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Interesting... I'll have to try mounting the sharkfin to the chainstay. That seems like a better place on my CAAD9 anyways, since the seatstays run at odd angles and bends. Thanks for the pics, guys!
__________________
"When you are chewing the bars at the business end of a 90 mile road race you really dont care what gear you have hanging from your bike so long as it works."
ΛΧΑ ΔΞ179 - 15% off your first Hammer Nutrition order!
bdcheung is offline
Old 04-19-07, 02:53 PM
  #9
Lithuania
Oh The Huge Manatee

Lithuania's Avatar

Join Date: Feb 2006
Location: mabra
Posts: 4,528
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
one thing ive really learned these last few months of racing is that i dont care what my bike looks like anymore. i just zip tie away like crazy, dont care if the wheels dont match, etc
Lithuania is offline
Old 04-19-07, 02:59 PM
  #10
bdcheung
Carpe Diem
Thread Starter

bdcheung's Avatar

Join Date: Sep 2006
Location: MABRA
Posts: 13,149

Bikes: 2007 CAAD9; 2014 CAADX; PedalForce CG1

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 2 Post(s)
Originally Posted by riskus
one thing ive really learned these last few months of racing is that i dont care what my bike looks like anymore. i just zip tie away like crazy, dont care if the wheels dont match, etc
It's not the appearance I'm concerned about but the annoying dinging sound the wire makes when it vibrates against the top tube.
__________________
"When you are chewing the bars at the business end of a 90 mile road race you really dont care what gear you have hanging from your bike so long as it works."
ΛΧΑ ΔΞ179 - 15% off your first Hammer Nutrition order!
bdcheung is offline
Old 04-19-07, 03:00 PM
  #11
Lithuania
Oh The Huge Manatee

Lithuania's Avatar

Join Date: Feb 2006
Location: mabra
Posts: 4,528
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
i know, thats why i just use more zipties to keep the wire closer
Lithuania is offline
Old 04-19-07, 03:23 PM
  #12
Snicklefritz
Senior Member

Snicklefritz's Avatar

Join Date: Mar 2005
Location: In the middle of horse country, in The Garden State
Posts: 3,159
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Originally Posted by DrPete
I used zip ties for the shark fin, then the clear strips of tape that came with the PT. The wire runs up the left seat stay, around the seat tube, and along the bottom left portion of the top tube, then coiled around the brake cable housing to get to the bars.

The cadence sensor is on the left chainstay, and runs up the bottom left part of the down tube, then coils around the FD shift cable housing.

The clear tape makes for a pretty slick install--having a triangular top tube where you can hide wires doesn't hurt either.

thank you for not using the white garage door.
Snicklefritz is offline
Old 04-19-07, 03:26 PM
  #13
fly:yes/land:no
abandoning

fly:yes/land:no's Avatar

Join Date: Mar 2006
Posts: 2,068
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
whenever i installed these at the shop, i got frustrated. always with zipp ties though. much less frustrating then installing the polar power systems though.
fly:yes/land:no is offline
Old 04-19-07, 07:21 PM
  #14
Little Bill
Newbie

Join Date: Jul 2006
Posts: 2
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I did it a little different. I ran both the cadence and shark fin wire up to the top tube via the non-drive seat stay using zip ties. Once both wires were at the top tube I neatly taped them together to form a single strand, then used two well placed zip ties to hold it below the top tube all of the way to the headtube. At the headtube, the strand is loose (it looks like another rear brake cable) enough to move the bars, and then meets the PT mount. Any excess wire is hidden under the mount by circling the mount and wrapping it with one zip tie. It looks clean. Hope that helps.
Little Bill is offline
Old 04-19-07, 08:29 PM
  #15
nitropowered
Senior Member

Join Date: Dec 2004
Location: Athens, Ohio
Posts: 5,104

Bikes: Custom Custom Custom

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
I have mine wrapped around the seat stay, wrapped around the brake cable and brake housing and to the stem.

I'll be going to frame building school and may drill some holes in the tubing and run everything internally.
nitropowered is offline
