Trike Tandem

Hello all. I am looking for a solution to a unique problem.

I have a tadpole trike (a Catrike), I also have a wife who is afraid to ride a bike alone - she has balance issues - and more importantly, she has falling off the bike issues. I am thinking about buying her a multi-geared traditional (not tadpole) adult tricycle. When we are riding together, I would like to be able to remove her front tire and then connect her front fork to the single rear wheel bracket of my Catrike - resulting in the creation of a 5 wheeled high/low (me riding low in the front reclined position, and her riding high in the rear position) tandem we can enjoy together, but still have two "normal" trikes when we ride separated.

To accomplish this, I am looking for any hardware solution that will allow us to connect the traditional trike to the rear wheel (extended) axle of the Catrike.

I realize there will be some stress issues and other potential problems, but at this time I am just looking to give it a try. If anyone knows of any hardware that would help connect the trikes, I'd appreciate a heads-up.

Thanks
blktoptrvl is offline
Old 10-07-22, 08:07 AM
  #2
VegasTriker
Senior Member

Join Date: Feb 2006
Location: Sin City, Nevada
Posts: 2,732

Bikes: Catrike 700, Greenspeed GTO trike, , Linear LWB recumbent, Haluzak Horizon SWB recumbent, Balance 450 MTB, Cannondale SM800 Beast of the East

Mentioned: 18 Post(s)
Tagged: 0 Thread(s)
Quoted: 490 Post(s)
Likes: 0
Liked 188 Times in 146 Posts
Try one of the Catrike specific forums

You might do better asking on a Catrike forum. Just search on "Catrike forums". You will not find forum links at the Catrike company site. I think your idea is going to be pretty difficult to find answers to. You don't specify which Catrike model you own and that may be an important piece of information for anyone with a suggestion. I doubt the existence of a frame extender for Catrikes. If you do a photo search on "Catrike tandem" nothing at all shows up. You would also need a granny trike with the front wheel height the same as the height of your rear wheel.
VegasTriker is offline
Old 10-09-22, 01:03 PM
  #3
rickpaulos
Full Member

Join Date: Aug 2007
Location: middle of the Great Corn Desert
Posts: 335
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 73 Times in 49 Posts
I just received a jury rigged trailer for doing just that. The front wheel of the following trike is removed, the fork ends clamp into one of those pick up truck style fork mounts that was bolted to a 2 wheel trailer (no cabin/box, just a frame) with a hitch that connects to the lead trike or bike. so 7 wheels on the ground.
rickpaulos is offline
Old 10-12-22, 06:47 PM
  #4
rickpaulos
Full Member

Join Date: Aug 2007
Location: middle of the Great Corn Desert
Posts: 335
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 88 Post(s)
Liked 73 Times in 49 Posts
Photos. Note the fork bracket was attached to plumbing strapping because the bolt holes didn't line up. I had removed the fork bracket before and just put it on hand tight for the photos.

Made using parts from at least 2 or maybe 3 trailers.




rickpaulos is offline
Old 10-21-22, 11:01 AM
  #5
Leisesturm
Senior Member

Join Date: Jul 2005
Posts: 5,258
Mentioned: 24 Post(s)
Tagged: 0 Thread(s)
Quoted: 2001 Post(s)
Liked 447 Times in 324 Posts
Eef. Seven wheels (two of them pretty dodgy) on the ground? That cannot be considered an elegant solution by any justification. Plus, with only one mounting bolt engaged there is only friction keeping the axle clamp aligned with the main pulling forces. Back to the drawing board. As for the o.p., since the 2nd trike isn't purchased yet, why an adult (upright) trike? The handling dynamics of an upright trike are vastly different from those of a Delta. Guaranteed you will pull her into a corner too fast one day and roll both of you over. You think she was afraid to ride alone before? Now she will be afraid to ride with you as well. Have you tried pricing a (used) tandem tadpole? For both posters: I seem to recall some kind of hitch that mounted to a plate attached to the top of a rear rack (that attaches in the usual way). I think it went to one of those kidback things. Whatever it went to wouldn't matter, you would cut the main boom somewhere around the height of the axle of the trailing trike (Delta!) and the axle clamp can be connected to that tubing (~2") with those threaded 'U' bolts that hold pipes to walls and such.

Last edited by Leisesturm; 10-21-22 at 01:31 PM.
Leisesturm is offline
Old 10-21-22, 11:26 AM
  #6
fooferdoggie
Senior Member

Join Date: Jan 2020
Posts: 1,787
Mentioned: 2 Post(s)
Tagged: 0 Thread(s)
Quoted: 505 Post(s)
Liked 645 Times in 389 Posts
I would just invest in the right tool for the job to be safe and effective.
https://hostelshoppe.com/collections...MaAv-vEALw_wcB
fooferdoggie is offline
Old 10-25-22, 01:49 PM
  #7
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 13,218

Bikes: Stormchaser, Paramount, Timberjack, Expert TG, Samba tandem

Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 2889 Post(s)
Liked 1,750 Times in 1,148 Posts
Anything you come up with is going to be a sequence of bodges so hope she is patient and willing.

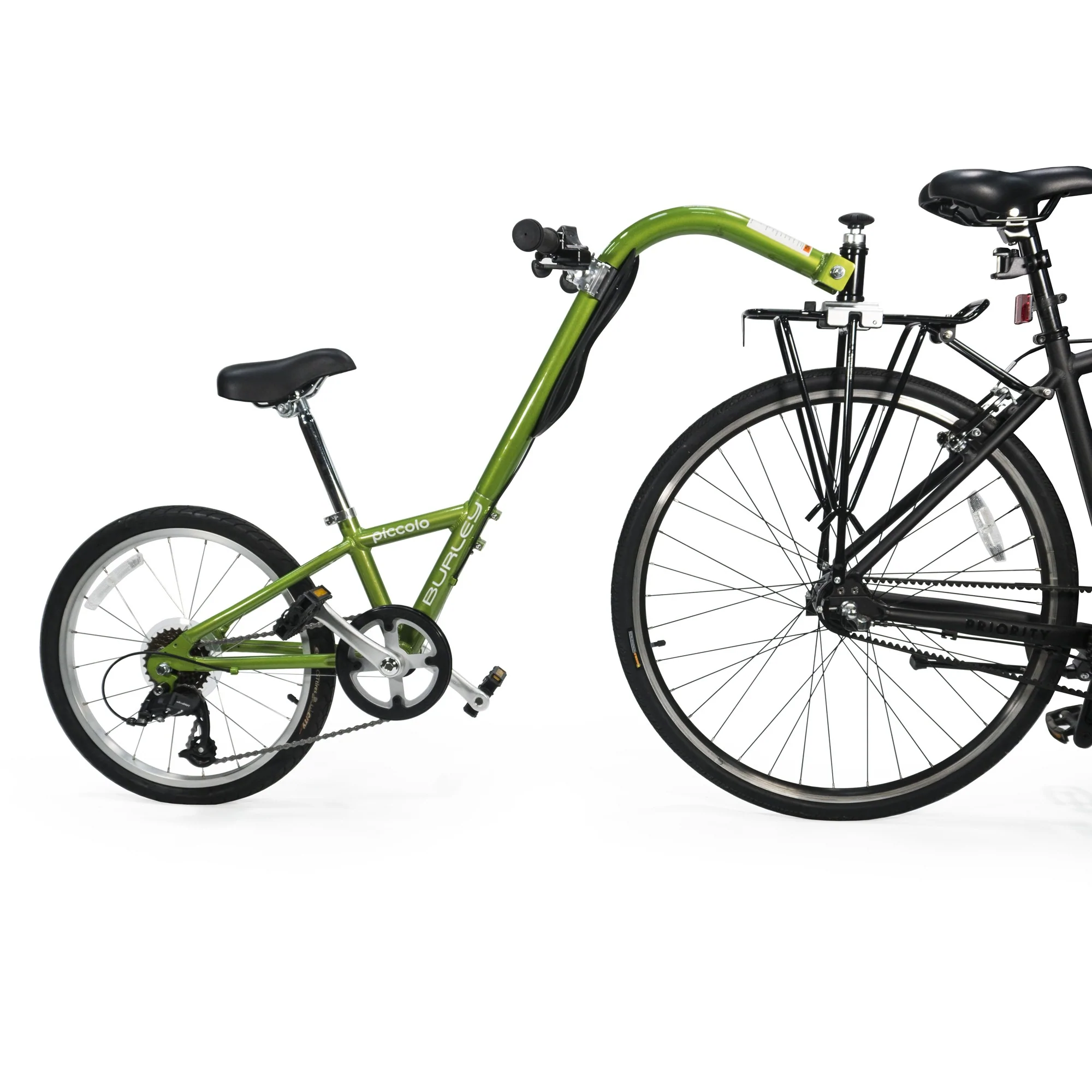

My first thought might be to start from a Burley Piccolo or Kazoo, trail-a-bikes that attach to a sturdy standard rack instead of a seat post. But this would only be a point of departure because they are kid-sized. Then get a fabricator to chop the front off a Trek Verve or similar and hook it up.


__________________
Genesis 49:16-17
Darth Lefty is offline
Old 10-25-22, 02:01 PM
  #8
Darth Lefty
Disco Infiltrator

Darth Lefty's Avatar

Join Date: May 2013
Location: Folsom CA
Posts: 13,218

Bikes: Stormchaser, Paramount, Timberjack, Expert TG, Samba tandem

Mentioned: 69 Post(s)
Tagged: 0 Thread(s)
Quoted: 2889 Post(s)
Liked 1,750 Times in 1,148 Posts
Second idea... don't give up on a tadpole. The front boom of a tadpole is a really simple part that a welder could easily make up a hitch version. You could also maybe make something that attaches to the mast for the front derailleur. And she's far less likely to capsize you than being up high on a granny trike.

Surly makes a hitch for their trailers that I just cannot figure out from photos. But it seems like you could use it for this.
__________________
Genesis 49:16-17
