New Fixed Gear (Newfix)

It will refer to the theoretically achievable performance option according to the table:

The cross shows that there will be no leader with a motor and a protective screen, but there will be a bicycle of a similar design, only with a muscular drive. Consider the fix that was taken for the prototype of Newfix.
The most important thing about this bike is that its transmission is equipped with an intermediate shaft.
On this bike, the American Denis Muller-Korenek set a world speed record of 295.6 km / h.
It is known that a dragster with a protective screen accelerated Denis to 241.402 km / h, and then she pedaled herself up to the speed record.
The wheels of the bike were 17 ”, with an outer diameter of approximately 510 mm.
In one revolution, the wheel travels a path of 510x3.14 = 1.6m.
Transfer on the intermediate shaft 60T / 12t = 5.
Transfer from the intermediate shaft to the carriage shaft 60T / 12t = 5.
The total gear ratio is 5x5 = 25.
We calculate the distance for one pedal rotation 1.6x25 = 40m.
Let's calculate the maximum cadence Denis Müller-Korenek 295.6 / (40x0.06) = 123.17 rpm.
Cadence on a bicycle accelerated by a dragster to a speed of 241.402 km / h:
241.402 / (40x0.06) = 100.6 rpm.
Thus, with the already pumped kinetic energy (with the help of a dragster), Denis twisted and increased the cadence from 100.6 rpm to 123.17 rpm.
I will not expand on the synchronism of entering and exiting the protective screen with the driver of the dragster (also a woman), about all the speed modes is written in many articles.

Now look what I invented: from the Denis Müller-Korenek bicycle gear (or a similar gear from the beaten record holder Fred Rompelberg) I took the idea of ​​the intermediate shaft. And I equipped this intermediate shaft with an additional pair of pedals:
This is how Newfix turned out.
Everything is very simple and elegant.
Simplicity is what is most difficult in the world, it is the ultimate limit of experience and the last effort of a genius.
Georges Sand

And this is the specification of a fix, adjusted personally for me, 100 kg of a 58-year-old suffocator:

A copy of this picture is notarized as the stage of the birth of Newfix. Now, when assembling Newfix, there will be small changes, not like in the VO drawing. For example: the fork will not be carbon, but aluminum, the star of the power transmission is 48T instead of 46T, the cranks are 170mm on all systems, matched to the even chenline: front L = 107mm and rear L = 112mm carriages. Why 53T star and 22t high speed transmission? This is a 2.4 gearbox, and there are no standard systems with fewer teeth than 22t on sale. It was possible to make homemade ones with fewer teeth, but I didn't want to.
And now I will give the ideal speed characteristics of Newfix, naturally, without taking into account aerodynamic drag. Who wants to, blow the Newfix in the pipe, calculate the drag coefficients in quadrature, I don't want to.
Measured actual wheel circumference L = 26 ”(35-559) = 2m.
Gear P1 = 48T / 17T = 2.824.
Gear P2 = 53T / 22T = 2.409.
The total gear ratio is 2.824x2.409 = 6.8.
For one revolution of the high-speed transmission pedals, the wheel travel will be 2x6.8 = 13.6m.
I am suffocated, I can only rotate the cadence up to 120 rpm.
The maximum speed in the first low gear of Newfix (this is the usual fix in Newfix) with this cadence will be: 120x2x2.824x0.06 = 40.666 km / h.
It is up to this speed that Newfix will accelerate when the legs start to break off the lower gear pedals of the fix.
At this moment, the legs are thrown to a high pitch.
This will be 40.666 / (13.6x0.06) = 49.8 rpm.
From such a cadence, you should turn it in the overclocked gear 6.8, and not turn it from scratch in the sweat of your brow.None of the suffocated people have ever driven such gears, even though they were overclocked.
Therefore, practice will show the possibility of crushing me, dystrophic, 6.8 gears, that is, where it will be possible - flat, gentle hills or steep.
Well, and the hypothetical theoretical maximum speed of the chiffonier Newfix without taking into account air resistance at 120 rpm cadence: 120x13.6x0.06 = 97.9 km / h.
By the way, 26 "gears for overclocking will be easier than similar fixed 28" gears, so this will be a small head start for the wardrobe.

Pilot model:
When running in, I found the chain overtension.
But even with overload at a distance of 10.6 km: average speed 22.2 km / h; maximum speed 47.5 km / h; climb 96 m.
When the chain is released, I think that the speed indicators will be higher.

New transmission patent:

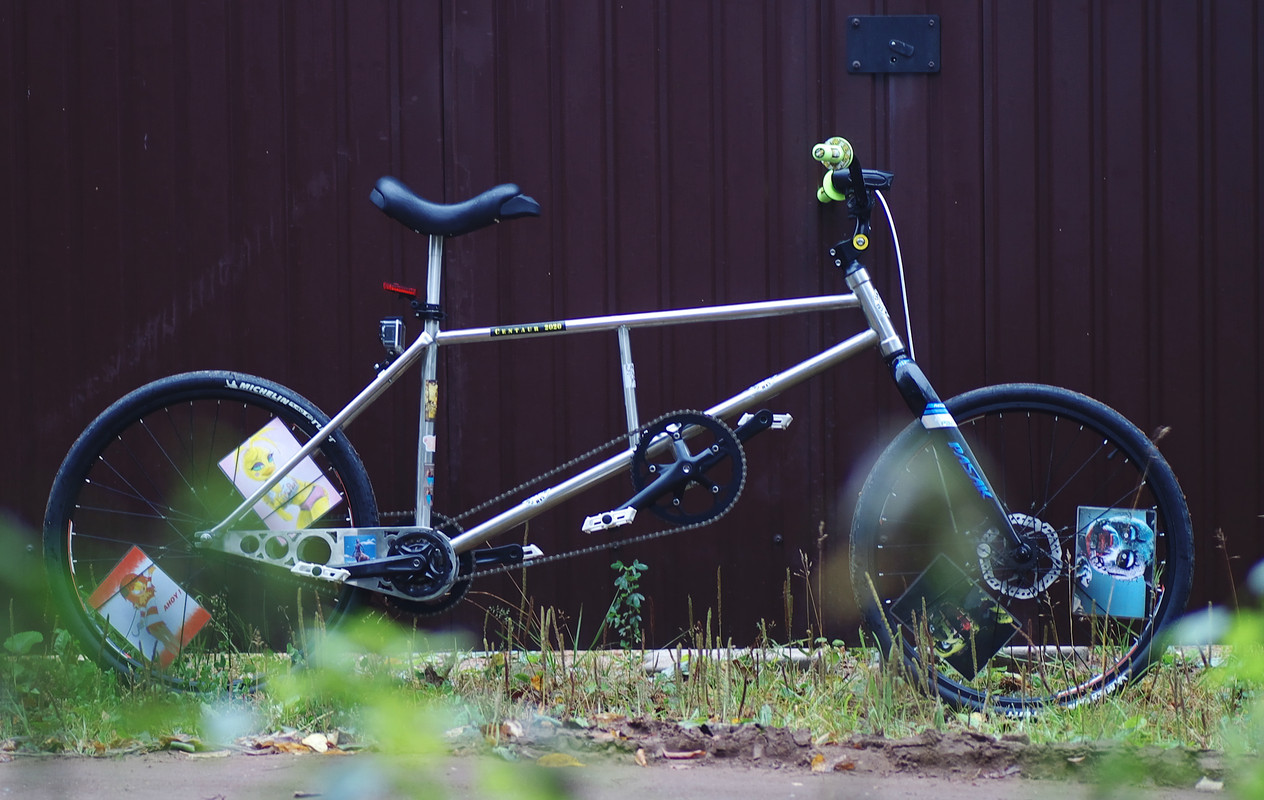

Frame material Stainless Steel AISI 304. Total weight of the bike 17.5 kg.
09-03-20, 01:37 PM
#2
y0x8
Ups!

Join Date: Sep 2020
Location: Kirovo-Chepetsk
Posts: 235

Bikes: SE, Polo&Bike, Forward Indie, New Fixed Gear

Mentioned: 0 Post(s)
Quoted: 47 Post(s)
Liked 161 Times in 78 Posts
First ride on Newfix. The mistake was to put the stem in the opposite direction (Tiller) - so I wobble along the road. The maximum speed is 44 km / h. Now everything has been fixed - the stem looks forward and the bike does not wobble.
09-03-20, 01:47 PM
#3
y0x8
Ups!

Join Date: Sep 2020
Location: Kirovo-Chepetsk
Posts: 235

Bikes: SE, Polo&Bike, Forward Indie, New Fixed Gear

Mentioned: 0 Post(s)
Quoted: 47 Post(s)
Liked 161 Times in 78 Posts
Second exit to Newfix. Turned the removal forward, the handling is excellent. At a distance of 11 km, the average speed is 22.2 km / h, the maximum is 47.5 km / h, and the climb is 96 meters. This is better than all the indicators of my three fixed gear I drove. At the same time, I found a very tight chain. I added two chain links, but I haven't skated yet. I think that the course will be very easy, and the speed indicators will improve.

Video in in real time:

09-04-20, 12:26 AM
#4
y0x8
Ups!

Join Date: Sep 2020
Location: Kirovo-Chepetsk
Posts: 235

Bikes: SE, Polo&Bike, Forward Indie, New Fixed Gear

Mentioned: 0 Post(s)
Quoted: 47 Post(s)
Liked 161 Times in 78 Posts
The third stage: work on the weight of 17.5 kg towards its reduction. A stainless steel pilot project was built to demonstrate the capabilities of the new transmission. For practical use, the bike should be made of titanium with carbon tube inserts:
09-04-20, 12:36 AM
#5
y0x8
Ups!

Join Date: Sep 2020
Location: Kirovo-Chepetsk
Posts: 235

Bikes: SE, Polo&Bike, Forward Indie, New Fixed Gear

Mentioned: 0 Post(s)
Quoted: 47 Post(s)
Liked 161 Times in 78 Posts
Stage four: working on the transmission. After installing large 60T front stars, the total gear ratio rises to 9.6. In theory, this is 2x120x9.6x0.06 = 138 km / h (85.8 mph).
09-04-20, 12:46 AM
#6
y0x8
Ups!

Join Date: Sep 2020
Location: Kirovo-Chepetsk
Posts: 235

Bikes: SE, Polo&Bike, Forward Indie, New Fixed Gear

Mentioned: 0 Post(s)
Quoted: 47 Post(s)
Liked 161 Times in 78 Posts
Stage five: reaching the theoretical maximum speed threshold of 100 mph. It requires making a homemade pedal system with a chainring power transmission of less than 22t. The highest gear ratio reaches 12. It looks like this: 2x120x12x0.06 = 172.8 kph (107.4 mph).
09-04-20, 01:06 AM
#7
y0x8
Ups!

Join Date: Sep 2020
Location: Kirovo-Chepetsk
Posts: 235

Bikes: SE, Polo&Bike, Forward Indie, New Fixed Gear

Mentioned: 0 Post(s)
Quoted: 47 Post(s)
Liked 161 Times in 78 Posts

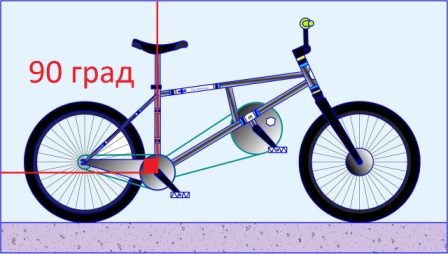

I have my own opinion (IMXO) on the perpendicularity of the seat tube. This position is advantageous in terms of power pedaling.
