carrier bicycle problem, help needed

Notices
Alt Bike Culture Chopped, dropped, stretched, lifted, and otherwise cut up and put back together. The art and science of choppers, cruisers, lowriders and the vast world of mutant bicycles.

carrier bicycle problem, help needed

Old 09-22-22, 01:53 PM
  #1
kirovecbiker
Newbie
Thread Starter

Join Date: Sep 2022
Posts: 2
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 0 Post(s)
Likes: 0
Liked 1 Time in 1 Post
carrier bicycle problem, help needed

so i built this creation, it has rear end of a bicycle and front end is carrier kinda thing, pretty usable for transportation of lightweight things and so, but i have one problem, whenever i ride it it is very hard to steer, wheels are adjusted for toe in and out good and it lifts front wheel in corner like it wants to roll over, also when its stopped it will sort of collapse at extreme steering angles, if i fixed these things its gonna be really good carrier thing, looking forward to replies and advices, also hi im new around here and it doesnt let me to upload a photo
kirovecbiker is offline
Old 09-22-22, 02:01 PM
  #2
cb400bill
Forum Moderator

cb400bill's Avatar

Join Date: Jul 2007
Location: Kalamazoo MI
Posts: 20,621

Bikes: Fuji SL2.1 Carbon Di2 Cannondale Synapse Alloy 4 Trek Checkpoint ALR gravel Viscount Aerospace Pro Colnago Classic Rabobank

Mentioned: 55 Post(s)
Tagged: 0 Thread(s)
Quoted: 2809 Post(s)
Liked 4,895 Times in 2,900 Posts
Pic Assist - https://www.bikeforums.net/g/picture/26502715

__________________
Originally Posted by Retro Grouch View Post
Fenders protect you from tire splatter. Mudguards protect you from tyre splatter.







cb400bill is offline
Old 09-23-22, 05:46 PM
  #3
Velo Mule
Senior Member

Velo Mule's Avatar

Join Date: Dec 2016
Location: Long Island, NY
Posts: 1,709

Bikes: Trek 800 x 2, Schwinn Heavy Duti, Schwinn Traveler, Schwinn Le Tour Luxe, Schwinn Continental, Cannondale M400 and Lambert, Schwinn Super Sport

Mentioned: 8 Post(s)
Tagged: 0 Thread(s)
Quoted: 628 Post(s)
Liked 637 Times in 453 Posts

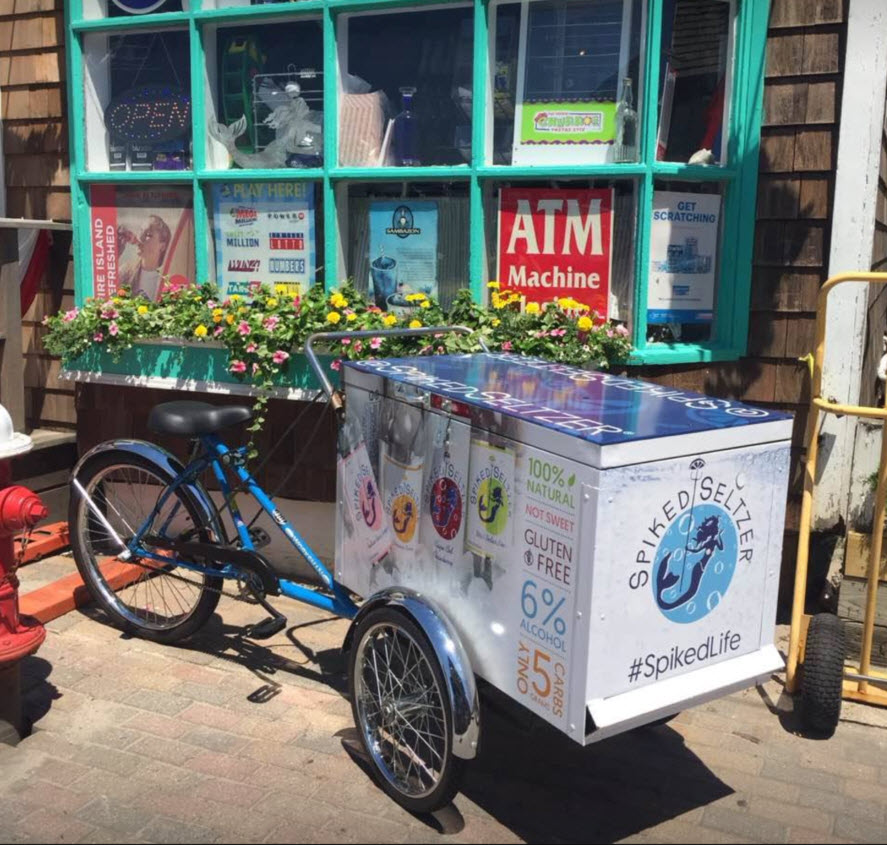

Cycling with cargo is problem. Your solution is similar in some ways to some existing designs, but it differs in the bike's geometry. The steering axis is the centerline of the fork. The wheels look to be too far in front of the steering axis. Your bike reminds me of the Worksman Front Loader.


This picture is from Worksman's website.

With this style of bike the steering axis is under the cargo box close to the wheel centerline. The whole cargo box is part of the steerable front similar to your bike. I don't know if Worksman places the steering axis right in line with the wheels or slightly in front of the wheels. If I were to guess, I would think that the steering axis would be an inch or so in front of the wheel center line.

It looks like you welded your bike together. If so, you have the skills to make the modifications to make it similar to the bike shown above. That will solve your steering issues.

Keep the pictures coming @kirovecbiker as you continue to work on this bike. This looks interesting.
Velo Mule is offline
Old 09-25-22, 08:36 AM
  #4
GeezyRider
Full Member

GeezyRider's Avatar

Join Date: Aug 2015
Location: Delaware Sea Shore
Posts: 401

Bikes: There is always room for one more.

Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
Quoted: 126 Post(s)
Liked 244 Times in 149 Posts
Can't tell for sure from the picture but it looks when turning you may not be allowing the inside wheel to turn sharper than the outside wheel (i.e., ackermann compensation). Maybe you've done that and I just can't see it under the front cross member.

EDIT: This video (starting at about 2 minutes in) gives a very simple explanation of ackerman geometry and why it is important:
__________________
Don

Last edited by GeezyRider; 09-25-22 at 09:41 AM. Reason: add additional information
GeezyRider is offline
Old 09-26-22, 12:51 PM
  #5
bktourer1
Senior Member

bktourer1's Avatar

Join Date: Dec 2007
Location: Western Ma.
Posts: 910

Bikes: Diamondback "parkway" Spec. "expedition

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 36 Post(s)
Likes: 0
Liked 25 Times in 22 Posts
Good Humor Ice Cream once had bikes like that. Guy pedaled and had bells he rung
bktourer1 is offline
