Prepping carbon frame. Epoxy necessary?

Notices
Bicycle Mechanics Broken bottom bracket? Tacoed wheel? If you're having problems with your bicycle, or just need help fixing a flat, drop in here for the latest on bicycle mechanics & bicycle maintenance.

Prepping carbon frame. Epoxy necessary?

Old 05-14-16, 03:27 PM
  #1
pressed001
glorified 5954
Thread Starter

pressed001's Avatar

Join Date: Dec 2014
Location: Zurich, Switzerland
Posts: 727
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 26 Times in 18 Posts
Prepping carbon frame. Epoxy necessary?

Hello,

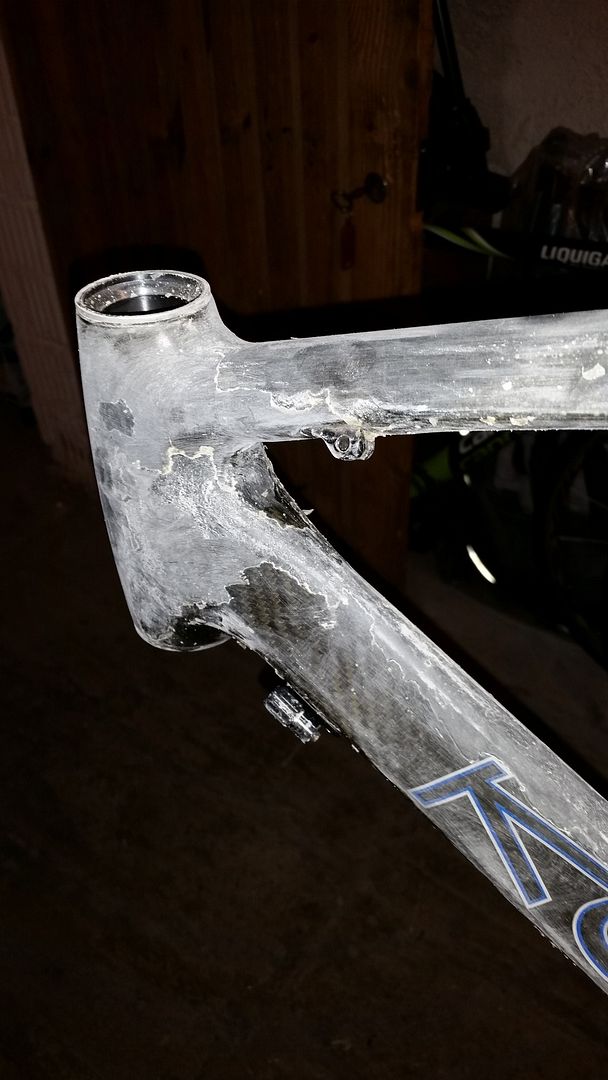

I picked up a Kuota Kredo for a deal because the clear coat was literally falling off. If you ask me, that is what you get for storing your $6000 bike outside for 7 years.... Doh! So anyway. I got it for a deal and am prepping the frame to be painted. I have sanded most of the clear coat off and in some areas I am down to the carbon (just a couple small areas). In this case, can I just prime and paint over the carbon or is a layer of epoxy necessary between paint and carbon?

Tomorrow I will finish the sanding with 300 then 600 grit paper. Today I only made it to the 250 grit.

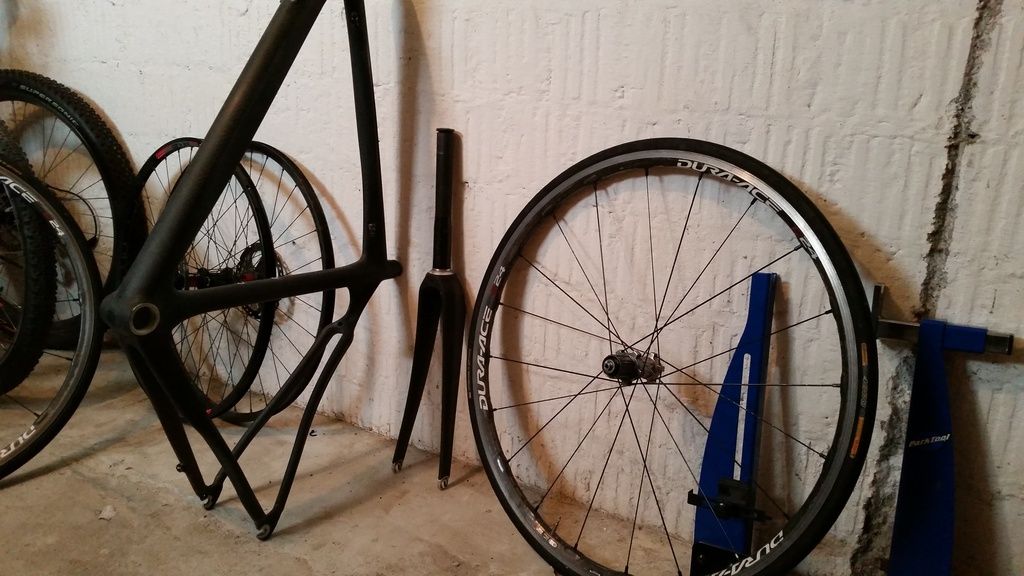

Build photos will be updated as it progresses and can be seen here.







And that is a typical swiss basement BTW.

Paint will be a very nice orange and will also be applied to the stem/handlebar/seat post/and the dura ace c24 rims (all of which have clear coat failing):

Last edited by pressed001; 05-15-16 at 08:46 AM.
pressed001 is offline
Old 05-14-16, 03:42 PM
  #2
dksix
Senior Member

dksix's Avatar

Join Date: Jul 2015
Location: North East Tennessee
Posts: 1,620

Bikes: Basso Luguna, Fuji Nevada

Mentioned: 12 Post(s)
Tagged: 0 Thread(s)
Quoted: 4261 Post(s)
Likes: 0
Liked 4 Times in 1 Post
I'm not sure about the epoxy but do feel it's better to stop at about 220 grit for surface prep, paint needs something to adhere to and 600 grit leaves the surface awfully slick.
dksix is offline
Old 05-14-16, 03:53 PM
  #3
fietsbob
Banned

Join Date: Jun 2010
Location: NW,Oregon Coast
Posts: 43,599

Bikes: 8

Mentioned: 197 Post(s)
Tagged: 0 Thread(s)
Quoted: 7607 Post(s)
Liked 1,310 Times in 823 Posts
Typically a Gel Coat is sprayed into the mold 2nd, after the Mold release, then the Cloth laid on top..

was that done in a wet Layup or Pre Preg?
fietsbob is offline
Old 05-15-16, 03:06 AM
  #4
clydeosaur
Senior Member

clydeosaur's Avatar

Join Date: Aug 2009
Location: Central PA
Posts: 629

Bikes: Cannondale Six5, Specialized Stumpjumper FSR & old Hard Rock

Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Quoted: 1 Post(s)
Likes: 0
Liked 0 Times in 0 Posts
I'm not sure about the epoxy but do feel it's better to stop at about 220 grit for surface prep, paint needs something to adhere to and 600 grit leaves the surface awfully slick.
Surfaces prep for paint / clear (if my memory serves me correct) stops @ 400 when shooting base/clear urethane. That should be enough tooth, yet a smooth base. If you stop @ 250, you will see sanding marks through the clear.
clydeosaur is offline
Old 05-15-16, 08:05 AM
  #5
pressed001
glorified 5954
Thread Starter

pressed001's Avatar

Join Date: Dec 2014
Location: Zurich, Switzerland
Posts: 727
Mentioned: 3 Post(s)
Tagged: 0 Thread(s)
Quoted: 111 Post(s)
Liked 26 Times in 18 Posts
I felt the same after finishing today with the 240 grit. The carbon looks pretty smooth yet with enough of a surface for paint to adhere well to. I will however look further into this as it seems to be a point of concern. I will not be doing clear coat only which I think will make the 240 ok. Plan is for a layer of primer, at least one layer of color, then one of clear. I am not sure and will have to ask the paint shop once I find one.

I have decided against painting the rims the same orange. Instead I thought it would be very cool to get the dura ace hubs orange anodized to match the frame color. Is this even possible (after disassembly of course)? I plan on removing the cable holders from the frame by drilling the rivets and having them black anodized. They look rough now after my sanding job and I don't want them painted over.

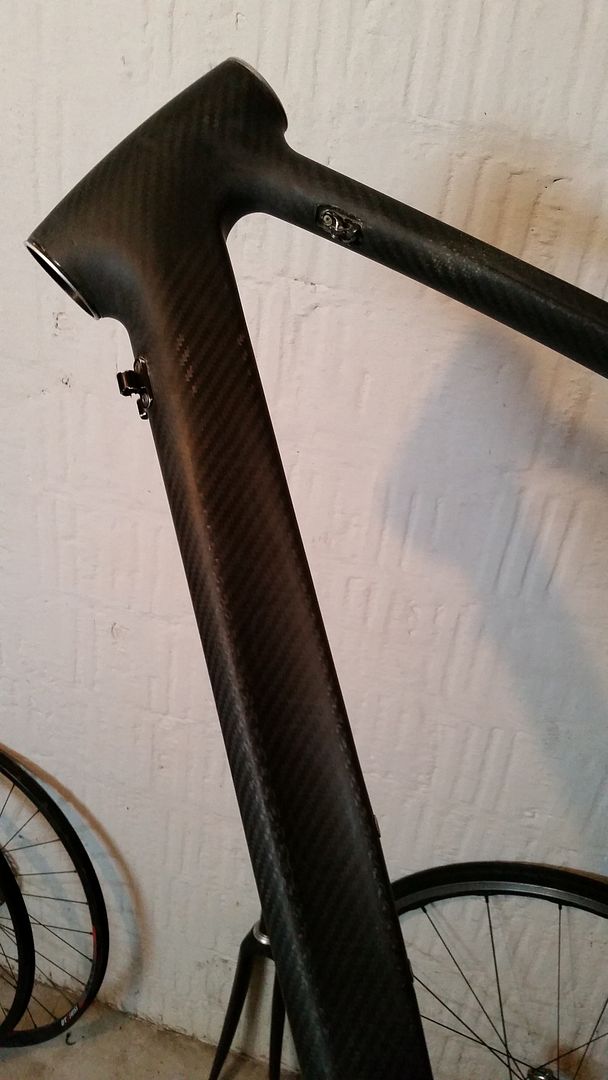

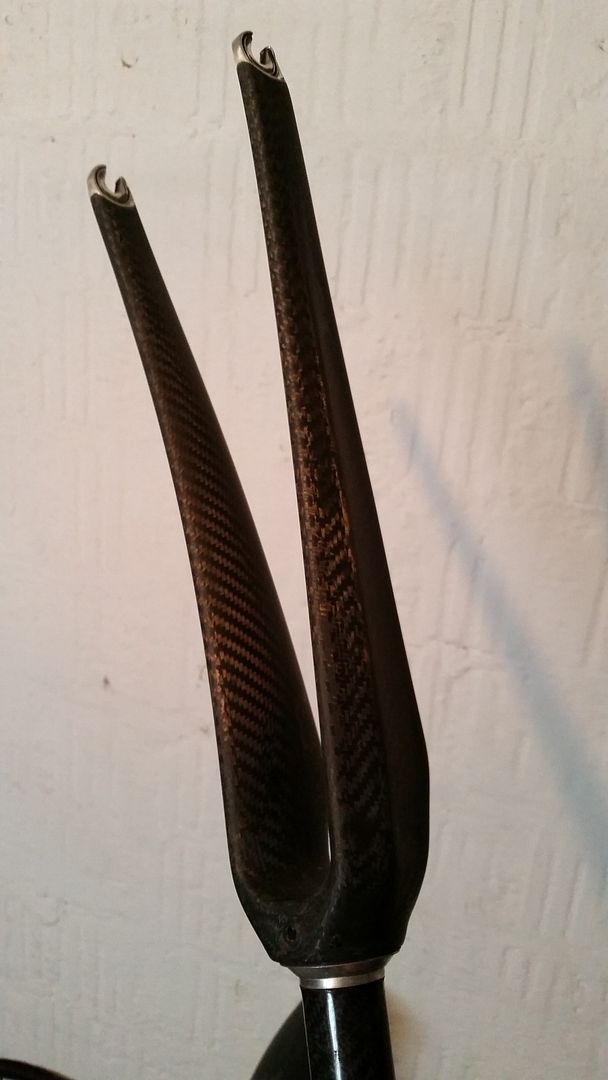

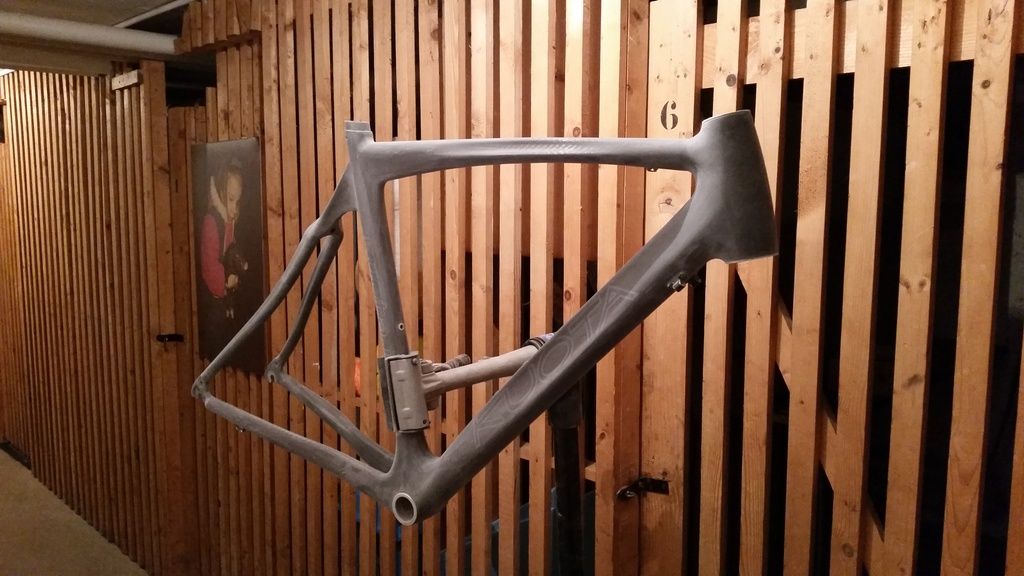

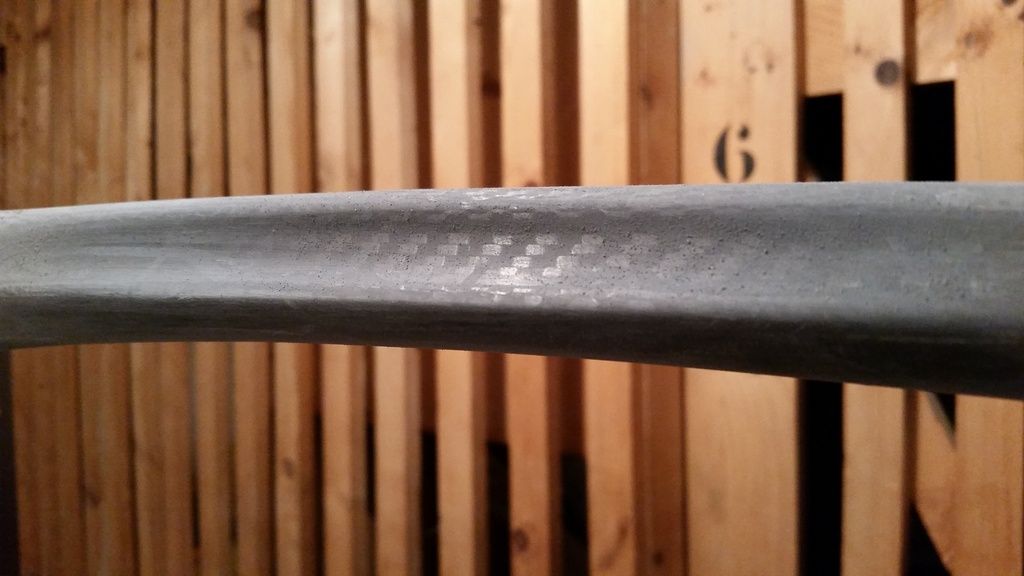

So here we are today:







Fietsbob, I don't know how Kuota made the frame but thanks for the input!
pressed001 is offline
